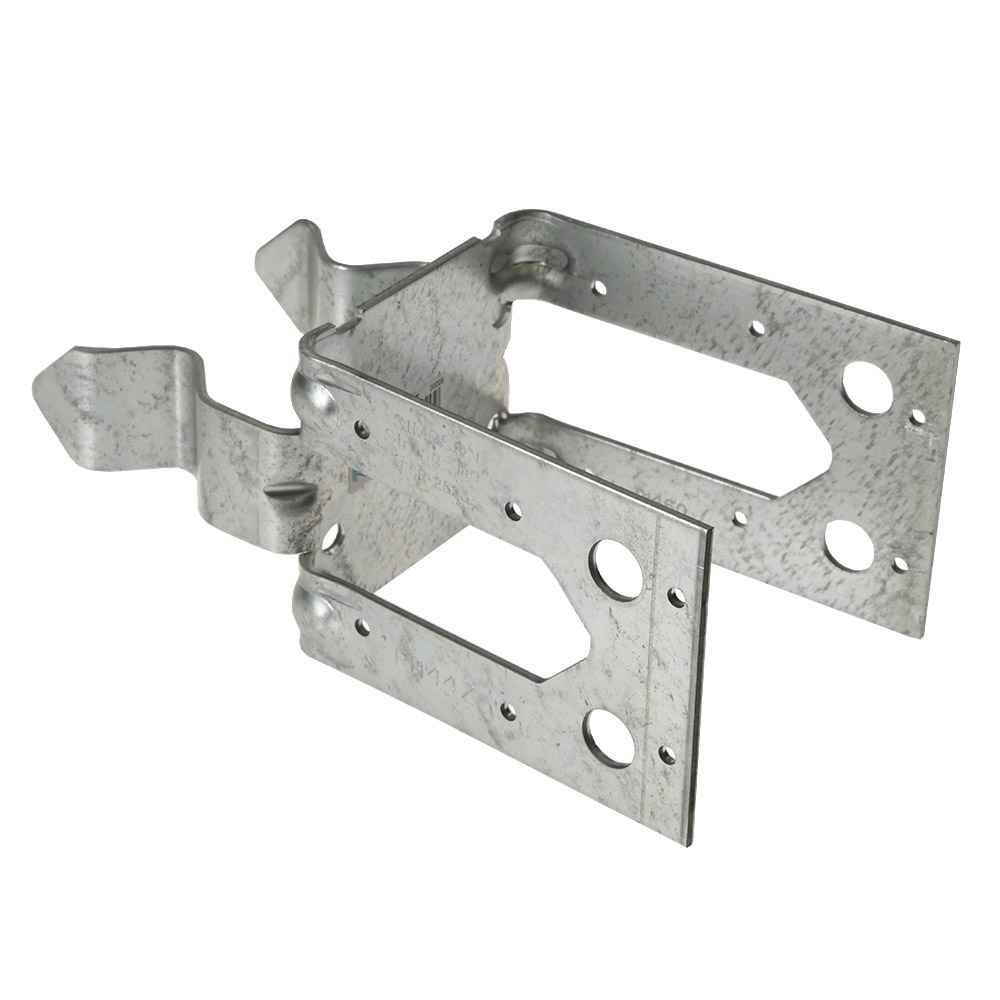

Simpson PB44R 4x4 Rough Post Base - G90 Galvanized
Simpson PB44R 4x4 Rough Post Base - G90 Galvanized
Description:
Description:
Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common).
The Simpson PB44R 4x4 Rough Post Base - G90 Galvanized enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this post base is designed to be cast-in-place in concrete and provide a secure connection to the concrete.
This product is intended for use with Rough Cut 4x4 posts or columns but is also available for other post and column sizes.
Features:
- Connection Type: Designed to be cast-in-place in concrete and provide a secure connection between a post.
- Lumber Size: Intended for use with Rough Cut 4x4 posts/columns.
- Material and Finish: Made from Steel for durability and finished with G90 Galvanized coating.
California Residents: WARNING
Specifications:
Specifications:
Post Size: Rough Cut 4x4
Fasteners required: (12) 0.162" x 3-1/2" Nails
Finish: G90 Galvanized
Length: 4-1/8"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).

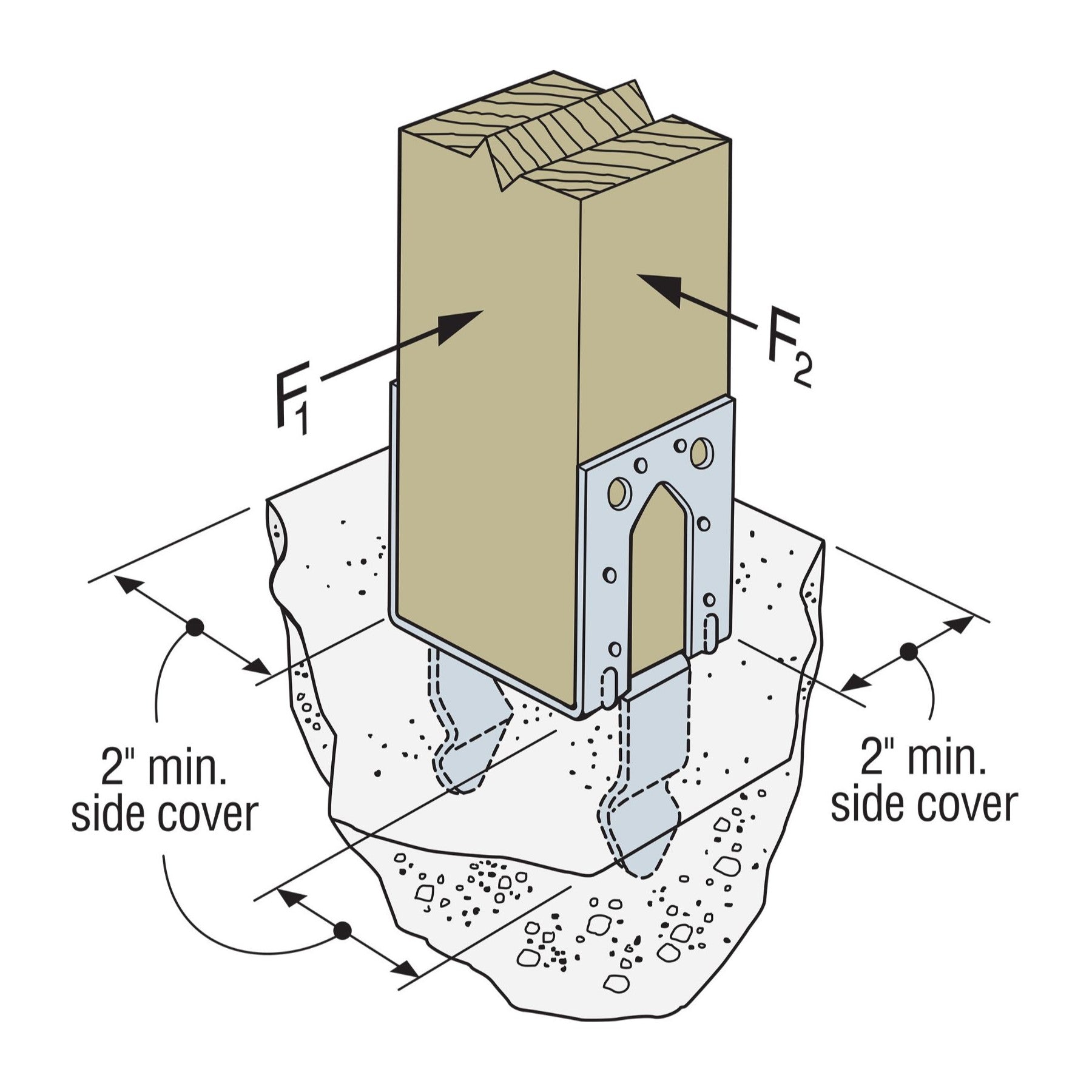

-PB: Holes are provided for installation with either 16d commons or 1/2" bolts for PB66 and PB66R; all other models use 16d commons only. A 2" minimum sidecover is required to obtain the full load.
