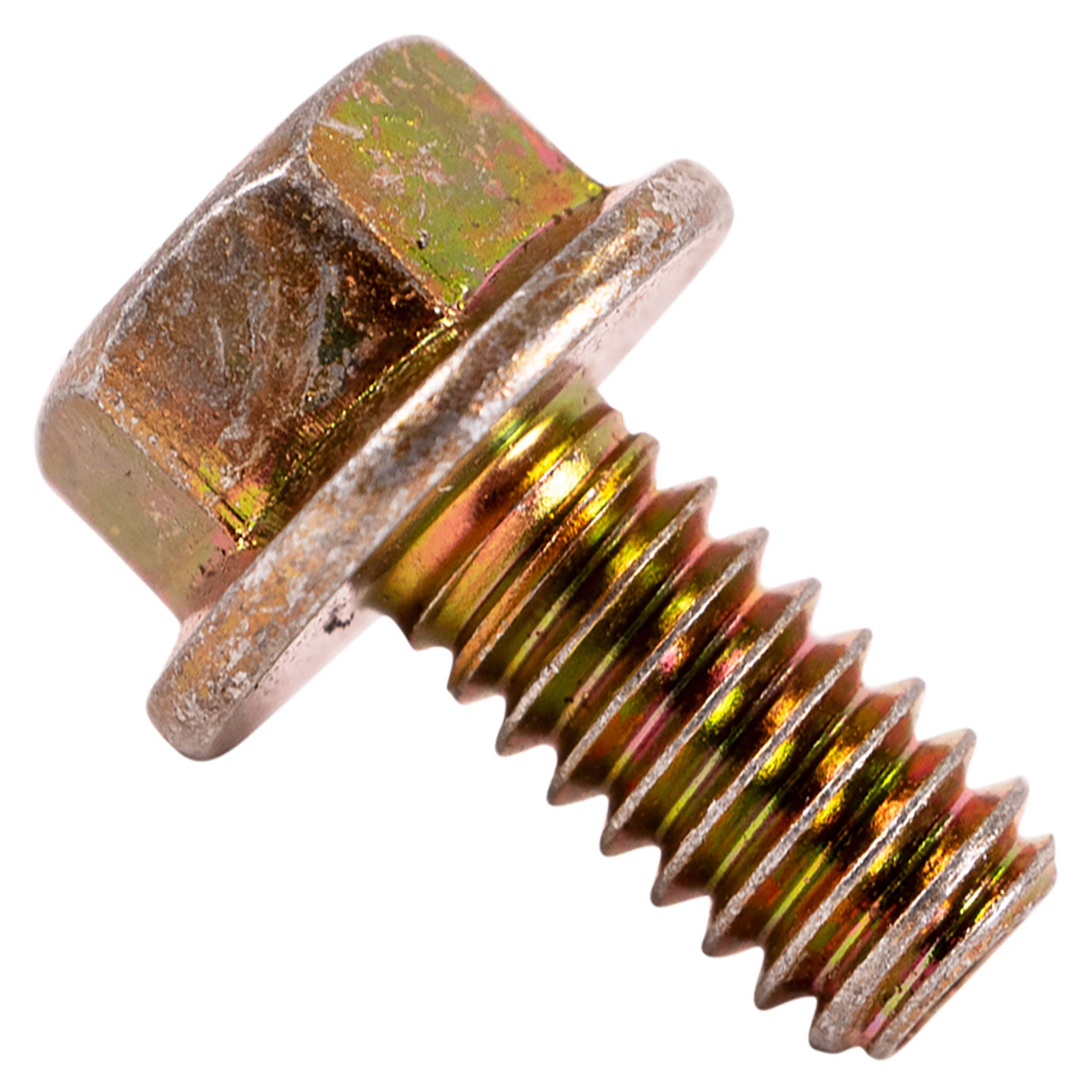

1/4"-20 x 1/2" Conquest Grade 8 Non-Serrated Flange Bolt - Zinc Yellow
1/4"-20 x 1/2" Conquest Grade 8 Non-Serrated Flange Bolt - Zinc Yellow
No reviews
Regular price
$0.17
Sale price
$0.17
Regular price
Unit price
/
per
0% off
Payment methods
Accepted payments:
Ships May 20 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.
Description:
Description:
Conquest Grade 8 flange bolts are made from strong alloy steel and are designed with a flange under the head that distributes the load, similar to a washer. This design eliminates the need for extra lock nuts or washers. These SAE J429 certified flange fasteners, also known as frame bolts, are built to handle heavy loads in industrial settings where metal-to-metal connections are needed. Grade 8 bolts with coarse threading are offered in a black phosphate & oil finish, and a zinc yellow finish. Fine threaded hex flange bolts are also available.
Specifications:
Specifications:
Material: Alloy Steel
Thread length: Fully Threaded
Thread type: Coarse
Threads per inch: 20
Quantity: 1
Head type: Hex Head
Finish: Zinc Yellow
Length: 1/2"
Manufacturer name: Conquest Fasteners
Additional information: • SAE J429
• X9- ASTM Equivalent: A354 Grade BD
Product Guide: View Spec Sheet
Thread length: Fully Threaded
Thread type: Coarse
Threads per inch: 20
Quantity: 1
Head type: Hex Head
Finish: Zinc Yellow
Length: 1/2"
Manufacturer name: Conquest Fasteners
Additional information: • SAE J429
• X9- ASTM Equivalent: A354 Grade BD
Product Guide: View Spec Sheet
