SKU: FS-5472-12-E/G
12" Corner Brace - Electro-Galvanized
12" Corner Brace - Electro-Galvanized
No reviews
Regular price
$10.01
Sale price
$10.01
Regular price
Unit price
/
per
0% off
Payment methods
Accepted payments:
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.
Description:
Description:

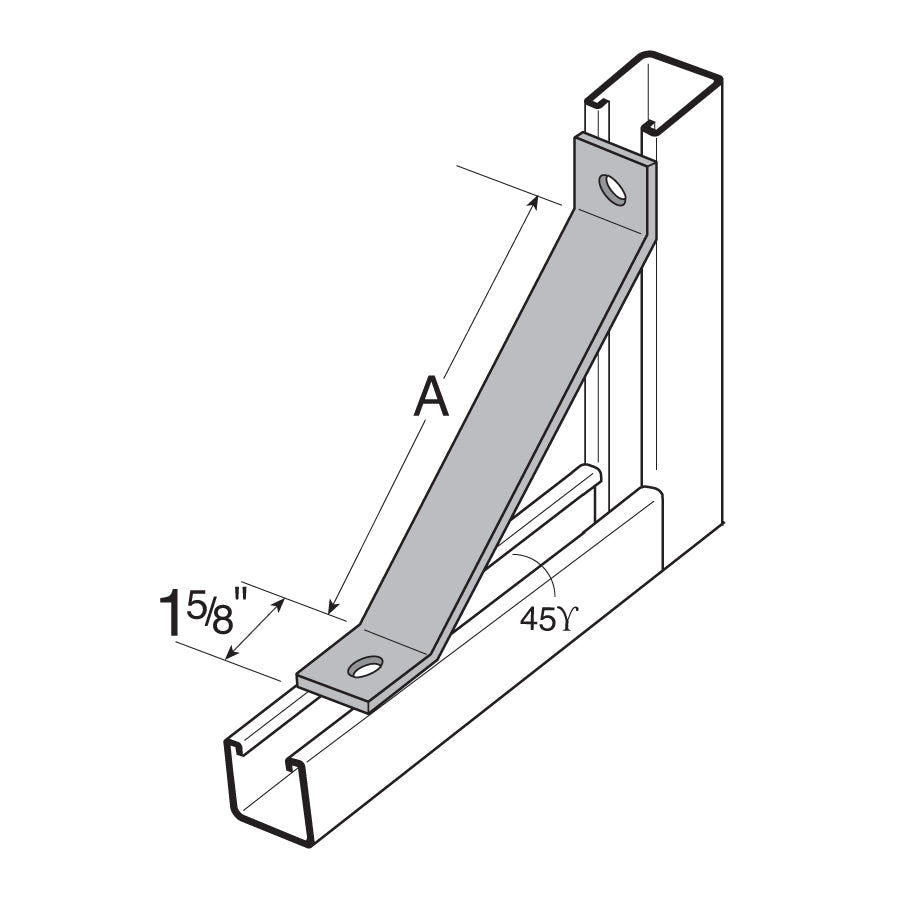

12" Corner Brace - Electro-Galvanized provides added strength and stability to strut channel framing systems. The two hole channel brace connects two channels together at the corners at the top of the channel. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
Specifications:
Specifications:
Material: Carbon Steel
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8"
Finish: Electro-Galvanized
Manufacturer name: Flex-Strut
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8"
Finish: Electro-Galvanized
Manufacturer name: Flex-Strut
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
