SKU: FS-5353-E/G
3-Hole Splice Plate for FS-200 - Electro-Galvanized
3-Hole Splice Plate for FS-200 - Electro-Galvanized
Regular price
$11.22
Sale price
$11.22
Regular price
Unit price
per
0% off
Call to Order
Description:
Description:

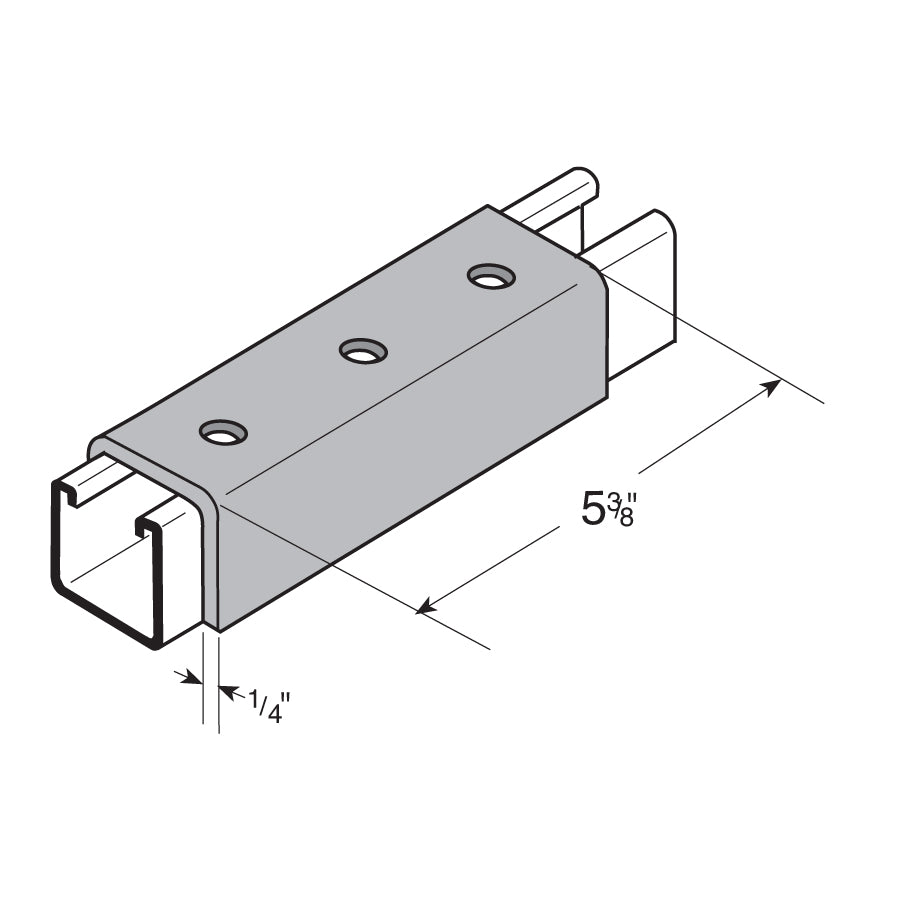

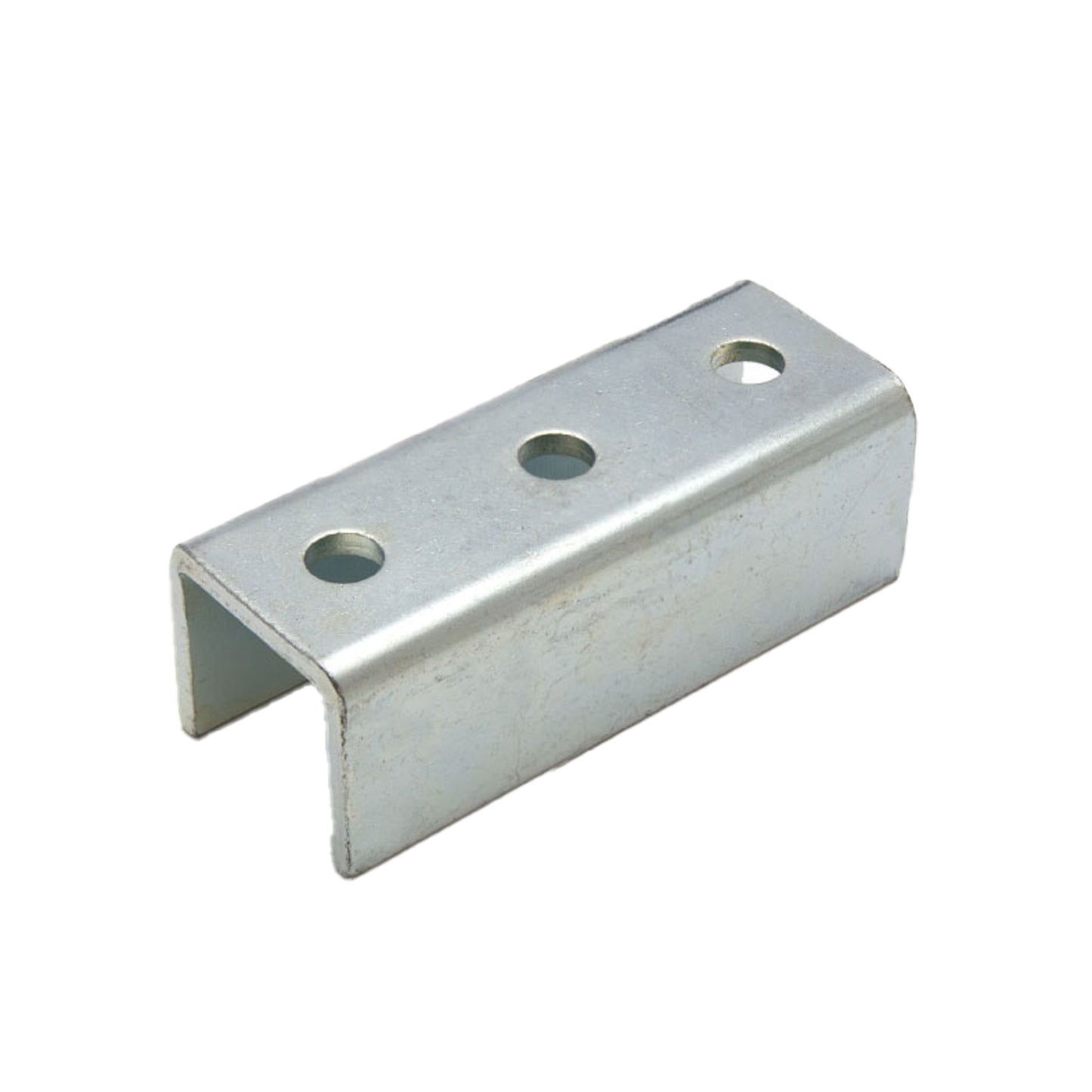

3-Hole Splice Plate for FS-200 - Electro-Galvanized allows for up to 3 connections to be made with the 9/16" punched holes. The FS-5353 is for FS-200 Channel and can be used with regular spring channel nuts. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
Specifications:
Specifications:
Material: Carbon Steel
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8'
Finish: Electro-Galvanized
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8'
Finish: Electro-Galvanized
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
