SKU: FS-5010-E/G

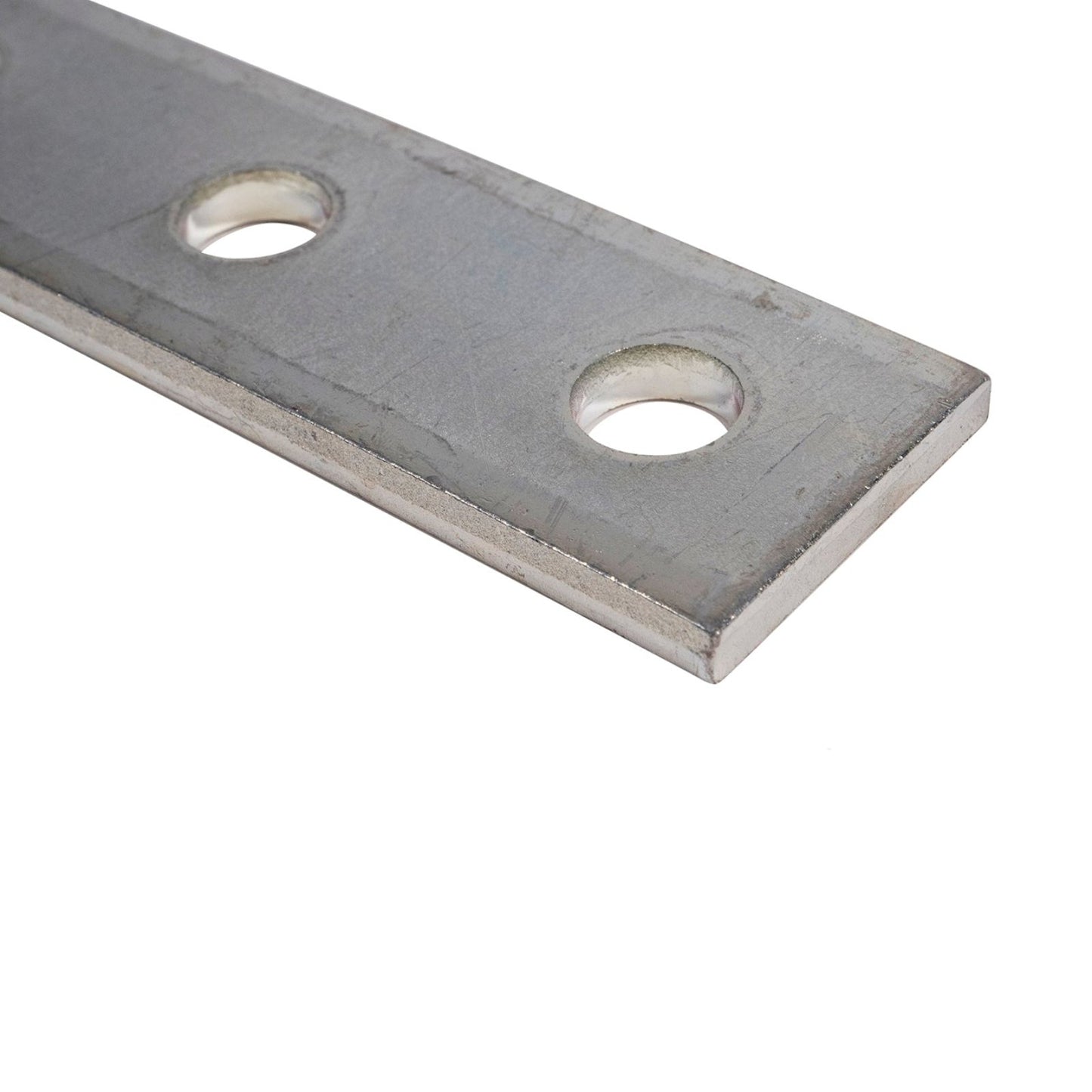

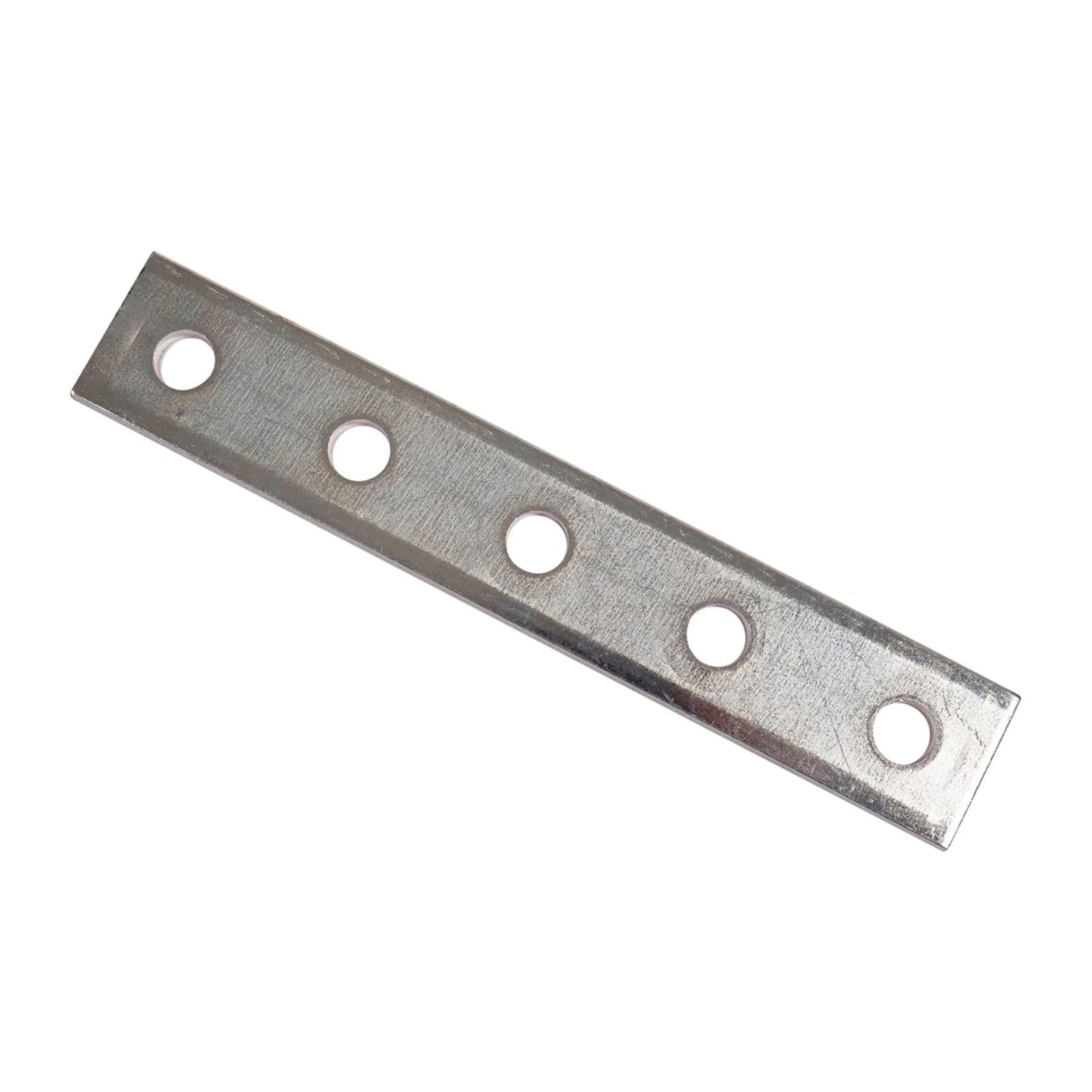

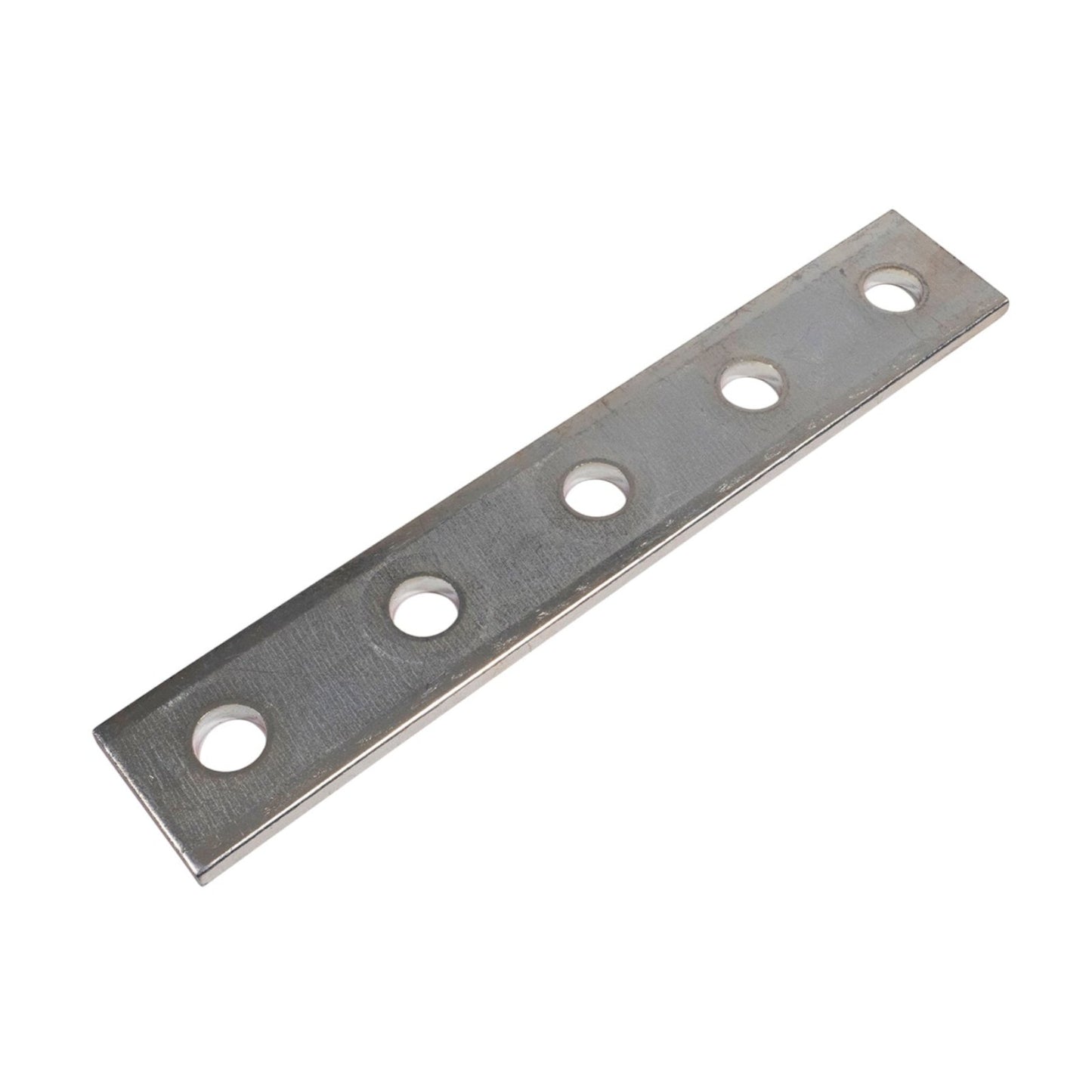

5-Hole Splice Plate - Electro-Galvanized
5-Hole Splice Plate - Electro-Galvanized
No reviews
Regular price
$4.14
Sale price
$4.14
Regular price
Unit price
/
per
0% off
Payment methods
Accepted payments:
Ships May 20 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.
Description:
Description:

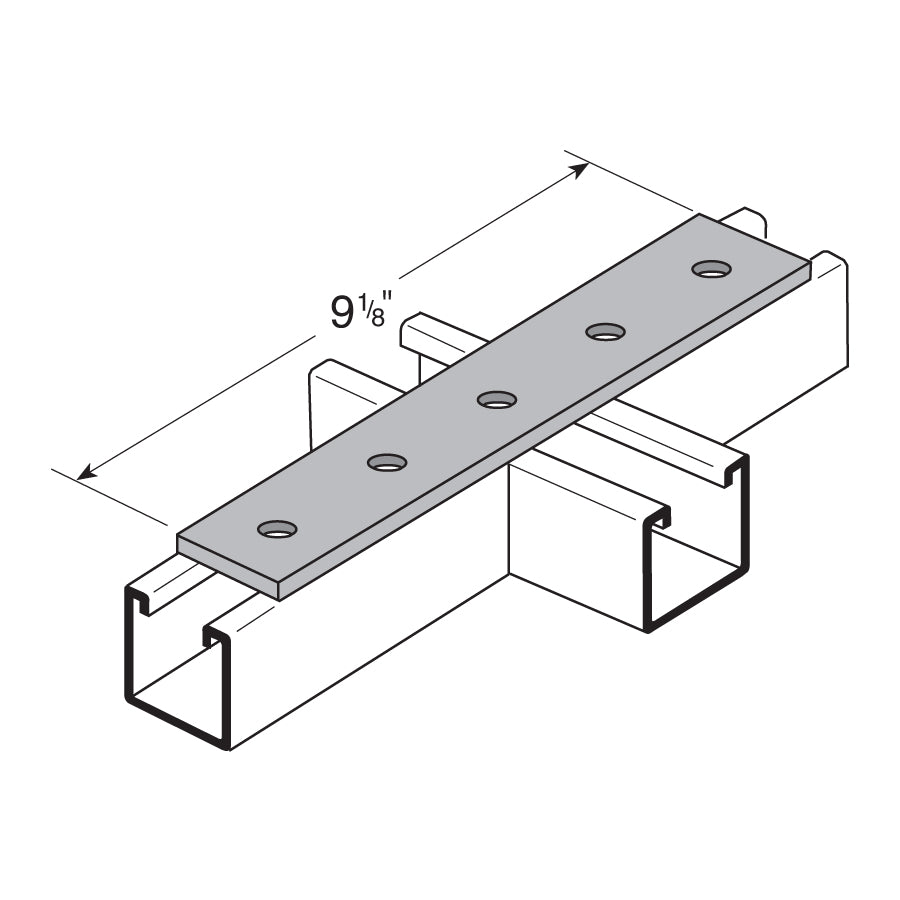

5-Hole Splice Plate - Electro-Galvanized can be used to connect two channels together in a straight line. 5-Hole Flat Splices can be joined with channel nuts and bolts. Flat fittings sit flush on top of the channel. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
Specifications:
Specifications:
Material: Carbon Steel
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8"
Finish: Electro-Galvanized
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8"
Finish: Electro-Galvanized
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
