Notice: Do not install anchors with tile grout. Bolthold anchors must be installed with the specified EPX2 or EPX3 special grout.

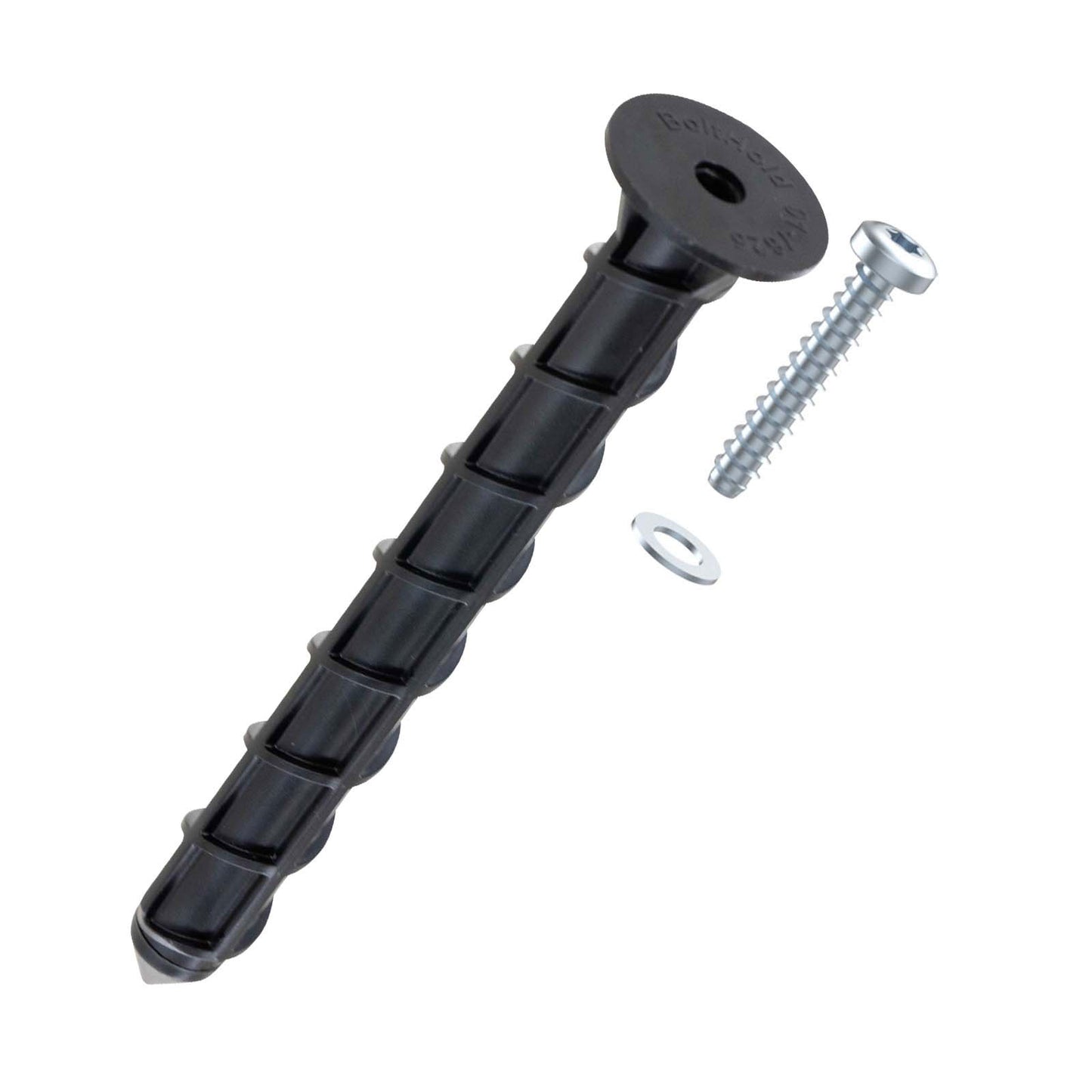

Bolthold AM625 asphalt anchors are heavy-duty anchors skillfully designed for asphalt applications. This anchor is ideal for mounting bike racks, signs, and machinery directly to asphalt surfaces. This fastener is completely black in color making it discrete when installed into the asphalt. It accommodates mounting plates up to 1" thick. The AM625 asphalt anchor bolt requires a 7/8" hole that is 6" deep, and the use of an adhesive grout to secure it into the asphalt. These anchors include (6) 1/4" screws and (6) 0.7" washers.

You can load the anchors at 80% of their pull rating if the object/structure stands solidly by itself. If the object applies a static pull force on the anchors just as it stands, limit the load to 20% of the pull rating.

Features:

• Anchors are mounted flush with the surface.
• A 1.2" header at the top of the anchor prevents the anchor from dropping below the surface and being pulled up into the mounting plate once the bolt is tightened.
• The attached objects can be easily removed without leaving protrusions on the surface.

Required Grout:

Listed below are the approximate amounts of grout required to install one six-pack of AM625 asphalt anchors.

• One six-pack of EPX2 grout. (12 oz. bags) - Each Bag Of EPX2 grout installs (4) AM625 Anchors.
• One EPX2 tub of grout. (10 lb. tub) - Each Tub Of EPX2 grout installs (40) AM625 Anchors.
• Two EPX3 cartridges of grout. (10 oz. tube) - Each Tube Of EPX3 grout installs (4) AM625 Anchors.

-Anchors are mounted flush with the surface.
-A 1.2" header at the top of the anchor prevents the anchor from dropping below the surface and being pulled up into the mounting plate once the bolt is tightened.
-The attached objects can be easily removed without leaving protrusions on the surface.
