SKU: FS-5712-E/G

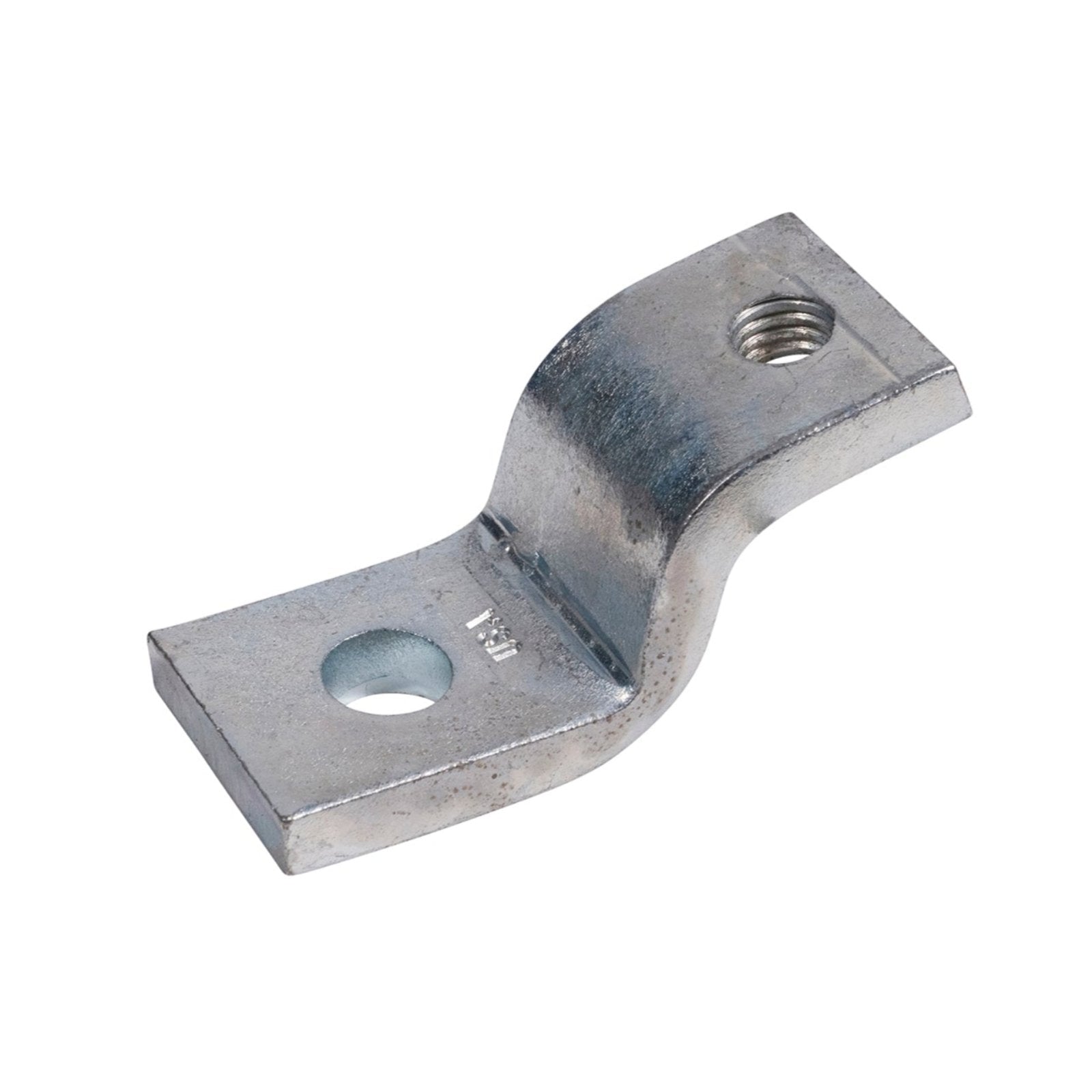

Flange Beam Clamp with set screw - Electro-Galvanized
Flange Beam Clamp with set screw - Electro-Galvanized
No reviews
Regular price
$6.55
Sale price
$6.55
Regular price
Unit price
/
per
0% off
Payment methods
Accepted payments:
Ships May 20 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.
Description:
Description:

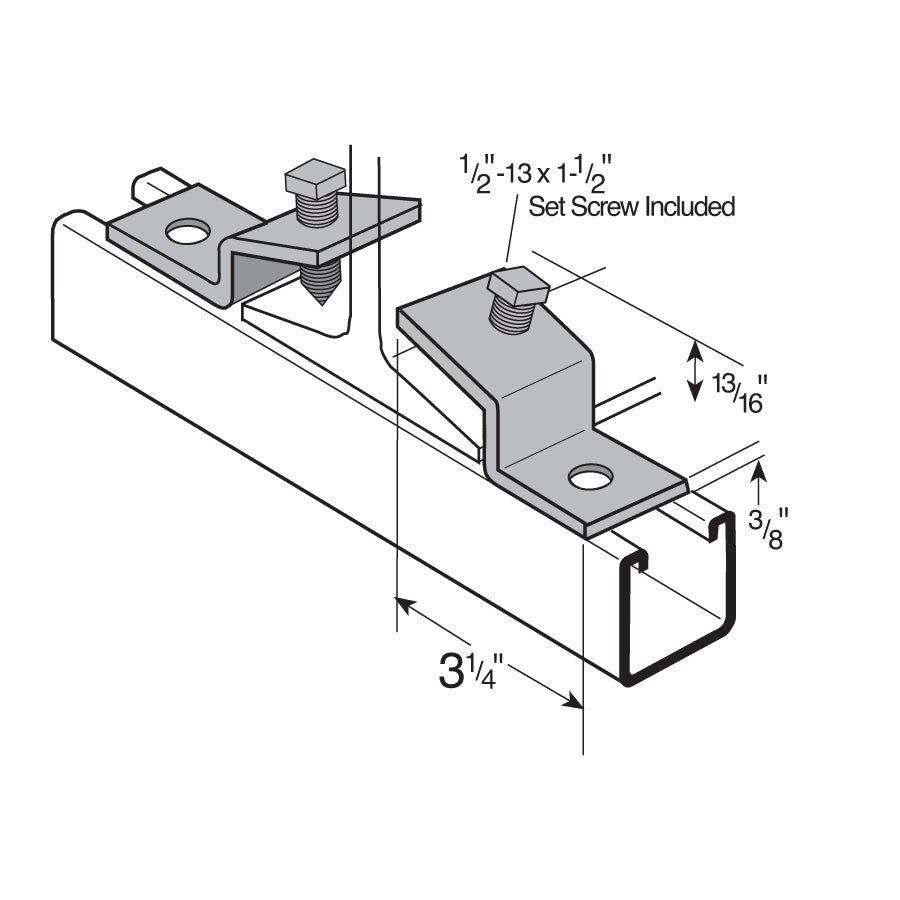

Flange Beam Clamp with set screw - Electro-Galvanized supports strut channel from both sides of the beam. Flange Clamps are connected through the center of the strut with bolts. Set screw included for attachment to beam. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
Specifications:
Specifications:
Material: Carbon Steel
Thickness: 1/4"
Width: 1-5/8"
Finish: Electro-Galvanized
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Thickness: 1/4"
Width: 1-5/8"
Finish: Electro-Galvanized
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
