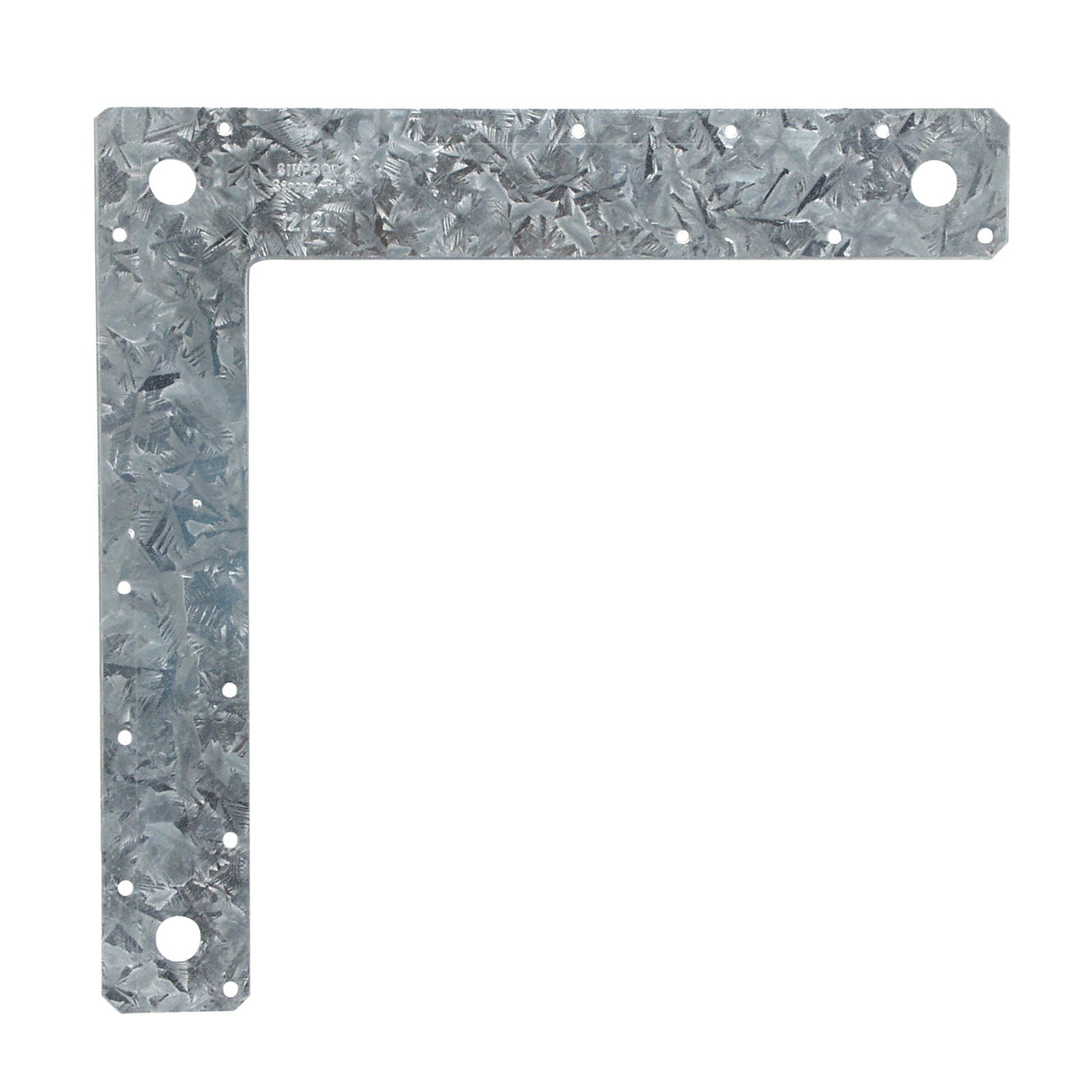

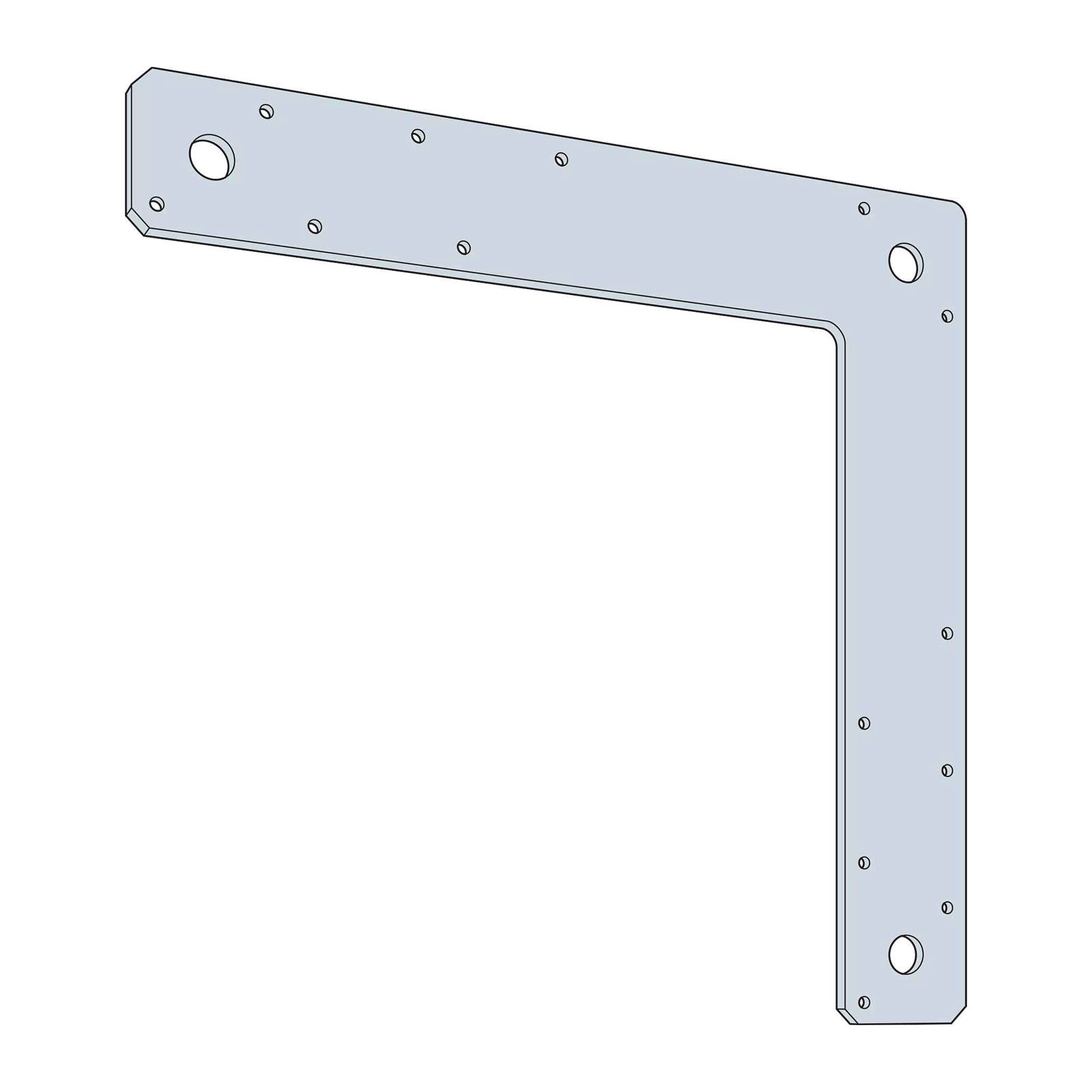

Simpson 1212L 12 x 12 L-Shaped Strap - G90 Galvanized
Simpson 1212L 12 x 12 L-Shaped Strap - G90 Galvanized
Description:
Description:

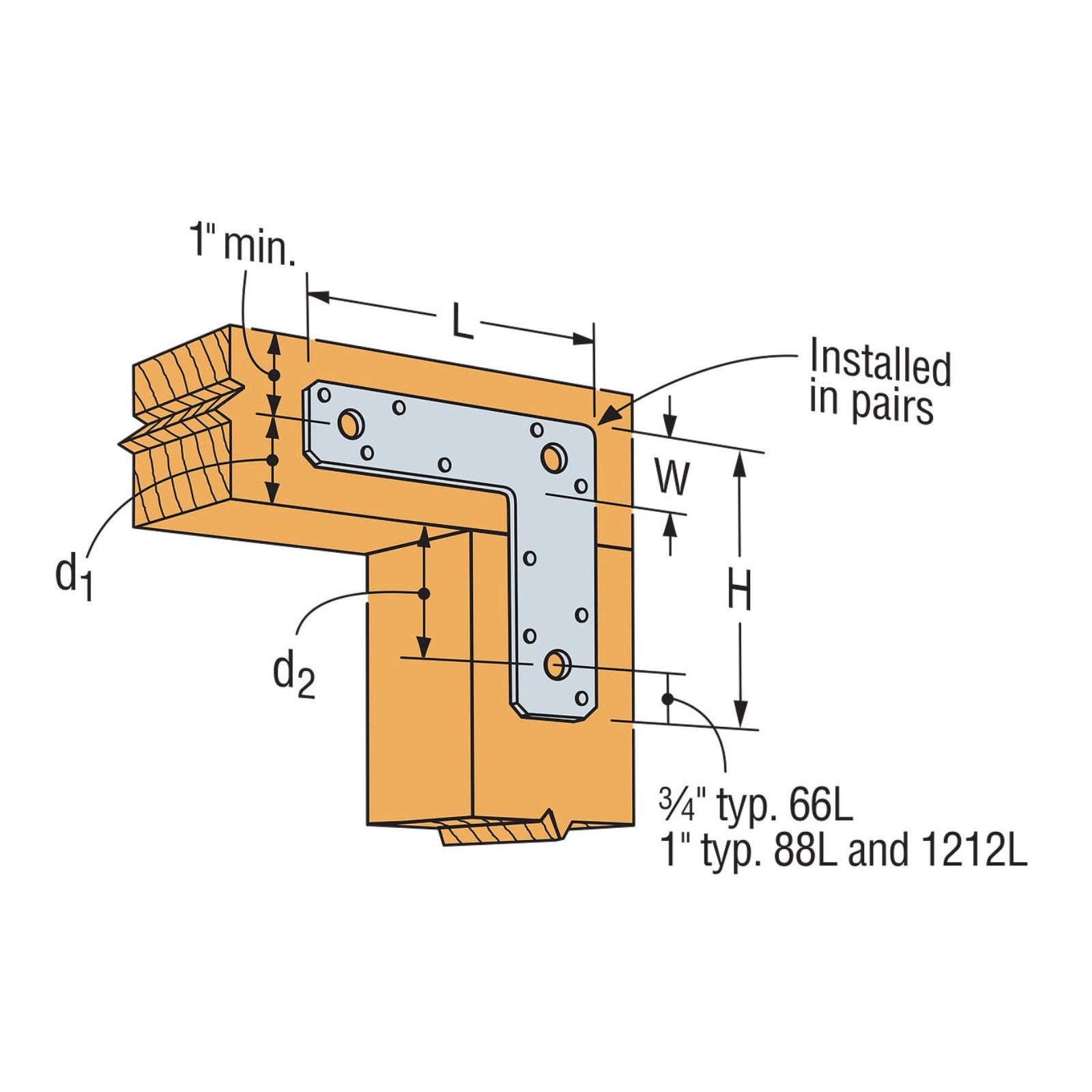

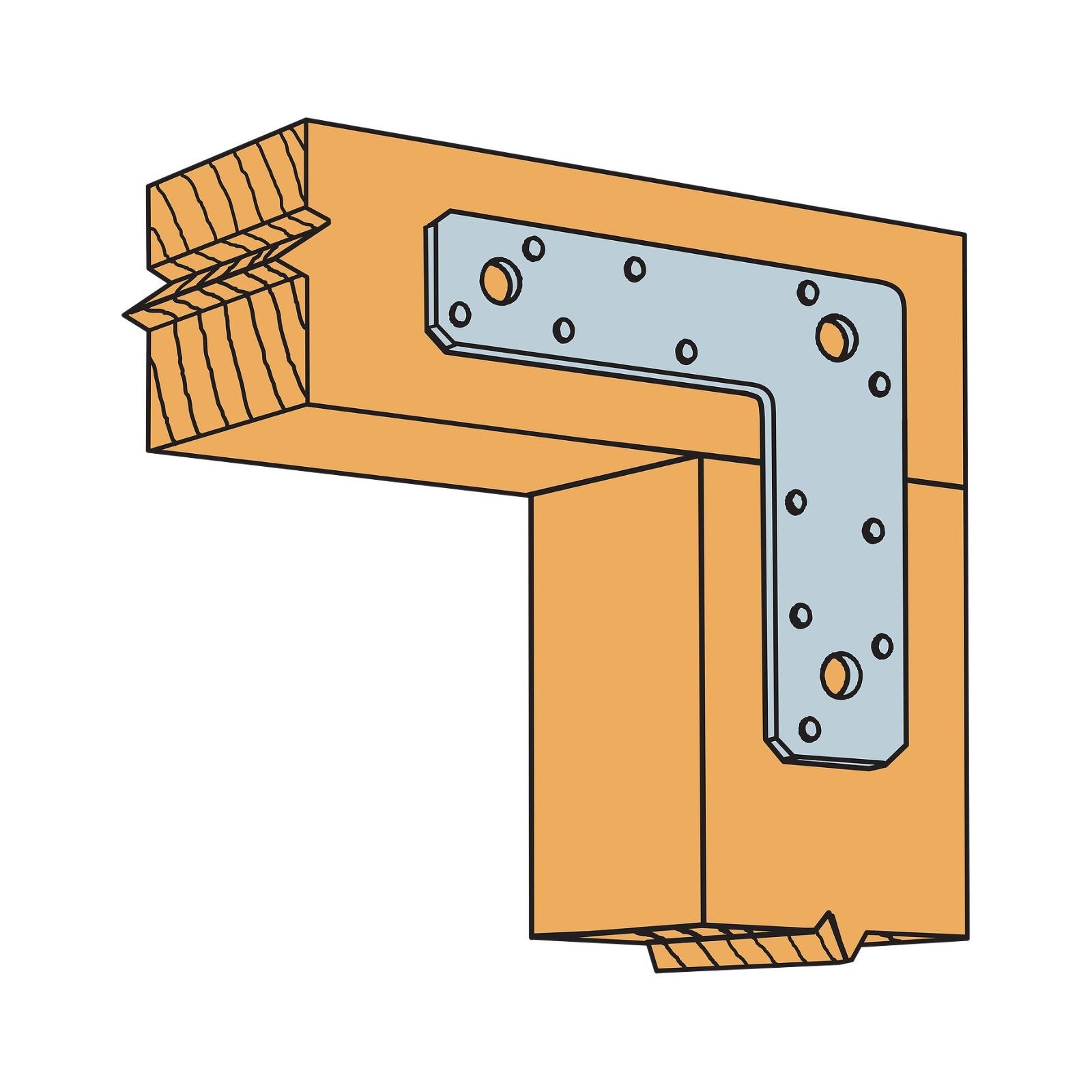

The Simpson L-Shaped Strap versatile utility strap is L-shaped and designed for beam-to-column applications making it ideal for transferring tension loads in a variety of applications. Featuring well-placed fastener holes, this L shaped strap easily installs with nails or bolts for a variety of beam-to-column projects. L straps come galvanized for corrosion resistance and are available in HDG.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 12"
Fasteners required: (14) 0.162 in. x 2-1/2 in. nails or (3) 1/2-in. diameter bolts
Thickness: 14 Gauge
Quantity: 1
Width: 2"
Finish: G90 Galvanized
Length: 12"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Features
Features
•Galvanized for corrosion resistance
•Versatile for a variety of beam-to-column projects
Installation
Installation
•Use all specified fasteners; see General Notes
