Simpson 1616HT 16 X 16 Heavy T Strap - G90 Galvanized
Simpson 1616HT 16 X 16 Heavy T Strap - G90 Galvanized
Description:
Description:

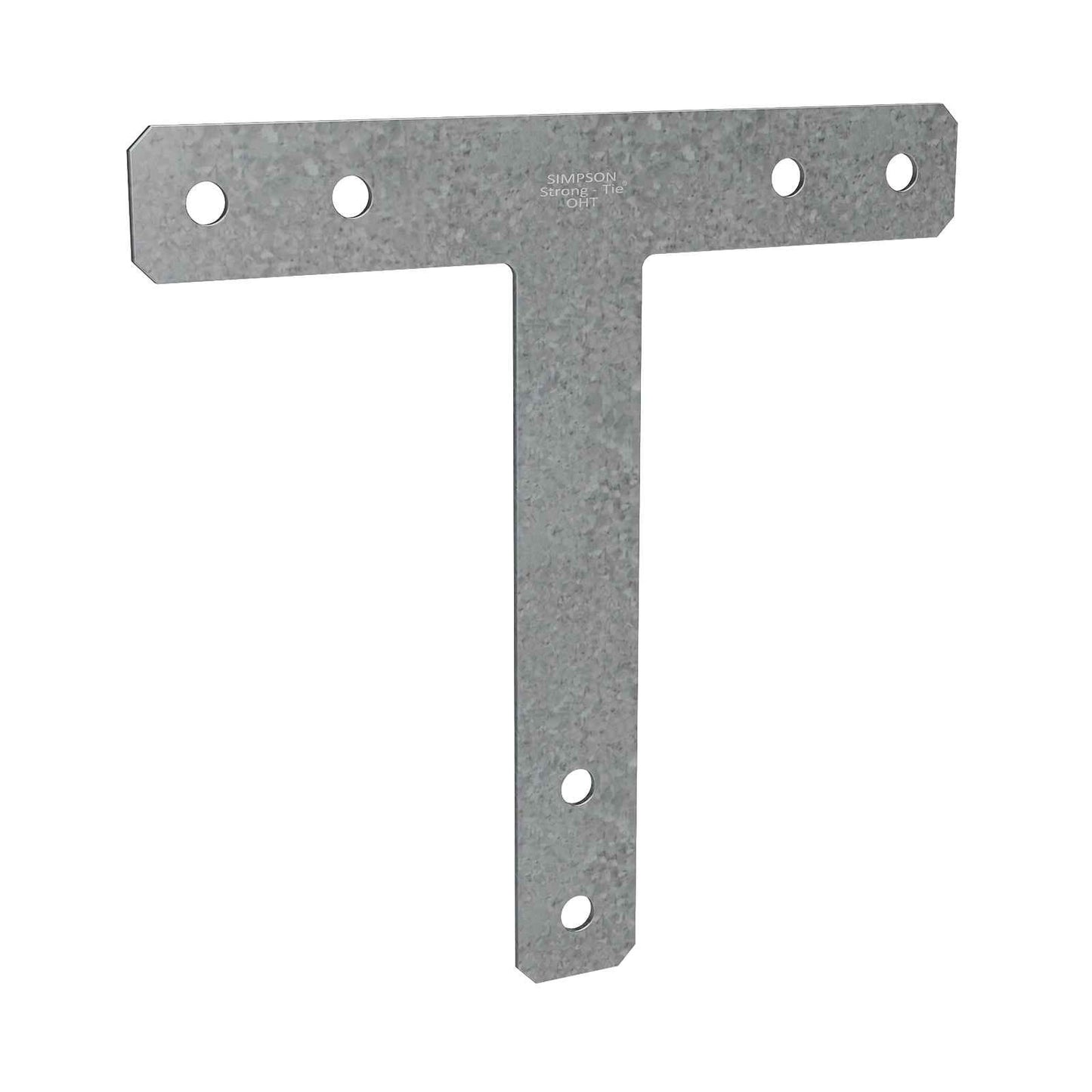

The Simpson Strong-Tie HLPC/HTPC straps are non-notched, beam-to-column ties used in ornamental applications where a more finished look is required. The 1616HT T strap features a standard G90 galvanized finish for versatile applications and better looking finish than standard paint.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 16"
Fasteners required: Bolts - (6) 5/8"
Thickness: 7 Gauge
Quantity: 1
Width: 2-1/2"
Finish: G90 Galvanized
Length: 16"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Features
Features
•Galvanized for corrosion resistance
•Versatile for a variety of beam-to-column projects
•Load rated for uplift and lateral forces
Installation
Installation
•Use all specified fasteners.
•1212HL, 1616HL, 1212HT and 1616HT are to be installed in pairs with machine bolts in double shear. A single part with machine bolts in single shear is not load rated.
•Allowable loads are based on a minimum member thickness of 3 1/2".
•1212HT, 1616HT loads assume a continuous beam.
