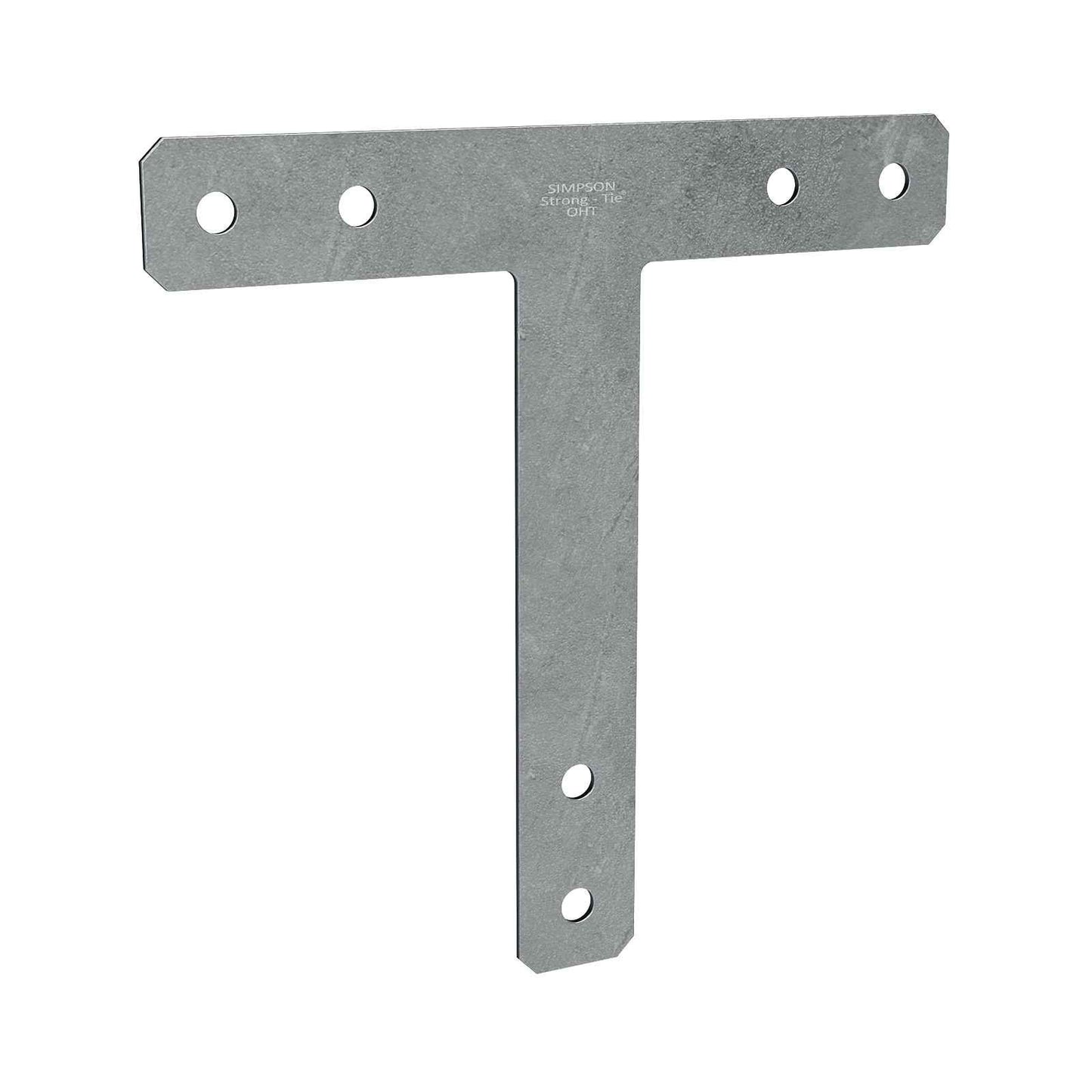

Simpson 1616HTHDG 16 X 16 Heavy T Strap - Hot Dip Galvanized
Simpson 1616HTHDG 16 X 16 Heavy T Strap - Hot Dip Galvanized
Ships in 1-3 business days.
Description:
Description:
This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product
The Simpson Strong-Tie HLPC/HTPC straps are non-notched, beam-to-column ties used in ornamental applications where a more finished look is required. The 1616HTHDG T strap features a hot dip galvanized finish which produces a much more durable and better looking finish than standard paint.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 16"
Fasteners required: Bolts - (6) 5/8"
Thickness: 7 Gauge
Quantity: 1
Width: 2-1/2"
Finish: Hot Dip Galvanized
Length: 16"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Features
Features
•Galvanized for corrosion resistance
•Versatile for a variety of beam-to-column projects
•Load rated for uplift and lateral forces
Installation
Installation
•Use all specified fasteners.
•1212HL, 1616HL, 1212HT and 1616HT are to be installed in pairs with machine bolts in double shear. A single part with machine bolts in single shear is not load rated.
•Allowable loads are based on a minimum member thickness of 3 1/2".
•1212HT, 1616HT loads assume a continuous beam.
