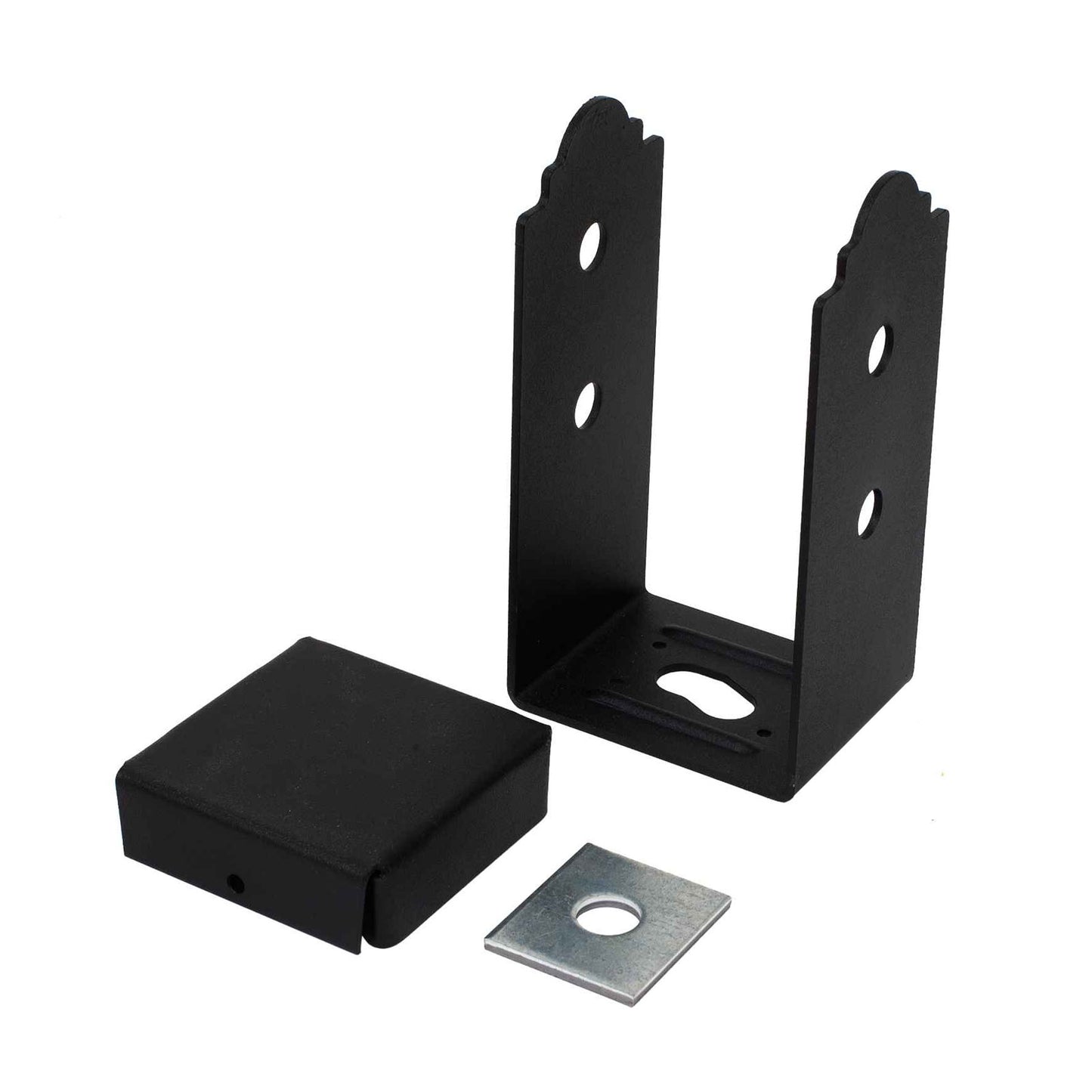

Simpson APB3.75 Adjustable Post Base - Black Powder Coating
Simpson APB3.75 Adjustable Post Base - Black Powder Coating
Description:
Description:
Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common).

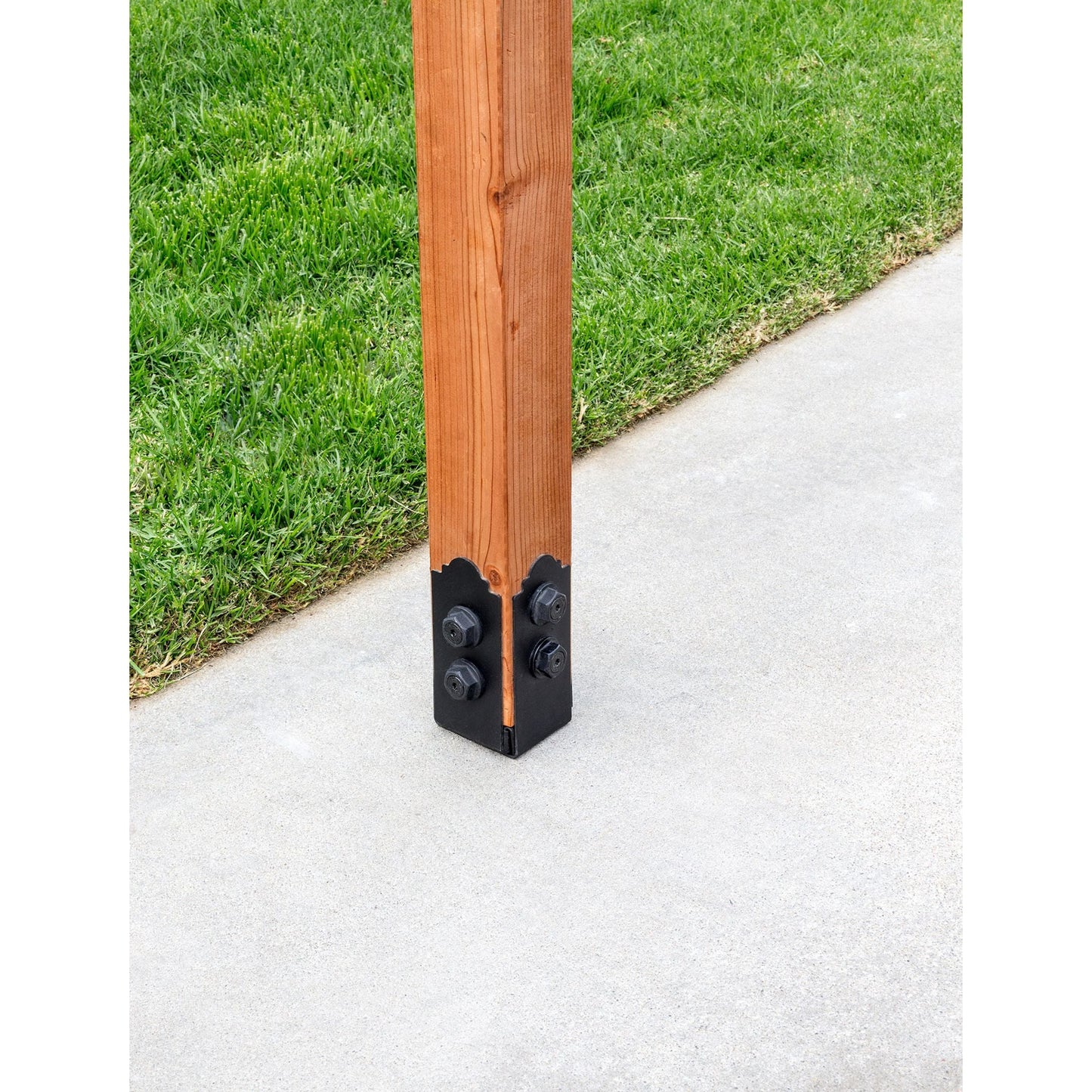

Outdoor Accents post bases secure the post or column to concrete and are perfect for outdoor projects such as pergolas, patio covers and other top-supported structures. These post bases feature decorative accents and provide ZMAX® galvanization with black powder coat for extra corrosion resistance. APB models include a 1" standoff from the concrete to help avoid post-end rot caused by moisture. Optional decorative side plates are available to give the look of a four-sided post base.
Take the guesswork out of what fasteners you need with our APB44R kit that has the fasteners included to complete your project!
California Residents: WARNING
Specifications:
Specifications:
Post Size: Rough 4X4 - Western Red Cedar
Height: 6-7/8"
Fasteners required: column = (4); anchor = (1) 5/8"
Thickness: Base = 16 Gauge; Strap = 12 Gauge
Quantity: 1
Width: 3-3/4"
Finish: ZMAX - Flat Black
Length: 3"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Features
Features
•Designed to meet stringent building codes for seismic or high-wind events
•Slotted for adjustability
•Features 1" standoff to help prevent rot at post end
•Outdoor Accents side plates available (see APBDSP)
•Fastener holes are slightly offset to help prevent fastener interference
•Nominal and rough post sizes: 4x4, 6x6, 8x8, 10x10

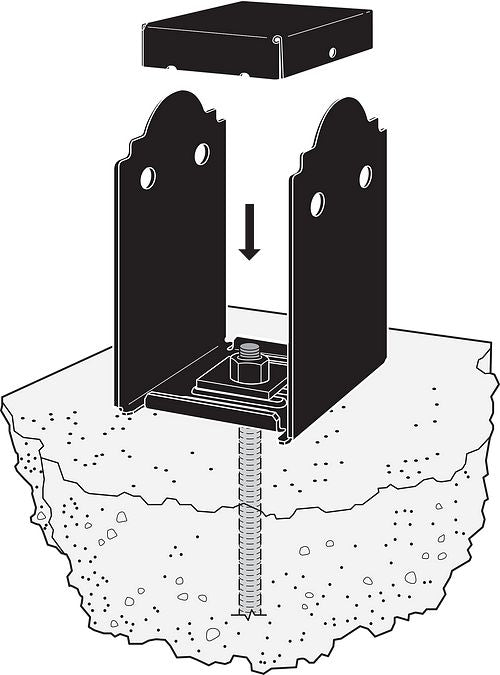

Installation
Installation
•Use all specified fasteners; see General Notes
•Use of the Outdoor Accents connectors requires use of the hex-head washer (STN22) and structural wood screw (SDWSDBB)
•APB3.75 post base is designed for use with 4x4 rough cut western red cedar lumber
•APB44 post base is designed for use with nominal 4x4 lumber; APB44R is for rough lumber
•APB66 post base is designed for use with nominal 6x6 lumber; APB66R is for rough lumber
•APB88 post base is designed for use with nominal 8x8 lumber; APB88R is for rough lumber
•APB1010 post base is designed for use with nominal 10x10 lumber; APB1010R is for rough lumber
