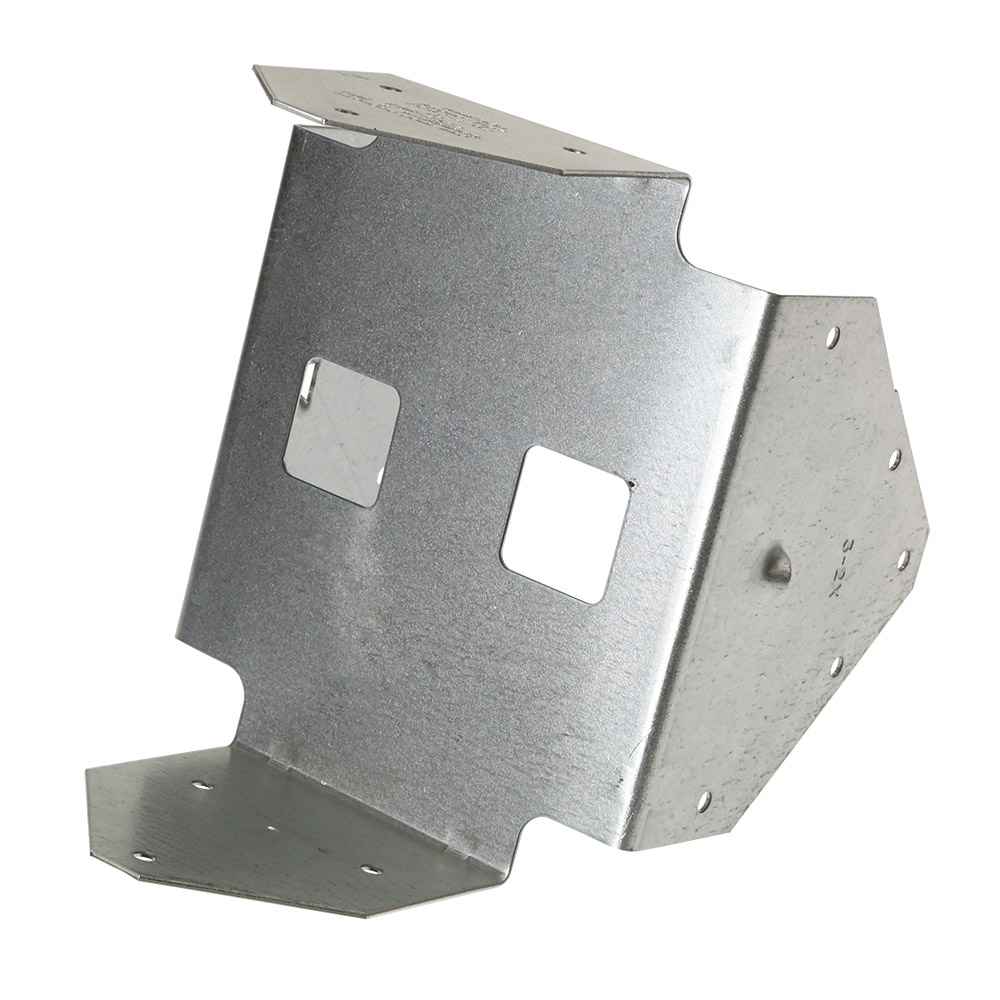

Simpson BCS2-3/6SS 2-3X6 Post Cap - Stainless Steel
Simpson BCS2-3/6SS 2-3X6 Post Cap - Stainless Steel
Description:
Description:
The Strong-Tie BC series offers dual purpose post cap/base for light cap or base connections. The BCS2-3/6SS post cap is approved to be installed with the specified nails or Strong-Drive SD connector screws. The Strong-Tie BCS2-3/6SS post base's are made of 316L stainless steel to provide maximum corrosion resistance in the harshest of climates. Stainless steel fasteners are required to install this hanger.

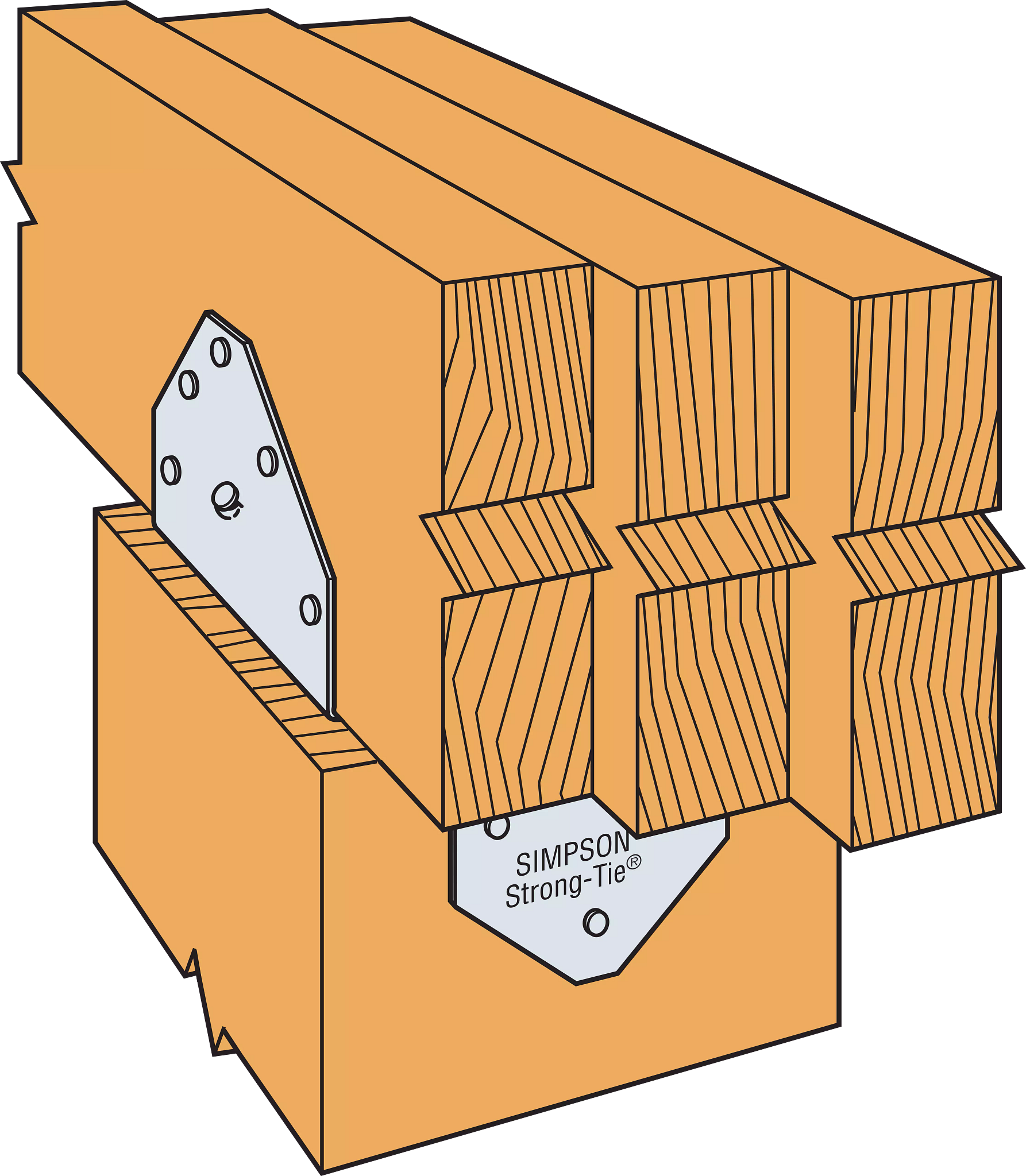

Installation:
- Use all specified fasteners.
- Do not install bolts into pilot holes
- BC: install with 16d commons or 16dx2 1/2" joist hanger nails.
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
- To tie multiple 2x members together, the Designer must determine the fasteners required to join members to act as one unit without splitting the wood.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Looking for something different? See the rest of our Simpson BC & BCS Post Caps.
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: Beam Flange - (12) 0.162 x 3-1/2" Nails Post Flange - (6) 0.162 x 3-1/2" Nails
Thickness: 18 Gauge
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Additional information:

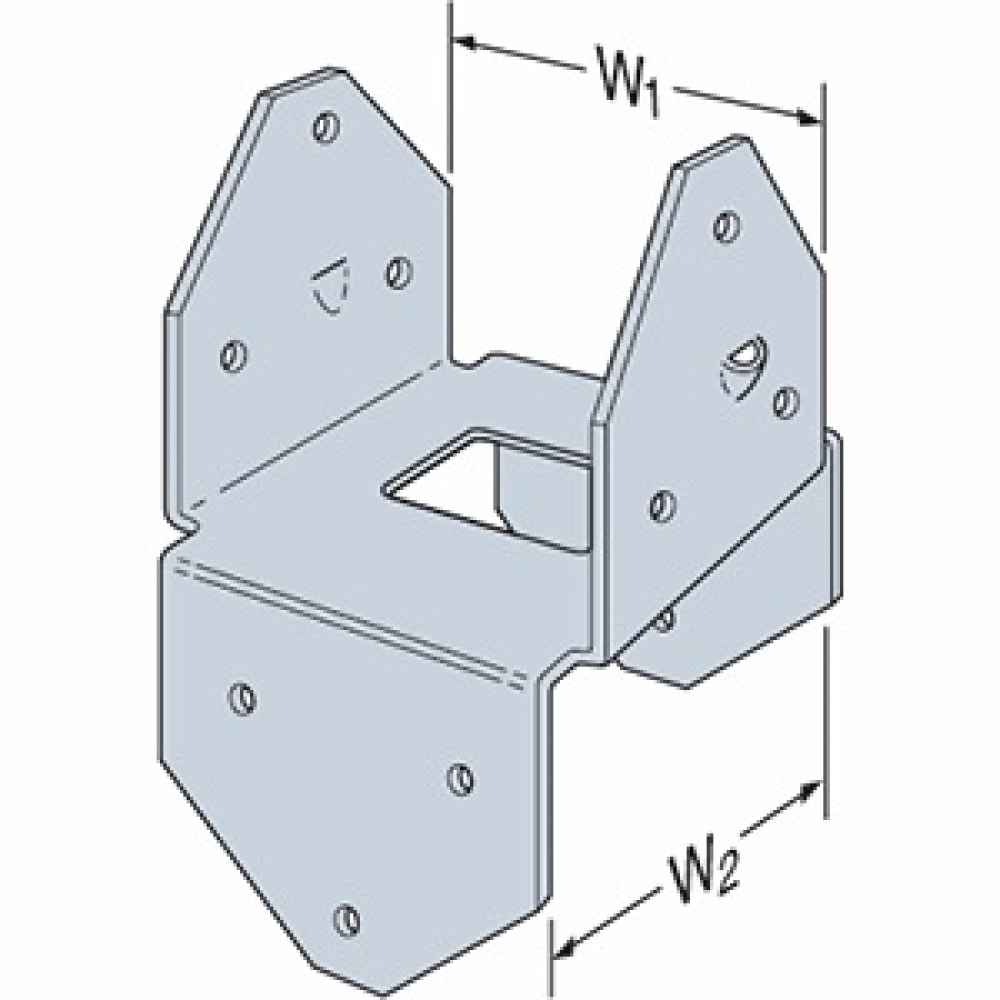

Width (1): 4-5/8"
Width (2): 5-9/16"
Length (1): 4-3/8"
Length (2): 2-7/8"
Height (1): 3-5/16"
Height (2): 2-15/16"
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-Do not install bolts into pilot holes
-BC: install with 16d commons or 16dx2 1/2" joist hanger nails.
-Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
-To tie multiple 2x members together, the Designer must determine the fasteners required to join members to act as one unit without splitting the wood.
