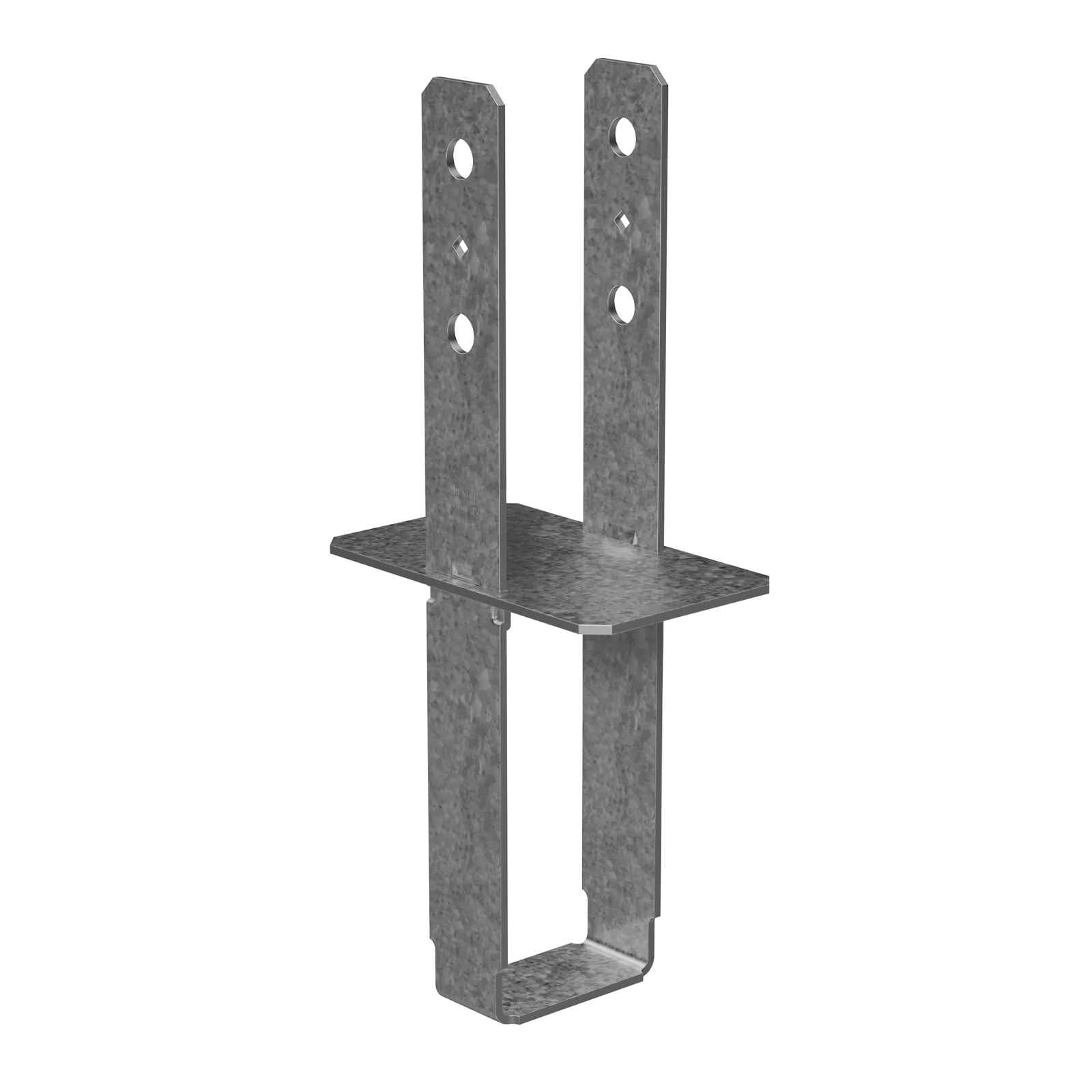

Simpson CB46 4x6 Column Base - G90 Galvanized
Simpson CB46 4x6 Column Base - G90 Galvanized
Description:
Description:
Simpson Strong-Tie CB Column bases are a sturdy cast-in place anchor that are designed for heavy duty column loads. The Strong-Tie CB46 features a standard G90 galvanized coating for added corrosion resistance.
Installation:
- Use all specified fasteners.
- For full loads, minimum side cover required is 3" for CB, 2" for LCB.
- Install all models with bottom of base plate flush with concrete.
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Looking for something different? See the rest of our Simpson CB & LCB Column Bases.
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: Bolts - (2) 5/8"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Column size: 4X6
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-For full loads, minimum side cover required is 3" for CB, 2" for LCB.
-Install all models with bottom of base plate flush with concrete.
-Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
