• Simpson CC66PC Column Cap Black Powder Coated image 1 of 2
  • Simpson CC66PC Column Cap Black Powder Coated image 2 of 2
1 2
Shop more CCPC Column Caps
SKU: CC66PC

Simpson CC66PC Column Cap - Black Powder Coated

Simpson CC66PC Column Cap - Black Powder Coated

$144.64
$144.64
0% off
shipping truck, lead time icon
Ships today when you order in the next 7 hours 19 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product

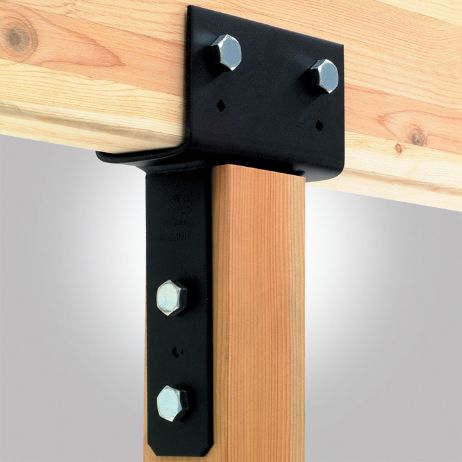

    • Simpson Strong-Tie CCPC column caps provide a high-capacity connection for column-beam combinations. This design requires the correct corresponding machine bolts to be installed for proper installation. The Strong-Tie CC44PC column cap features a flat black powder-coated finish which produces a much more durable and better looking finish than standard paint.

    Installation:
    • Use all specified fasteners
    • Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2005 NDS, section 11.1.2).
    • Contact engineered wood manufacturers for connections that are not through the wide face.

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


    California Residents: WARNING

    Specifications:


    Post Size: 6X
    Fasteners required: Beam - (4) 5/8" Machine Bolts Post - (2) 5/8" Machine Bolts
    Thickness: 7 Gauge
    Manufacturer name: Simpson Strong-Tie
    For Treated Lumber: No
    Beam size: 6X
    Product Guide: View Spec Sheet

    Installation

    -Use all specified fasteners.
    -Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2005 NDS, section 11.1.2).
    -Contact engineered wood manufacturers for connections that are not through the wide face.

    View full details
