Simpson CCCQM5.50-SDSG Cross Column Cap for GFCMU and Concrete Piers
Simpson CCCQM5.50-SDSG Cross Column Cap for GFCMU and Concrete Piers
No reviews
Regular price
$557.82
Sale price
$557.82
Regular price
Unit price
/
per
0% off
Payment methods
Accepted payments:
Made to Order
Ships in 21-28 business days.
Ships in 21-28 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.
Description:
Description:

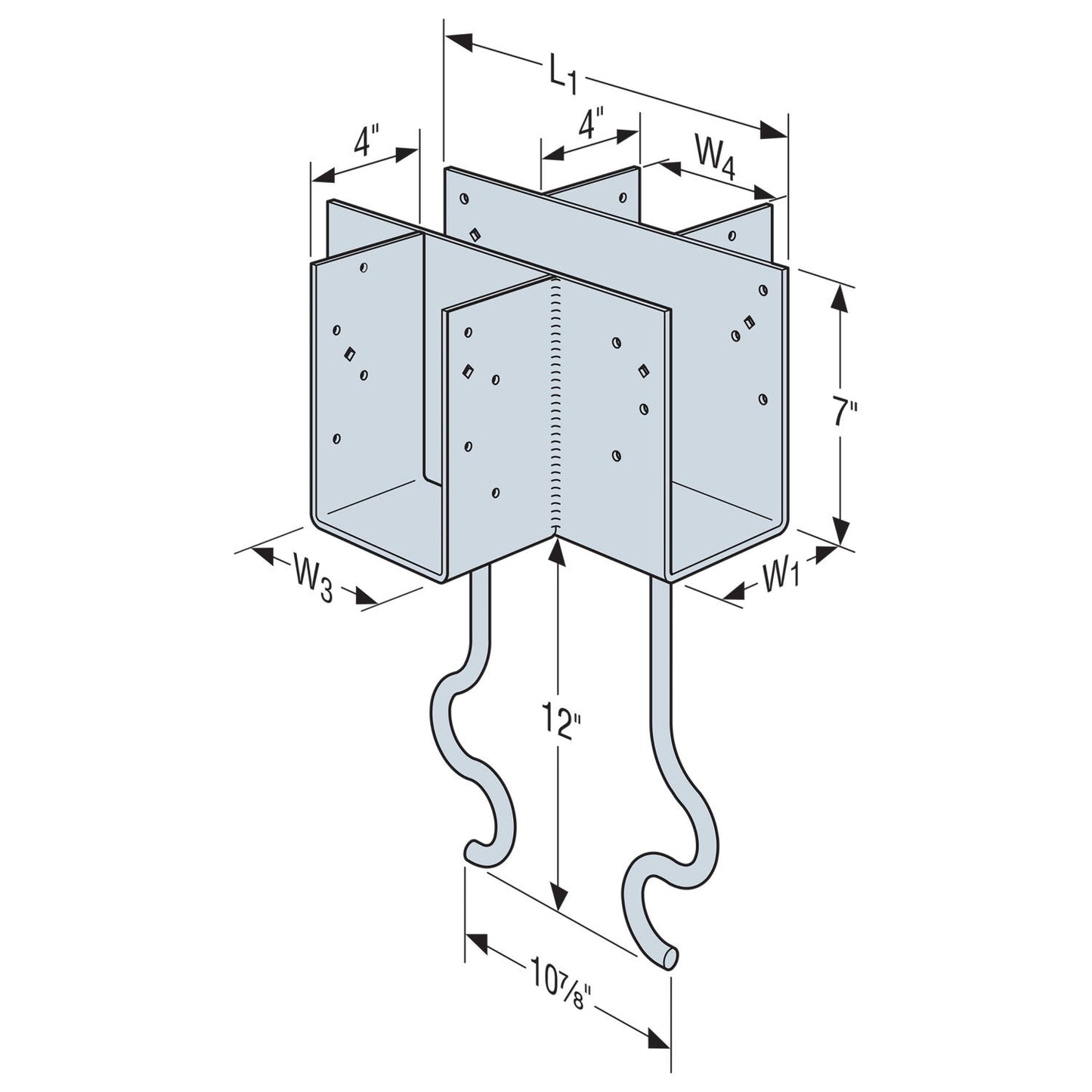

The CCCQM Cross Column Cap for GFCMU and Concrete Piers embedded column cap is designed for use in raised pier foundations and applications where heavy beams rest on concrete or concrete block columns. The heavy-gauge beam seat and unique Simpson Strong-Tie® SSTB® anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The CCCQM is for use along a floor support beam with a stirrup on each side of the main channel to accommodate intermediate support beams at 90° angles.
- Install 1/4" x 2 1/2" Strong-Drive® SDS Heavy-Duty Connector screws (provided) in all round holes. (Lag screws will not achieve the same load.)
- Screws are configured to provide high uplift design values
- Certified welds for confidence in strength and loading
- SSTB offset allows flush installation to edge of pier
- SSTBs spaced to fit standard CMU cells
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws (provided)
Width: 5-1/2"
Finish: Hot Dip Galvanized
Length: 13-1/2"
Manufacturer name: Simpson Strong-Tie Company Inc
Product Guide: View Spec Sheet
