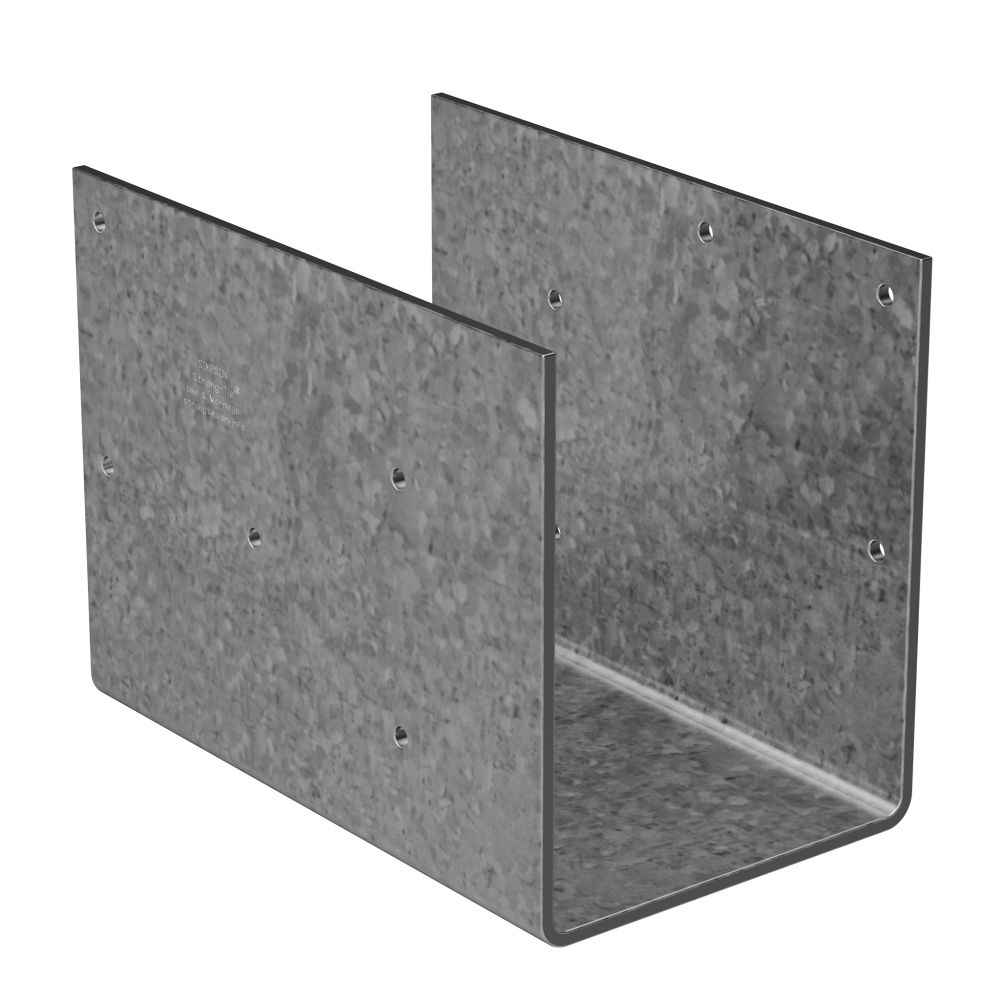

Simpson CCOS4.62 Steel Column Cap - G90 Galvanized
Simpson CCOS4.62 Steel Column Cap - G90 Galvanized
Description:
Description:
Simpson Strong-Tie CCO steel column caps provide adequate bearing length for larger girder reactions. The SDS screws provide for a lower profile compared to standard through bolts. The Strong-Tie CCQ106SDS2.19 CCOS4.62 steel column cap features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:- Use all specified fasteners.
- CCOS—Attach steel column cap to column end plate with (4) Simpson Strong-Tie Quik Drive® XQ112S1224 self-tapping screws (provided) and attach to girder. Install with 5/16" hex driver.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Looking for something different? See the rest of our Simpson Lally/Steel Column Caps.
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: (10) 0.148 x 3" Nails
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Girder size: Triple 2x10/12
Product Guide: View Spec Sheet

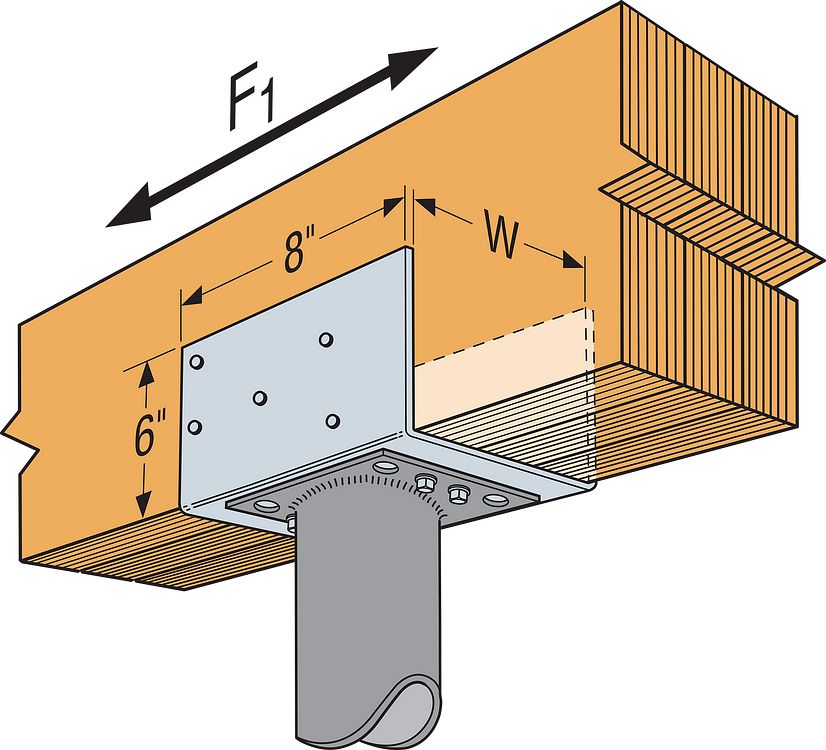

Installation
Installation
-Use all specified fasteners.
-CCOS: Attach steel column cap to column end plate with (4) Simpson Strong-Tie Quik Drive® XQ112S1224 self-tapping screws (provided) and attach to girder. Install with 5/16" hex driver.
