Shop more ECCL End Column Cap
SKU: ECCLR444HDG
Simpson ECCLR444HDG 4x4x4 End Column Cap Right Direction - Hot Dip Galvanized
Simpson ECCLR444HDG 4x4x4 End Column Cap Right Direction - Hot Dip Galvanized
No reviews
Regular price
$282.13
Sale price
$282.13
Regular price
Unit price
/
per
0% off
Payment methods
Accepted payments:
Ships May 20 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.
Description:
Description:

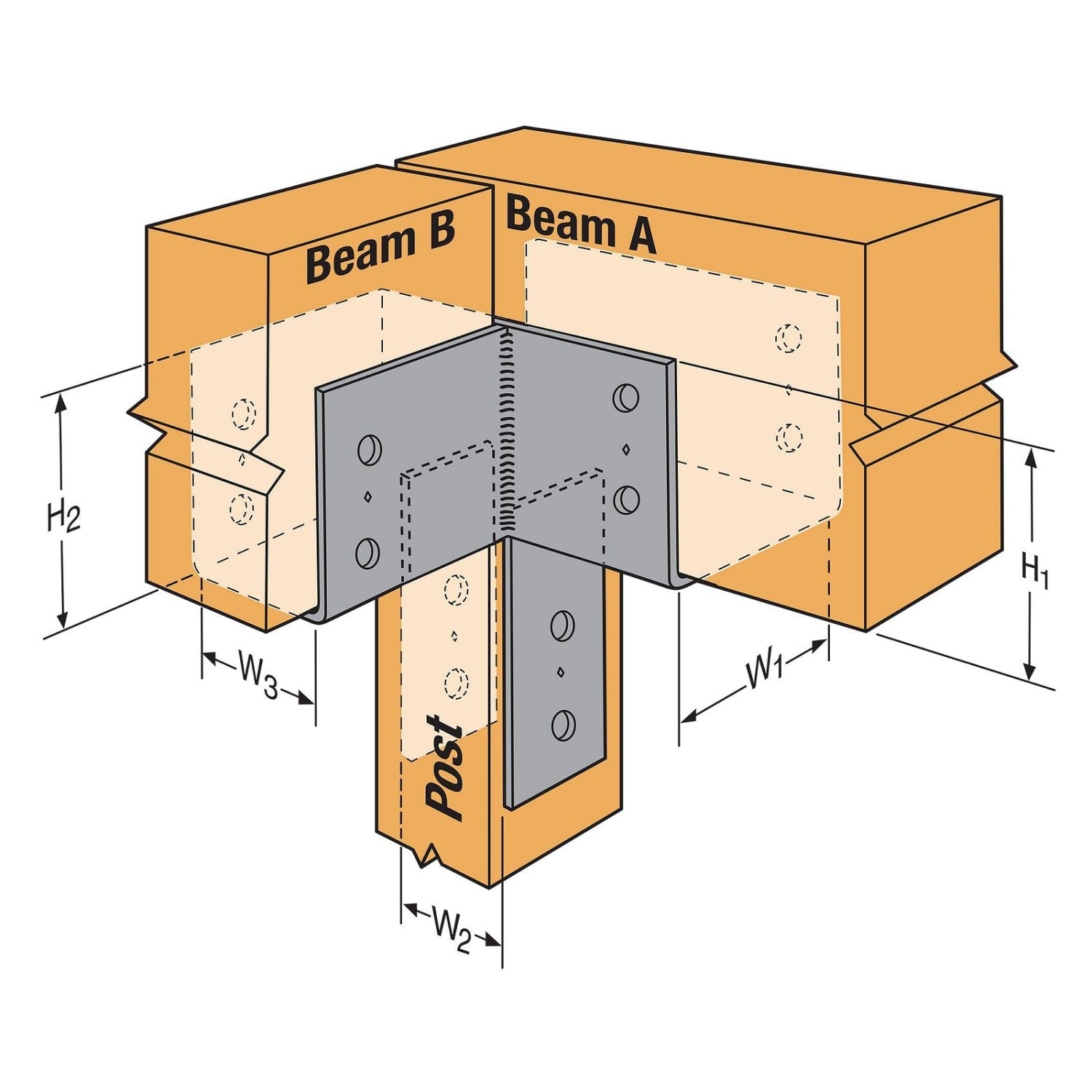

The Simpson Strong-Tie ECCL is designed to provide strong column-to-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. End column caps are special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.
Key Features

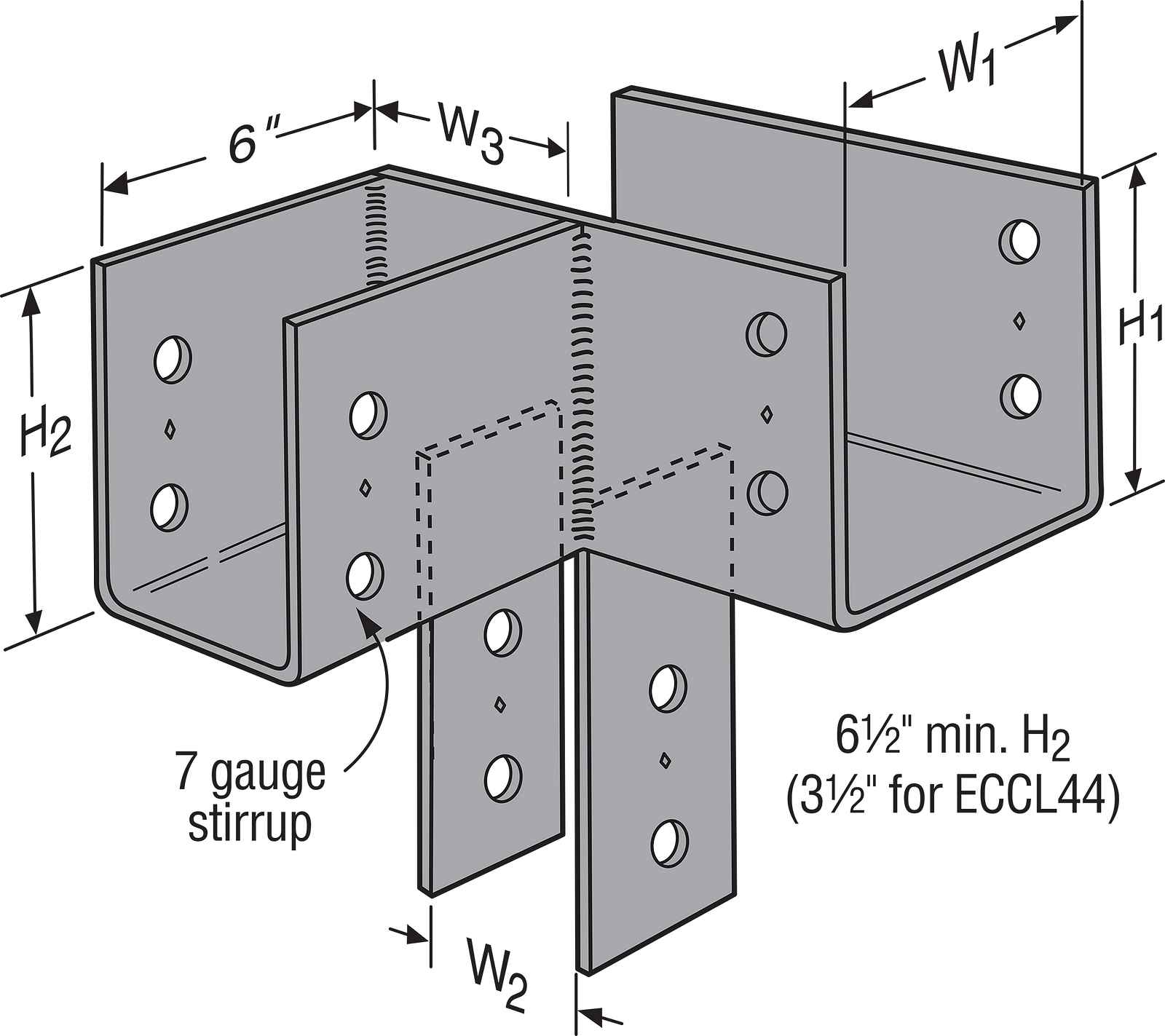

- 7 gauge or 3 gauge depending on size
- Certified welds for confidence in strength and loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening, bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than bolt diameter
- Use all specified fasteners; see General Notes
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: See Product Spec Sheet
Manufacturer name: Simpson Strong-Tie Company Inc
Product Guide: View Spec Sheet
