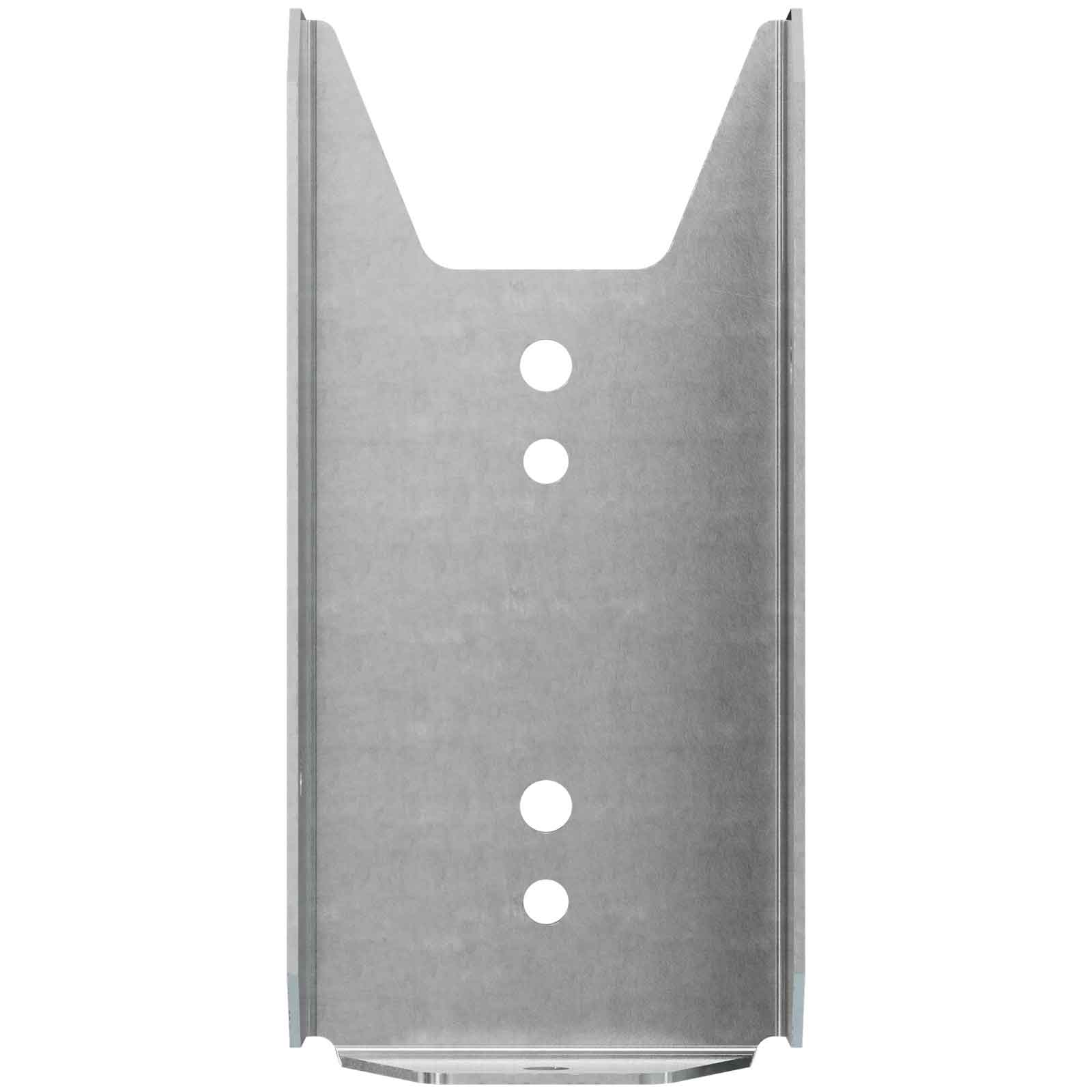

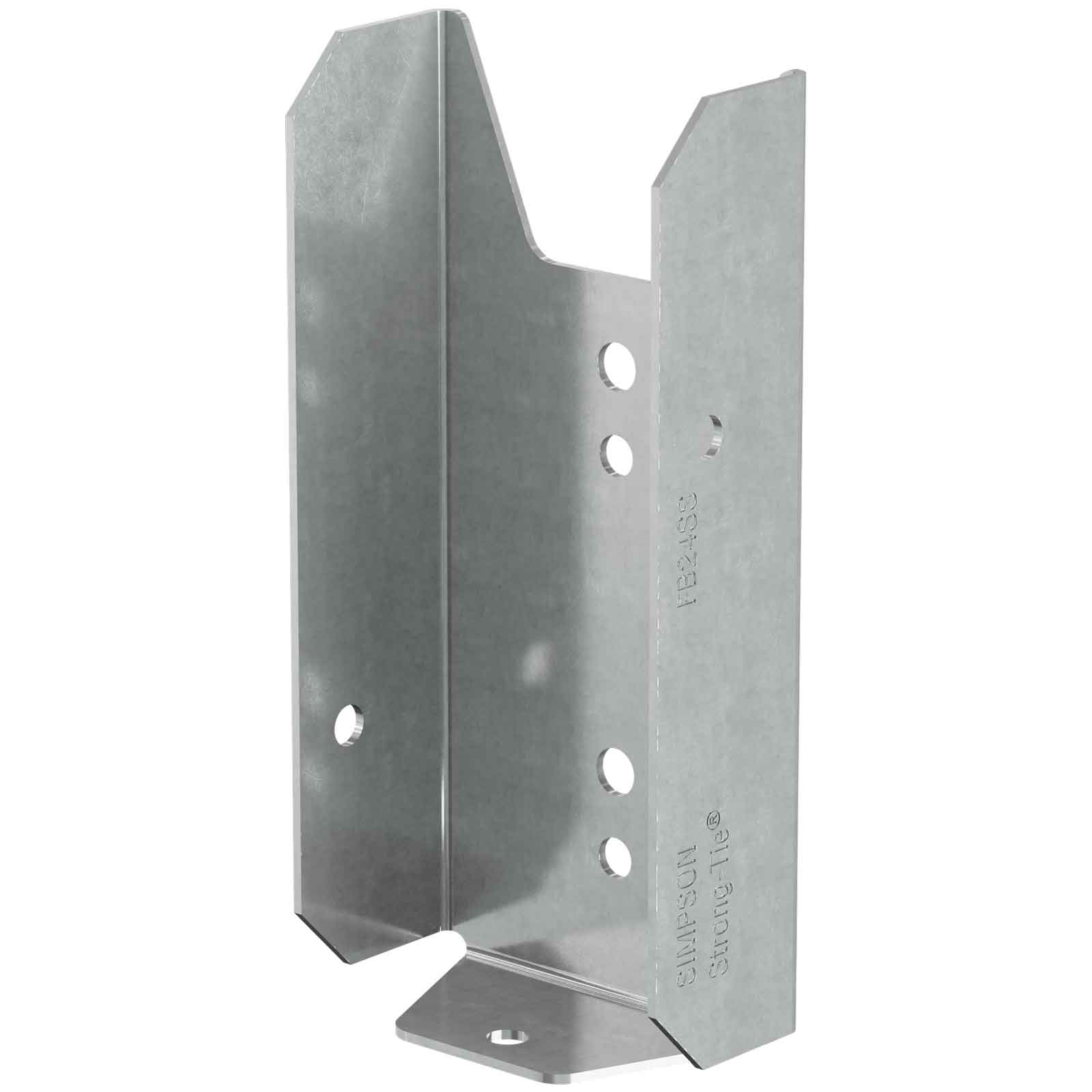

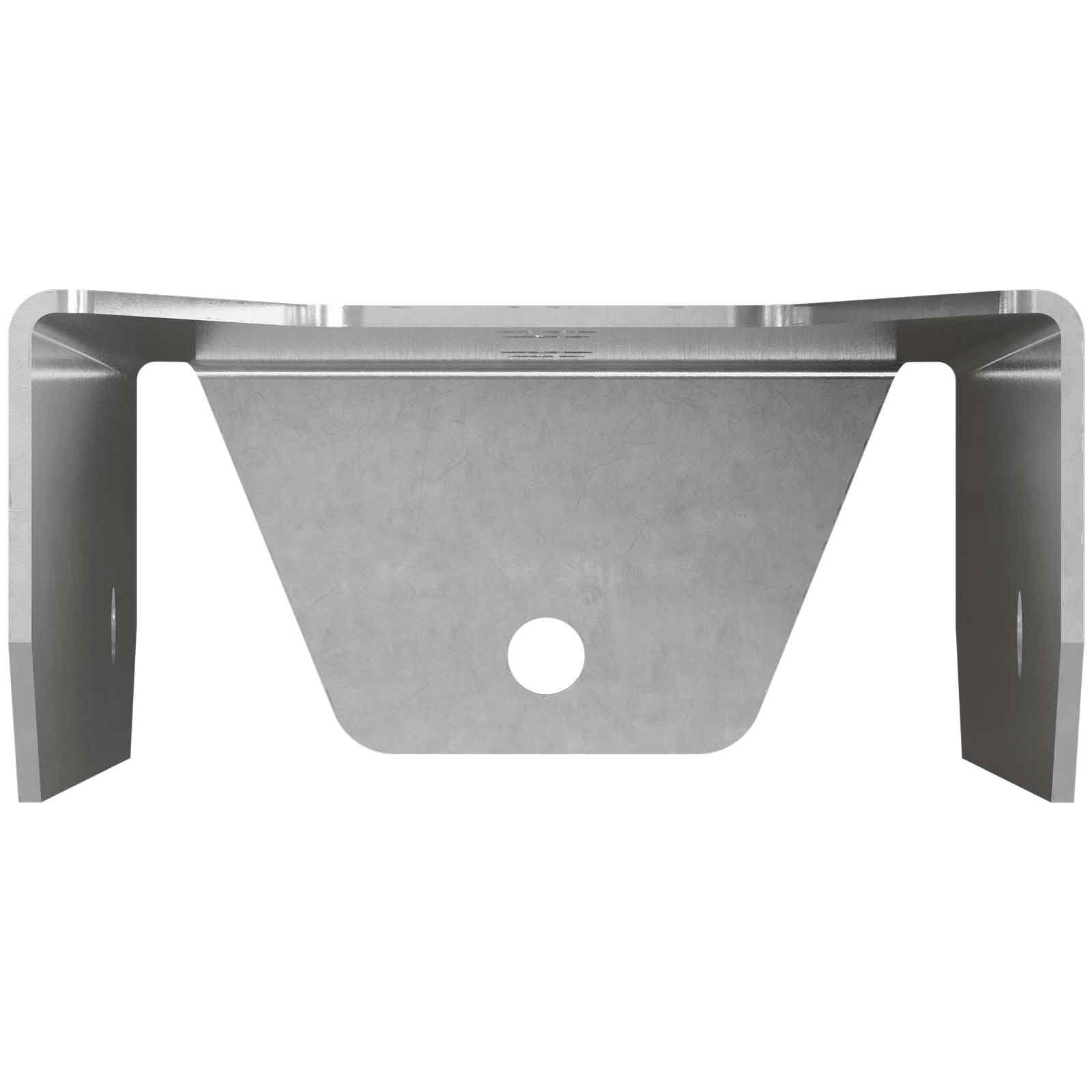

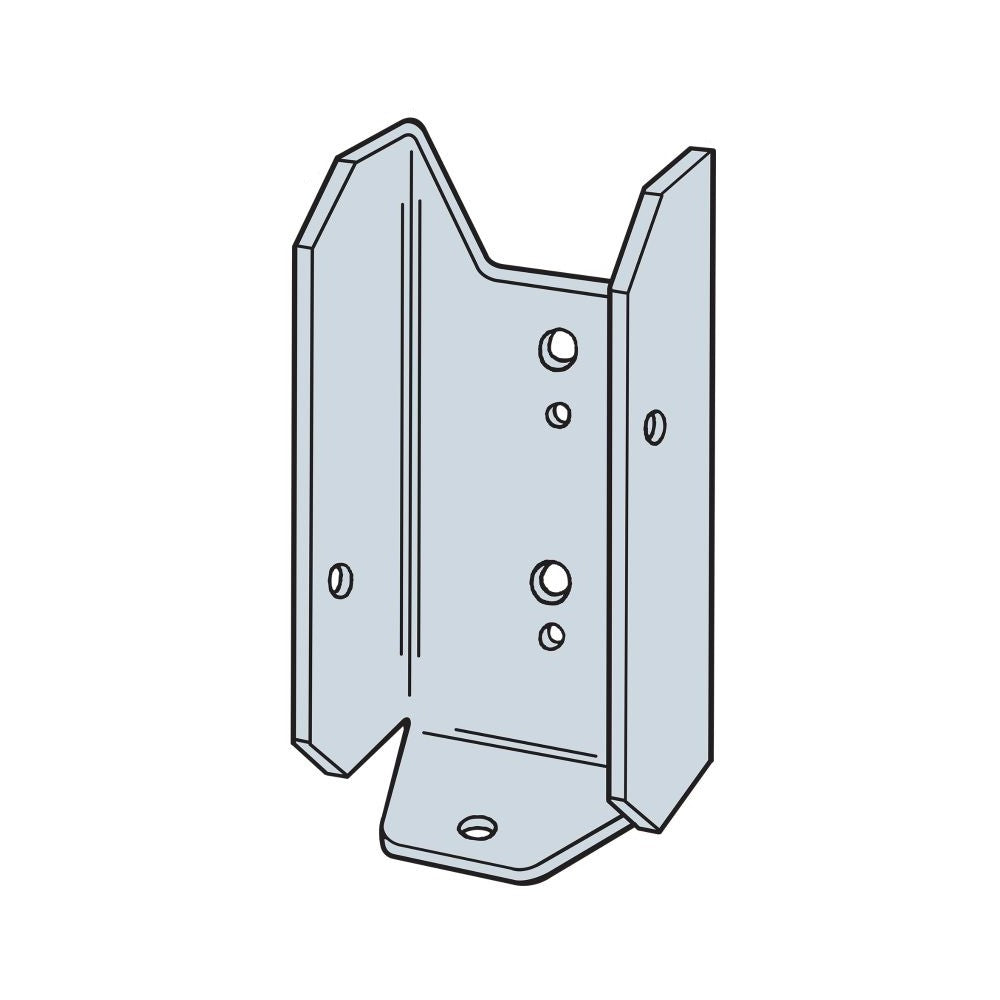

Simpson FB24SS 2x4 Fence Bracket - Stainless Steel
Simpson FB24SS 2x4 Fence Bracket - Stainless Steel
Description:
Description:

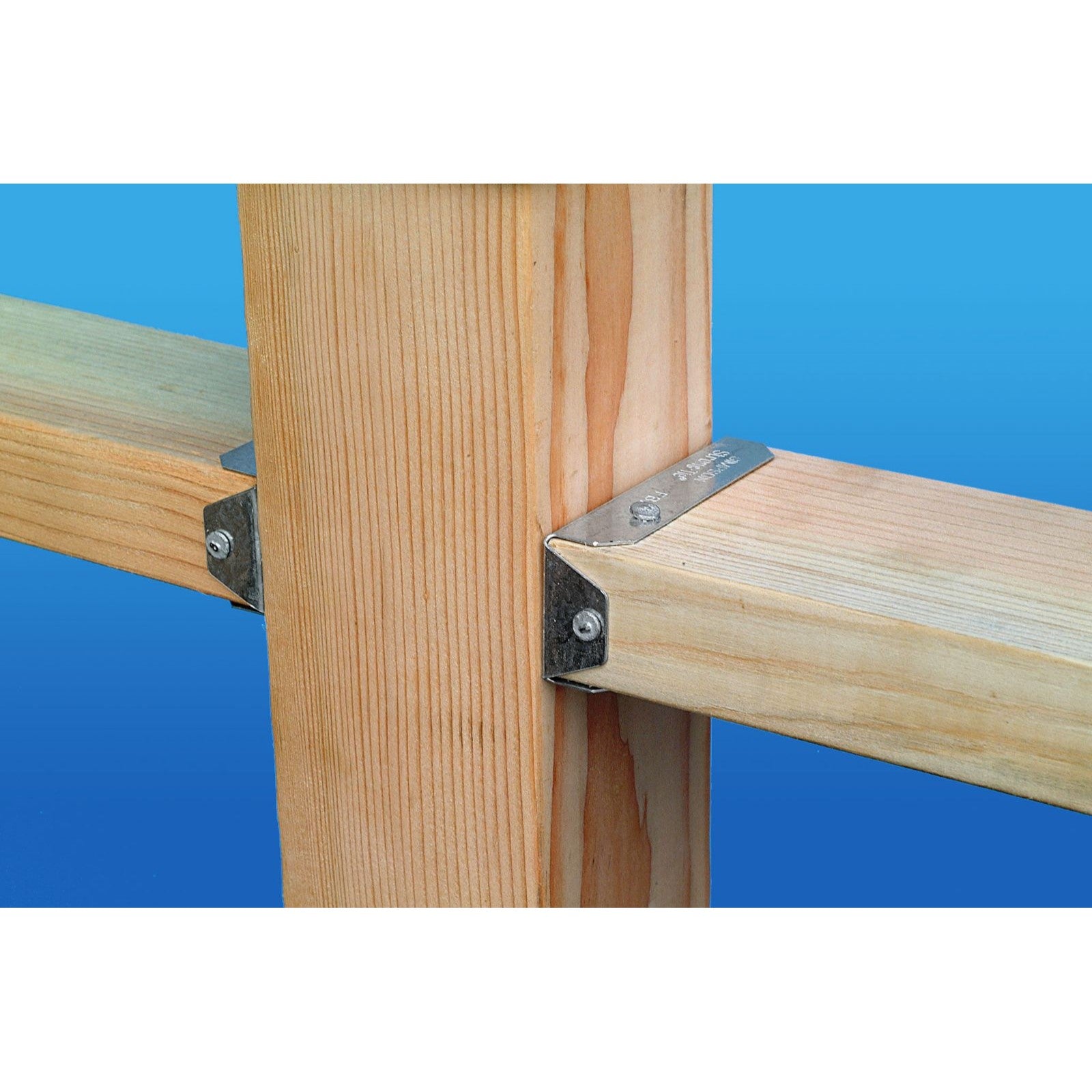

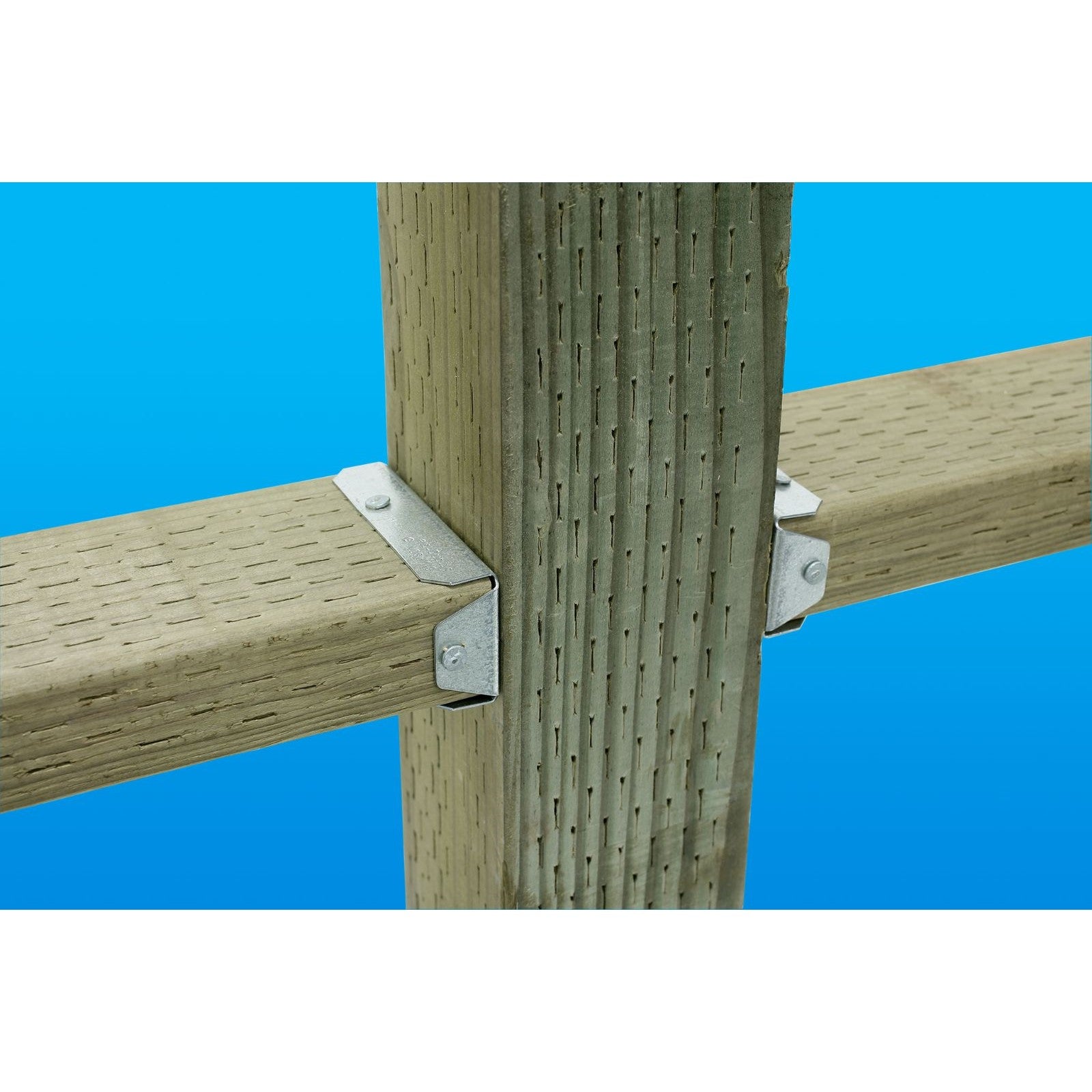

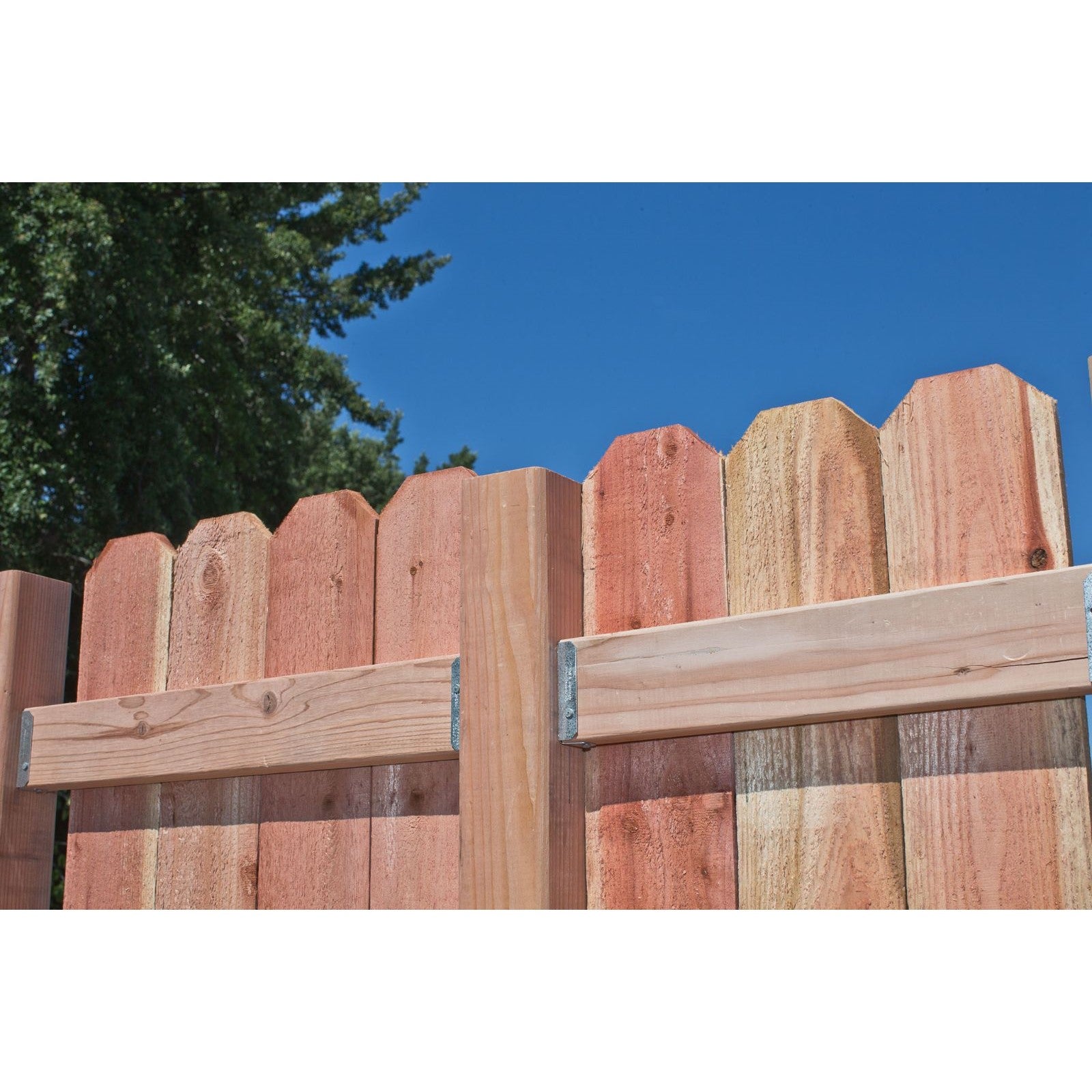

Simpson Strong-Tie FB and FBR fence brackets make the connection between fence rails and posts simple and strong. Eliminates the need for toe nailing or screwing. Clean, versatile connections make planning and building fences, deck/porch railings and louvers easier and faster. The Strong-Tie FB24SS fence brackets are made of 316L stainless steel to provide maximum corrosion resistance in the harshest of climates. Stainless steel fasteners are required to install this hanger.
Installation:
- Use all specified fasteners.
- Holes are sized for 8dx1-1/2", 8d commons or Simpson Strong-Tie 9x1-1/2" Strong-Drive SD Connector screws into the supporting member.
- FB24R is sized for 10dx1-1/2" or Simpson Strong-Tie 9x1-1/2" Strong-Drive SD Connector screws.
- Some products may be installed with the Strong-Drive SD Connector screw. See model table.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: (5) 0.131 x 1-1/2" Nails OR (5) 0.131 x 2-1/2" Nails
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-Holes are sized for 8dx1-1/2", 8d commons or Simpson Strong-Tie 9x1-1/2" Strong-Drive SD Connector screws into the supporting member.
-FB24R is sized for 10dx1-1/2" or Simpson Strong-Tie 9x1-1/2" Strong-Drive SD Connector screws.
-Some products may be installed with the Strong-Drive SD Connector screw. See model table.
