Simpson FB24ZB Fence Bracket 500 Pack - ZMAX
Simpson FB24ZB Fence Bracket 500 Pack - ZMAX
Description:
Description:
Simpson Strong-Tie FB and FBR fence brackets make the connection between fence rails and posts simple and strong. Eliminates the need for toe nailing or screwing. Clean, versatile connections make planning and building fences, deck/porch railings and louvers easier and faster. The Strong-Tie FB24ZB is a 500 pack of the FB24Z fence brackets feature a G185 ZMAX galvanized finish for added corrosion resistance and require the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:
- Use all specified fasteners.
- Holes are sized for 8dx1-1/2", 8d commons or Simpson Strong-Tie 9x1-1/2" Strong-Drive SD Connector screws into the supporting member.
- FB24R is sized for 10dx1-1/2" or Simpson Strong-Tie 9x1-1/2" Strong-Drive SD Connector screws.
- Some products may be installed with the Strong-Drive SD Connector screw. See model table.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING

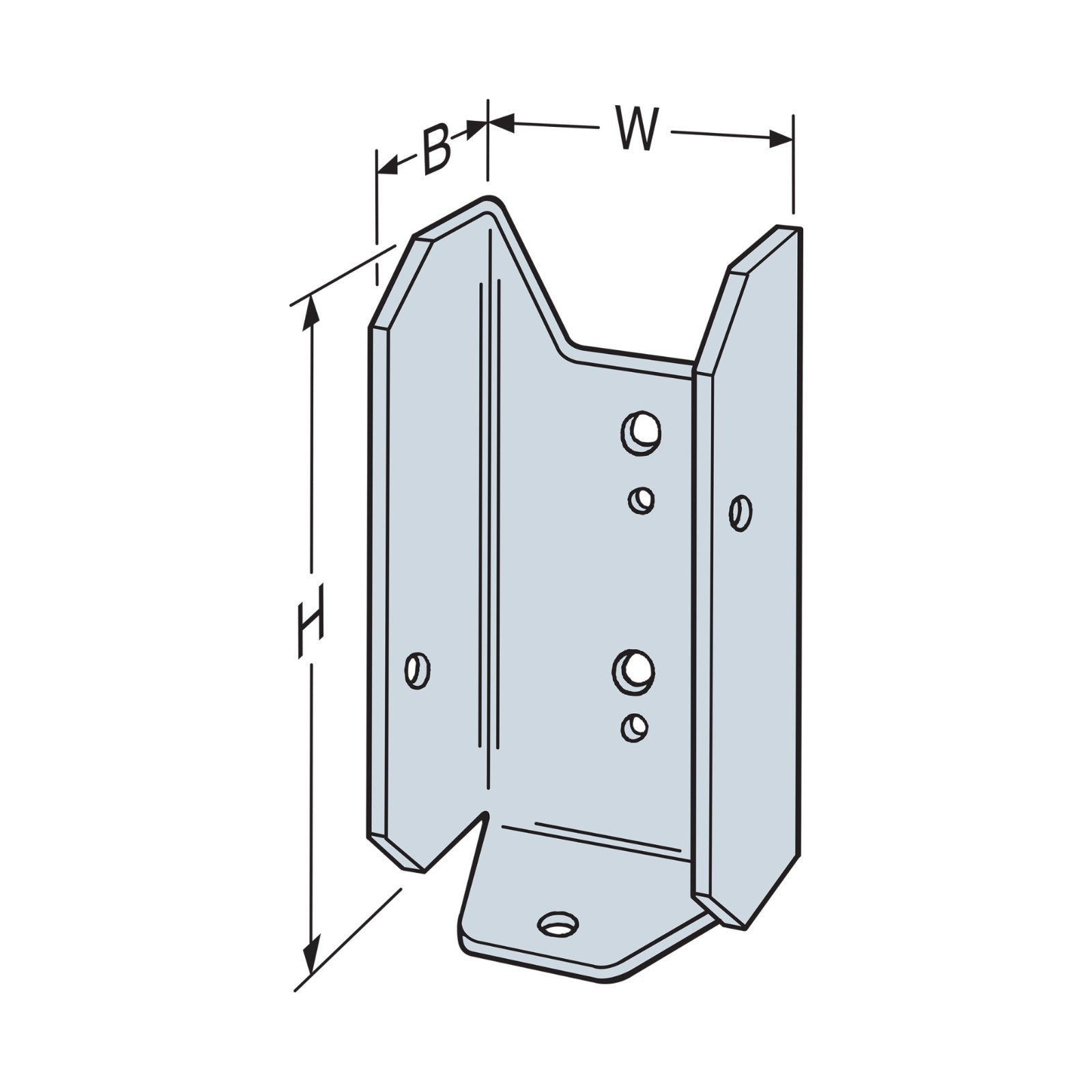

Specifications:
Specifications:
Height: 3-3/8"
Fasteners required: 0.131" x 1 1/2" nails or #9 x 1 1/2" Strong-Drive® SD Connector screws
Thickness: 20 Gauge
Quantity: 500
Width: 1-9/16"
Finish: ZMAX
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Features
Features
•Preinstallation of brackets allows rails to slide into place easily
•Eliminates need for toe nails or screws

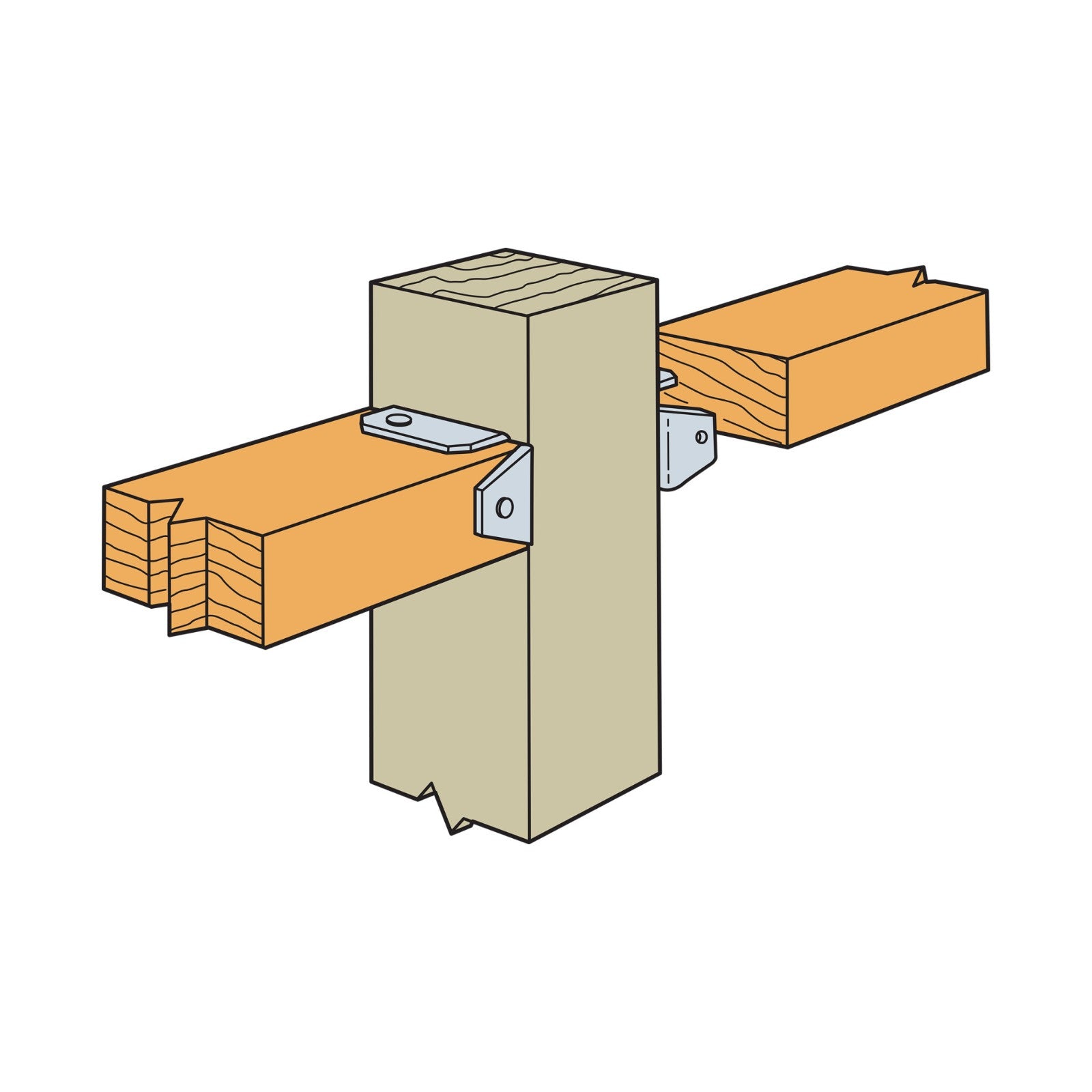

Installation
Installation
•Install the FB fence rail brackets using 0.131" x 1 1/2" nails or #9 x 1 1/2" Strong-Drive® SD Connector screws
•FB24R, FB24Z, and FB24SS install with (3) fasteners into the rail and (2) fasteners into the supporting member
•FB26 installs with (3) fasteners into both the rail and the supporting member
