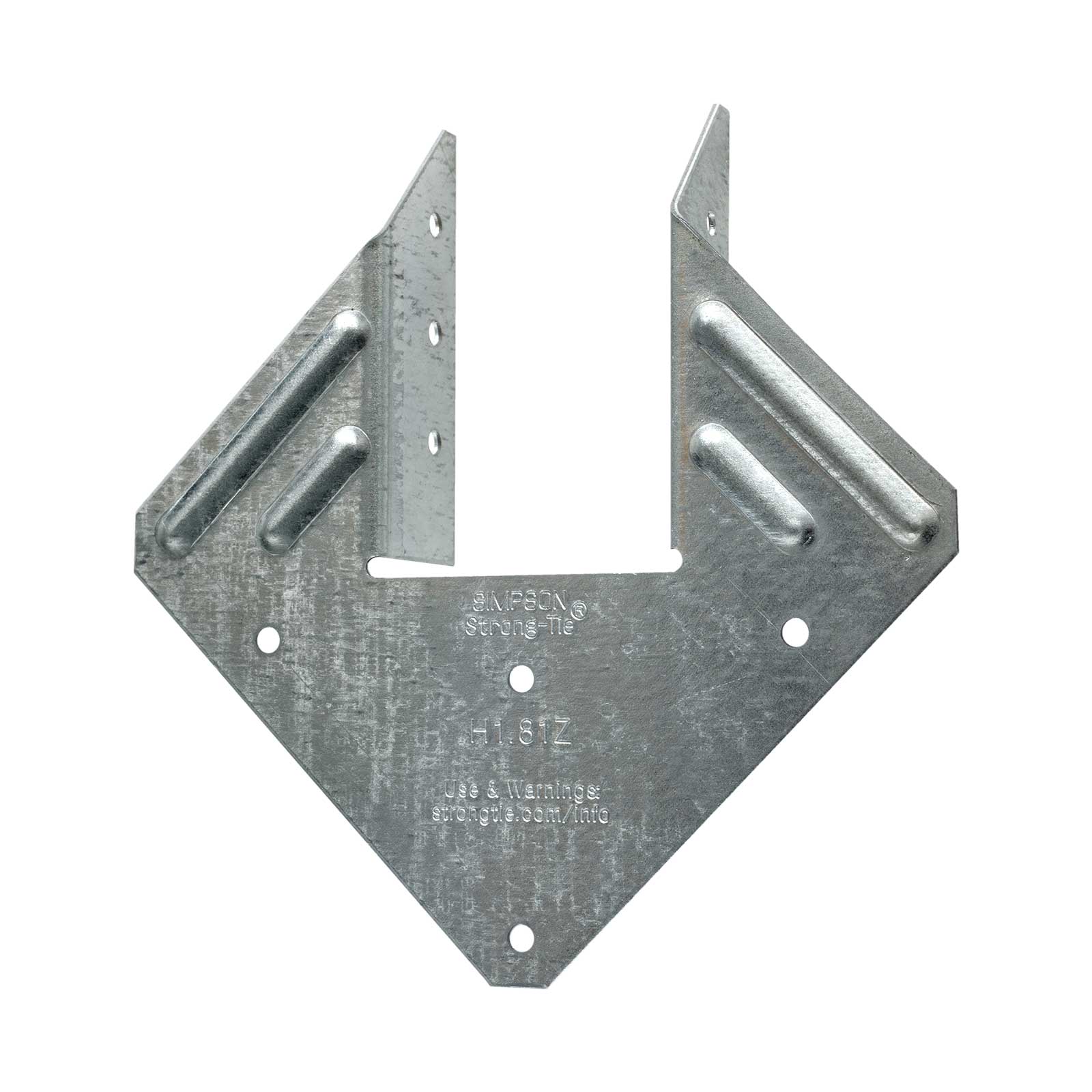

Simpson H1.81Z Hurricane Tie For Engineered Lumber - Zmax Finish
Simpson H1.81Z Hurricane Tie For Engineered Lumber - Zmax Finish
Description:
Description:

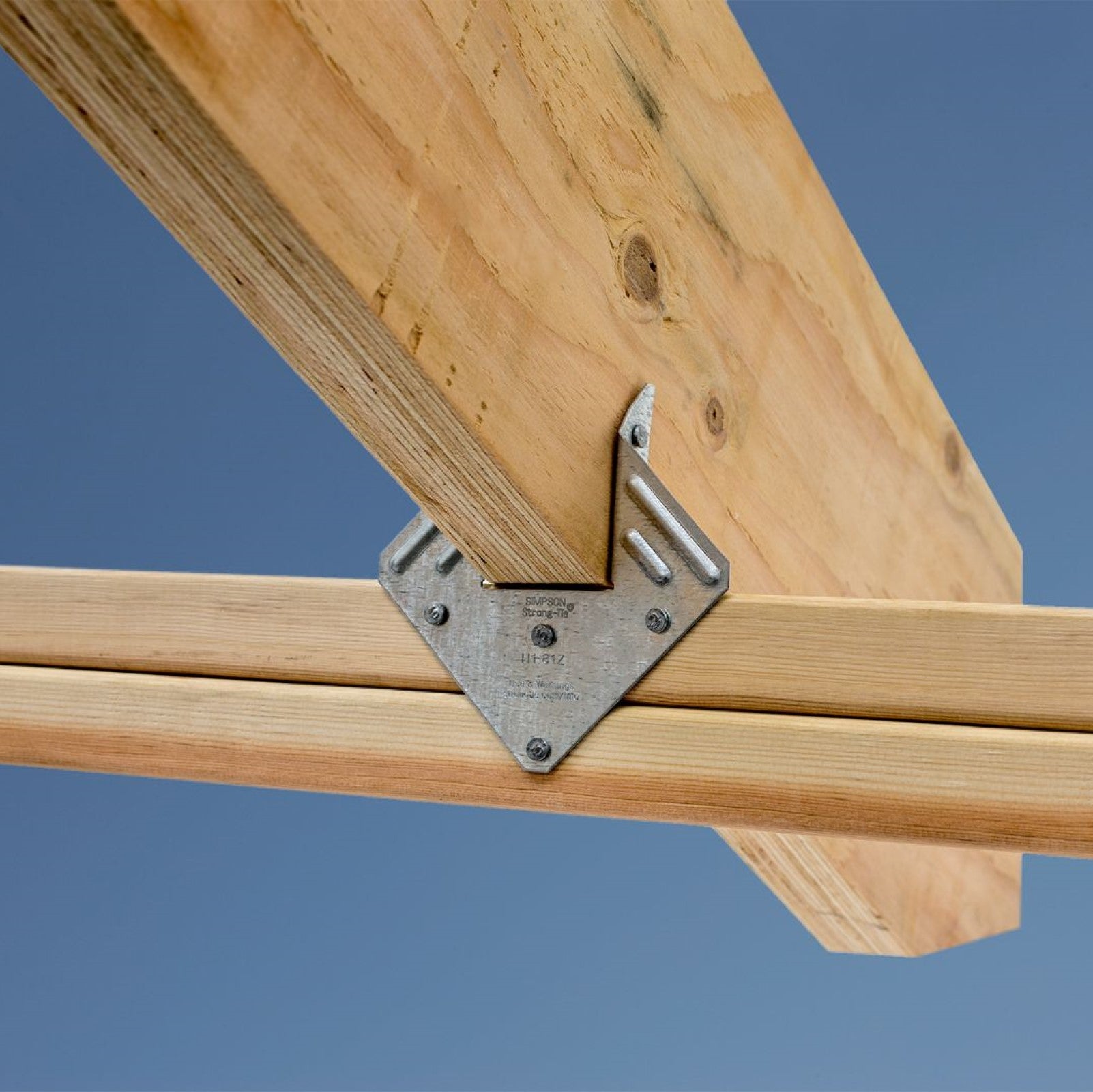

Simpson Strong-Tie H1.81Z Hurricane Ties provide a positive connection between 1-3/4" LVL rafters and the top wall plate to resist wind and seismic forces. The Strong-Tie H1.81Z Hurricane Tie features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:

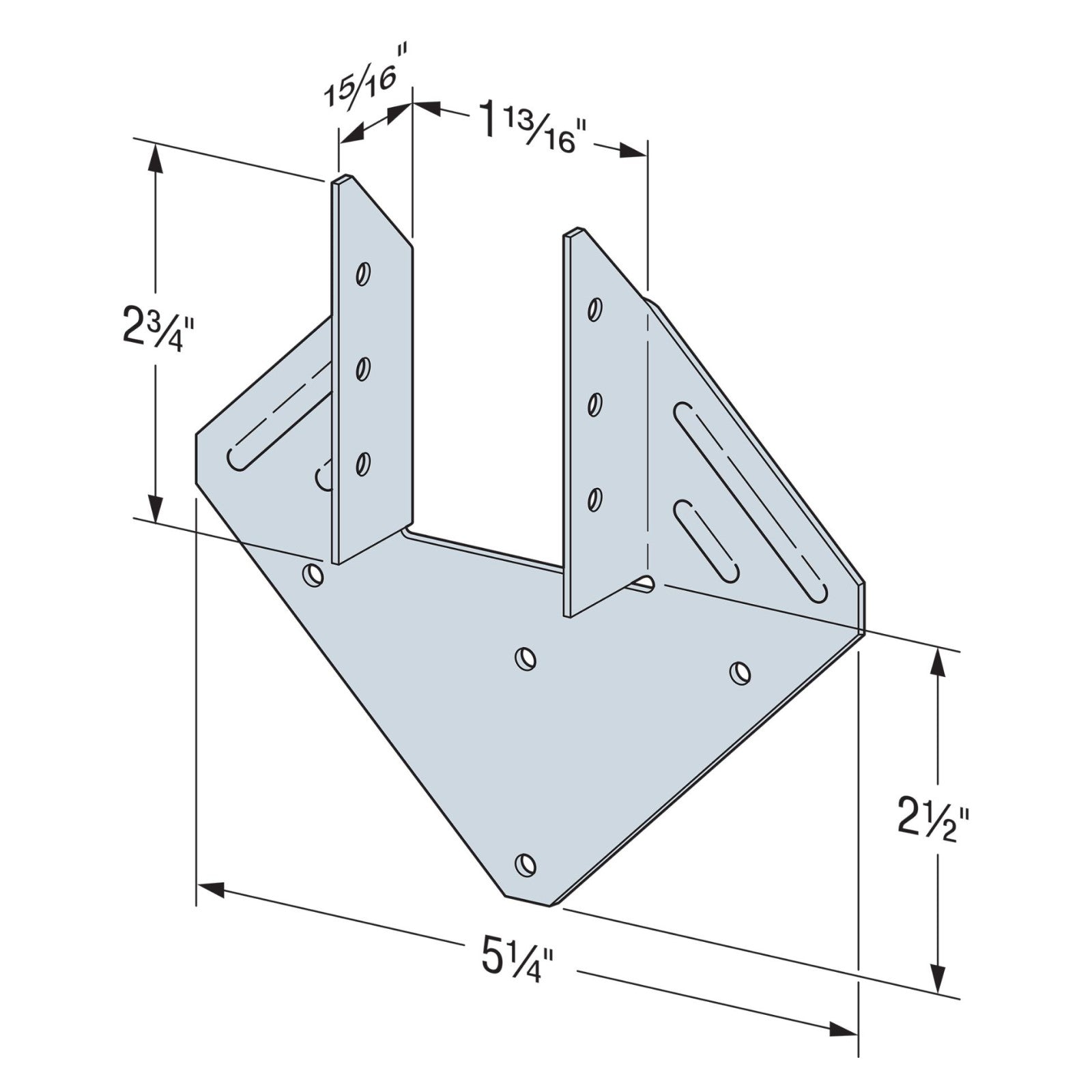

- Wider seat than the standard H1 Hurricane Tie to fit 1-3/4" LVL rafters.
- Use all specified fasteners.
- Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products.

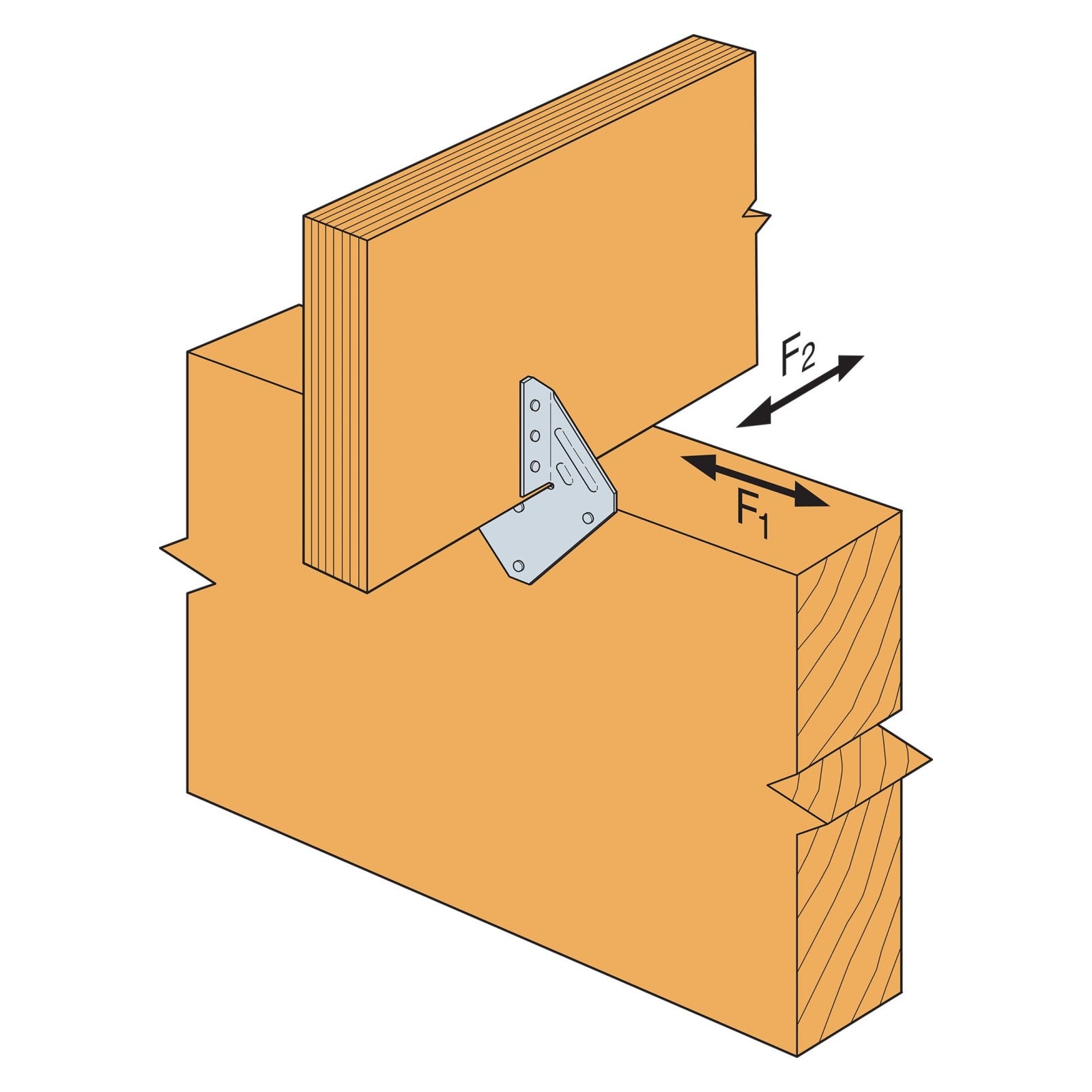

- H1.81Z can be installed with flanges facing inwards or outwards.
- Hurricane ties do not replace solid blocking.
- Engineered pre-cut holes fit popular 0.148" x 1-1/2" connector nails.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: To Rafters/Truss - (6) 0.131" x 1-1/2" Nails OR (6) SD9112 Screws Top Plates - (4) 0.131" x 2-1/2" Nails OR (4) SD9112 Screws
Finish: ZMAX
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet
Installation
Installation
-Wider seat than the standard H1 Hurricane Tie to fit 1-3/4" LVL rafters.</li>
- Use all specified fasteners.- Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products.- H1.81Z can be installed with flanges facing inwards or outwards. - Hurricane ties do not replace solid blocking. - Engineered pre-cut holes fit popular 0.148" x 1-1/2" connector nails.
