Description:
Description:

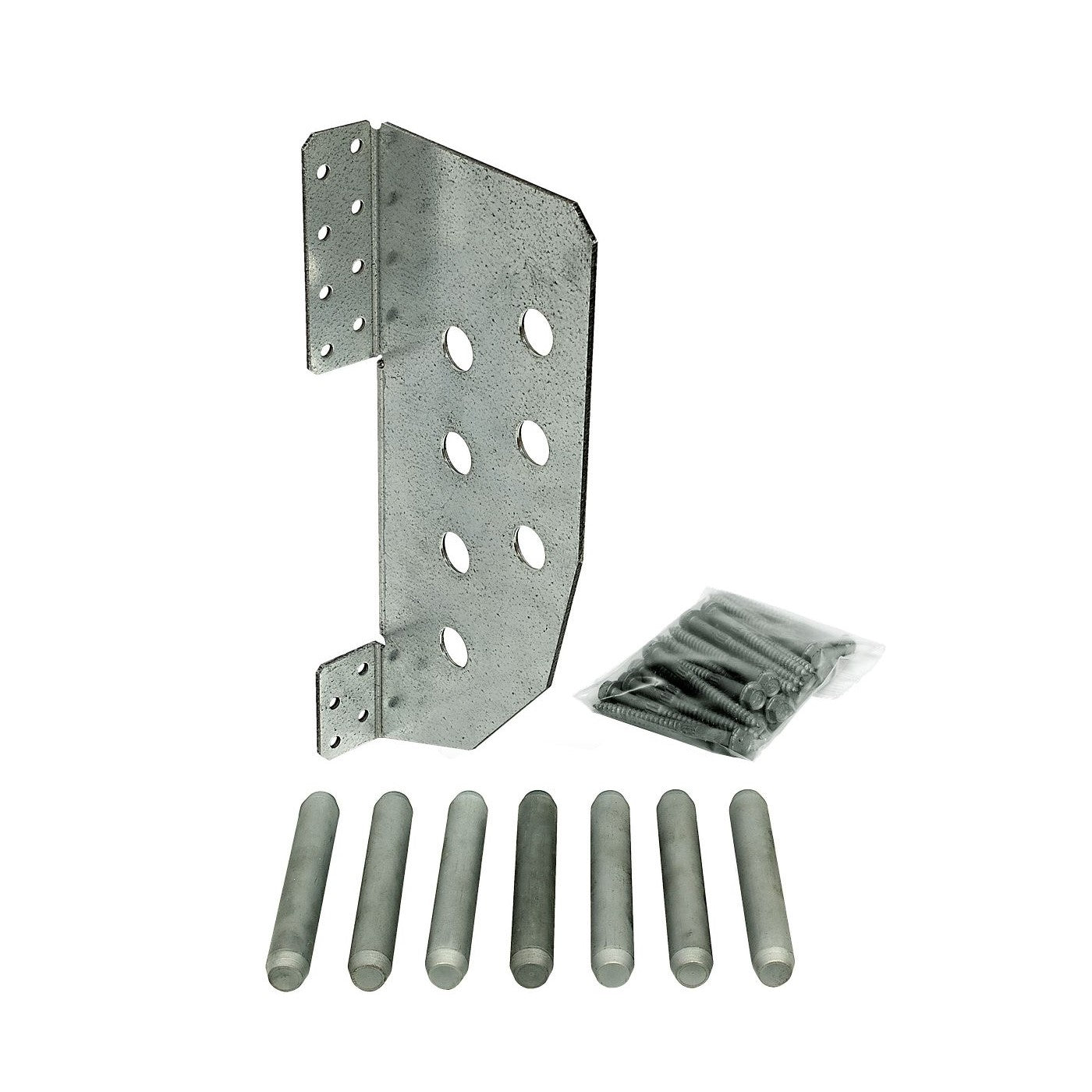

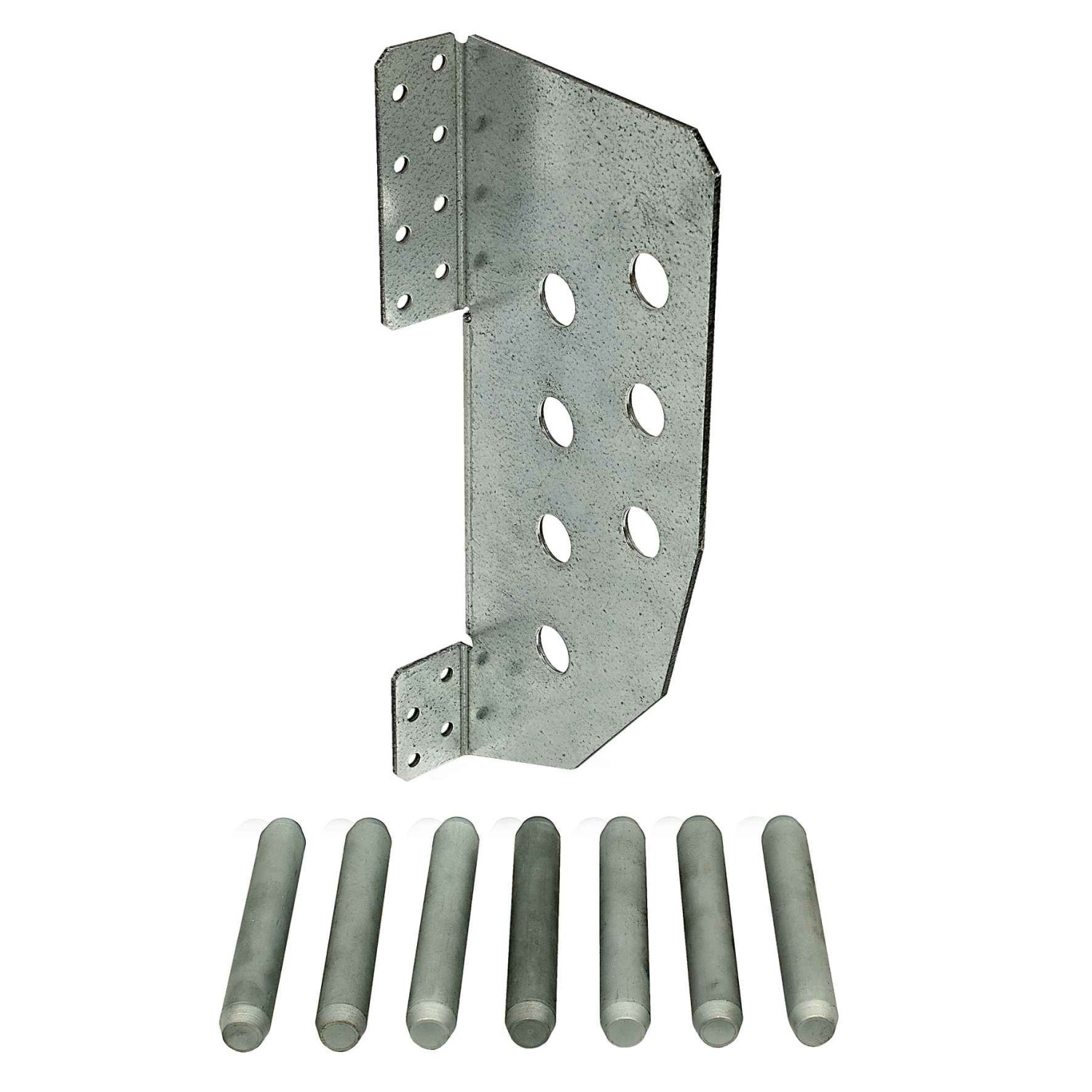

The Simpson HCJTZ Concealed Joist Tie is a concealed connector. It can be installed three ways: with no routing of header/post or beam, a routed header/post or a routed beam. It is part of a concealed connector system that includes the CPTZ and CBTZ.
The HCJTZ is a heavy concealed beam tie to be used with large glulam beams resisting heavy loads. The HCJTZ features a unique shape that allows installers to insert the connector into the end of the beam without a visible slot cut into the bottom of the beam.
Installation
Use all specified fasteners; see General Notes.
The HCJTZ is supplied with all dowels and screws required. Screws require a hex-head driver.

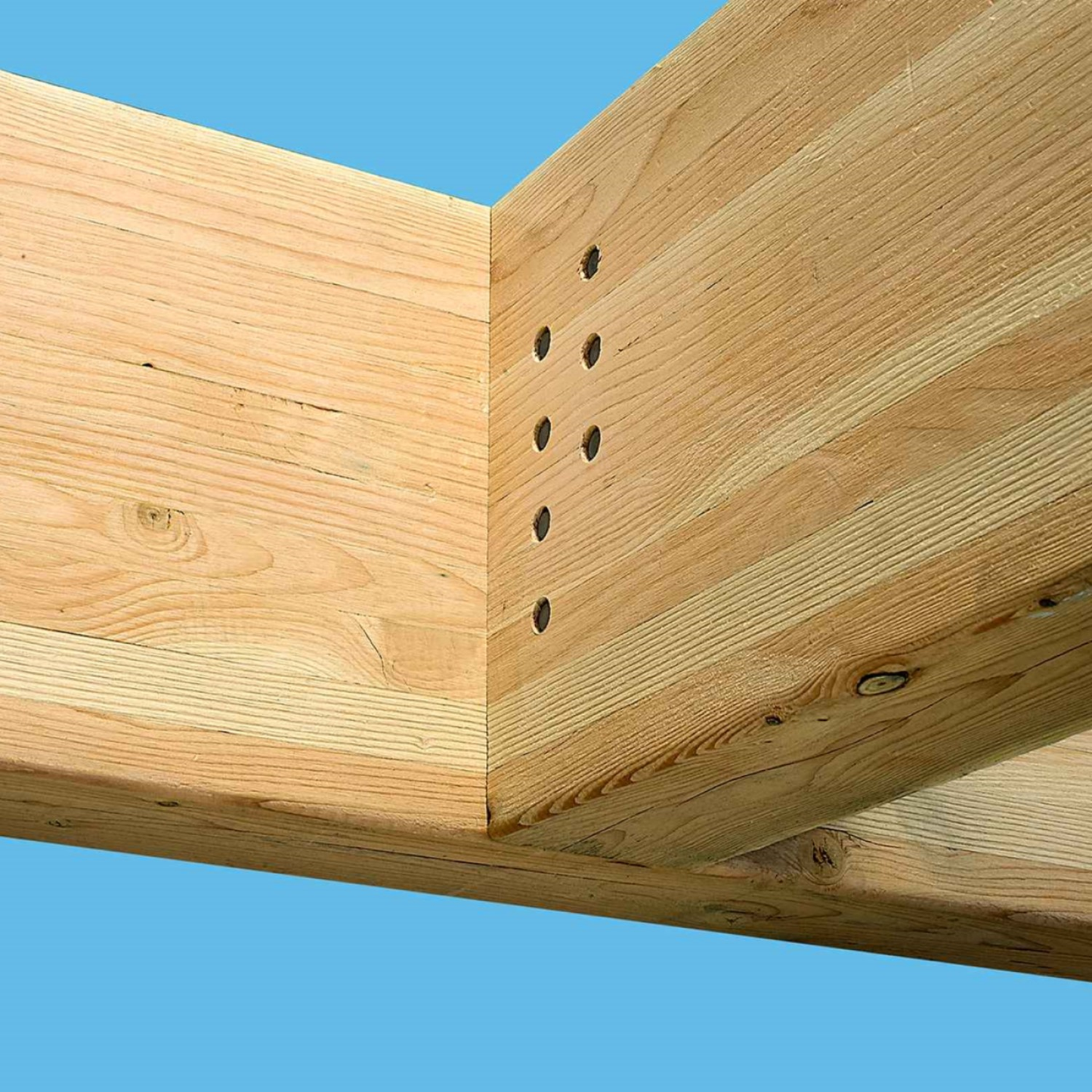

Router end of beam for screw heads for flush installation.
The carried member may be sloped up or down to 45° with full table loads.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:

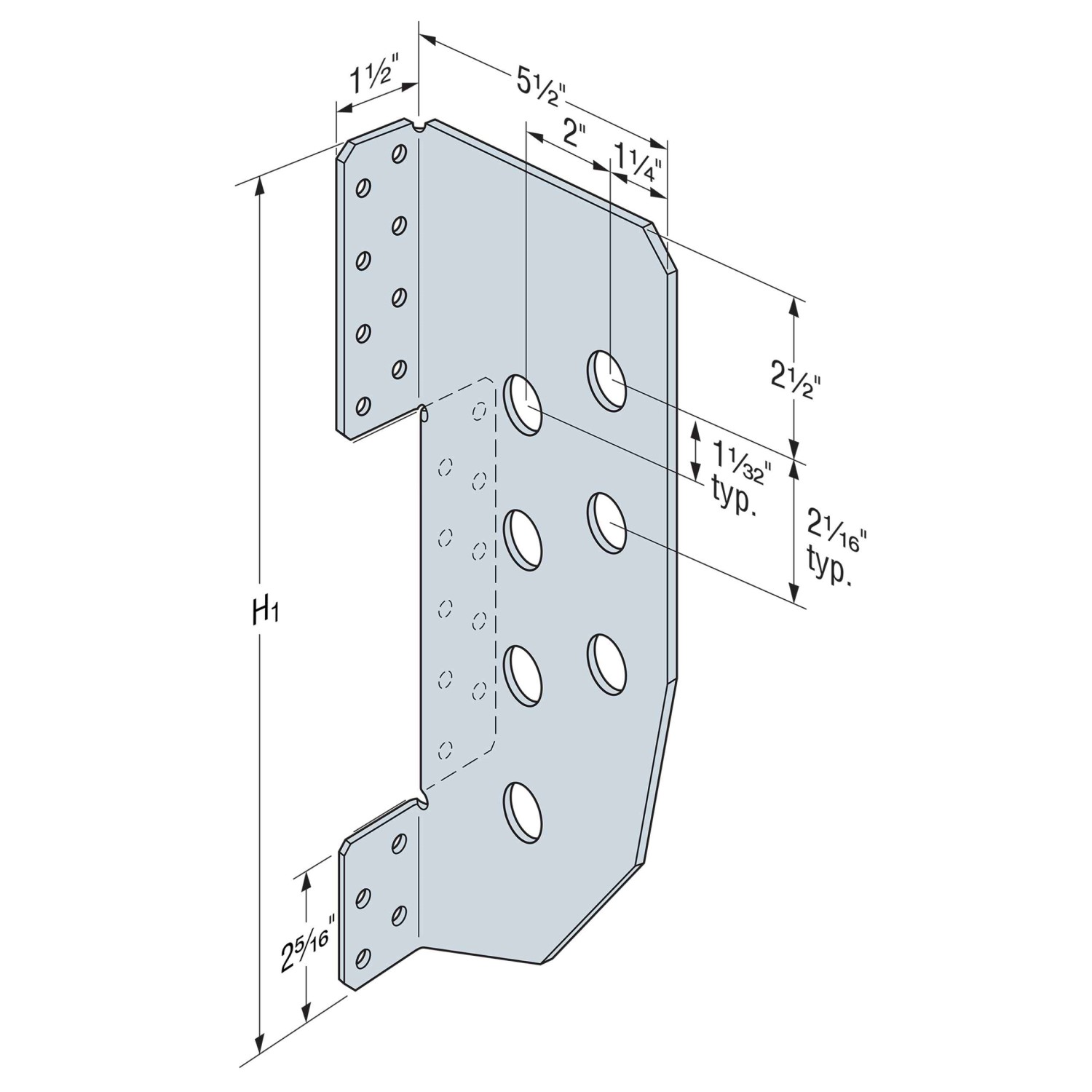

Height: H1: 13-1/16"
Fasteners required: Strong-Drive SDS Heavy-Duty Connector screws
Thickness: 10 Gauge
Quantity: 1
Width: 5-1/2"
Finish: ZMAX
Joist size: 5-1/8" x 15"
Product Guide: View Spec Sheet
