Simpson HHSUQ28-2-SDS Heavy Severe Skew Truss Hanger - Gray Paint
Simpson HHSUQ28-2-SDS Heavy Severe Skew Truss Hanger - Gray Paint
Description:
Description:
- This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product.

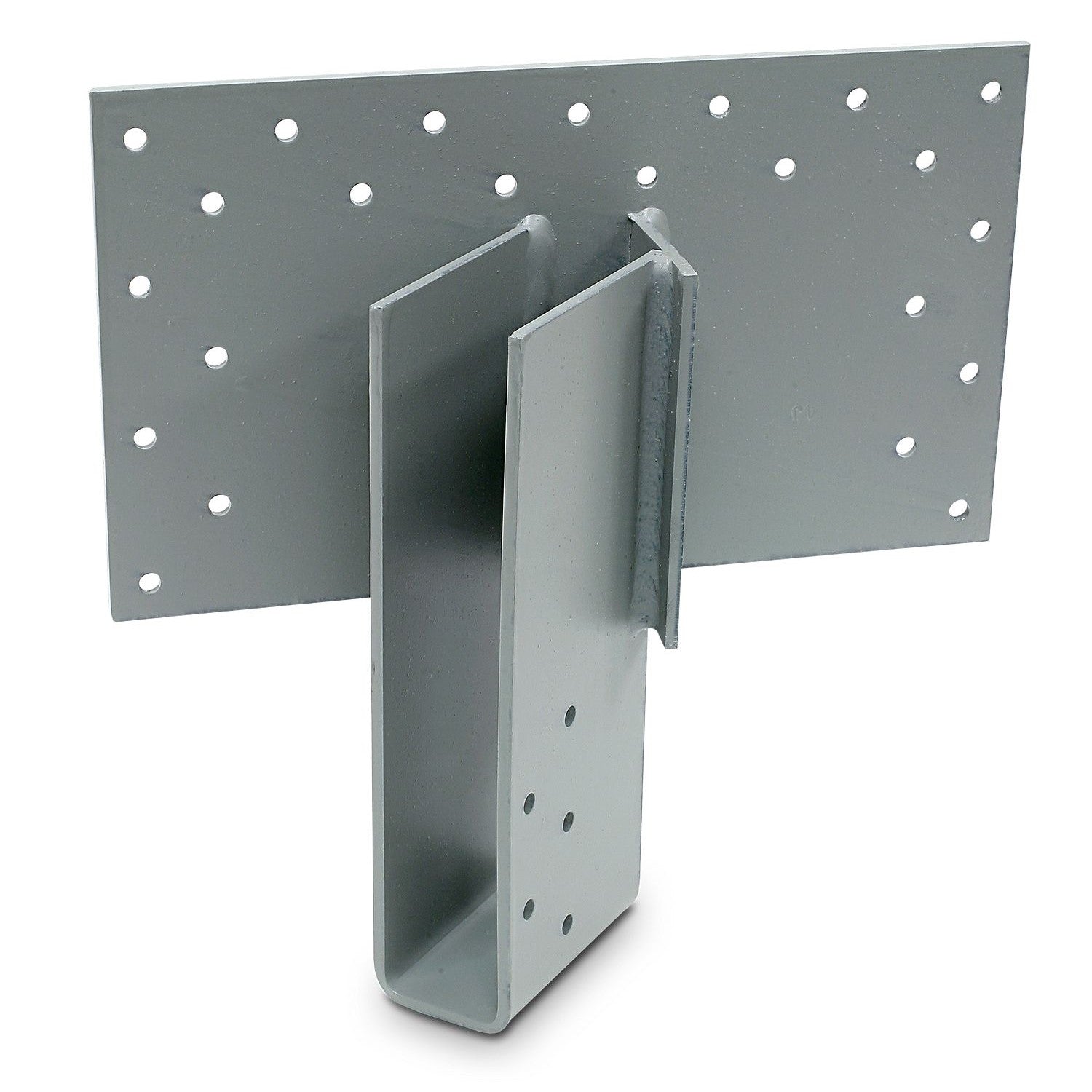

The HHSUQ Heavy Severe Skew Truss Hanger is a high-load, face-mount, truss-to-truss hanger designed to accommodate severe skews (45°–84°) for hip trusses, enabling a greater range of installation applications. Fastening the HHSUQ with Strong-Drive® SDS Heavy-Duty Connector screws makes installation fast and easy, while eliminating the inconvenience of bolted applications.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 7-1/4"
Fasteners required: Face: (23) 1/4" X 3" Joist: (5) 1/4" X 1 1/2"
Thickness: Back plate: 3 gauge; Stirrup: 7 gauge
Width: 3-5/16"
Finish: Gray Paint
Joist size: 2 X 8 DBL
Product Guide: View Spec Sheet

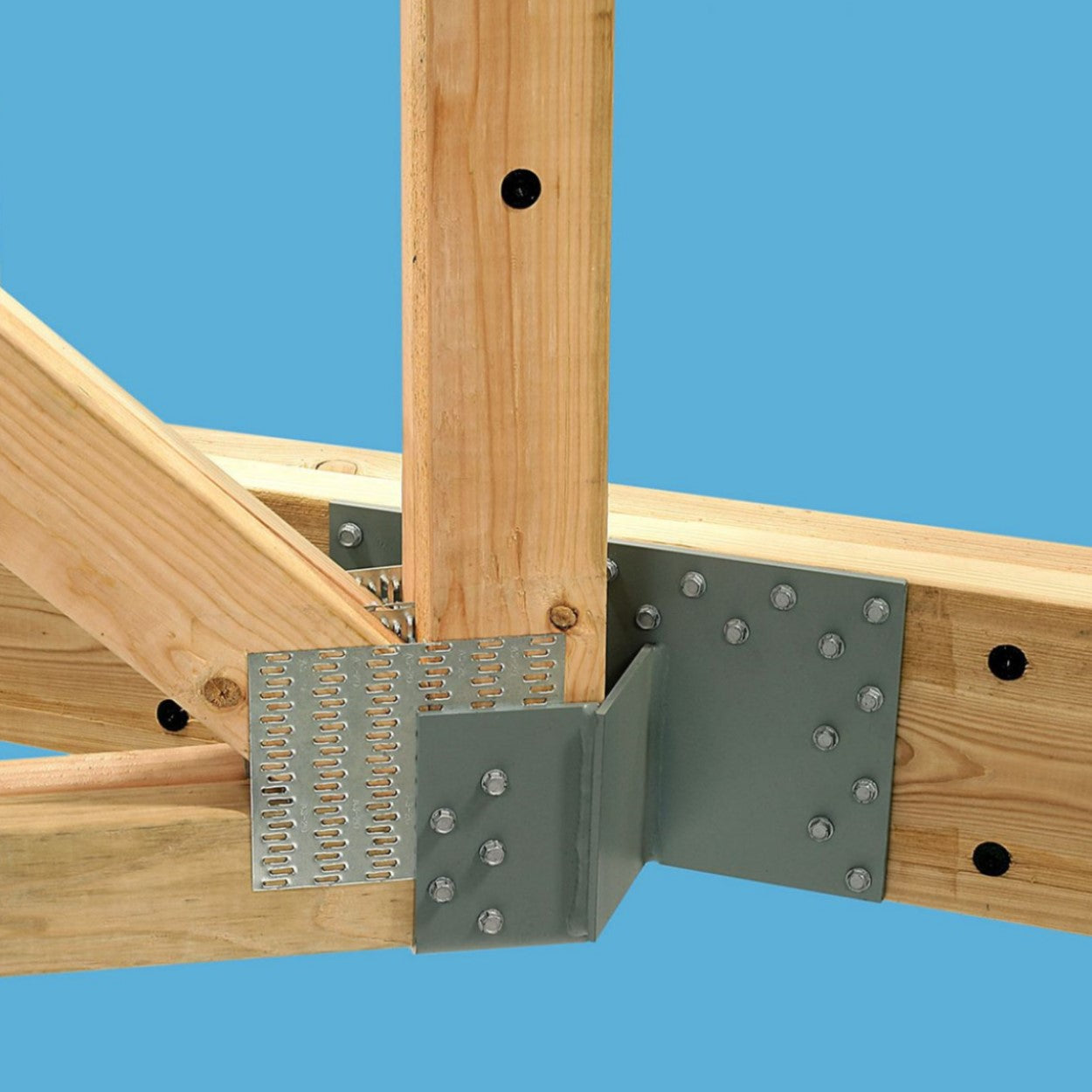

Installation
Installation
• The joist/truss end may be square cut or bevel cut. 3 7/8" minimum heel height.
• Strong-Drive SDS Heavy-Duty Connector screws supplied for all round holes.
• All multiple members must be fastened together to act as a single unit.
