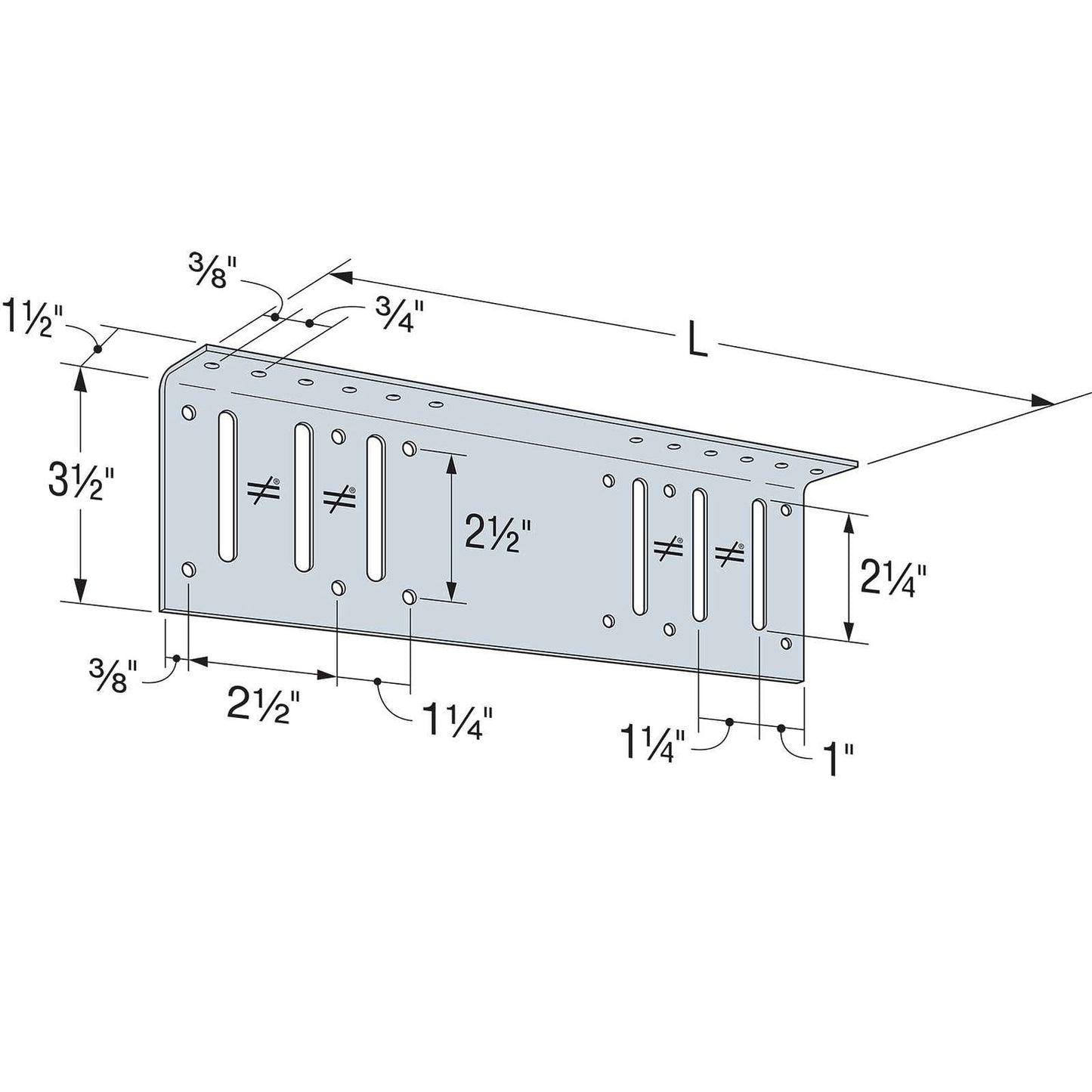

Simpson HYS12/68-KT25 Bypass Hybrid Strut W/Screws, Pkg 25
Simpson HYS12/68-KT25 Bypass Hybrid Strut W/Screws, Pkg 25
Description:
Description:
The Simpson Strong-Tie HYS hybrid strut is the only CFS strut available on the market designed and tested for use as either a side or a rigid clip. This connector is commonly used at the bottom of a steel beam to accommodate large standoff conditions. It can be attached to the structure with screws, powder-actuated fasteners, or welds. This kit includes (25) HYS12/68 connectors and (83) XLSH78B1414 #14 shouldered screws for slide-clip applications.
Key Features
- Available in lengths of 12", 15", 24" and 30" (for 18" lengths, use SSB and FSB struts)
- Slots are positioned to minimize eccentric load and maximize capacity
- Slide application allows up to 1" of vertical moment in each direction when shouldered screws are used through the center of the slot
- Simpson Strong-Tie® No-Equal® stamps mark the center of the slots to help ensure the correct placement of shouldered screws
- Supports gravity and lateral loads when using #10 screws through small predrilled holes
Specifications:
Specifications:
Fasteners required: (83) XLSH78B1414 #14 shouldered screws for slide-clip applications (included)
Thickness: 14 Gauge
Quantity: 25
Finish: G90 Galvanized
Length: 12"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Installation
Installation
• For installation as a slide connection, attach the HYS using shouldered screws through the slotted holes. Precision-manufactured shouldered screws provided with the HYS are designed to prevent over-driving and to ensure that the clip functions properly in the slide application.
• For installation as a rigid connection to support gravity and lateral loading, attach the clip using the small predrilled holes with #10 screws.
