Simpson IDCB45.5-KT25 Drift Clip Bypass Framing Connectors W/Screws, Pkg 25
Simpson IDCB45.5-KT25 Drift Clip Bypass Framing Connectors W/Screws, Pkg 25
Description:
Description:

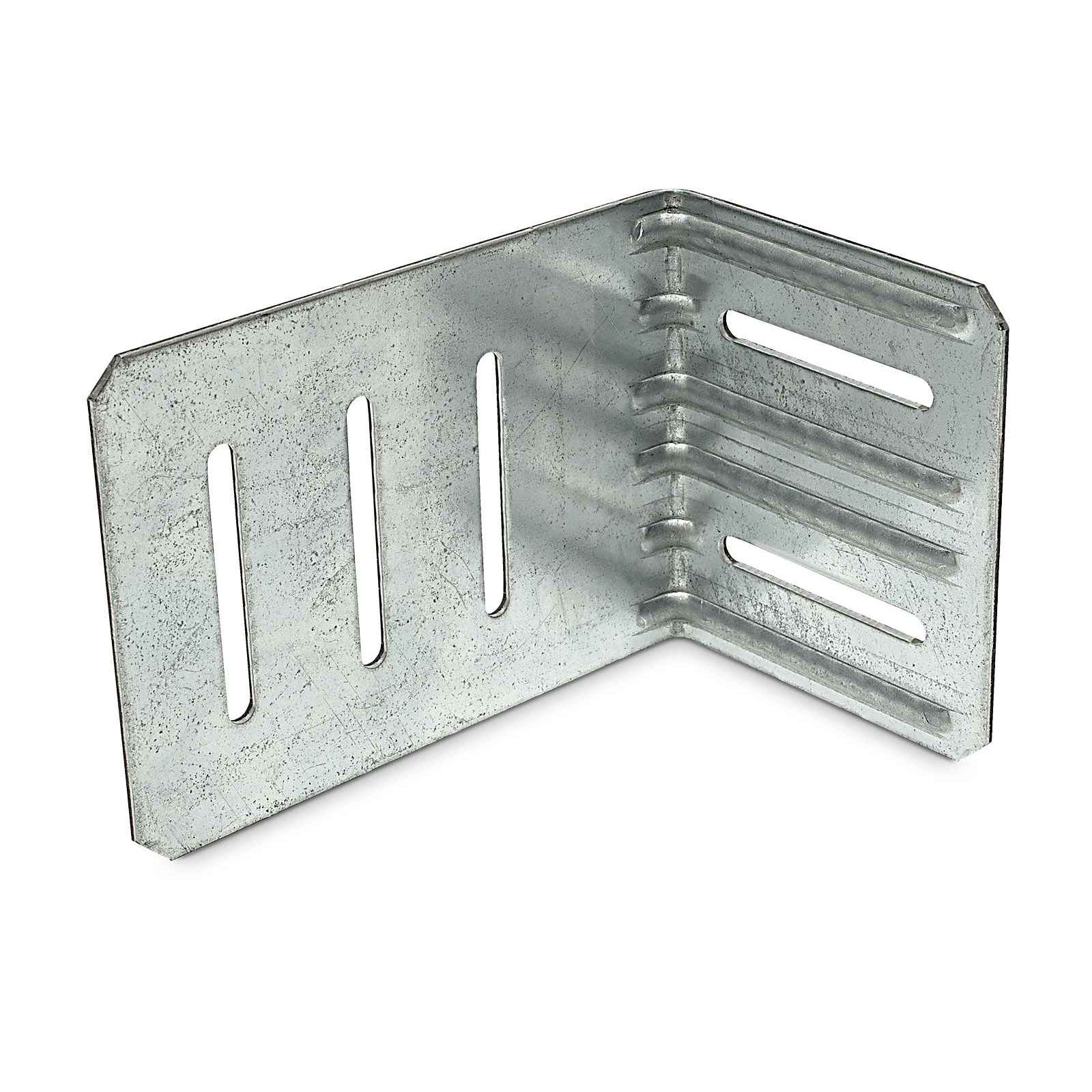

The Simpson Strong-Tie IDCB drift-clip connector is designed to secure bypass stud framing to the edge of a slab. It accommodates 1" of lateral drift in each direction and 1" of upward and downward vertical deflection. This kit includes (25) IDCB45.5 connectors and(83) XLSH78B1414 #14 shouldered screws.
Key Features
- Horizontal embossments and corner gussets optimize performance in the F2 load direction
- Precision-manufactured shouldered screws provided with the IDCB connector are designed to prevent overdriving and to ensure that the clip functions properly
- Simpson Strong-Tie No-Equal® stamps mark the center of the slots to help ensure correct shouldered screw and anchor placement
Specifications:
Specifications:
Fasteners required: (83) XLSH78B1414 #14 shouldered screws for slide-clip applications (included)
Thickness: 12 Gauge
Quantity: 25
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet

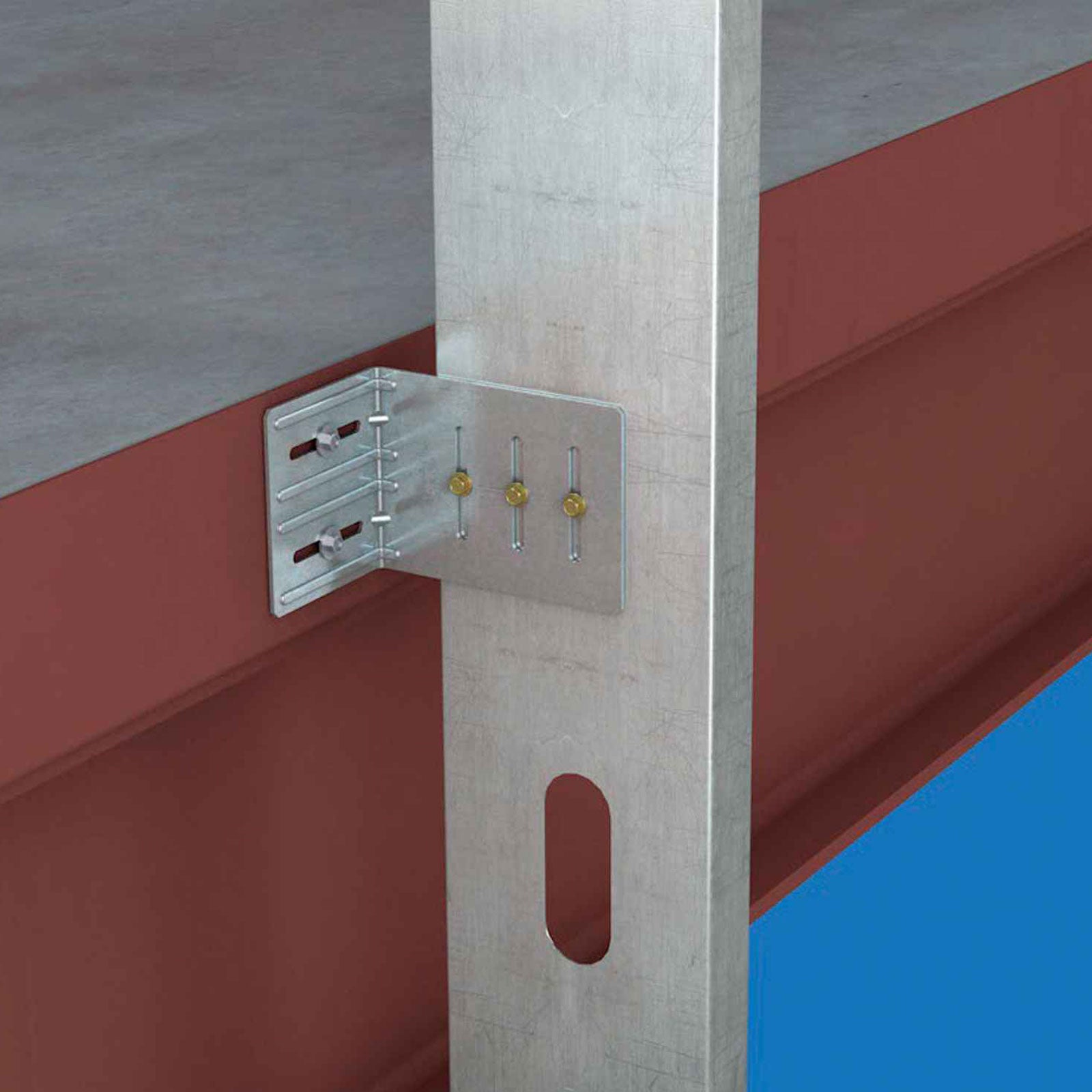

Installation
Installation
• Use the specified type and number of fasteners and anchors.
• In the vertical slots, use the specified number of #14 shouldered screws (included) for attachment to the stud. Install screws to align with the "No-Equal" stamp.
• For attachment to a minimum 3/16"- and maximum 1/2"-thick steel-edge angle, use Simpson Strong-Tie® Strong-Drive XL Large-Head Metal screws (XLQ114B1224). Use one screw centered in each horizontal slot. Install screws to align with the No-Equal stamp and back out 1/2 turn.
• For fastener installation into steel backed by concrete, predrilling of both the steel and the concrete may be required. For predrilling, use a maximum 3/16"-diameter drill bit.
