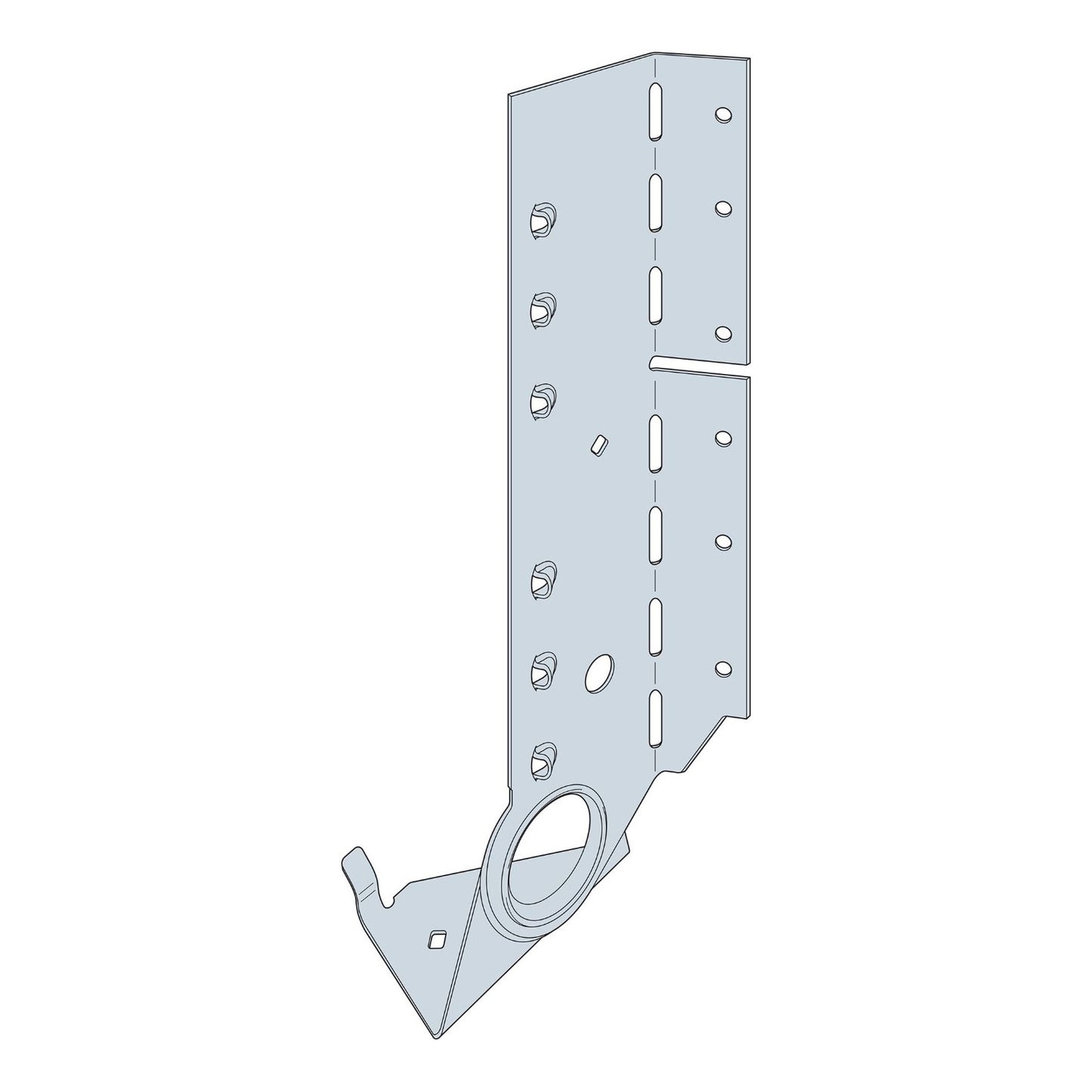

Simpson LSSJ210LZ Left Side Field Adjustable Jack Hanger -Zmax Finish
Simpson LSSJ210LZ Left Side Field Adjustable Jack Hanger -Zmax Finish
No reviews
Regular price
$16.05
Sale price
$16.05
Regular price
Unit price
/
per
0% off
Payment methods
Accepted payments:
Ships May 20 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.
Description:
Description:

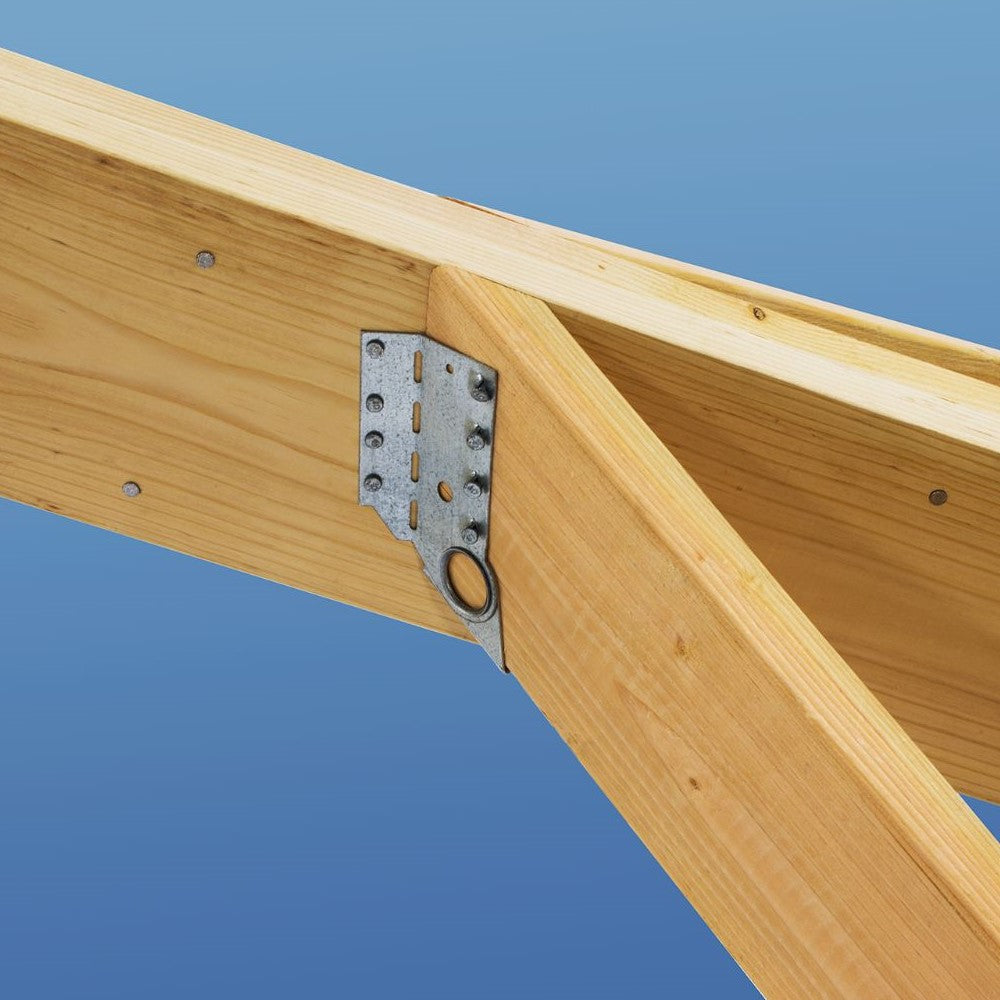

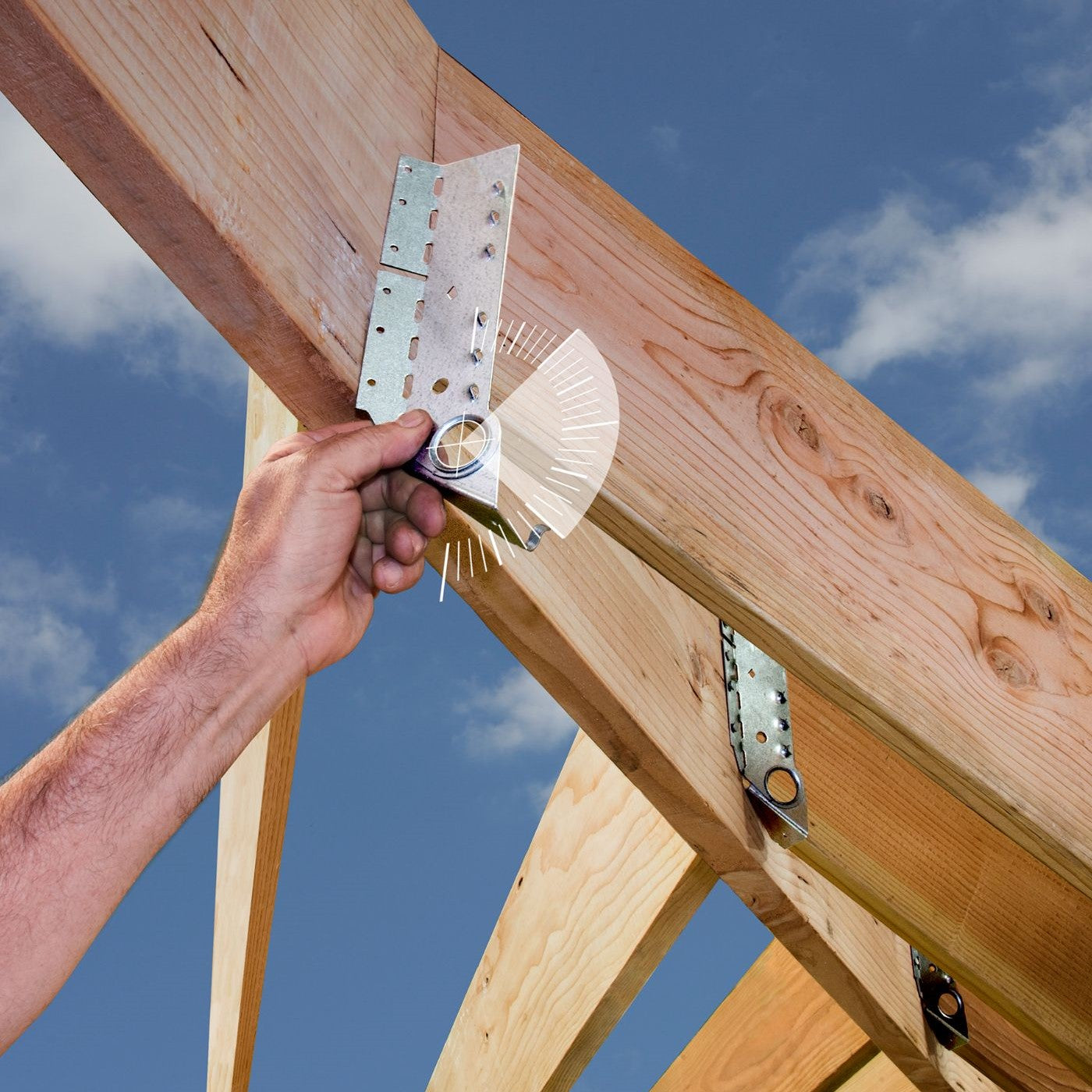

The Simpson Strong-Tie LSSJ series of light adjustable jack hangers create a one sided connection that features a hinged seat that is field adjustable 45 degrees up and down to fit all rafter slopes ranging from 0:12 to 12:12. The LSSJ210LZ can also be skewed in the field up to 45 degrees, making it one of the most versatile connectors offered by Simpson. This connector is shipped pre-bent to a 45 degree angle which is suited for the typical installation.
Installation:
Installation:
- Use all specified fasteners
- For LSSJ210 an extra nail in the seat at load durations (115) and (125) adds 75 lb. to the 0.148" x 1 1/2" nails table downloads
- Joist end needs to be bevel cut
- Table and illustration shows left and right skews LSSJR/L (LSSJR = skewed right; LSSJL = skewed left)
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Material: Carbon Steel
Height: 8"
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
Width: 1-9/16"
Finish: ZMAX
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Joist size: 2X10
Product Guide: View Spec Sheet
Height: 8"
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
Width: 1-9/16"
Finish: ZMAX
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Joist size: 2X10
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners
-For LSSJ28 an extra nail in the seat at load durations (115) and (125) adds 75 lb. to the 0.148" x 1 1/2" nails table downloads
-Joist end needs to be bevel cut
-Table and illustration shows left and right skews LSSJR/L (LSSJR = skewed right; LSSJL = skewed left)
