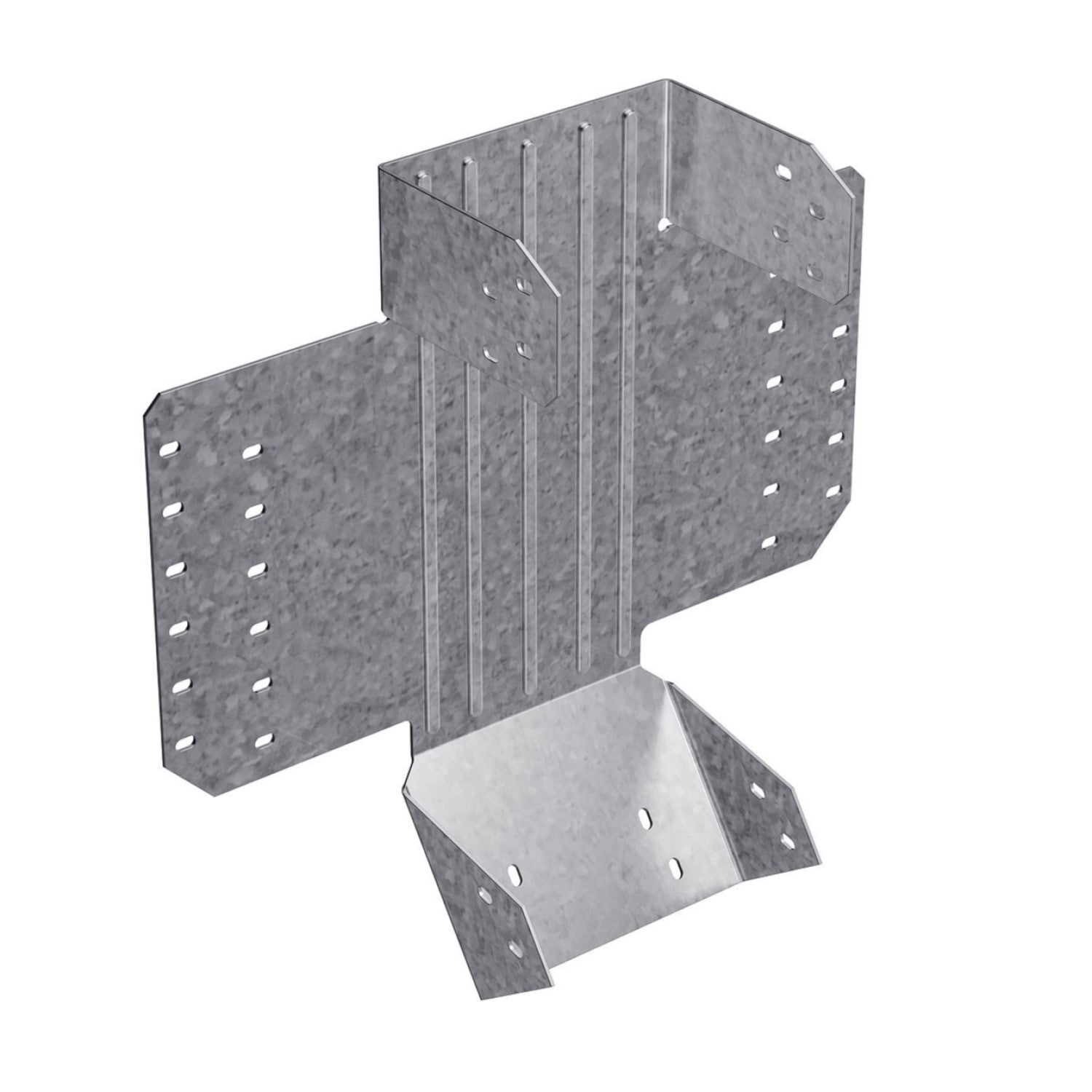

Simpson LSU3510-2X Adjustable Rafter Hanger - G90 Galvanized
Simpson LSU3510-2X Adjustable Rafter Hanger - G90 Galvanized
No reviews
Call for Price
Call to Order
Payment methods
Accepted payments:
Ships in 1-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.
Description:
Description:
The LSU series attaches double joists or rafters to headers, sloped up or down, and skewed left or right, up to 45°. This product is preferable to similar connectors because of easier installation, higher loads, lower installed cost, or a combination of these features.
Features:
- Can be skewed up to 45° left or right and sloped up or down
- Makes it possible to install after the rafters are already in place
- Web stiffeners required for I-joist applications
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 8-7/8"
Fasteners required: Face: (24) 0.162 X 3-1/2” Joist: (16) 0.148 X 1-1/2”
Thickness: 14 Gauge
Width: 4-3/4"
Finish: G90 Galvanized
Product Guide: View Spec Sheet
