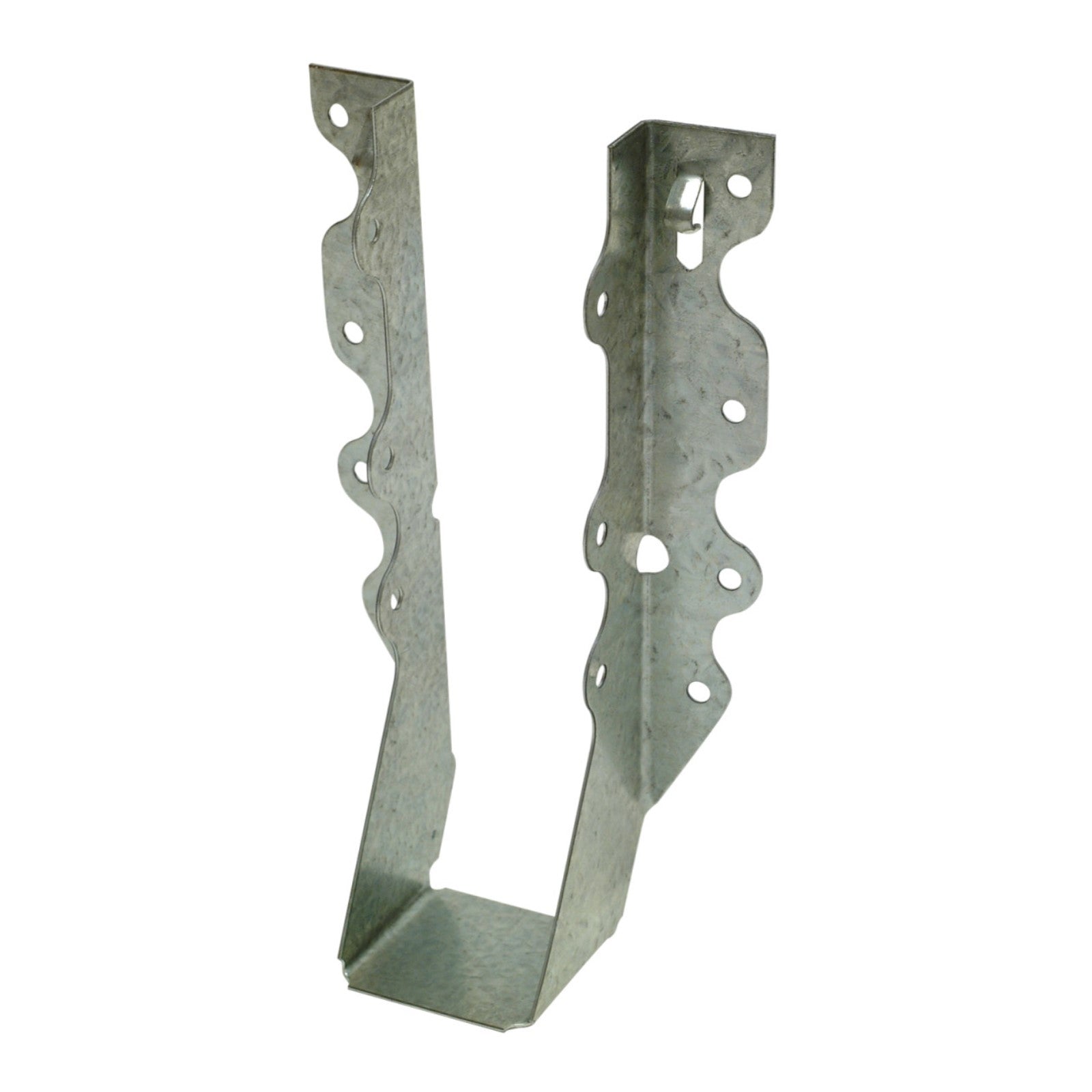

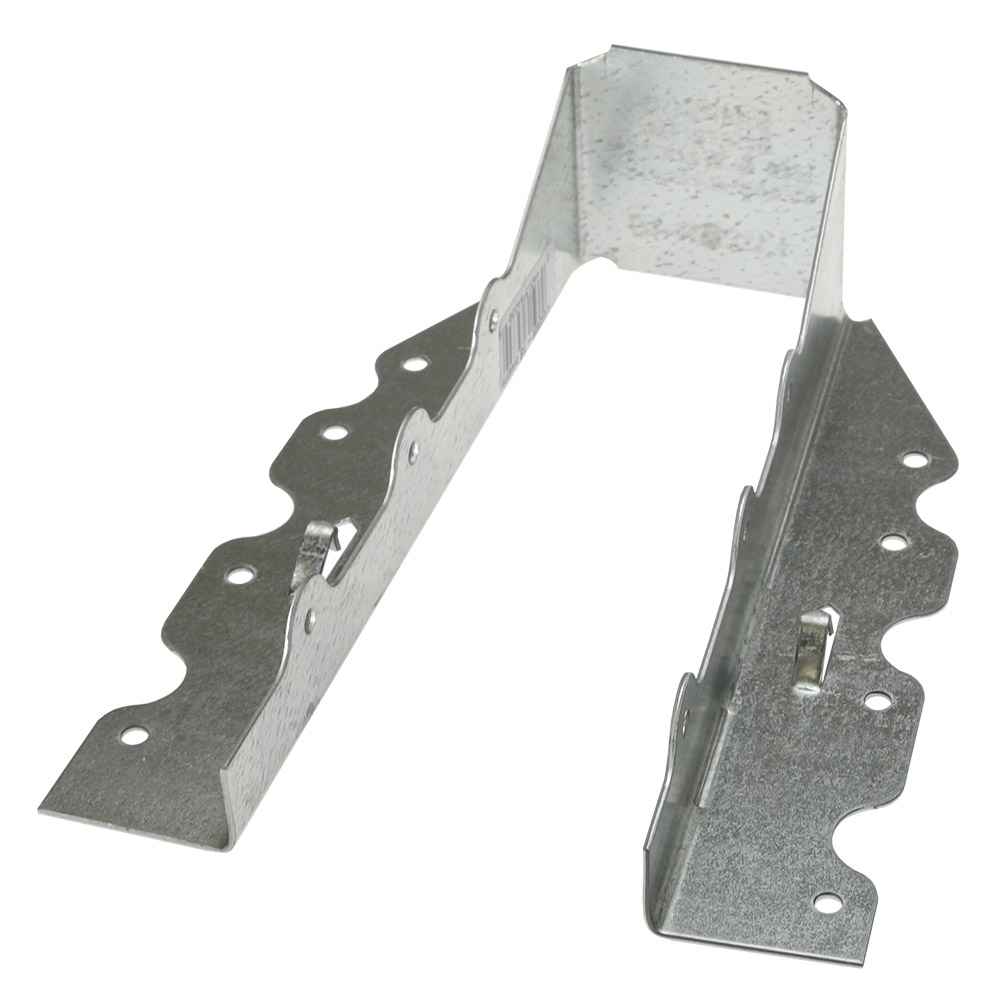

Simpson LU28R-18 Rough Cut 2x8 Face Mount Joist Hanger - G90 Galvanized
Simpson LU28R-18 Rough Cut 2x8 Face Mount Joist Hanger - G90 Galvanized
Description:
Description:
Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a joist that measures an actual 2x8". If you have a nominal joist measuring 1-1/2x7-1/2" you will need an LU28 Joist Hanger
Simpson Strong-Tie LU hangers are a value engineered face mount joist hanger engineered for installation ease and design value. The Strong-Tie LU24R-18 joist hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:
- Use all specified fasteners.
- Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
- Joists sloped up to 1/4:12 achieve load tables.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 6-3/8"
Fasteners required: Header - (8) 0.162" x 3-1/2" Nails Joist - (6) 0.148" x 1-1/2" Nails
Width: 2"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: Rough 2X8
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
-Joists sloped up to 1/4:12 achieve load tables.
Stay in touch
This is a dummy newsletter form so don't bother trying to test it. Not that I expect you to, anyways. :)
I ordered 3 of the LU28R-18 and needed more so I reordered them. This time I just received the LU28 and when it looked at the order, it was not what I ordered. When I contacted customer service, I asked as told to ship them back at my expense, and no mention of any replacements. I’ll go elsewhere.
Jim,
Thank you for your feedback. A lot of our part numbers are very similar and we apologize for the misunderstanding on this! Our customer service team would be happy to look into this issue further with you. A representative will be reaching out to you shortly so we can work on a resolution with you. Thank you for giving us the opportunity to work with you!
Worked well…
Nope , fasteners plus and Simpson GOUGING IN THE PRICE 5.89 IS THIEVERY AS TO 1.29 FOR A REGULAR 2X6 , THIS SICKENS ME , THE GREED AND IS RATHER DISGUSTING
Order was delivered fine & timely.. Must read spec's carefully - the height is NOT for a rough cut 2 x 8 it is roughly 6 5/8 which they say is engineered to carry the weight of a rough cut 2 X 8 joist. My application was slightly different thus i wanted the full 2 x 8.
