Simpson NCA2X8-16 Nailless Compression Bridging - G90 Galvanized
Simpson NCA2X8-16 Nailless Compression Bridging - G90 Galvanized
Description:
Description:
The Simpson NCA Nailless Compression Bridging provides bracing between floor joists as a critical contribution to the structural strength of a floor. Installed in pairs, this nailless compression bridging keeps joists in place and prevents them from rotating while distributing loads over more than one joist. The NCA2X8-16 features precision-formed v-shaped prongs, in place of nails, to provide a secure grip before the drive-home blow for deeper prong penetration.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
Thickness: 20 Gauge
Quantity: 1
Finish: G90 Galvanized

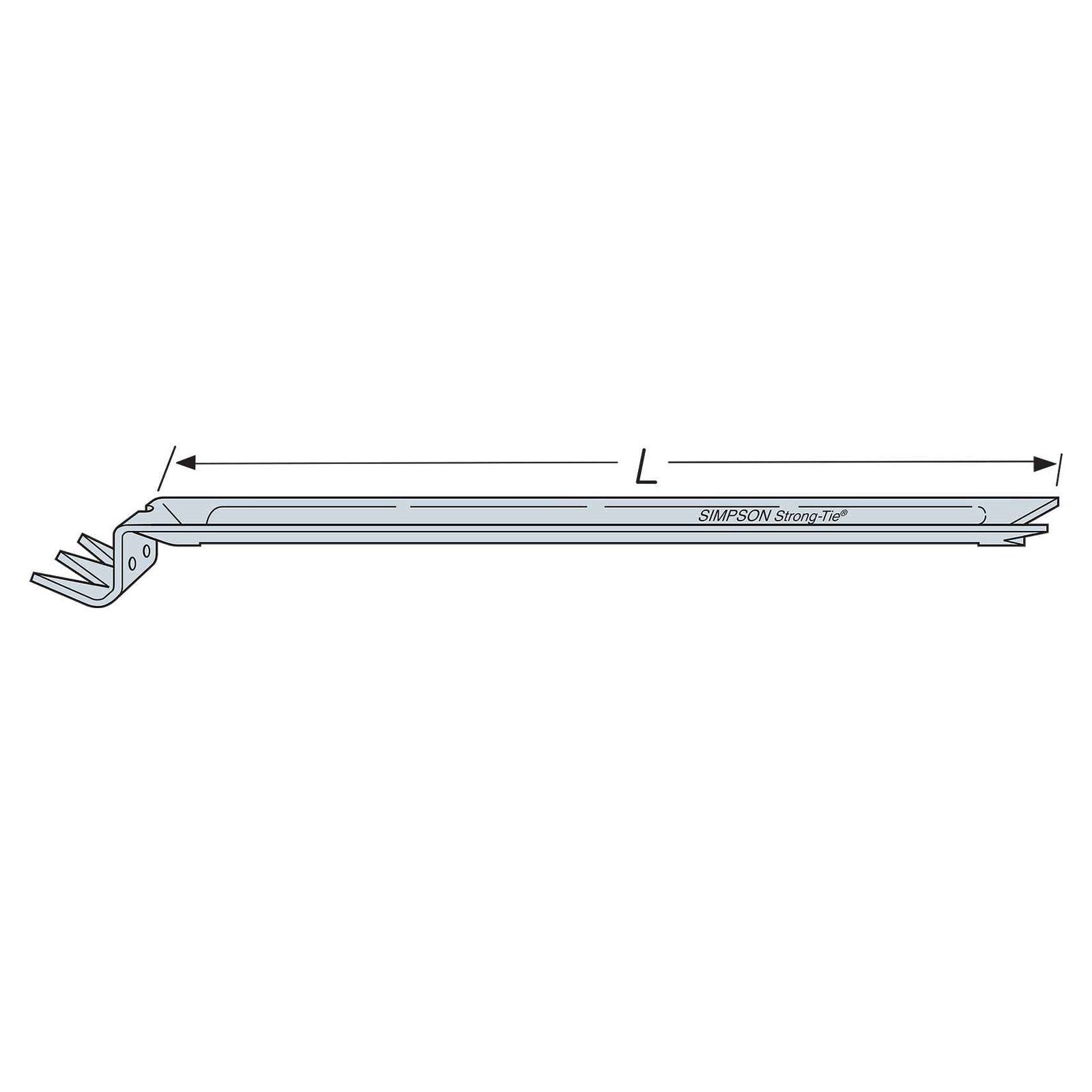

Length: 15-1/4"
Manufacturer name: Simpson Strong-Tie
Joist size: 2X8, 2X14
Product Guide: View Spec Sheet
Features
Features
•Galvanized for corrosion resistance
•Keeps floor system continuity and prevents joist rotation
•Installs with built-in prongs that eliminate nail squeaks
Installation
Installation
• Support floor joists with a depth-to-thickness ratio of six or more with bridging at intervals not exceeding 8'. If span is greater than 8', install on 2x8 or larger joists. If span is greater than 16', use more than one pair.
• Tension bridging works only in tension, so must be used in cross pairs.
• Install bridging tightly; loose installation may allow floor movement.
• May be installed before or after sheathing, from the top or bottom. Simply locate the bend line approximately 1" from the joist edge.
• Has nail holes in one end for use if a prong is bent during installation. Fully seat nails (0.131" x 1 1/2") if they are used; otherwise, they may lead to squeaks.
