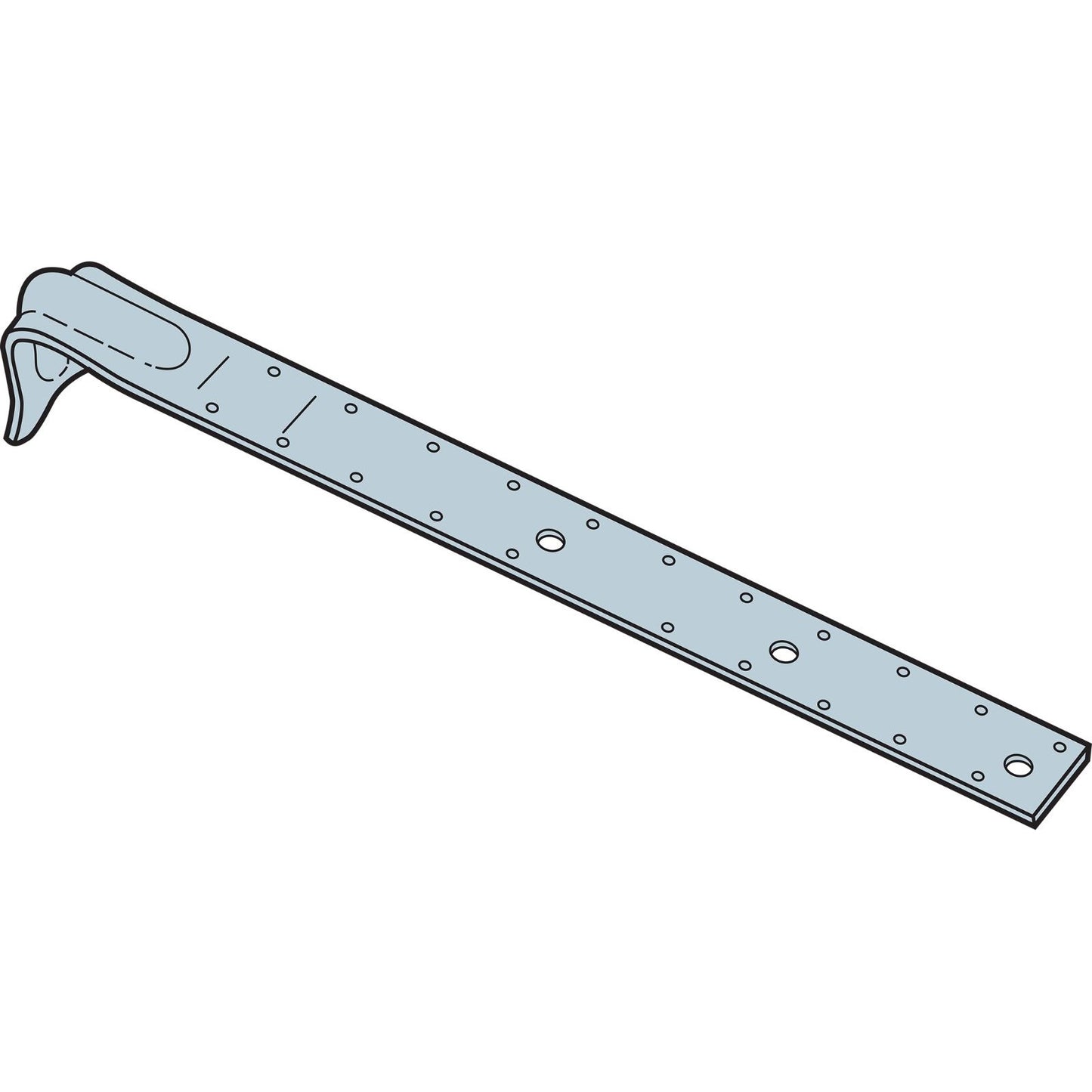

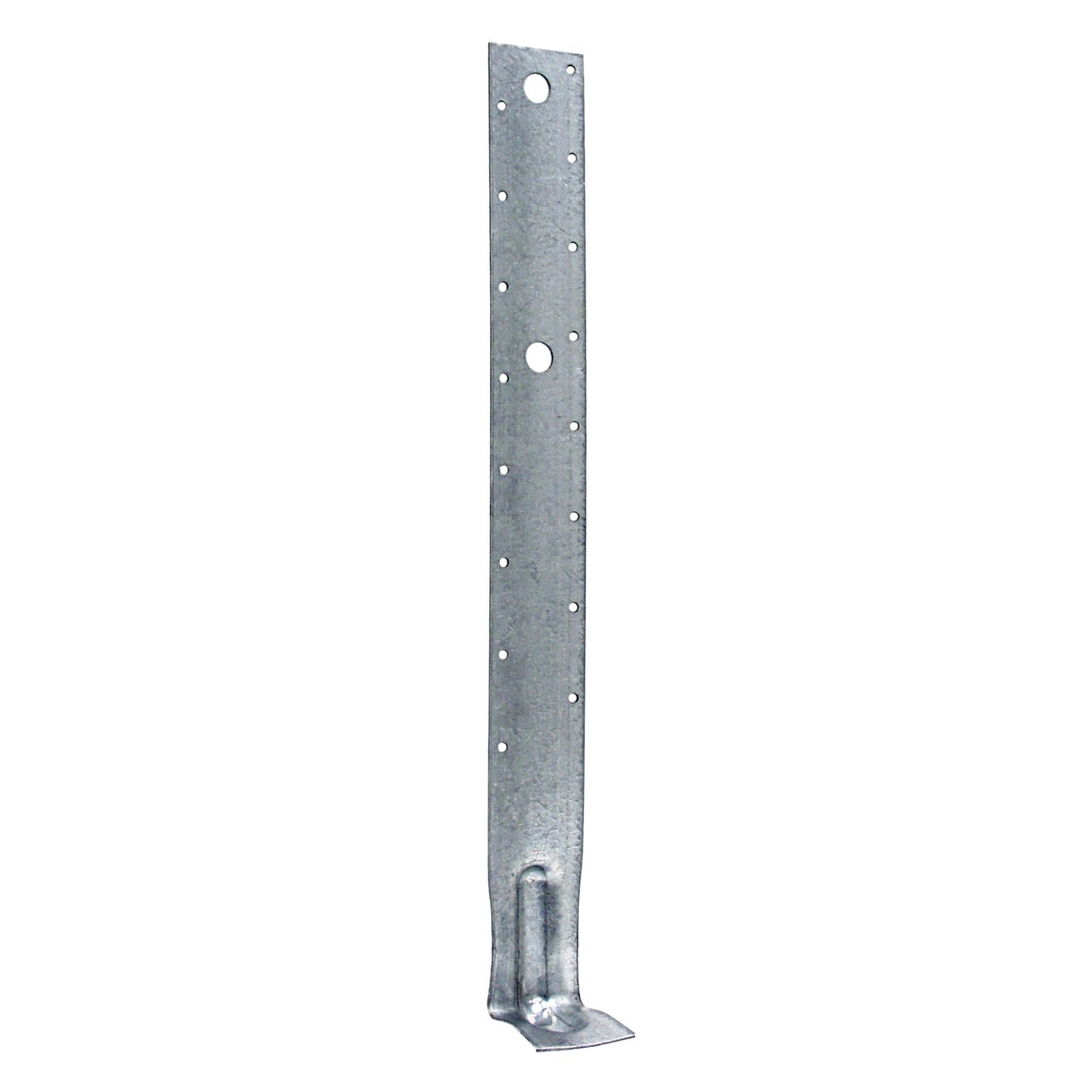

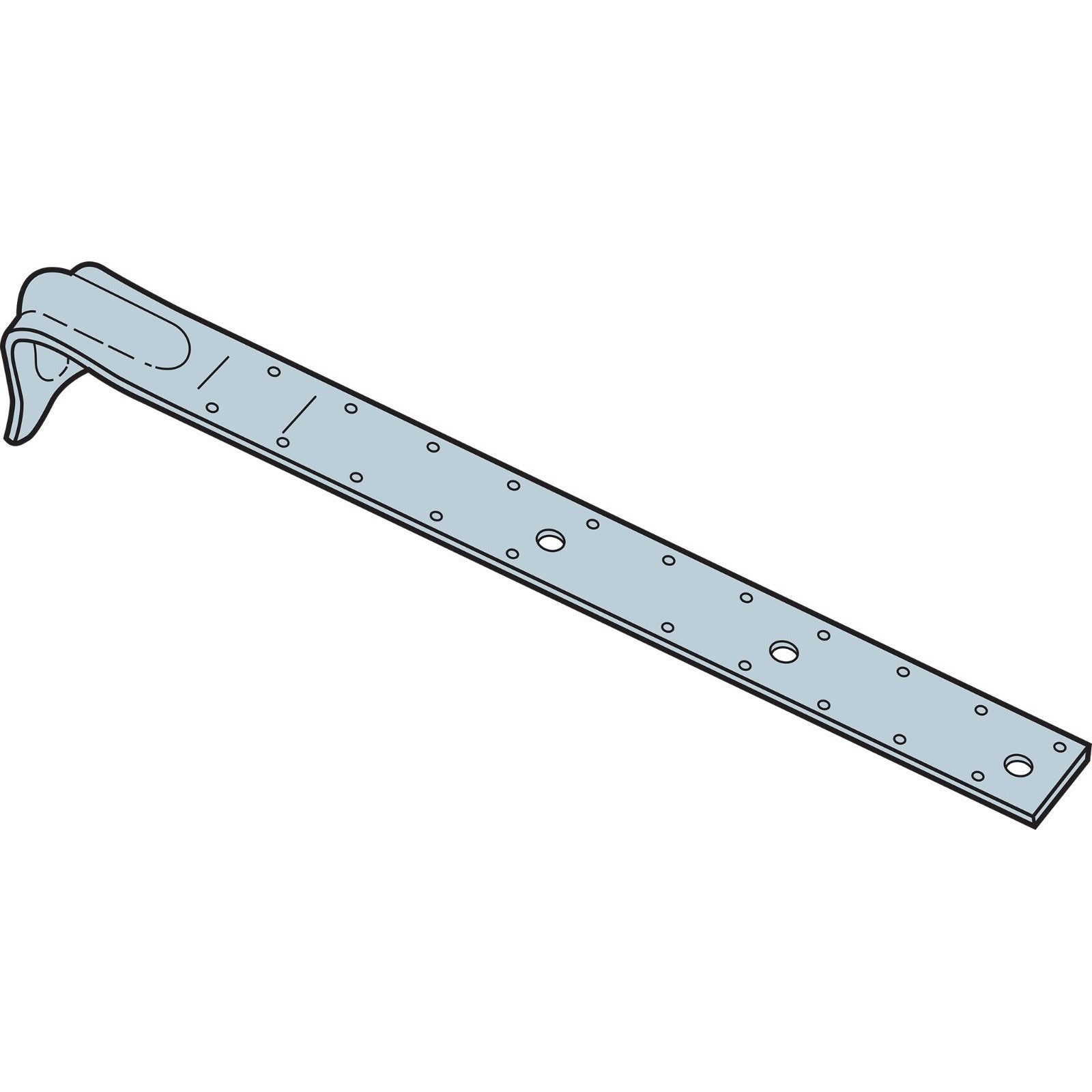

Simpson PA23 Purlin Anchor - Galvanized
Simpson PA23 Purlin Anchor - Galvanized
Description:
Description:
Installation:
- Use all specified fasteners; some models have extra fastener holes. See General Notes.
- Purlin anchor must hook around rebar.
- Allowable loads are for a horizontal installation into the side of a concrete or masonry wall.
- Strap may be bent one full cycle (bent vertical 90° then bent horizontal).
- PA51/PA68 — for additional length, an MST strap can be attached using 1/2" bolts through existing holes.
- Refer to technical bulletin PA Foundation Straps for Uplift Resistance (T-PAUPLIFT) for additional information.
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
Width: 2-1/16"
Length: 23-3/4"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners; some models have extra fastener holes. See General Notes.
-Purlin anchor must hook around rebar.
-Allowable loads are for a horizontal installation into the side of a concrete or masonry wall.
-Strap may be bent one full cycle (bent vertical 90° then bent horizontal).
-PA51/PA68 — for additional length, an MST strap can be attached using 1/2" bolts through existing holes.
-Refer to technical bulletin PA Foundation Straps for Uplift Resistance (T-PAUPLIFT) for additional information.
