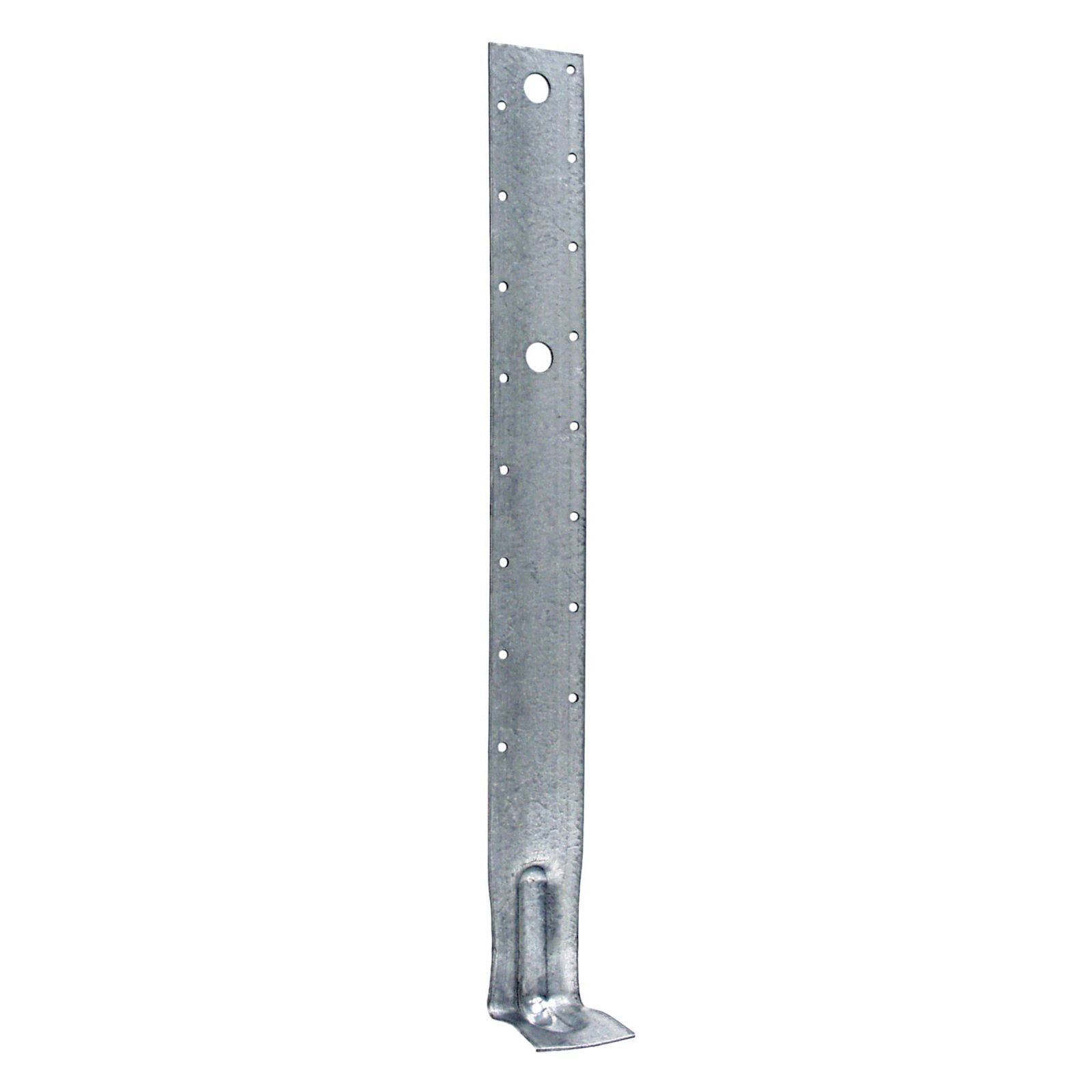

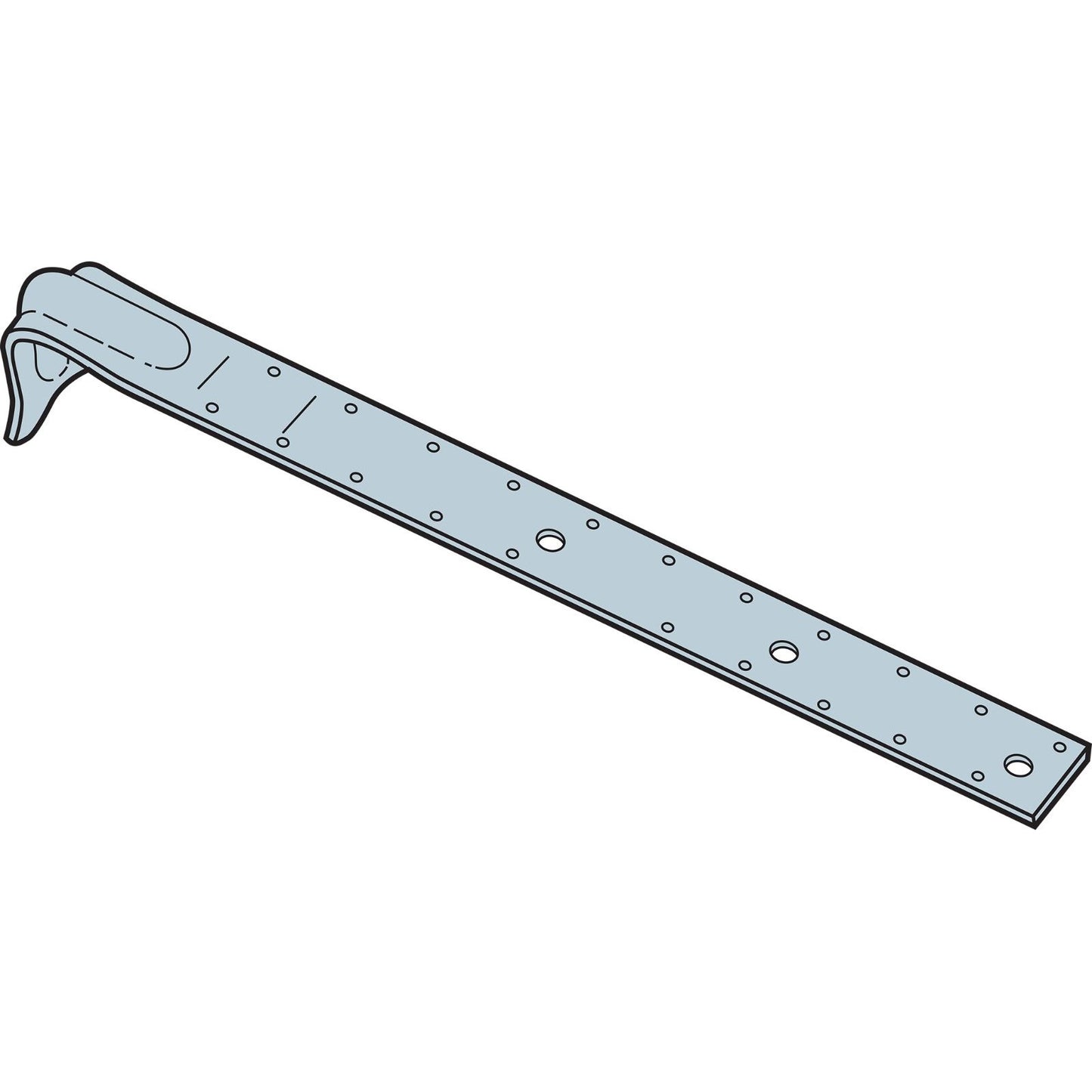

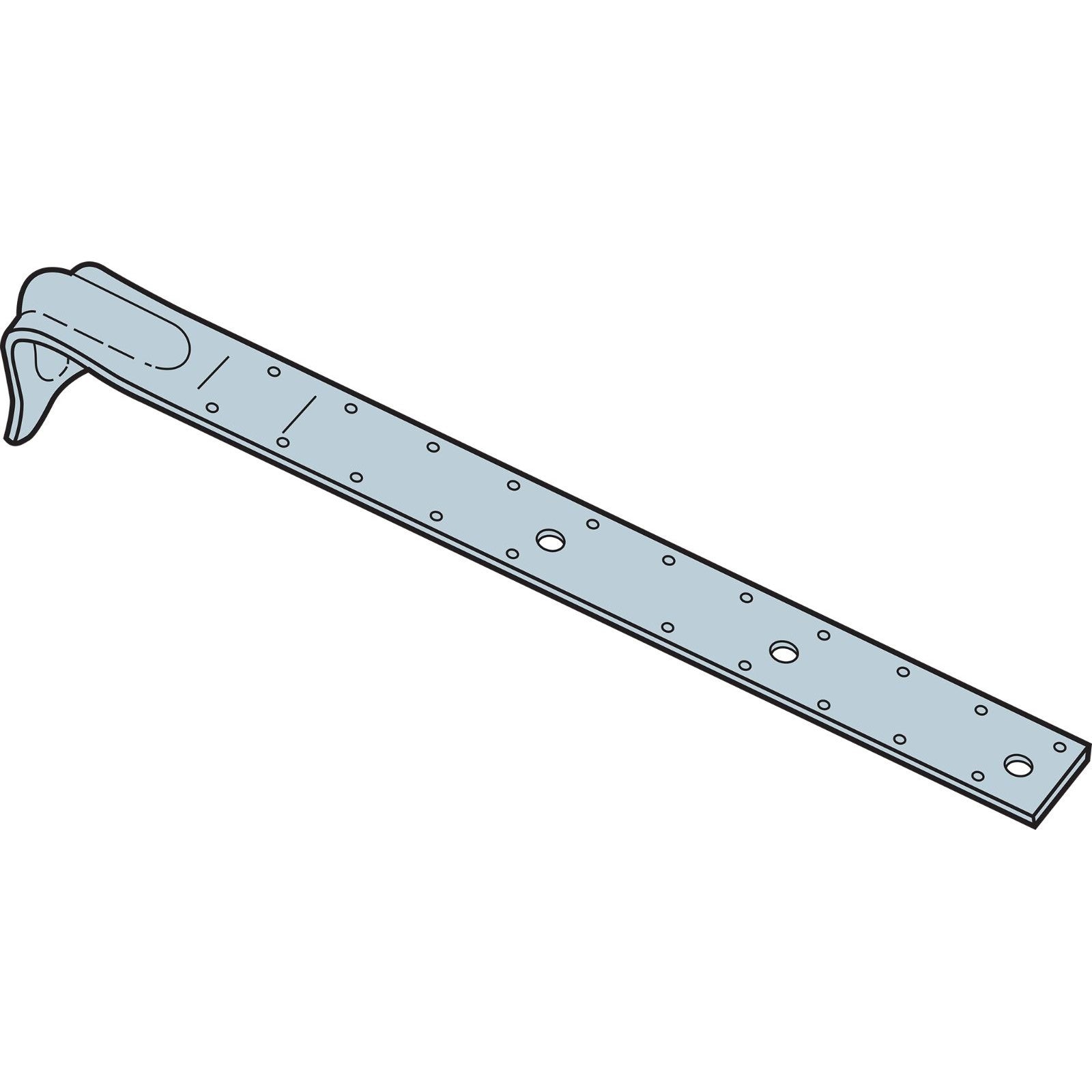

Simpson PA23Z Purlin Anchor - Zmax Finish
Simpson PA23Z Purlin Anchor - Zmax Finish
No reviews
Regular price
$17.31
Sale price
$17.31
Regular price
Unit price
/
per
0% off
Payment methods
Accepted payments:
Ships May 20 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.
Description:
Description:
Simpson Strong-Tie purlin anchors offer solutions for wood-to-concrete and concrete-block connections which satisfy code requirements. The PA’s dual-embedment line allows installation in concrete or concrete block.
Installation:
Installation:
- Use all specified fasteners; some models have extra fastener holes. See General Notes.
- Purlin anchor must hook around rebar.
- Allowable loads are for a horizontal installation into the side of a concrete or masonry wall.
- Strap may be bent one full cycle (bent vertical 90° then bent horizontal).
- PA51/PA68 — for additional length, an MST strap can be attached using 1/2" bolts through existing holes.
- Refer to technical bulletin PA Foundation Straps for Uplift Resistance (T-PAUPLIFT) for additional information.
California Residents: WARNING
Specifications:
Specifications:
Material: Carbon Steel
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
Width: 2-1/16"
Length: 23-3/4"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
Width: 2-1/16"
Length: 23-3/4"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners; some models have extra fastener holes. See General Notes.
-Purlin anchor must hook around rebar.
-Allowable loads are for a horizontal installation into the side of a concrete or masonry wall.
-Strap may be bent one full cycle (bent vertical 90° then bent horizontal).
-PA51/PA68 — for additional length, an MST strap can be attached using 1/2" bolts through existing holes.
-Refer to technical bulletin PA Foundation Straps for Uplift Resistance (T-PAUPLIFT) for additional information.
