Simpson PB44HDG 4x4 Post Base - Hot Dip Galvanized
Simpson PB44HDG 4x4 Post Base - Hot Dip Galvanized
Description:
Description:

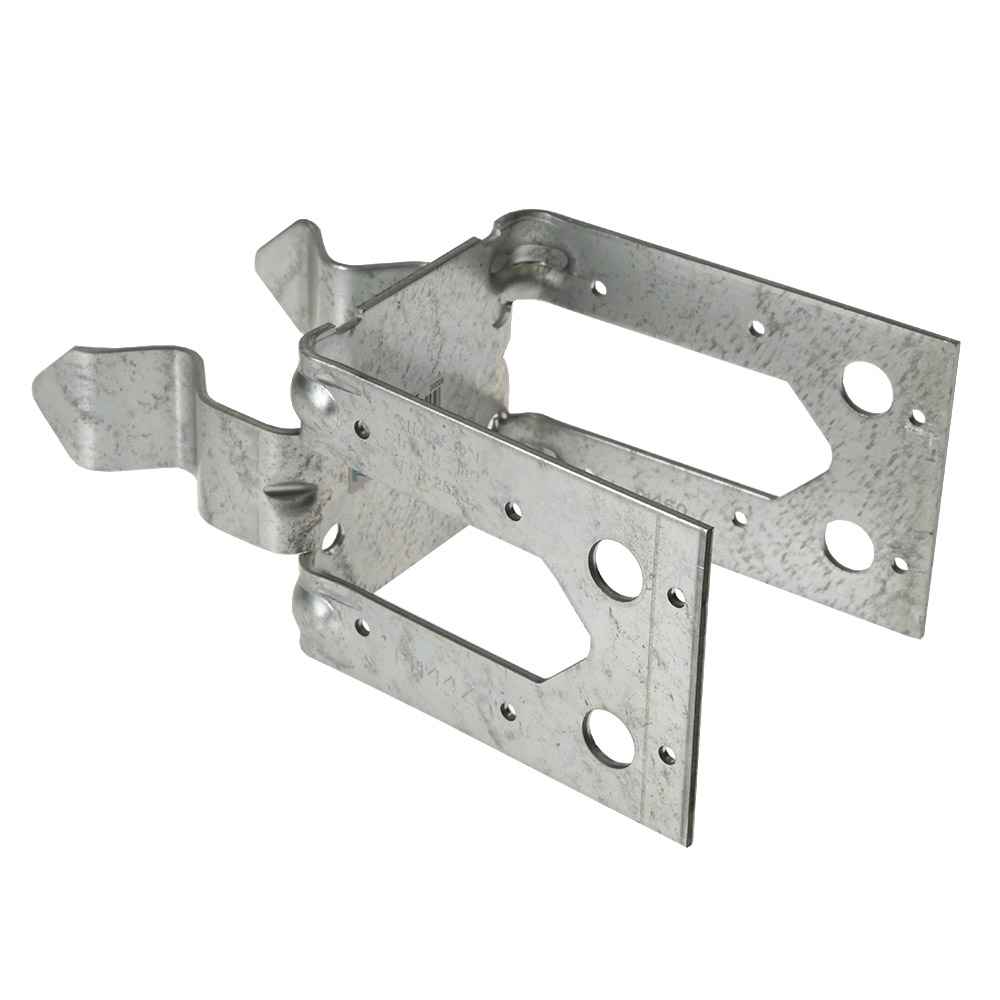

Simpson Strong-Tie PB series of anchors are a standard cast in place post base. The Strong-Tie PB44HDG features a hot-dip galvanized coating.
Installation:
- Use all specified fasteners.
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).

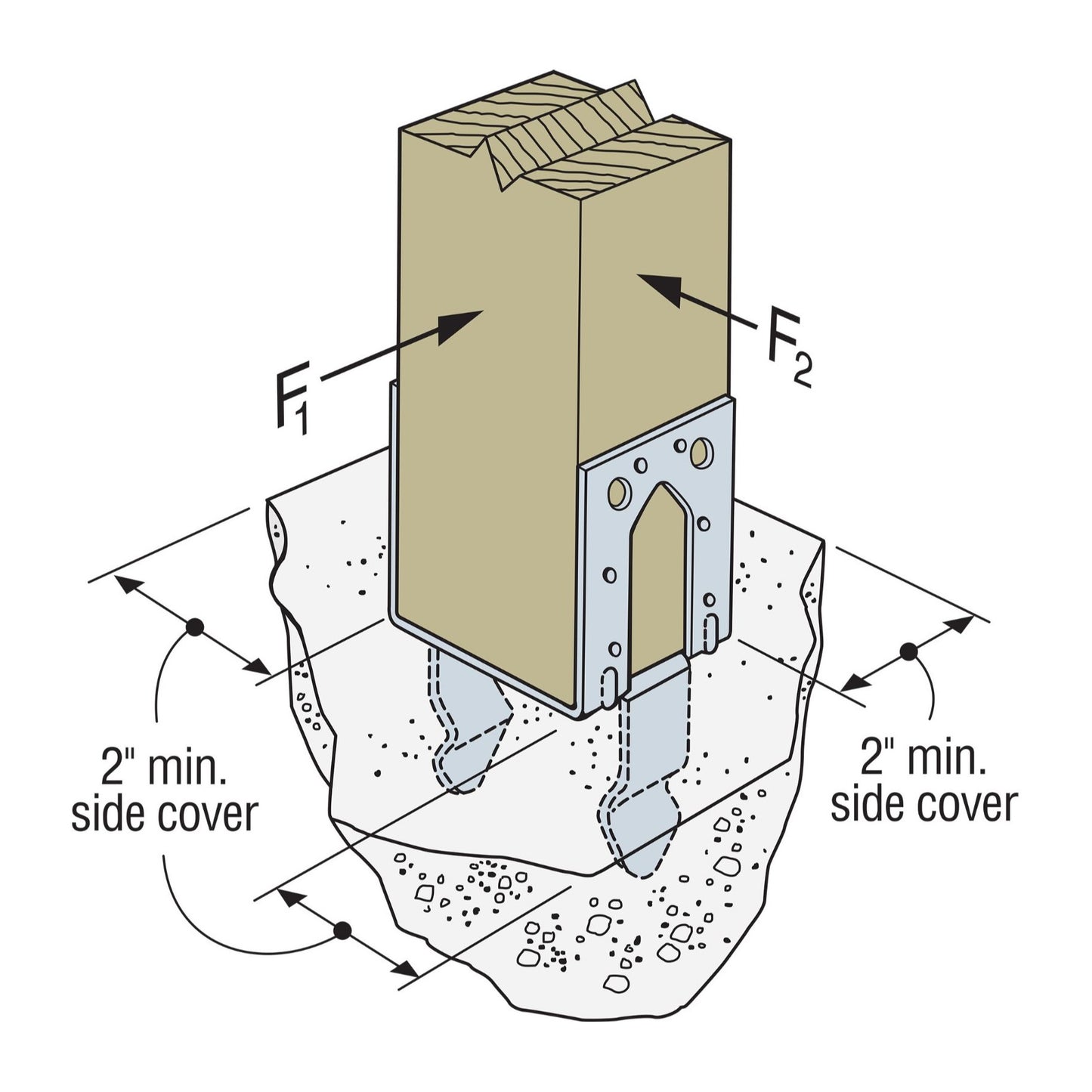

- PB: Holes are provided for installation with either 16d commons or 1/2" bolts for PB66 and PB66R; all other models use 16d commons only. A 2" minimum sidecover is required to obtain the full load.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Looking for something different? See the rest of our Simpson Regular & Standoff Post Bases.
California Residents: WARNING
Specifications:
Specifications:
Post Size: 4X4
Fasteners required: (12) 0.162" x 3-1/2" Nails
Length: 3-1/4"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
-PB: Holes are provided for installation with either 16d commons or 1/2" bolts for PB66 and PB66R; all other models use 16d commons only. A 2" minimum sidecover is required to obtain the full load.
