Simpson PC6RZ 6X Rough Post Cap - ZMAX Finish
Simpson PC6RZ 6X Rough Post Cap - ZMAX Finish
Ships in 2-3 business days.
Description:
Description:

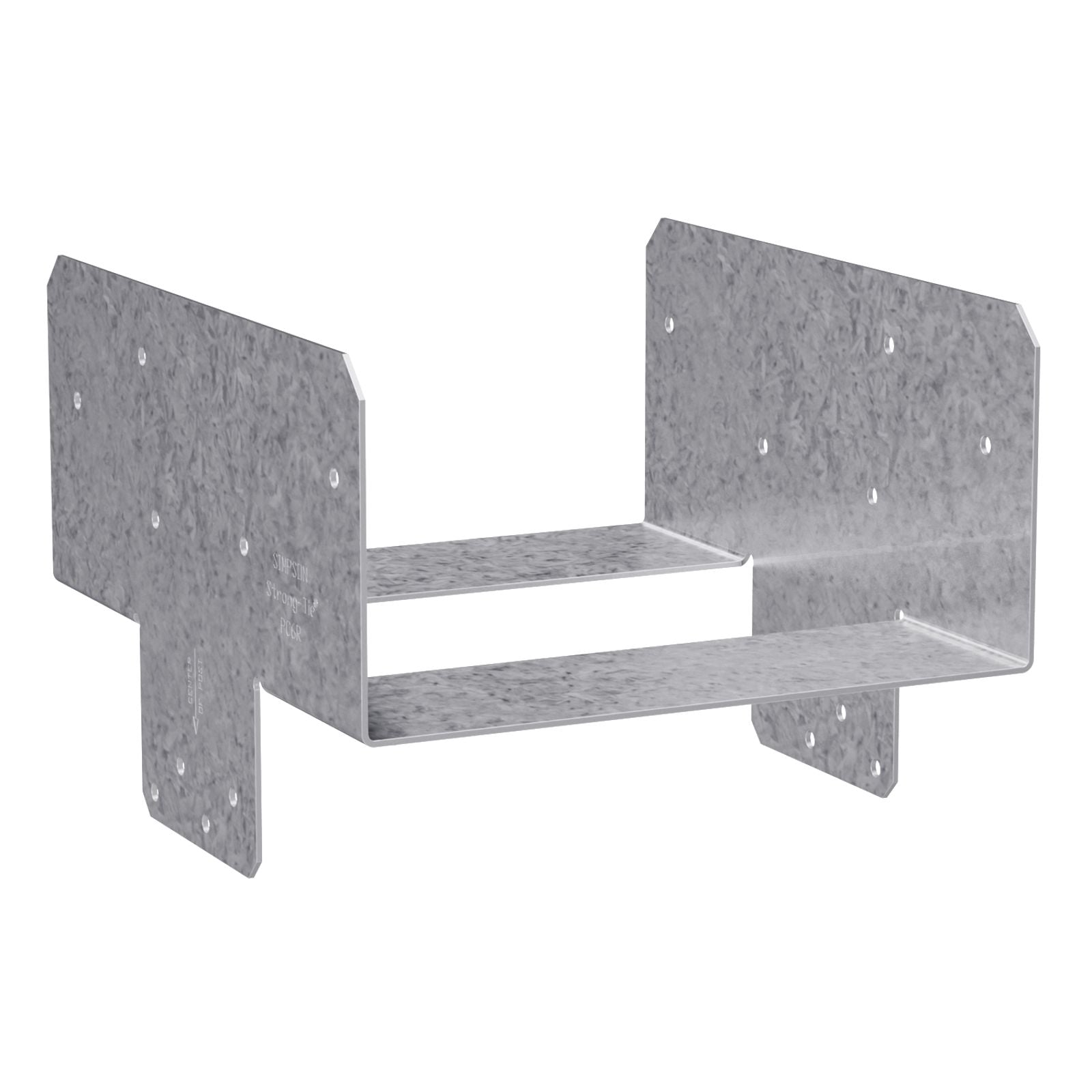

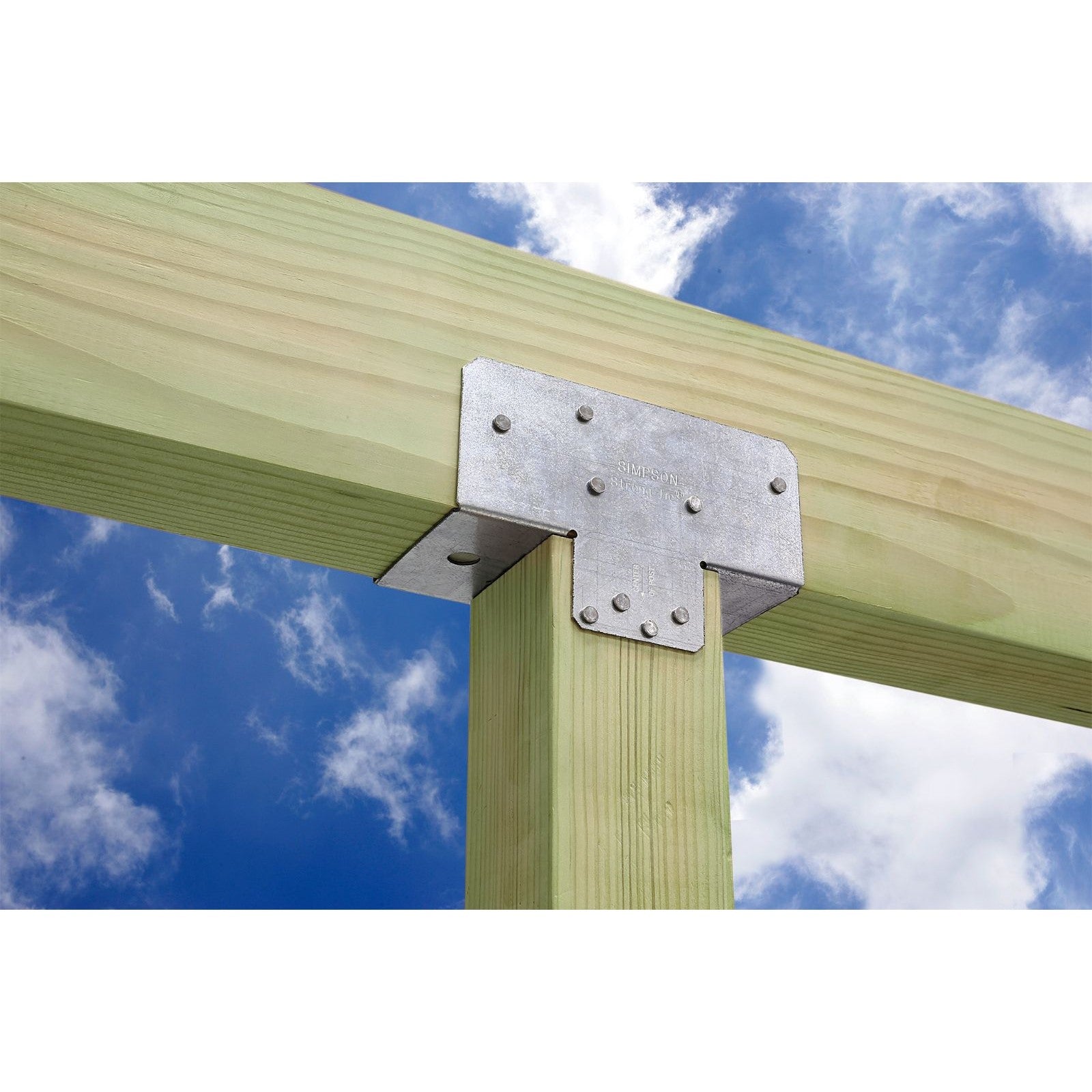

The Simpson Strong-Tie PCZ series of post caps are used to attach the top of posts to beams. The next-generation PC6RZ, for rough size lumber, post caps are designed with their post and beam flanges in-line so that one PC6RZ model can accommodate several post sizes. The PC6RZ now uses easier-to-install 10d common nails. An alternate choice of fasteners is Strong-Drive® #9x1 1/2" SD Connector screws. The PC6RZ post cap is approved to be installed with the specified nails or with Strong-Drive SD connector screws. The Strong-Tie PC6RZ post base features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:
- Use all specified fasteners.
- Do not install bolts into pilot holes.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Looking for something different? See the rest of our Simpson PCZ & EPCZ Post Caps.
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: Beam - (10) 0.148" x 3" Nails Post - (8) 0.148" x 3" Nails
Finish: ZMAX
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-Do not install bolts into pilot holes.
