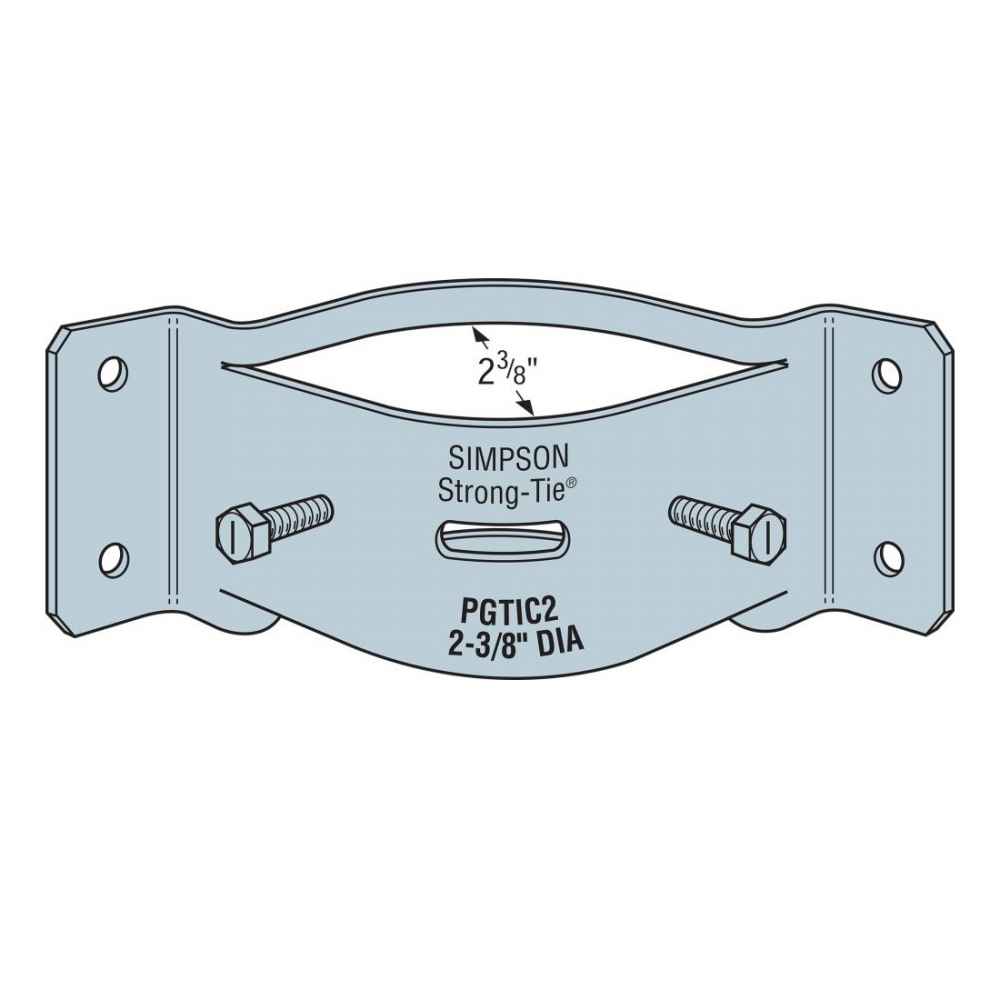

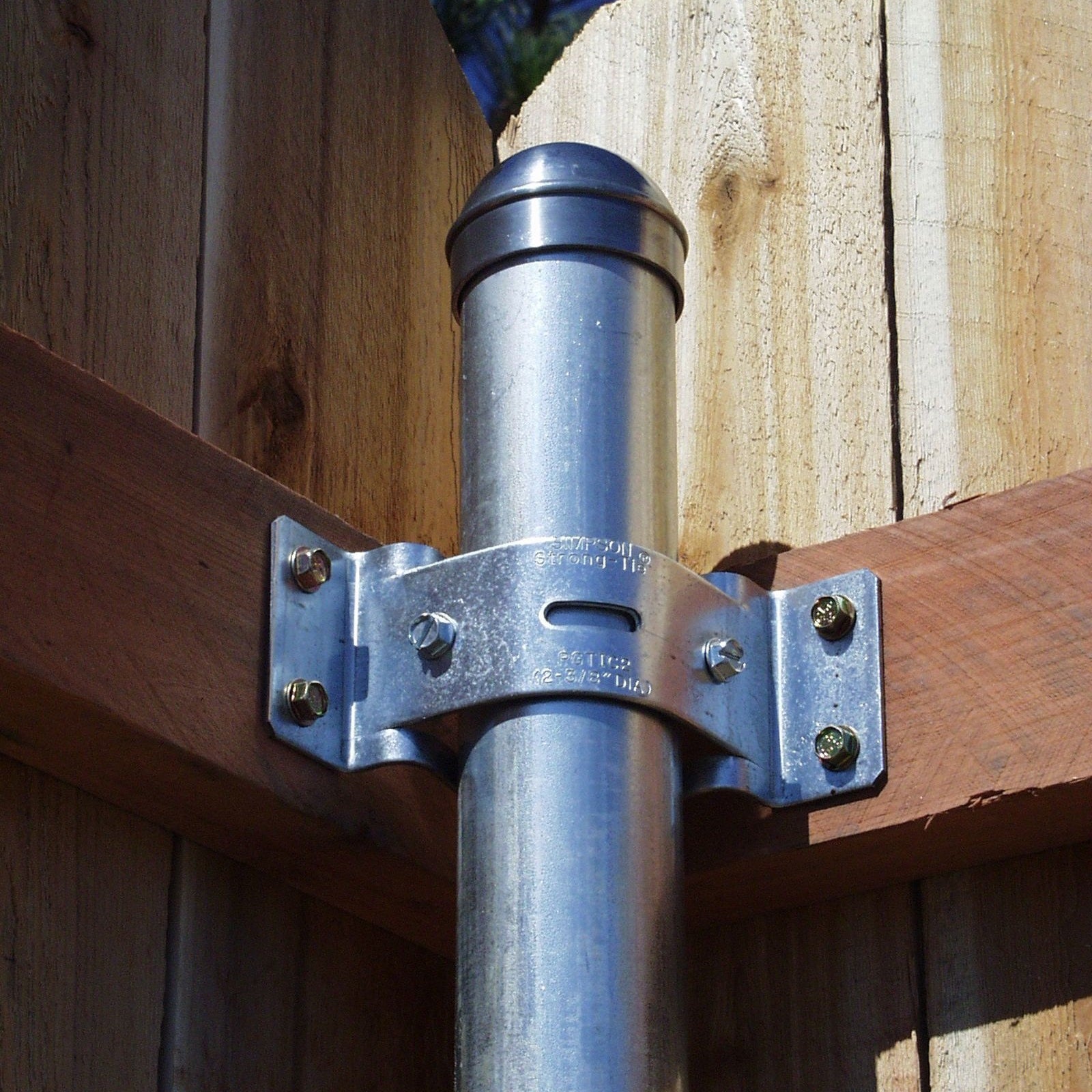

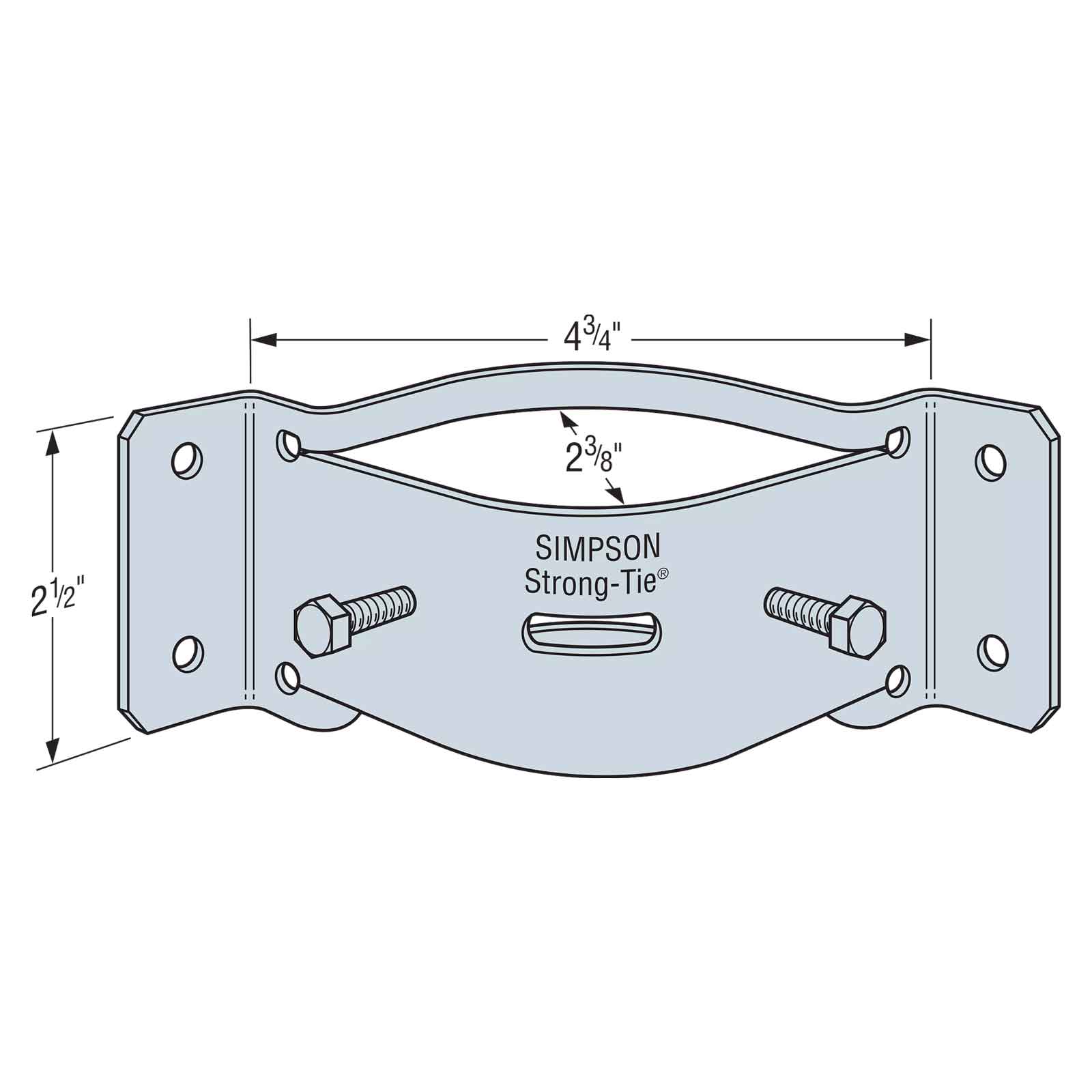

The Strong-Tie PGTIC2Z-R interior corner pipe grip tie bracket is used to quickly attach your 2-3/8" OD metal fence posts on the inside corner of your wooden fence. Just tighten the clamp bolts on the bracket, zip in 4 SDS 1/4" x 1-1/2" heavy duty screws and you're done installing the tie. Whether you're replacing old rotted wood posts with sturdy metal posts or starting new fence construction, these pipe grip ties will keep your posts secured at the corners. Make sure to get all of your matching PGT2Z-R metal post brackets
to secure the straight sections of your fence. The ZMAX finish on this connector provides exceptional corrosion resistance to create a lasting connection.

• Use all specified fasteners.
• PGTIC2Z-R to Post – Install two set screws (supplied) with 3/8" socket in predrilled holes.
• PGTIC2Z-R to Rails – Use Simpson Strong-Tie Strong-Drive 1/4"x1-1/2" SDS wood screws (not supplied).
• Install on vertical pipes, offsetting corners to allow for the correct rail alignment.
• Use 3 to 4 PGTs per pipe; line up to stringline.
• Fasten PGT with 1/4" hex head bolt (supplied).
• PGT attaches to rails with four Simpson Strong-Tie SDS 1/4"x1 1/2" HDG wood screws (not supplied).
• 1/4" lag bolts may be used. Follow the code requirements for predrilling.
• Nail or screw fence boards to rails.
• Field bend PGT flanges to fit corner and angled conditions (bend one time only).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
