Simpson PSPN516Z Protecting Shield Plate - ZMAX
Simpson PSPN516Z Protecting Shield Plate - ZMAX
Description:
Description:

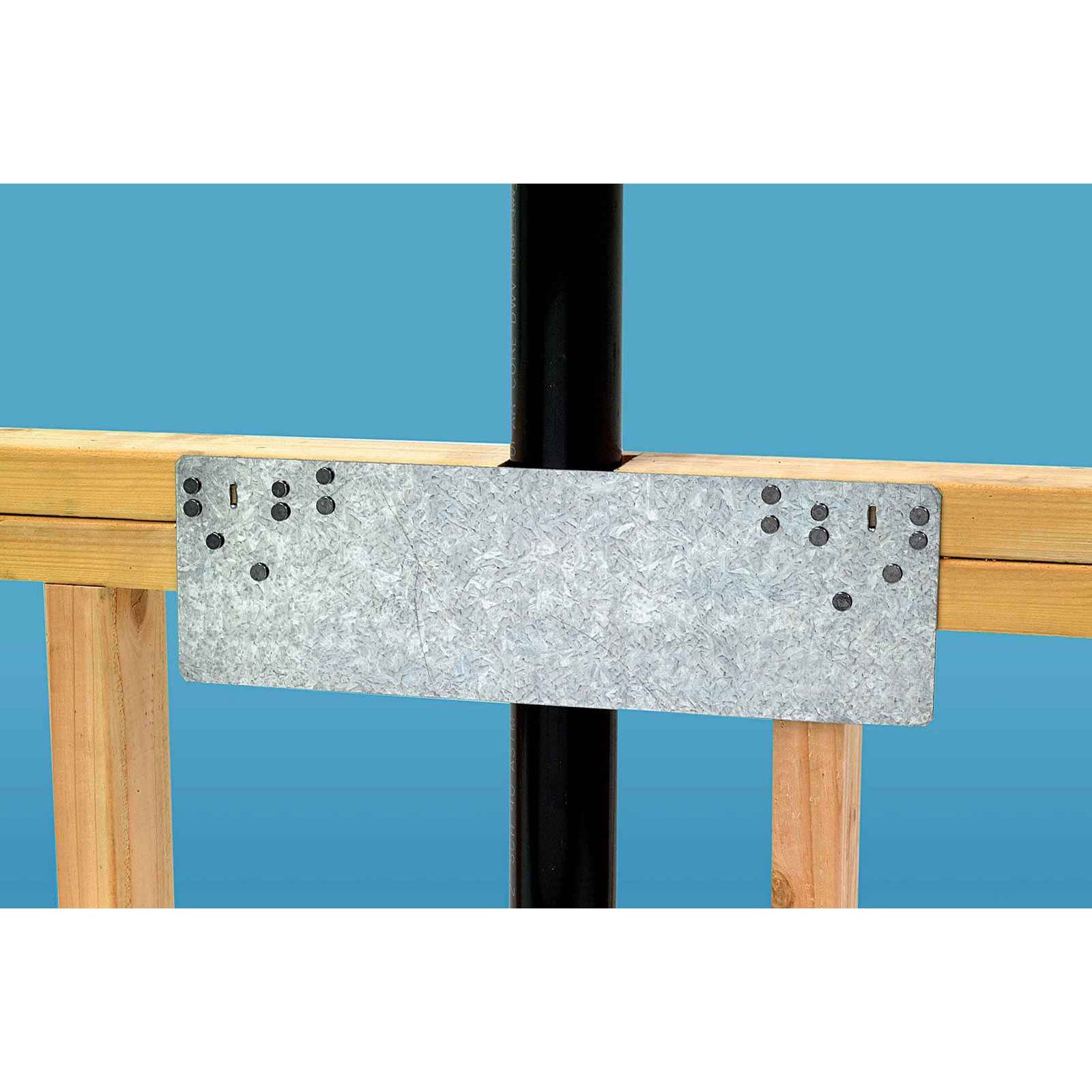

Simpson Strong-Tie PSPN516Z nail stoppers help prevent nails from piercing pipes and electrical lines. The PSPN protecting shield plate nail stoppers install over utilities that pass through framing members. This connector meets IRC, IBC and the International Plumbing Code. PSPN516Z meets the code plumbing protection requirements as well as having additional fasteners if the designer chooses to use it as a track splice strap.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
Thickness: 16 Gauge
Quantity: 1
Width: 5"
Finish: ZMAX
Length: 16-5/16"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Installation
Installation
•PSPN516Z — 0.162" x 3 1/2" nails
•For more information refer to flier Code-Compliant Repair and Protection Guide (F-C-REPAIRPRO)
