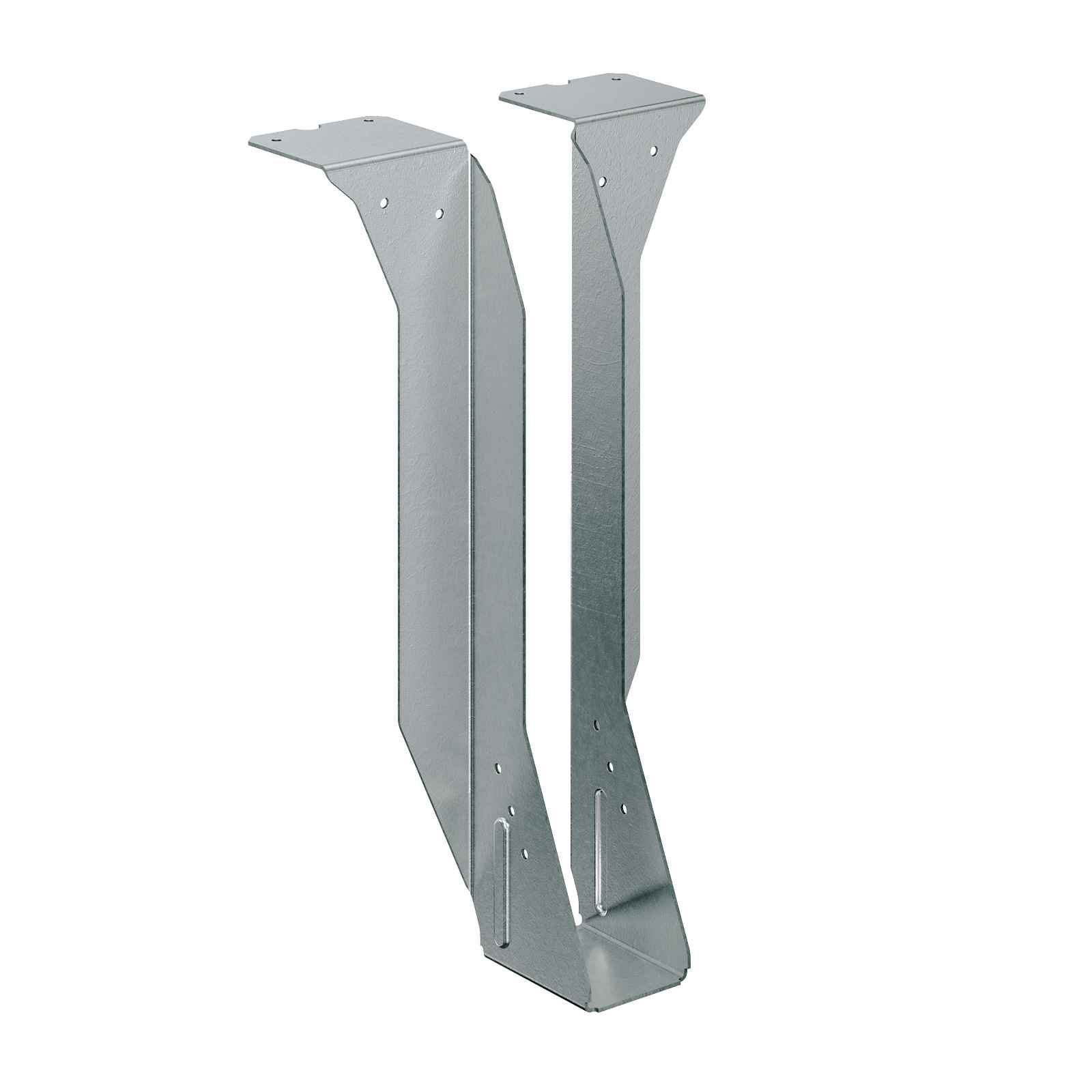

The Simpson Strong-Tie S/LBV high-capacity joist hanger installs to structural steel or cold-formed steel members for support of cold-formed steel joists. The design of this connector provides dimensional accuracy and ensures proper bearing area and connection. This modifiable top-flange hanger can be skewed to a maximum of 45°. Widths for skewable sections are limited to a maximum of 5-1/4". The S/LBV1.68/8 joist hanger also features a G90 Galvanized finish for corrosion resistance.

Cold-Formed Steel:
• May be attached to cold-formed steel supporting members with screws to the face and top flanges and provide capacities for downward and uplift.
Structural Steel:

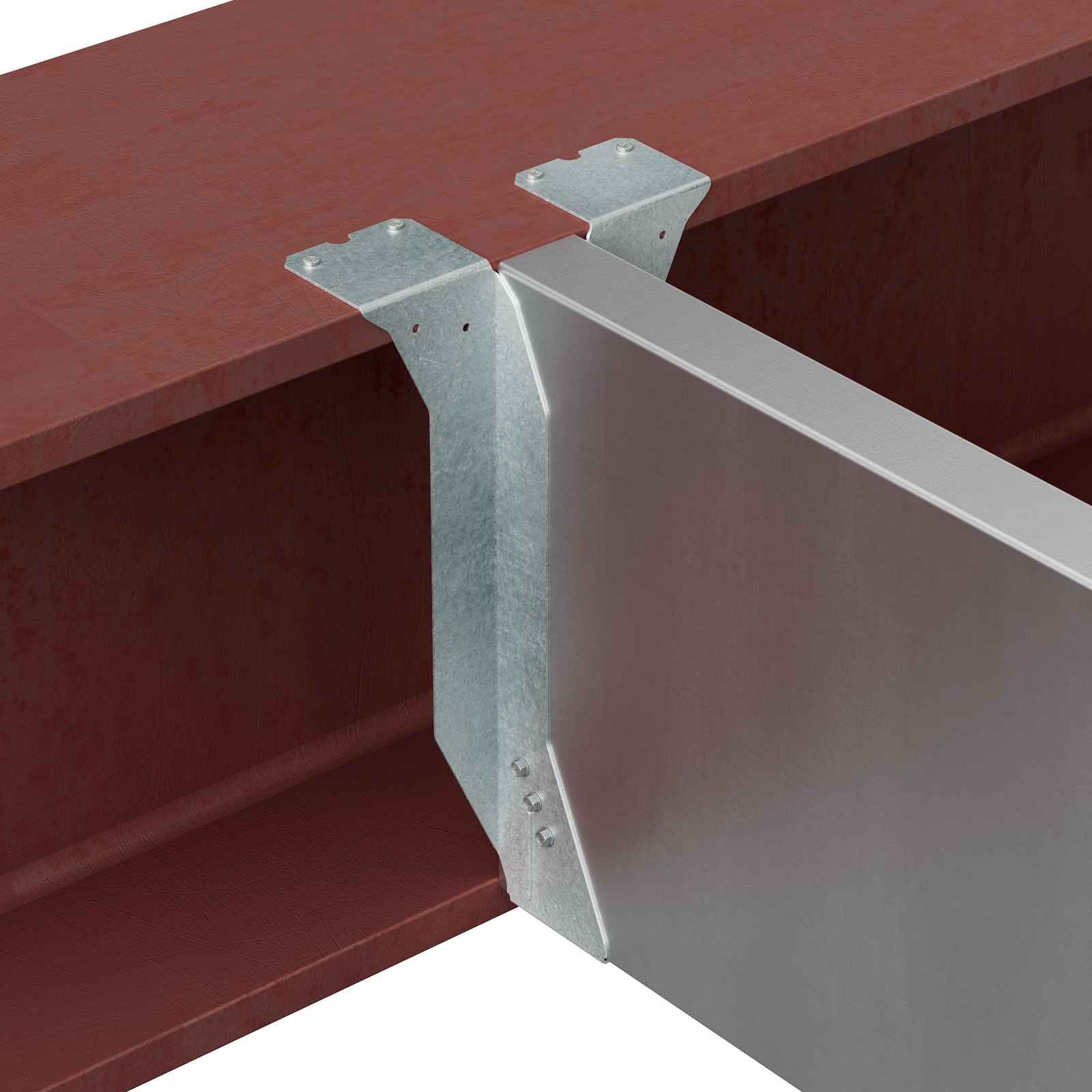

• May be attached to structural steel support members with powder-actuated fasteners or welds. For powder-actuated fasteners use PDPAT-62KP (0.157" x 5/8") and provide full penetration as required. For welds, use a minimum of 1/8" x 2" fillet weld on each top flange as required. Distribute the weld equally on both flanges. Capacities are provided for downward loads.
