Simpson S/VGT2.5 Variable Pitch Girder Tiedown - G90 Galvanized
Simpson S/VGT2.5 Variable Pitch Girder Tiedown - G90 Galvanized
Description:
Description:

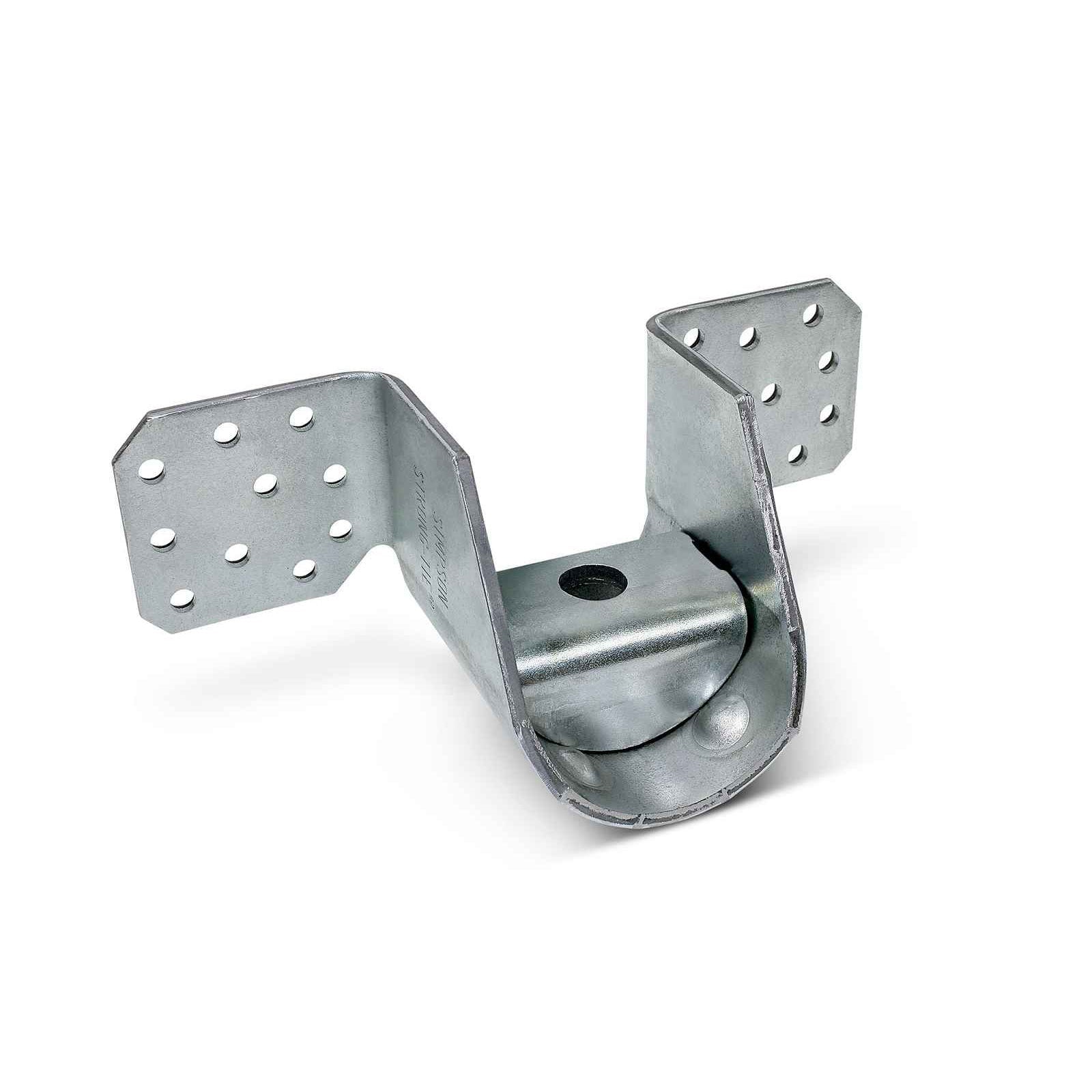

The Simpson Strong-Tie S/VGT2.5 high-capacity girder tiedown is designed for cold-formed steel applications. This variable-pitch tiedown is used for single-or-multi-ply CFS girder truss projecs. It features a predeflected crescent washer that allows it to accommodate top-chord pitches up to 8/12. The S/VGT2.5 joist hanger has a G90 Galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Specifications:
Specifications:
Thickness: 7 Gauge
Quantity: 1
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet

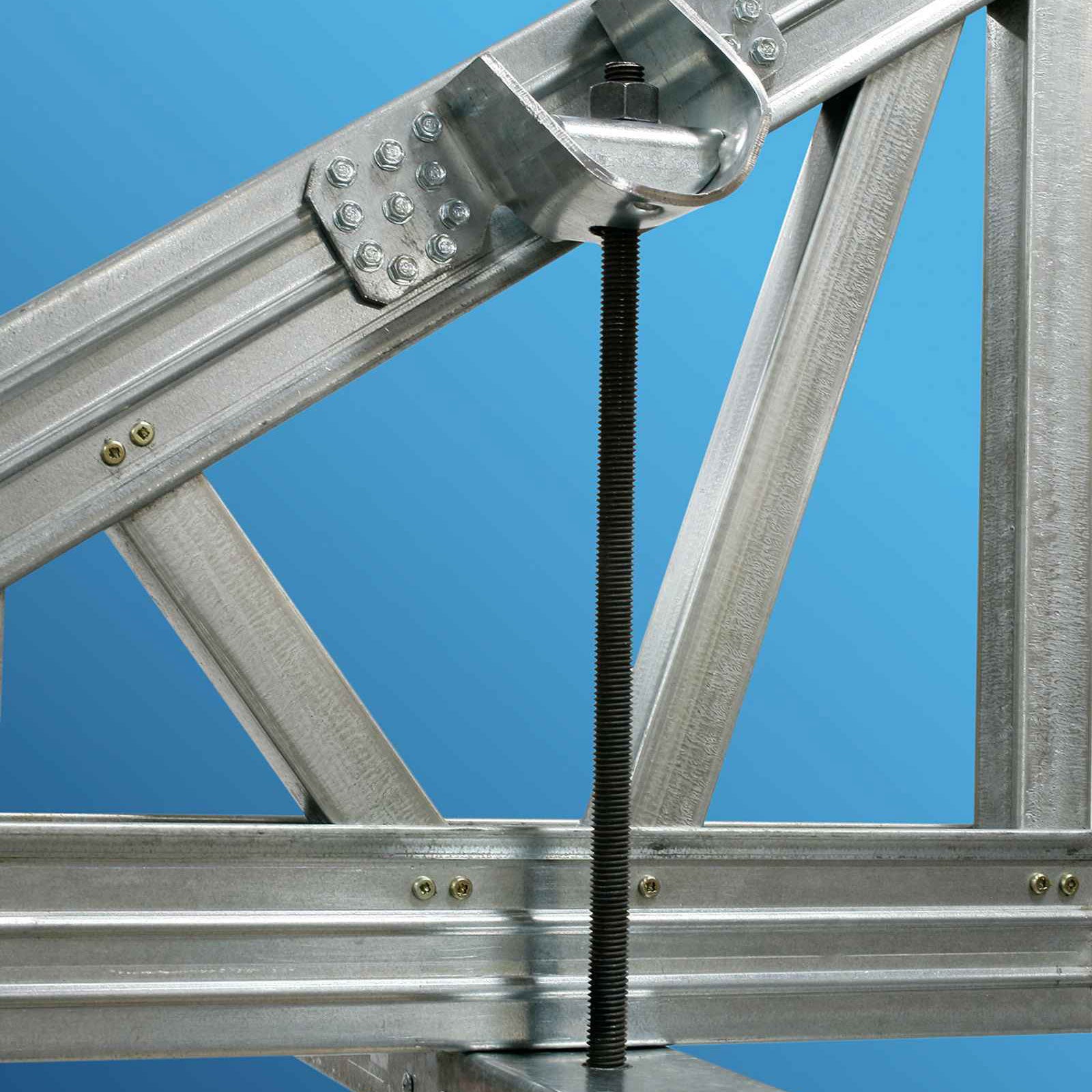

Installation
Installation
• Use all specified fasteners
• Screw holes are configured to allow for double installation on multimember girders
• Install washer component (provided) so top of washer is horizontal and parallel with top of wall
