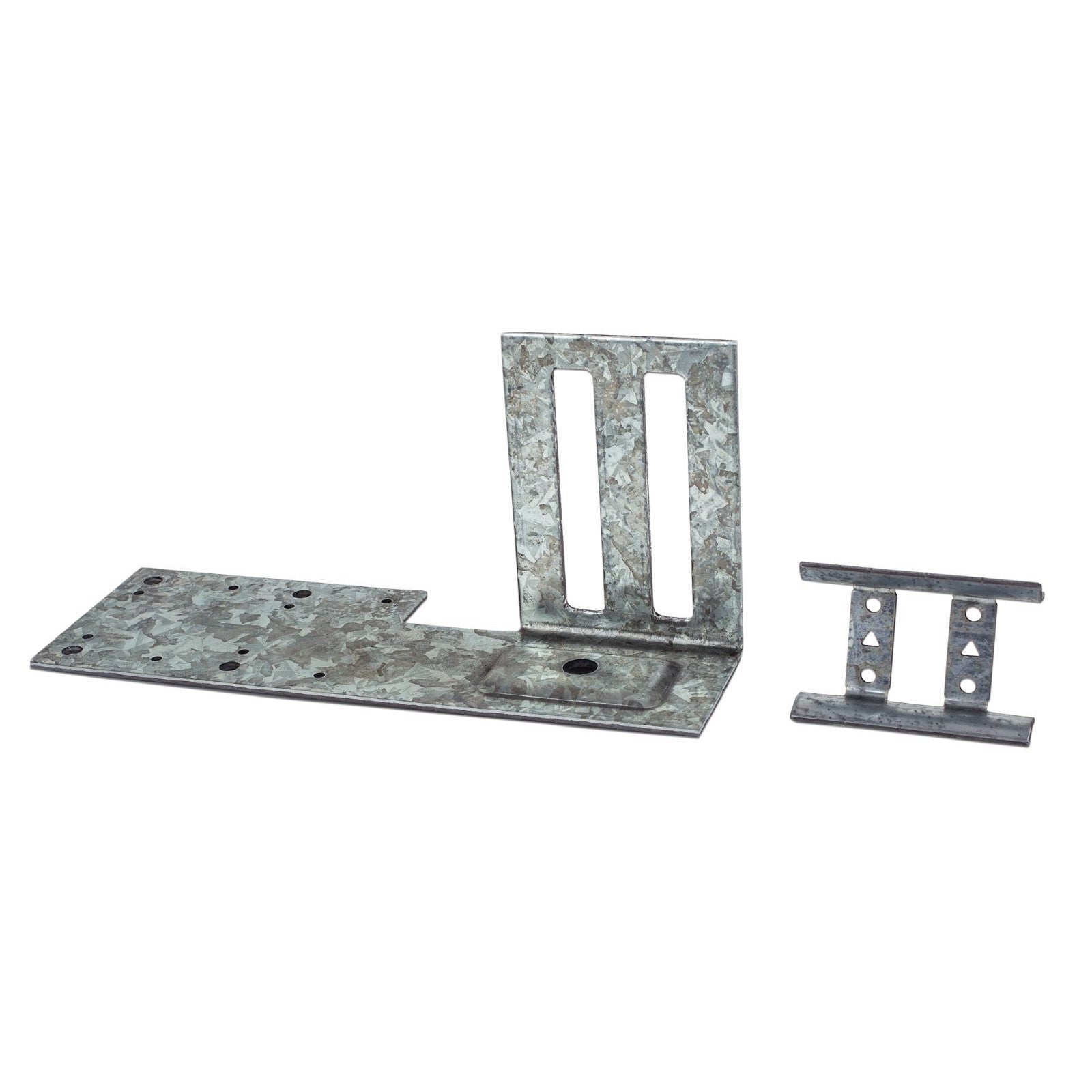

The Simpson Strong-Tie SCHA connector is an ideal solution for panelized or stick-frame construction where the CFS framing anchors to the top of a concrete floor slab or the bottom of a steel beam. The connector features a wide support leg to decrease eccentricity on anchors and provide a variety of anchorage options. SCHA connectors are suitable for various sized studs and accommodates standoff distances up to 4-3/4". Prepunched anchor holes allow for easy and accurate anchor placement when installing your connector. The included SCVS vertical slider helps to strengthen the connector for the highest tension (F2) and compression (F3) loads in the industry.
Installation:

Use all specified fasteners and anchors. Note that the smaller-diameter anchor holes are provided for PAF installation, and the larger-diameter anchor holes are for 1/4"-diameter concrete screw anchors.

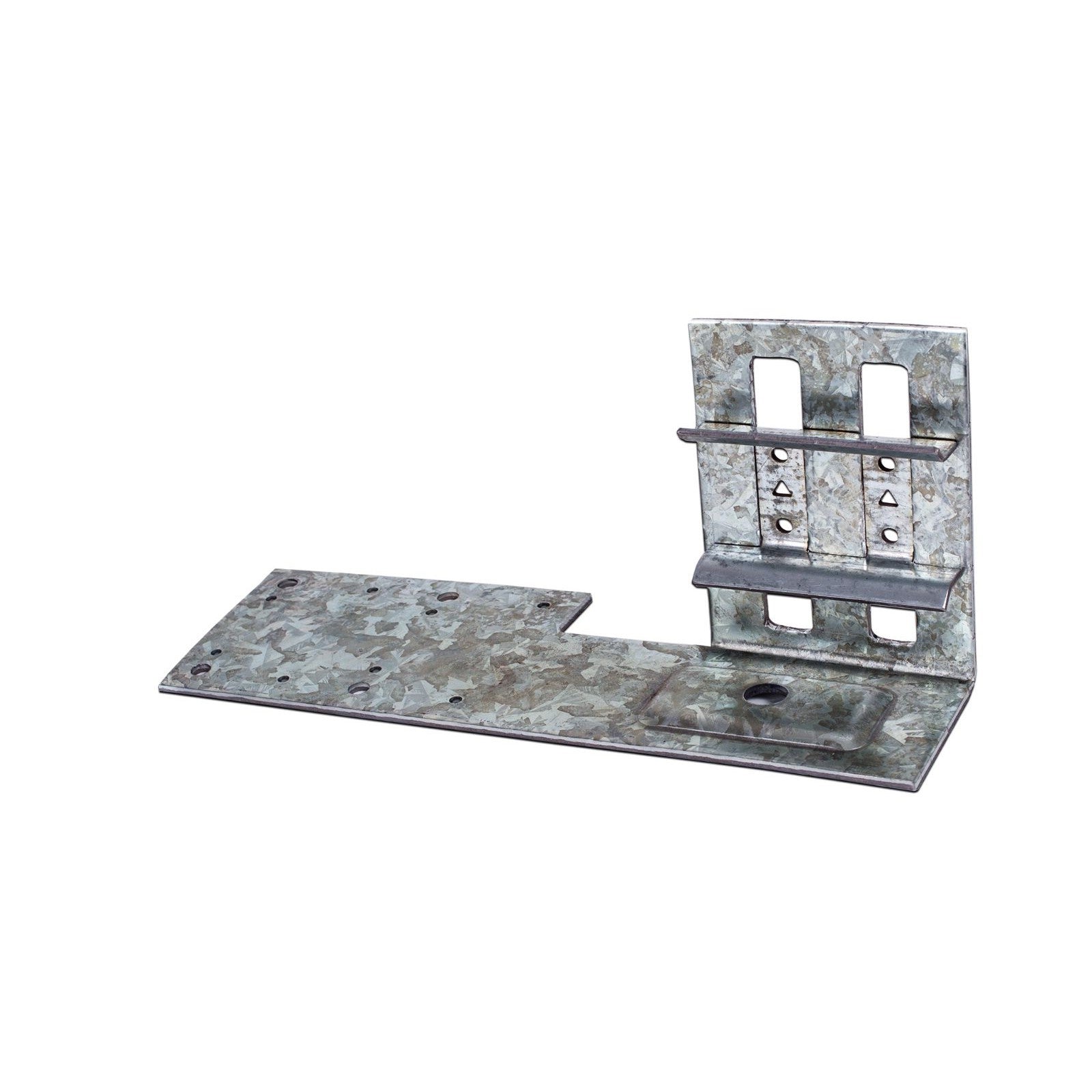

• Ensure that the SCVS vertical slider is centered in the SCHA vertical slots by aligning the tic-marks adjacent to the triangle holes on the slider with the ? stamp on the SCHA clip.
