Shop more SUR/SUL/HSUR/HSUL Skewed 45 Degree Hangers

SKU: SUL26-2

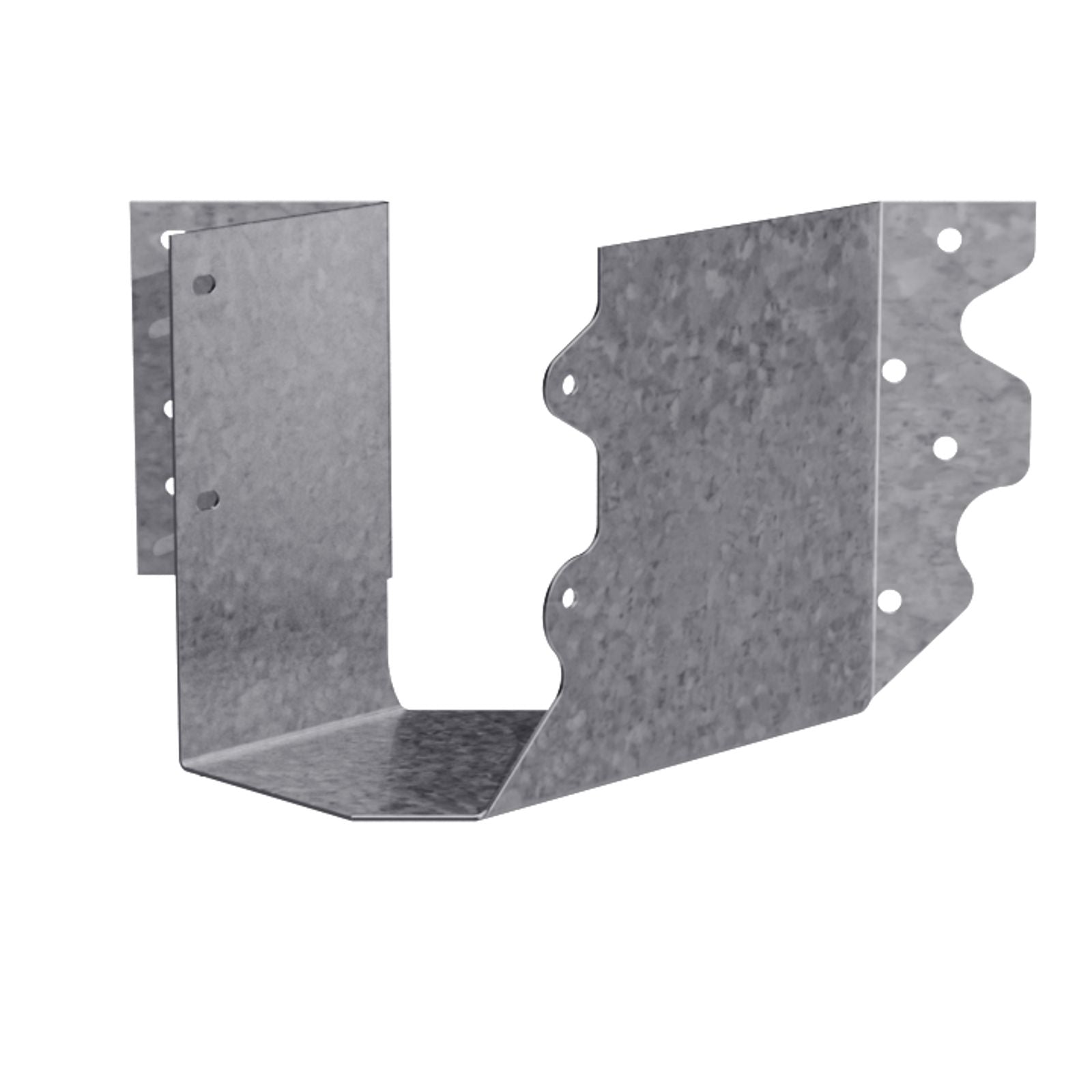

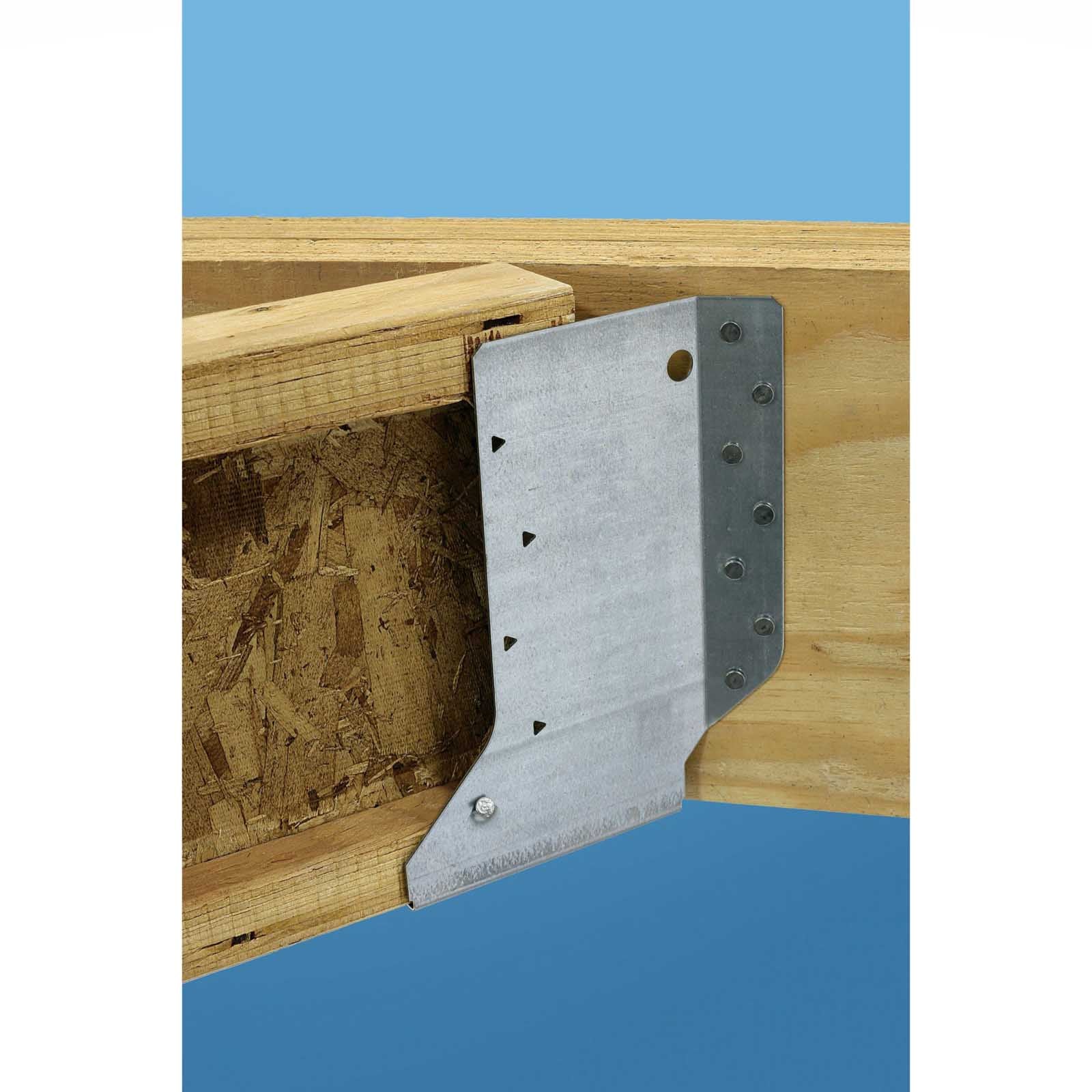

Simpson SUL26-2 Double Joist Hanger Skewed Left - Galvanized

$22.85

0% off

Quantity

Accepted payments:

Ships May 20 when you order now

Request Bulk Pricing

Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

Simpson Strong-Tie SUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUL26-2 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

Installation:

Use all specified fasteners.
These hangers will normally accommodate a 40° to 50° skew.

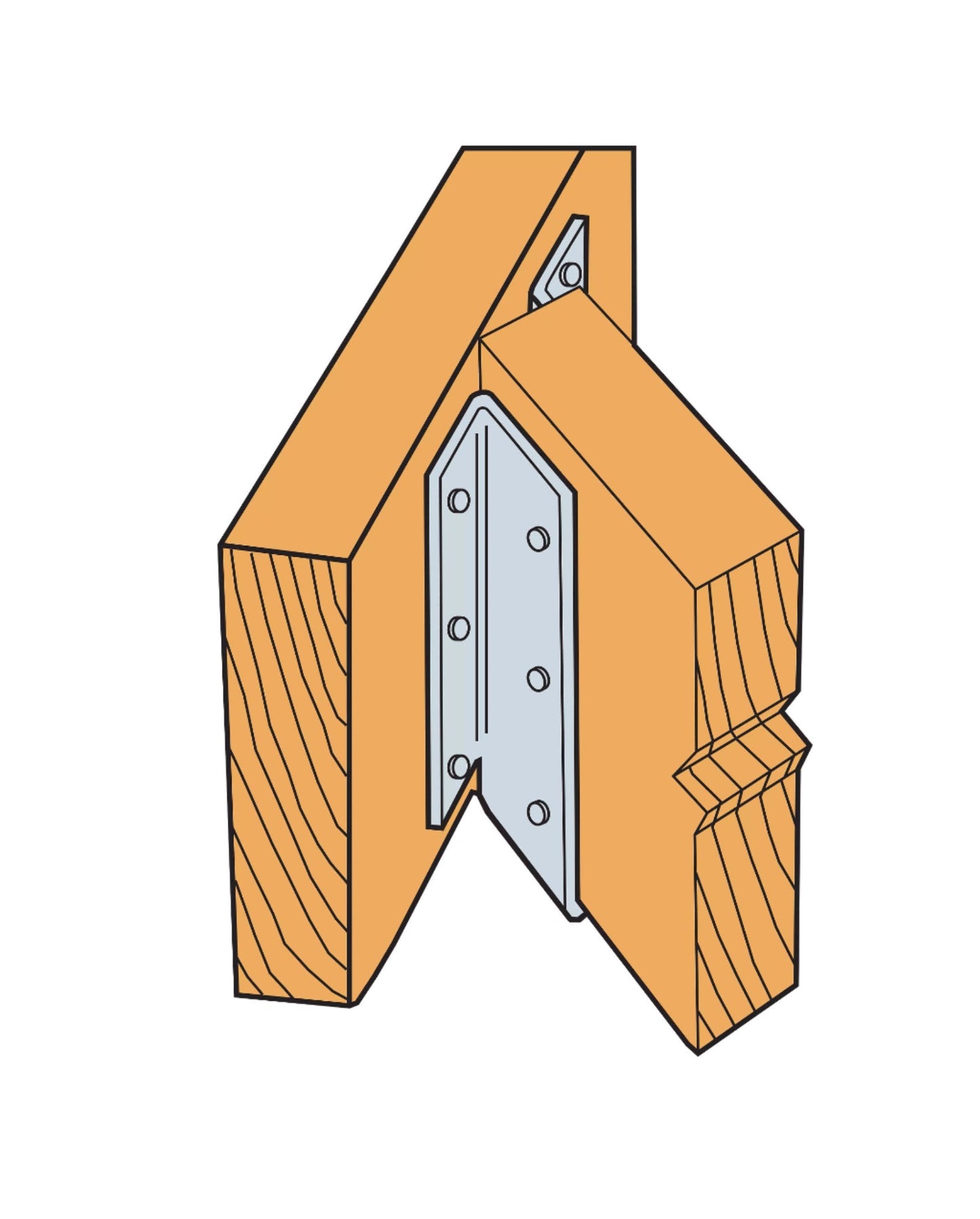

Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

Specifications:

Height: 4-15/16"
Fasteners required: Face - (8) SD9112 Screws Joist - (4) SD9112 Screws
Width: 3-1/8"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: Double 2X6
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners.
-These hangers will normally accommodate a 40° to 50° skew.
-Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
-The joist end may be square cut or bevel cut.

View full details
