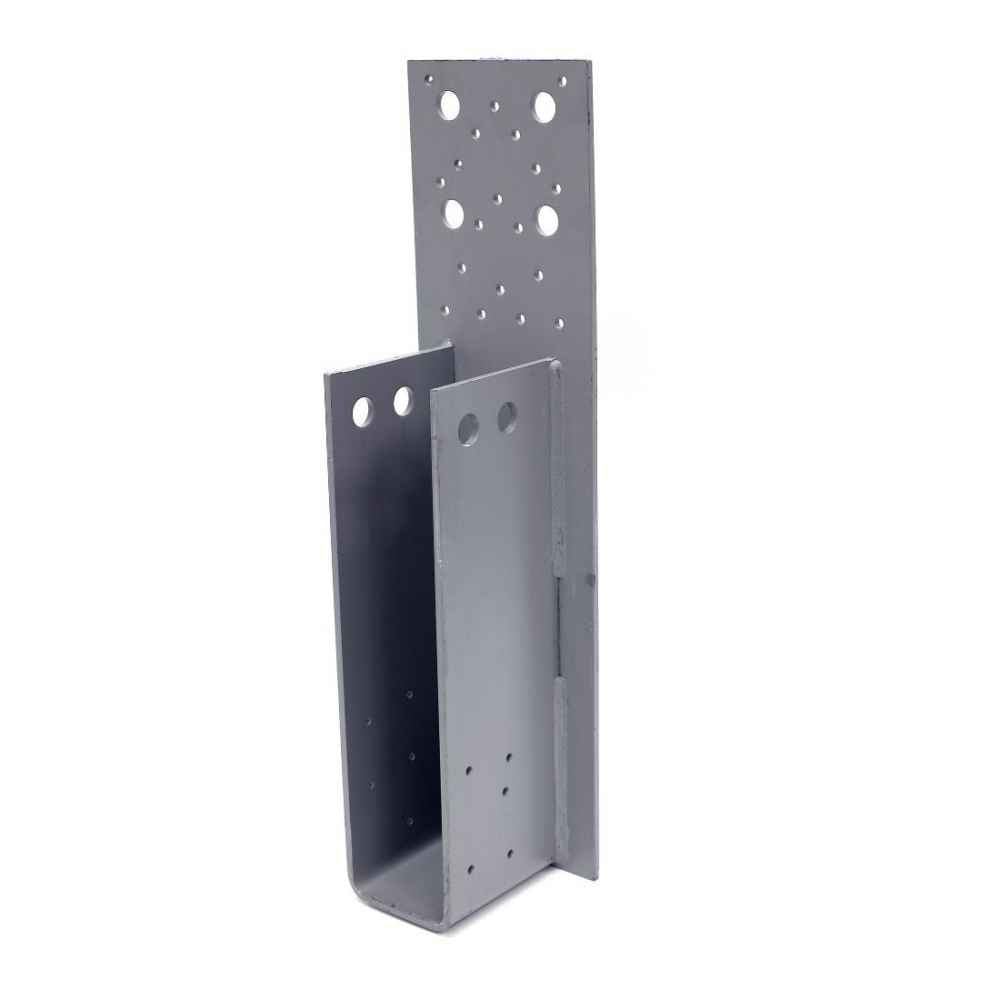

Simpson THGB2 Truss Girder Hanger, PKG 1
Simpson THGB2 Truss Girder Hanger, PKG 1
Description:
Description:
Simpson THGB truss girder hangers are high capacity, welded hangers designed for multi-ply girder trusses. The THGB series offers optional installation with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws, and the bolted THGBH hangers offer higher design loads. For a lower cost alternative that uses Strong-Drive SDS Heavy-Duty Connector screws instead of bolts and offers high load capacities, see the THGQ/THGQH series.
Installation:
- Use all specified fasteners.
- All multiple members must be fastened together to act as a single unit.
- Maximum 11 7/8" bottom chord in the carrying member to allow for the minimum bolt end distance.
- Bolts must be installed symmetrically when using less than 8 bolts on the 8-bolt backplate.
- Girders must be adequately laterally braced to prevent excessive displacement due to secondary torsional stresses (Ref ANSI/TPI 1-2007 Section 7.5.3.5).
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-All multiple members must be fastened together to act as a single unit.
-Maximum 11 7/8" bottom chord in the carrying member to allow for the minimum bolt end distance.
-Bolts must be installed symmetrically when using less than 8 bolts on the 8-bolt backplate.
-Girders must be adequately laterally braced to prevent excessive displacement due to secondary torsional stresses (Ref ANSI/TPI 1-2007 Section 7.5.3.5).
