Simpson URFP-SDS3HDG Universal Retrofit Foundation Plate w/SDS Screws - Hot-Dip Galvanized
Simpson URFP-SDS3HDG Universal Retrofit Foundation Plate w/SDS Screws - Hot-Dip Galvanized
Description:
Description:
This item is custom made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

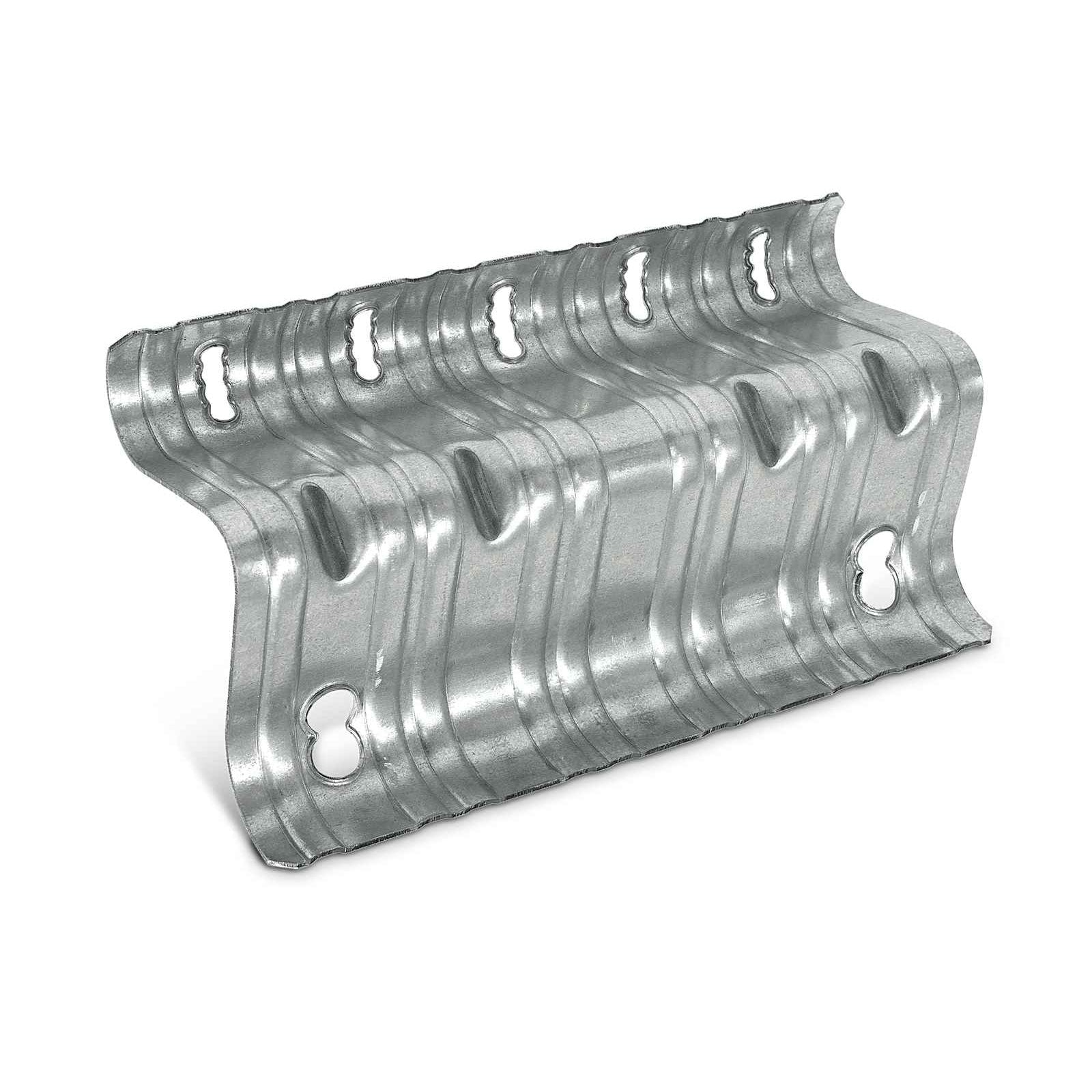

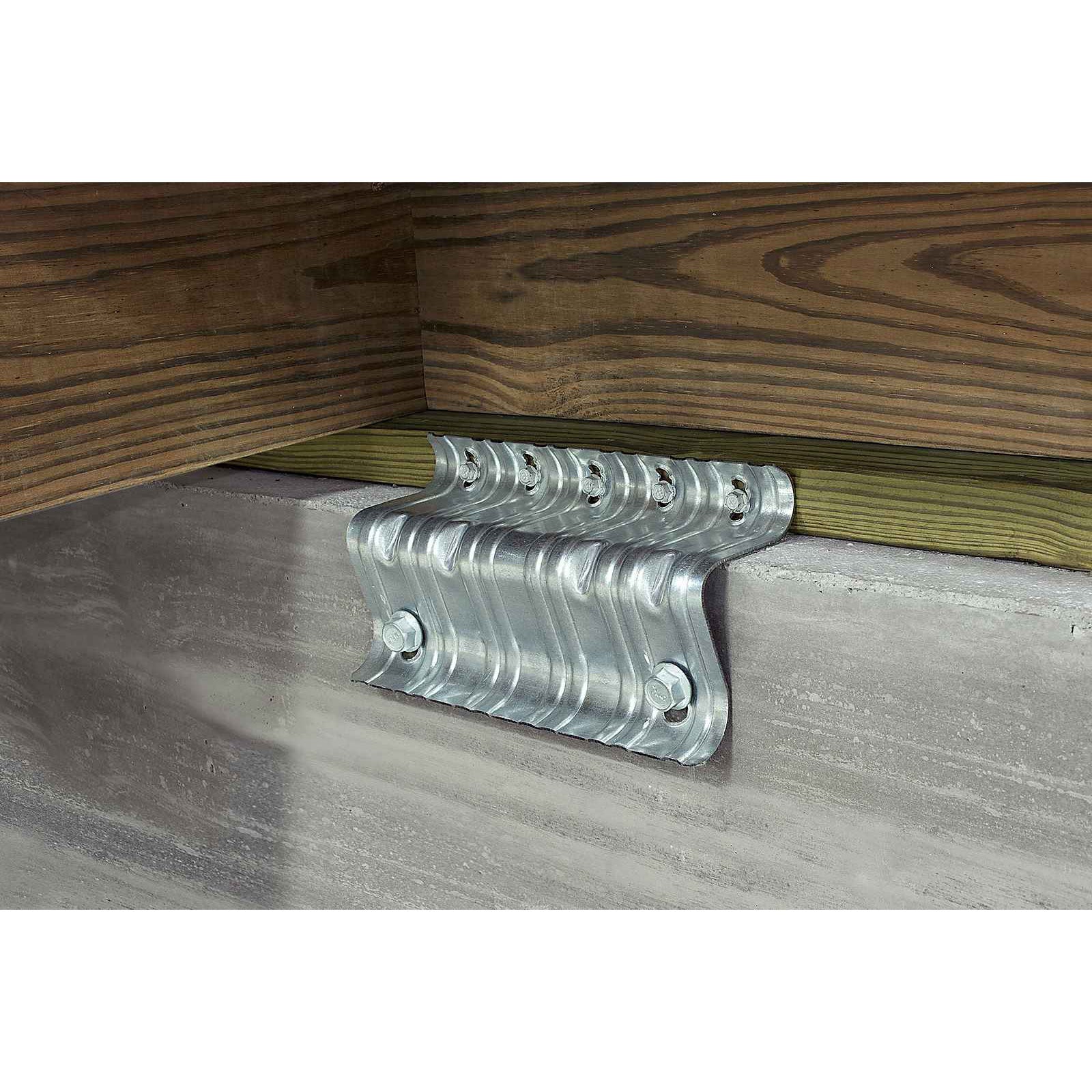

The URFP-SDS3HDG Universal Retrofit Foundation Plate universal design provides a method to secure the mudsill to many foundation types. The URFP scalloped, slotted hole feature allows installation flexibility when the mudsill is offset or inset from the foundation edge. With allowable loads deriving from longitudinal embossments and stiffening darts, the URFP may be used as a one-for-one replacement of 1/2" or 5/8" mudsill anchors.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:

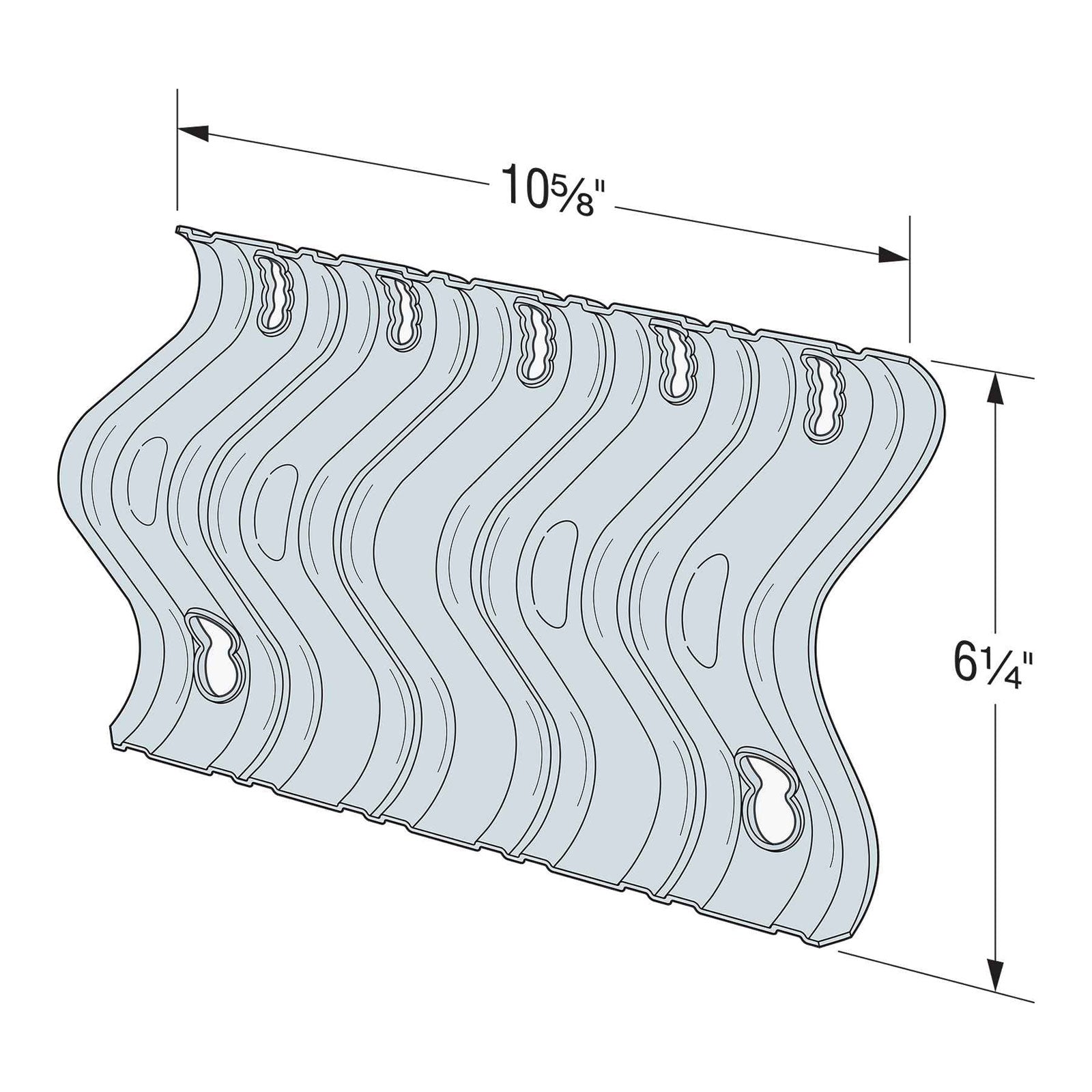

Height: 6-1/4"
Fasteners required: (5) 1/4" X 3" Strong-Drive SDS Heavy-Duty Connector screws
Thickness: 14 Gauge
Quantity: 1
Width: 10-5/8"
Finish: Hot Dip Galvanized
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Features
Features
•Ideal where vertical clearance is minimal
•Increased loads for wind or earthquake loading
Installation
Installation
• Use all specified fasteners; see General Notes
• Install using 1/4" x 3" Strong-Drive SDS Heavy-Duty Connector screws, which are supplied
• Using lag screws as a fastening alternative will not achieve published loads
