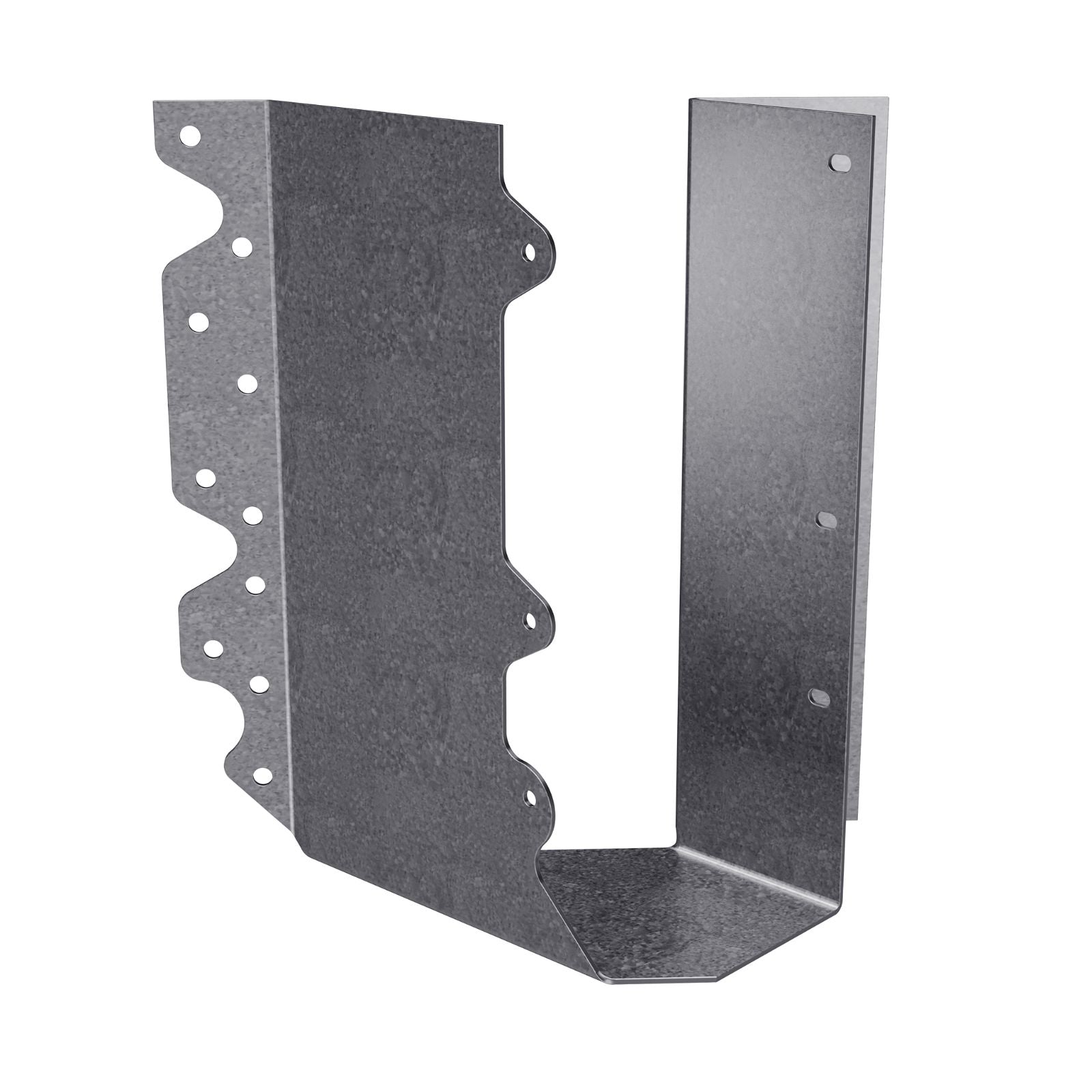

Simpson HSUR210-2 Double Joist Hanger Skewed Right - Galvanized
Simpson HSUR210-2 Double Joist Hanger Skewed Right - Galvanized
Couldn't load pickup availability
![shipping truck, lead time icon](http://www.fastenersplus.com/cdn/shop/t/41/assets/shipping-truck-transparent_small.png?v=108044571132242994361688033592)
Description:
Description:
Simpson Strong-Tie HSUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-Tie HSUR210-2 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:
- Use all specified fasteners.
- These hangers will normally accommodate a 40° to 50° skew.
- Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
- The joist end may be square cut or bevel cut.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 8-11/16"
Fasteners required: Face - (20) 0.162" x 3-1/2" Nails Joist - (6) 0.162" x 2-1/2" Nails
Width: 3-1/8"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: Double 2X10
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-These hangers will normally accommodate a 40° to 50° skew.
-Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
-The joist end may be square cut or bevel cut.
