Strut channels are a versatile support system widely used across various industries for mounting, bracing, supporting, and connecting lightweight structural loads. They are commonly found in electrical and mechanical installations, among others. Our product line offers a variety of channels designed to meet different needs, whether you're working on a heavy-duty project or need something more compact.
How to Choose the Right Channel
-
Load Requirements: Heavier loads require taller, back-to-back, or side-to-side channels.
-
Gauge: Thicker gauge is better for high stress applications, while lighter gauge is more cost-effective for lighter loads.
-
Material & Finish: Different materials or finishes are available for different applications to provide corrosion resistance if exposed to harsh elements.
-
Space Constraints: Smaller heights are better suited for tighter spaces.
Types of Strut Channels
-
Solid Strut Channel: A solid-profile strut channel providing maximum strength and stability for heavy-duty applications.
-
Short-Slotted Strut Channel: Designed with short slots for adjustable mounting, this strut channel offers flexibility in positioning and alignment of attachments.
-
Long-Slotted Strut Channel: Featuring long slots, this strut channel allows for greater adjustability and ease of installation in applications requiring precise alignment.
-
Strut Channel with Holes: Equipped with evenly spaced 9/16" holes, this strut channel is ideal for securing components with standardized bolt sizes.
-

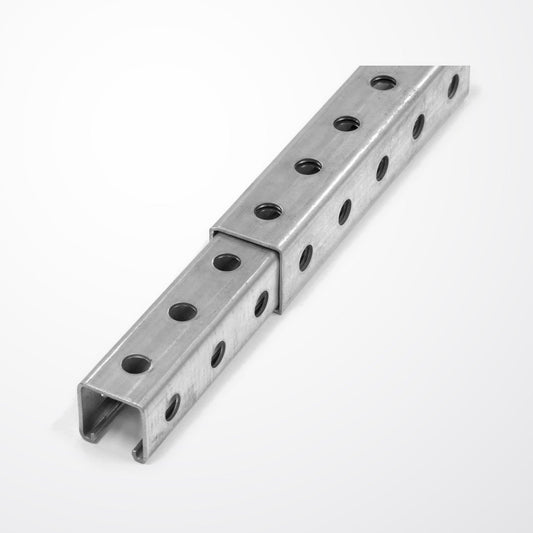

Telescoping Strut Channel: This strut channel extends and retracts for adjustable length, making it versatile for custom-sized installations.
-

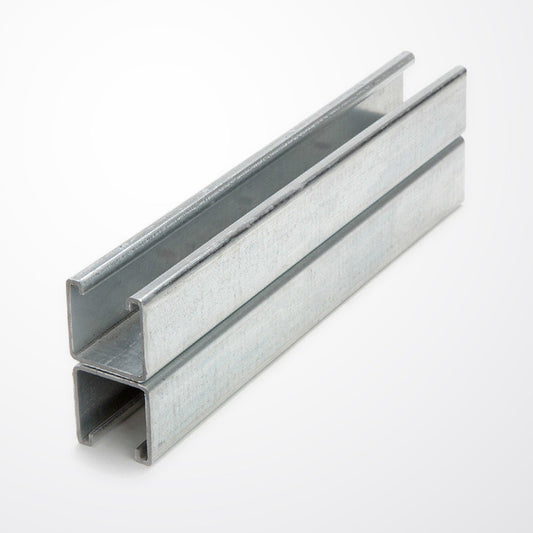

Back-to-Back Strut Channel: Two strut channels welded back-to-back, offering double the strength and support for robust structural frameworks.
-

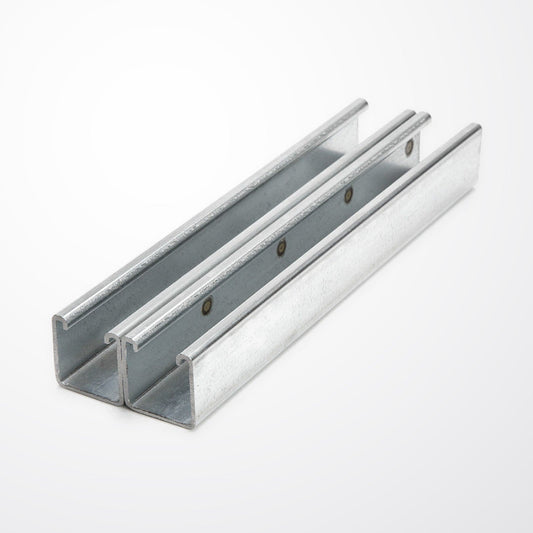

Side-by-Side Strut Channel: Comprising two parallel strut channels, this configuration is ideal for wide or dual-support systems where added stability is required.
Sizes Available for Strut Channel
-
Universal Width: The appeal of strut channel framing is the universal 1-5/8" width of strut channel. While other widths are available for unique circumstances, nearly all strut channel will feature the same 1-5/8" width.
-
Height: The differentiating factor of strut channel is the height of the channel, with the larger heights allowing for heavier loads. Available heights include:
- FS-100 Series (1-5/8" x 3-1/4")
- FS-200 Series (1-5/8" x 1-5/8")
- FS-300 Series (1-5/8" x 1-3/8")
- FS-400 Series (1-5/8" x 1")
- FS-450 Series (1-5/8" x 7/8")
- FS-500 Series (1-5/8" x 13/16")
- FS-510 Series (1-5/8" x 13/16")
Strut Channel Fittings, Hardware, and Accessories
Types of Strut Channel Fittings
-
Closure Strips: Used to seal gaps and create a snug fit between strut channels and other components, closure strips ensure a clean and secure installation.
-
Angle Fittings: Used to create secure right-angle connections, these fittings provide stability and support for strut channel frameworks.
-
Shelf Brackets and Braces: Ideal for mounting shelves to strut channels, these brackets and braces ensure strong and reliable support.
-
Channel Brackets: Designed to connect strut channels at various angles, channel brackets offer versatile mounting solutions for complex structures.
-
Beam Clamps: These clamps securely attach strut channels to beams, allowing for easy suspension of loads from structural elements.
-
Clevis Fittings: Used for connecting rods or other components to strut channels, clevis fittings provide a pivoting connection point for added flexibility.
-
Strut Channel End Caps: Protective caps that cover the open ends of strut channels, preventing debris entry and providing a clean finish.
-
Flat Fittings: Simple and versatile, flat fittings join strut channels together or to surfaces in flat, parallel configurations.
-
Channel Hangers and Electrical Accessories: These hangers and accessories are designed for suspending and organizing electrical conduits and cables within strut channel systems.
-
Pipe Straps and Clamps: Securely fasten pipes and conduits to strut channels, ensuring stable and reliable support within the framework.
-
Channel Post Base: Provides a stable mounting point for strut channels to the floor or foundation, essential for vertical support structures.
-
Strut Channel Trolley and Track Supports: These components allow for smooth movement of loads along strut channels, ideal for overhead track systems.
-
Z and U-Shaped Fittings: These fittings connect strut channels at unique angles or configurations, offering flexibility in custom designs.
-
Wing Fittings: Designed for easy attachment to strut channels, wing fittings provide a secure and adjustable connection point for various accessories.
Types of Strut Channel Hardware
-
Channel Nuts: Designed to secure fittings and components within strut channels, channel nuts provide a strong and adjustable anchoring point.
-
Threaded Rod: A versatile fastener, the threaded rod is used to suspend and connect various components within strut channel systems, offering adjustable length and strength.
Further Questions About Strut Channel
Strut channel framing provides a versatile & modular framing system to simplify many different applications but it can be daunting to decide which product best suits your needs. Our team of experts has a depth of knowledge in the fastener industry. If you have any additional questions check out our guide to Strut Channel Framing, or be sure to reach out and we'll be glad to help.
