SKU: APLH24

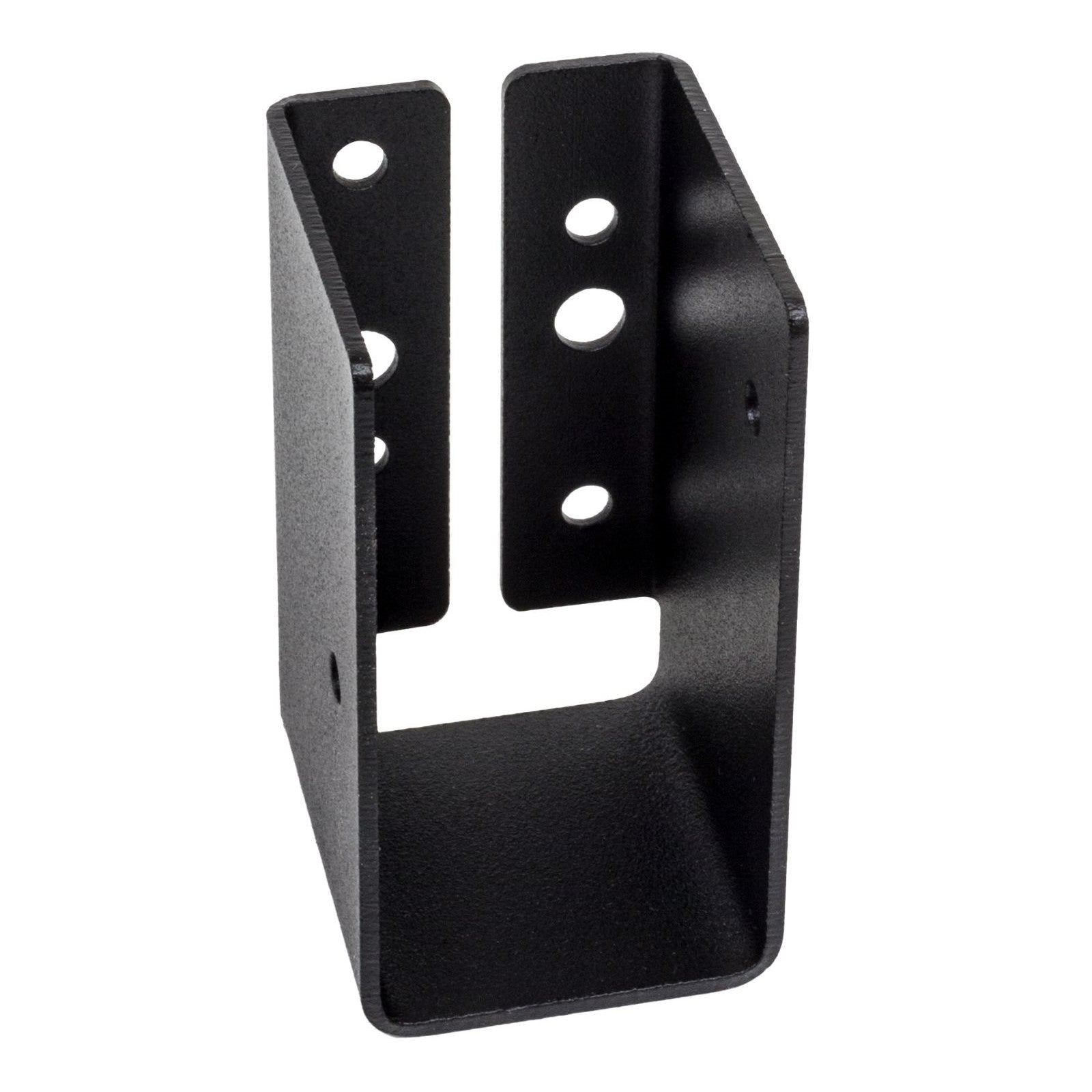

Simpson APLH24 2x4 Concealed Flange Light Joist Hanger - Black Powder Coat

Simpson APLH24 2x4 Concealed Flange Light Joist Hanger - Black Powder Coat!

Skip to product information
1 of 4

Continue Browsing

Decorative Joist Hangers

$3.97

Request Bulk Pricing
Request Bulk Pricing
Ships May 12 when you order now
Fill out the form below or give our sales consultants a call at 866-421-4854.

Fast Shipping

Shipping & Returns

Bulk Pricing Discounts

Business Solutions

Payment Options

American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

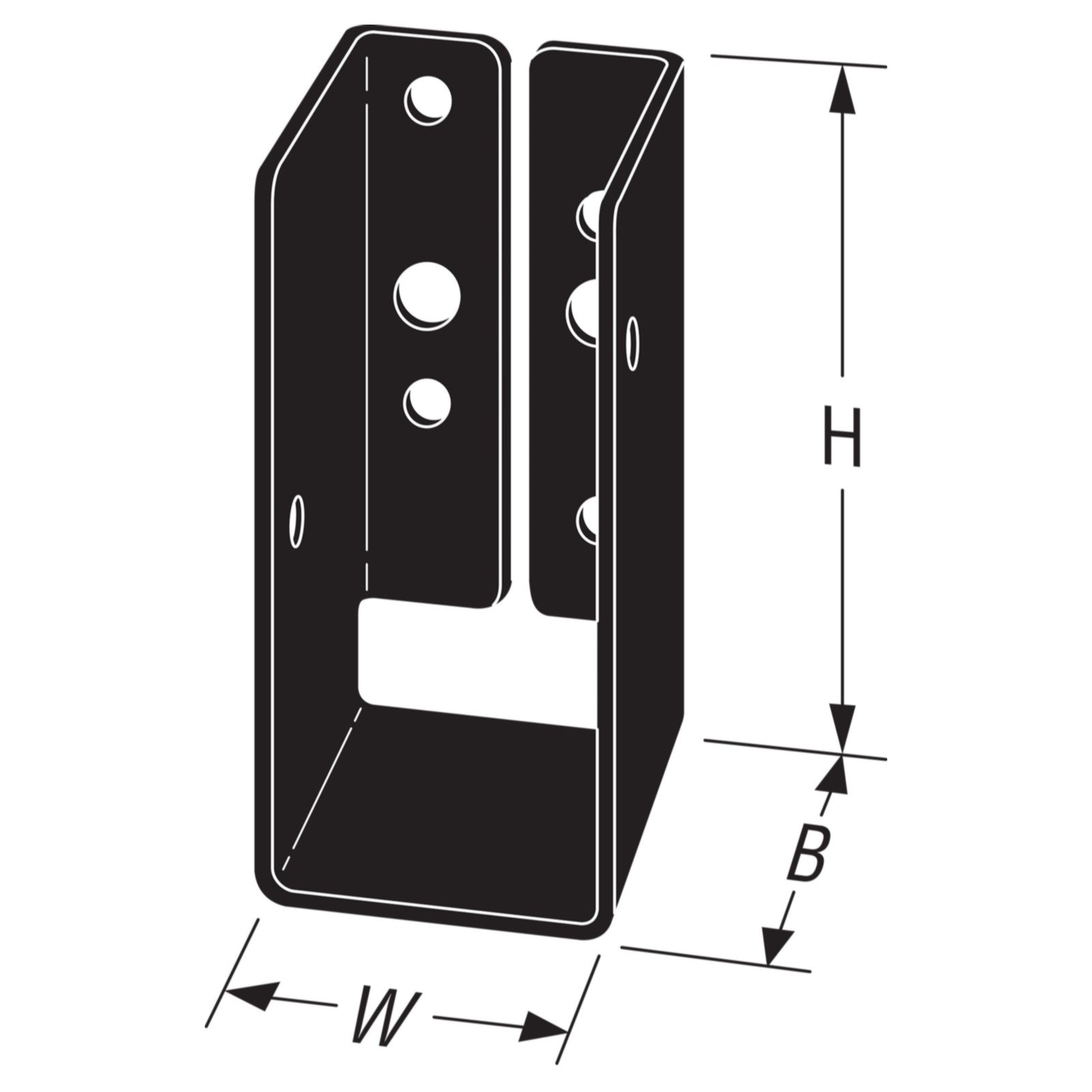

Specifications

Finish: ZMAX and Black Powder Coat
Material: Carbon Steel
Color: Black
Fasteners required:
• (6) #10 x 1-1/2" SD10112DBB Connector screws
For Treated Lumber: Yes
Height: 3-3/16"
Joist size: 2" X 4"
Manufacturer name: Simpson Strong-Tie
Thickness: 14 Gauge
Type: Applicable with Mission Collection and Avant Collection
Width: 1-9/16"
Description

The Simpson Strong-Tie APLH24 nominal 2x4 Concealed Flange Light Joist Hanger is expertly crafted to blend strength and style in outdoor construction projects. Designed for use with nominal 2x4 lumber, this joist hanger offers secure connections with a sleek, concealed flange design.

Manufactured from heavy-gauge steel and finished with a black powder-coat over ZMAX galvanization, it delivers excellent corrosion resistance while providing a modern look ideal for pergolas, patios, pavilions, and other outdoor structures.

Take the guesswork out of what fasteners you need with our APLH24 Kit that has the fasteners included to complete your project!

Key Features:

  • Concealed Flange Design: Clean appearance with hidden flanges for a professional finish.
  • Heavy-Duty Construction: 14-gauge steel with ZMAX coating and black powder coat for superior durability and corrosion resistance.
  • Simple Installation: Easily attaches with Outdoor Accents Connector screws (sold separately).
  • Outdoor Ready: Designed specifically for nominal 2x4 lumber in exterior environments.

California Residents: WARNING

View full details

Continue Browsing

Decorative Joist Hangers

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.

Customer Reviews

Based on 9 reviews
89%
(8)
11%
(1)
0%
(0)
0%
(0)
0%
(0)
K
Kevin
Wonderful product; well constructed

These brackets are absolutely wonderful! They are sturdy, well finished, and tuck away perfectly for a double-sided fence!
True dimensions allow for actual 2x4 stringers to be used. Will buy again for next project!

P
P.A.
Solid hangers

These worked exactly for their purpose. Fasteners Plus was the only place I could find these. The delivery was as expected and no issues there. The hangers were new in their original Simpsons packaging. I would recommend this distributor and Simpsons.

One note: While some websites, including the page I am on now, suggest buying these hangers with hex drive connector screws, I would recommend using the #8 Simpson wafer head screws if you are doing fine work (I was building a table to support hundreds of pounds, not a deck, so I needed it to be solid). You''ll want the beam that is to be hung in the hangers to be flush with the concealed flange. If you use hex head screws to mount the beam, you can't do that easily. With the wafer head screws, just make a small indent in the beam's cut edge with something like a 3/4" drill bit where the wafer heads would stick into the beam's edge. That way the beam sits flush on the concealed flange instead of there being a gap where the screw heads keep the beam away from the concealed flange.

A
Anonymous
Effective and beautiful

but expensive. I needed a butt-end joist to a 2x4 face, so options were limited. This piece is unnecessarily finished and expensive - for my needs. My joists are not visible, a perfunctory joist isn't available. It would be appreciated if offered.

b
bhl
deck rails made easy ...

good product, well packaged.

S
Stephen Estes
Expansion

I am restoring a post and beam pergola. This bracket will allow for moisture expansion of the fence rails, by leaving some slack in the screws.
