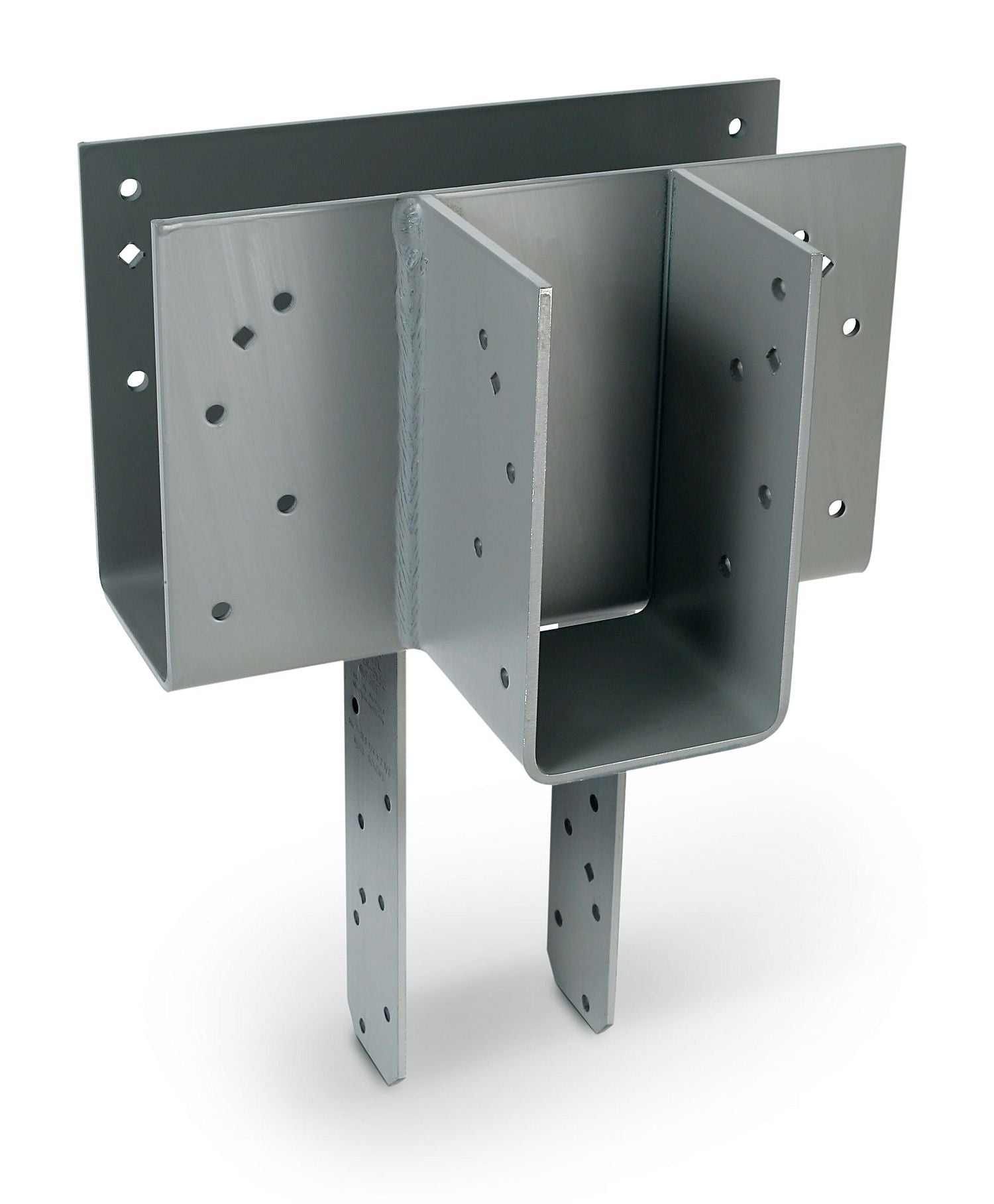

Simpson CCTQ46SDS Column Cap T Configuration, Quick-Install

Simpson CCTQ46SDS Column Cap T Configuration, Quick-Install

Call for Price
Call to Order
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Ships in 1-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.


  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

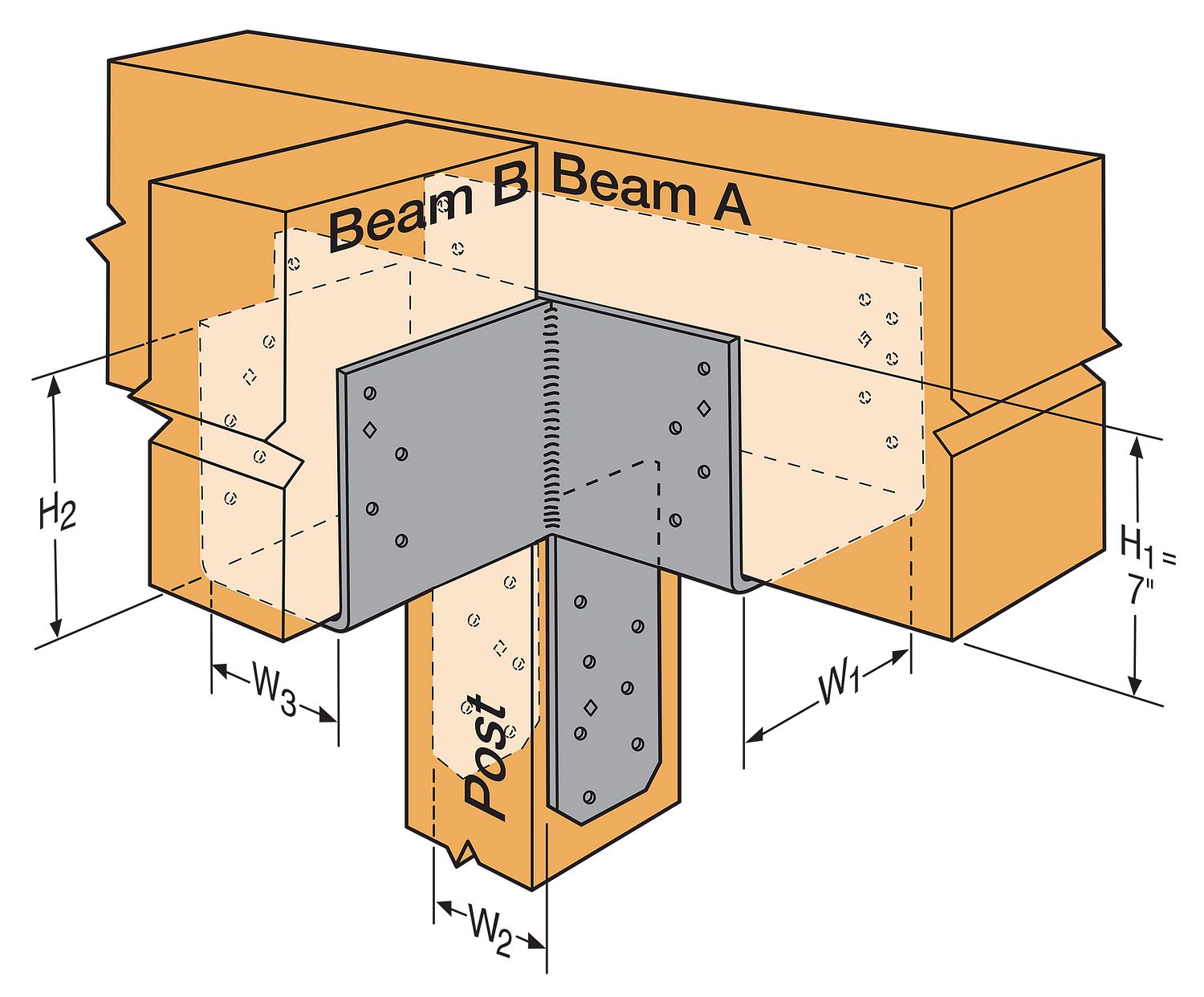

The CCTQ is designed to provide strong column-to-beam connections when there are two beams in a “T” formation on top of a column. When properly installed, this column cap helps to distribute the load from bisecting beams and provides support for the connection. The CCTQ uses Strong-Drive® SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts and is special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.

  • Also available in HDG and in widths up to 8" wide.
  • Install 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided, in all round holes.
  • Screws are configured to provide high uplift design values
  • Certified welds for confidence in strength and loading; no additional welding is allowed.
  • Diamond holes to provide temporary fastening

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING


Material: Painted Steel
Post Size: 6X POST
Fasteners required: 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws
Thickness: 3 Gauge
Finish: Gray Paint
Manufacturer name: Simpson Strong-Tie
Beam size: 4X BEAM
Product Guide: View Spec Sheet
