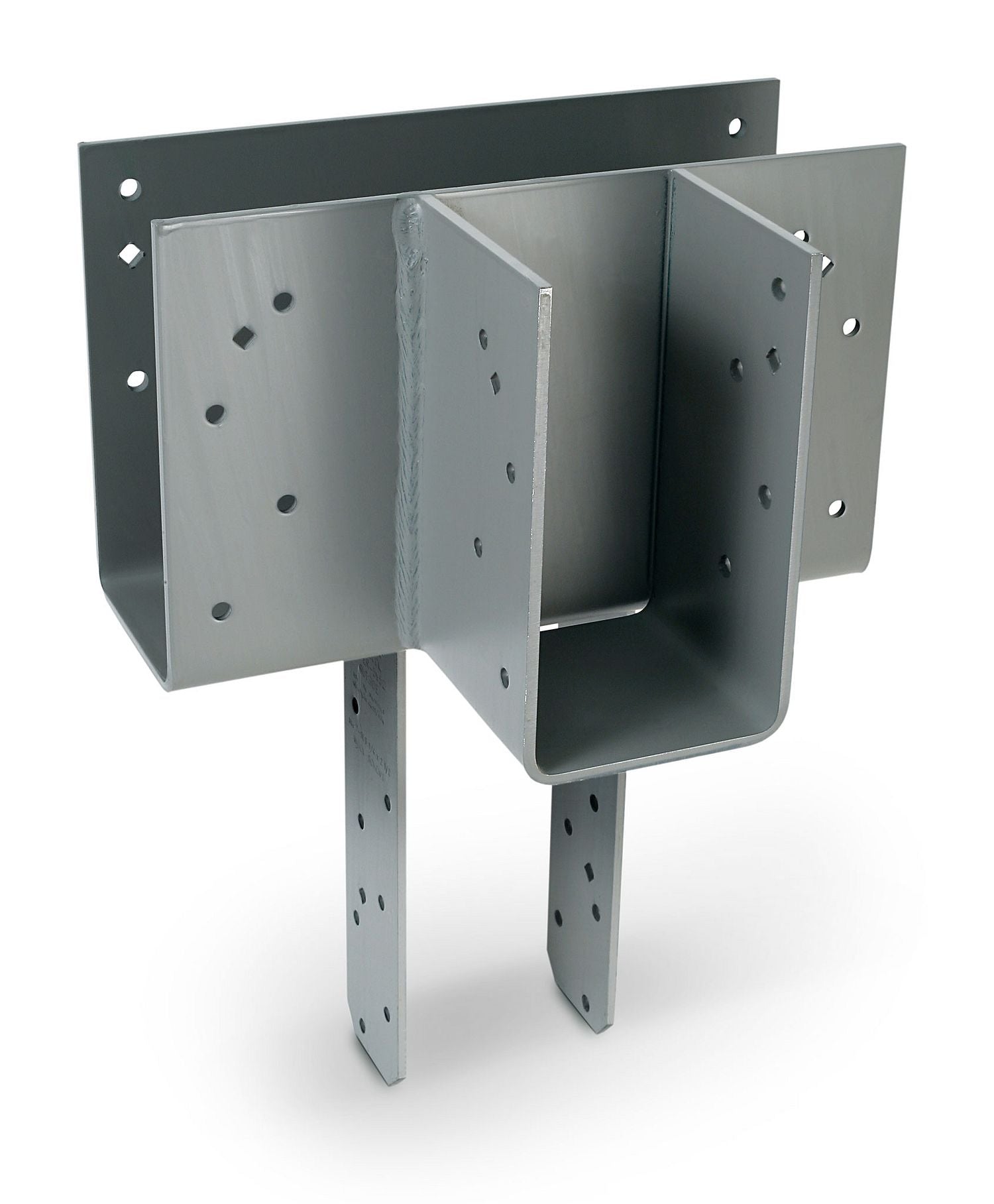

Simpson CCTQ78SDS Column Cap T Configuration, Quick-Install

Simpson CCTQ78SDS Column Cap T Configuration, Quick-Install!

Skip to product information
1 of 3
Call for Price

Call to Order
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Gray Paint
Material: Painted Steel
Beam size: 6-3/4" BEAM
Fasteners required: 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws
Manufacturer name: Simpson Strong-Tie
Post size: 8X POST
Thickness: 3 Gauge
Description
  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

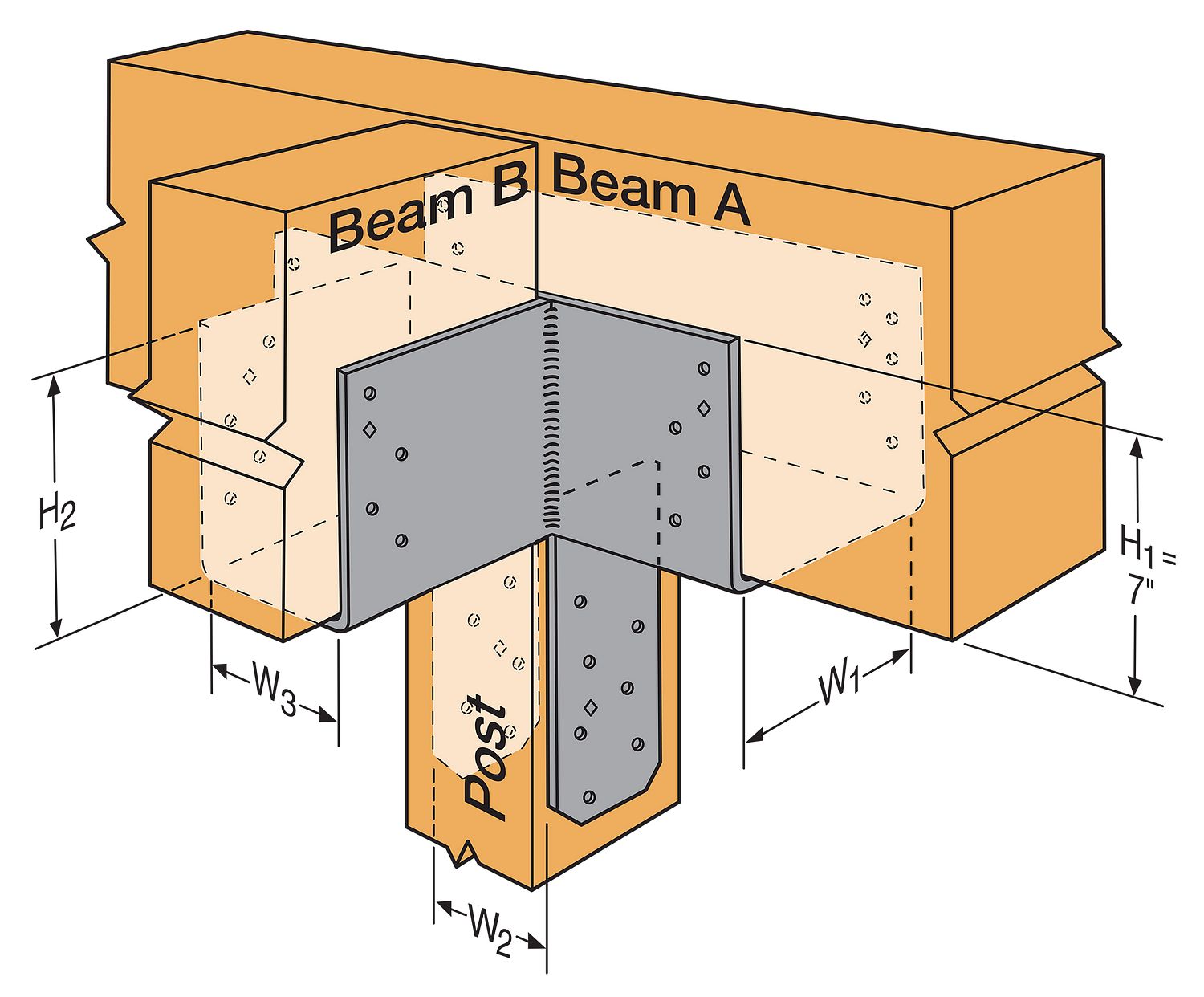

The CCTQ is designed to provide strong column-to-beam connections when there are two beams in a “T” formation on top of a column. When properly installed, this column cap helps to distribute the load from bisecting beams and provides support for the connection. The CCTQ uses Strong-Drive® SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts and is special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.

  • Also available in HDG and in widths up to 8" wide.
  • Install 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided, in all round holes.
  • Screws are configured to provide high uplift design values
  • Certified welds for confidence in strength and loading; no additional welding is allowed.
  • Diamond holes to provide temporary fastening

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
