Shop more Bolthold Asphalt Anchors
SKU: SP12-38S

Bolthold SP12-38S Asphalt Anchor, 304 Stainless Steel, 6 Pkg

Bolthold SP12-38S Asphalt Anchor, 304 Stainless Steel, 6 Pkg

Regular price $102.00
Sale price $102.00 Regular price
0% off
shipping truck, lead time icon
Ships today when you order in the next 13 hours 25 minutes

Description:

Notice: Do not install anchors with tile grout. Bolthold anchors must be installed with the specified EPX2 or EPX3 special grout.

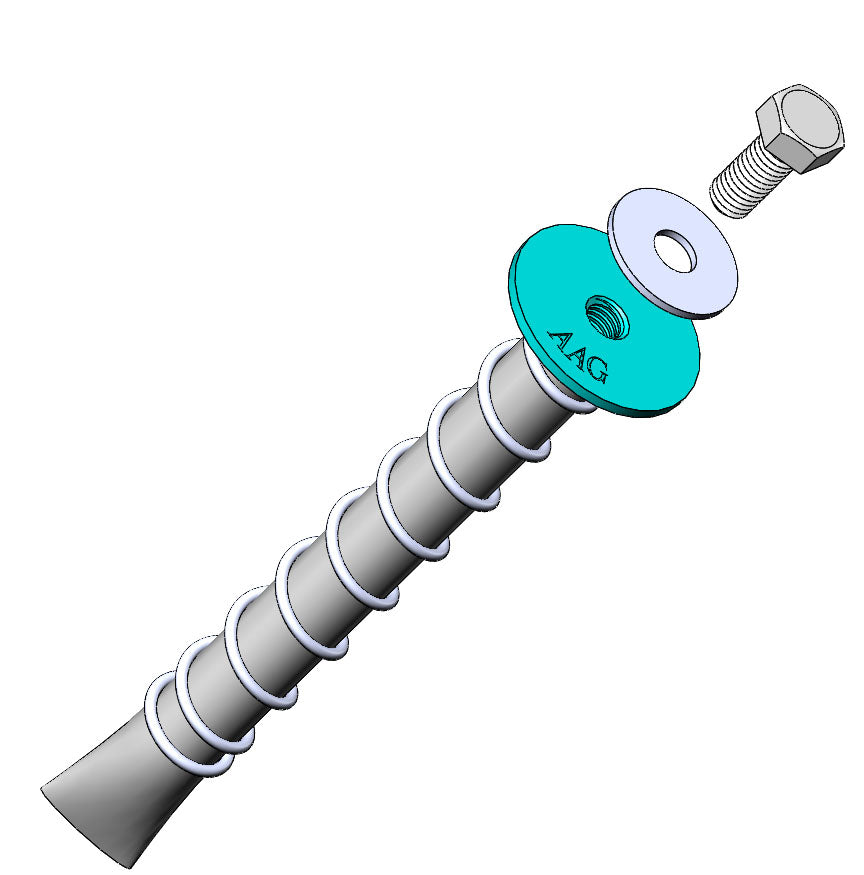

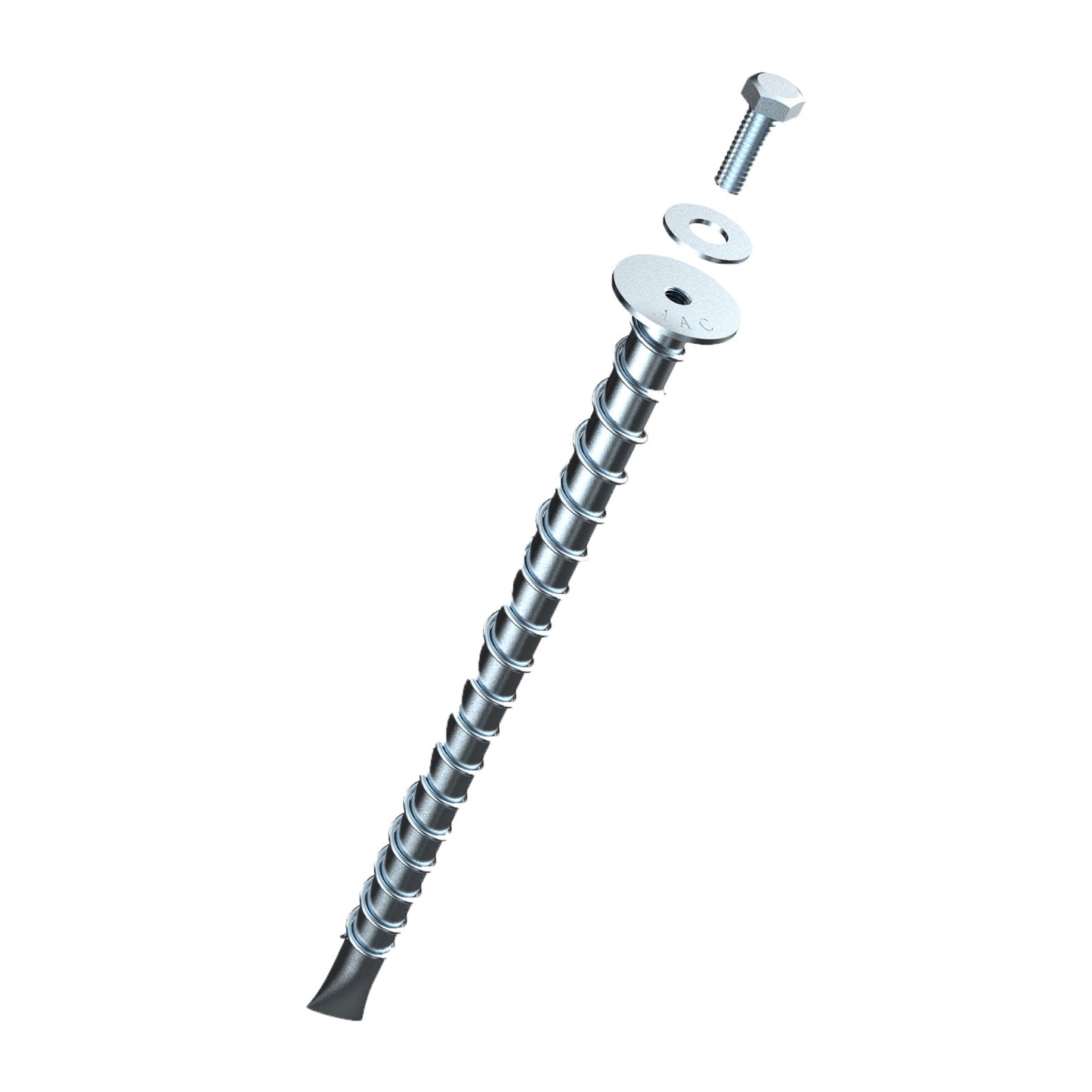

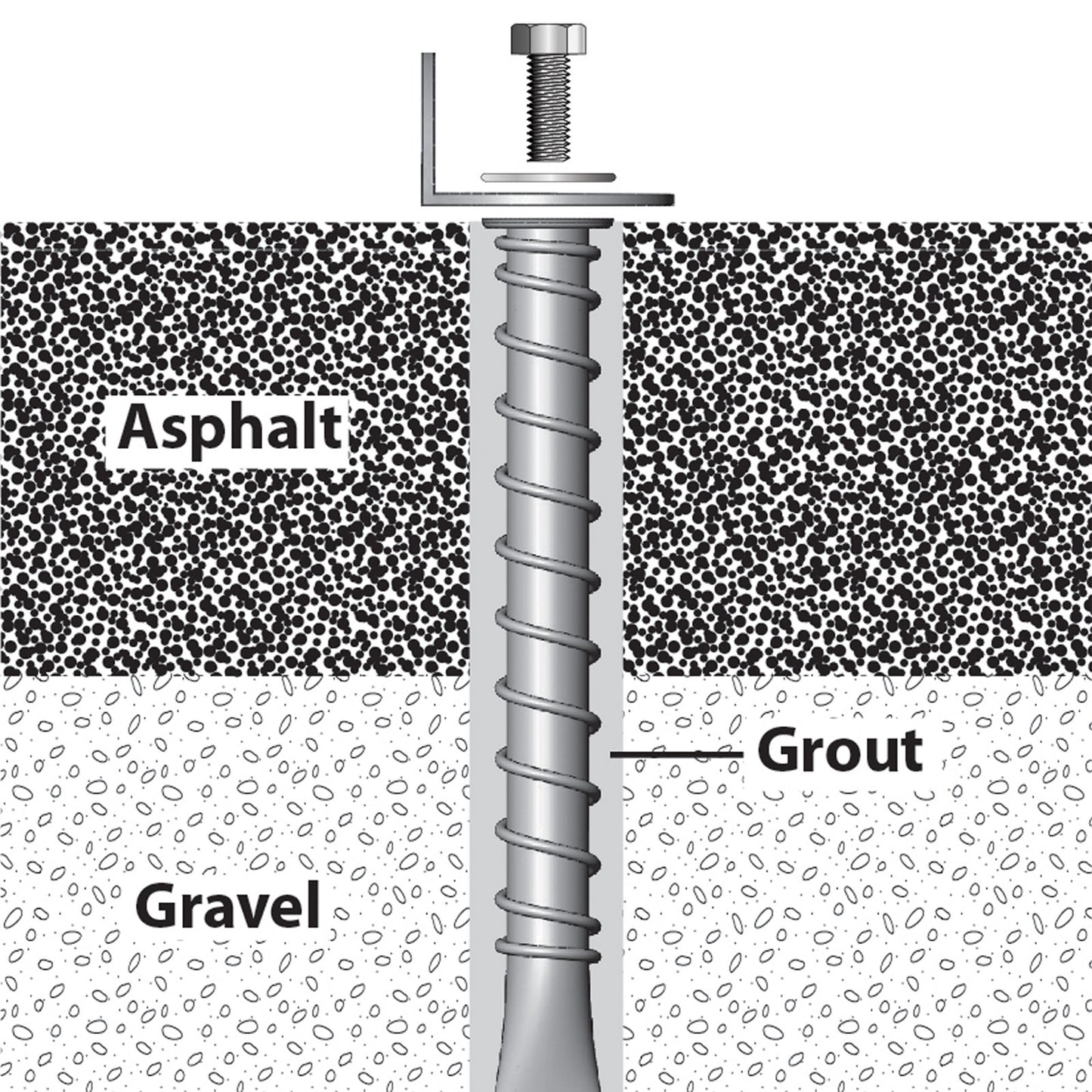

Bolthold SP12-38S Asphalt Anchors are heavy-duty anchors skillfully designed for asphalt applications. This 12" asphalt anchor bolt is great for mounting plates, fences, and machinery directly to asphalt surfaces. This anchor requires a 7/8" hole that is 12" deep, and the use of grout to secure it into the asphalt. The length of the bolt inside the anchor should not exceed 5". Each anchor is pre-installed with a 1" bolt and a 1" washer. The stainless steel finish provides enhanced corrosion resistance, making this fastener ideal for applications near salt water.

You can load the anchors at 80% of their pull rating if the object/structure stands solidly by itself. If the object applies a static pull force on the anchors just as it stands, limit the load to 20% of the pull rating.

Features:

  • Anchors are mounted flush with the surface.
  • A 1.4" header at the top of the anchor prevents the anchor from dropping below the surface and being pulled up into the mounting plate once the bolt is tightened.
  • The attached objects can be easily removed without leaving protrusions on the surface.

Required Grout:

Listed below are the approximate amounts of grout required to install one six-pack of SP12-38S asphalt anchors.

Specifications:


Thread type: 3/8"-16 UNC Coarse Female Thread
Head diameter: 1.35"
Quantity: 6
Diameter: 5/8"
Length: 12"
Manufacturer name: Bolthold Asphalt anchors
Torque: 200 lb.-in.
Additional information: Shear Resistance: 1500 lbs.
Pull Force: 2000 lbs.
Product Guide: View Spec Sheet

Features

-Anchors are mounted flush with the surface.
-A 1.4" header at the top of the anchor prevents the anchor from dropping below the surface and being pulled up into the mounting plate once the bolt is tightened.
-The attached objects can be easily removed without leaving protrusions on the surface.
