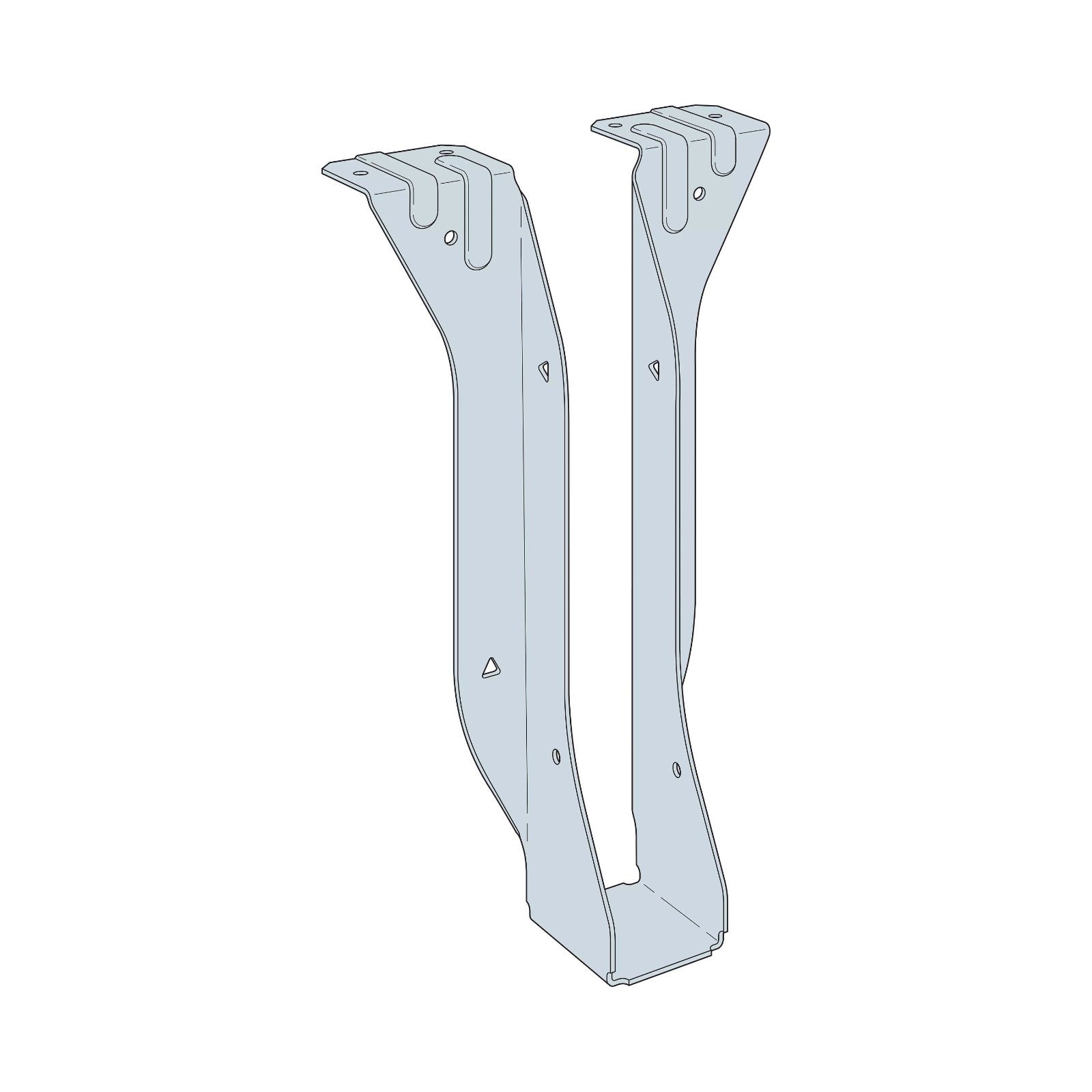

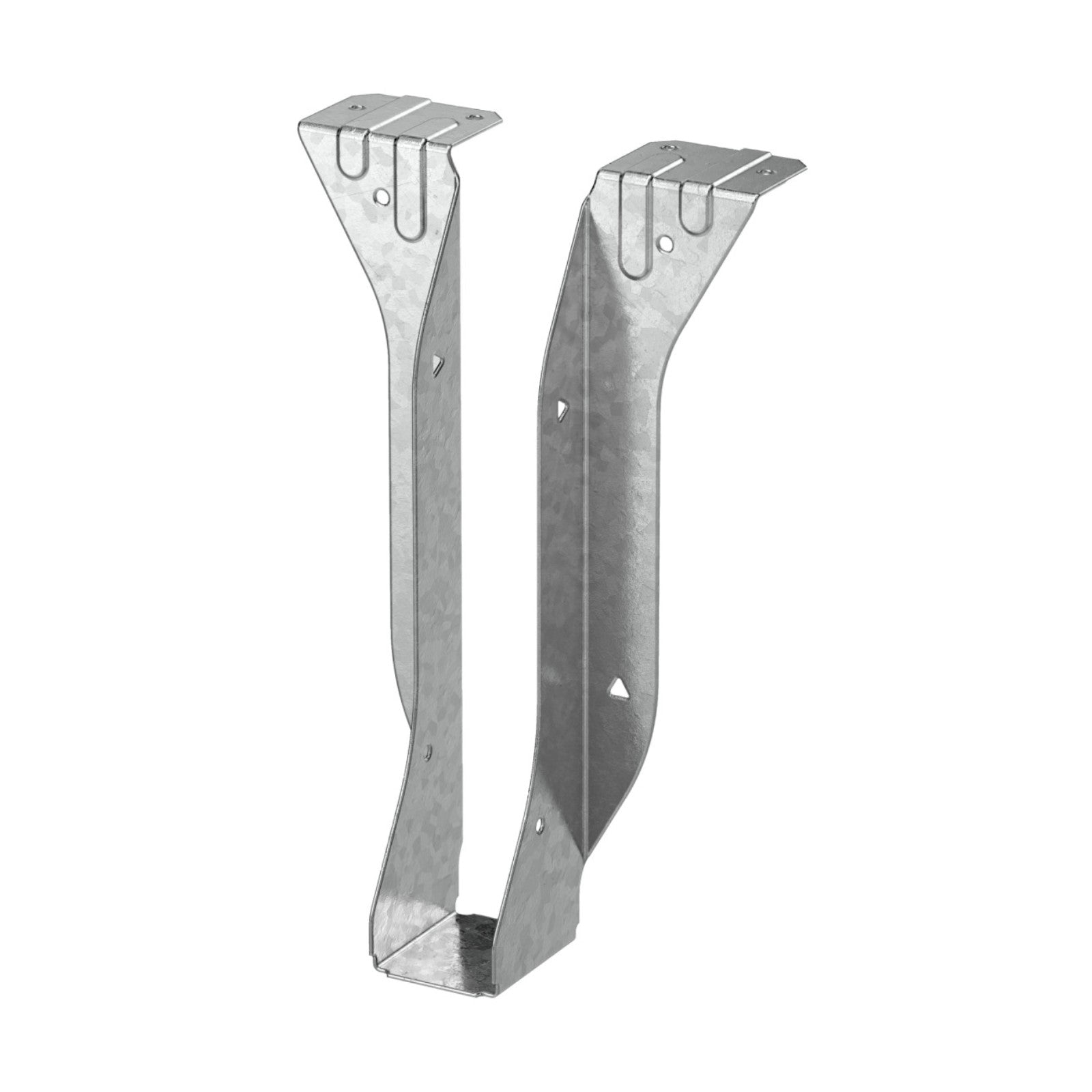

Simpson JB210A 2x10 Top Flange Joist Hanger - G90 Galvanized

Simpson JB210A 2x10 Top Flange Joist Hanger - G90 Galvanized

Regular price $7.26
Sale price $7.26 Regular price
0% off
shipping truck, lead time icon
Ships Mar 29 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

Simpson Strong-Tie JB hangers are 18 gauge top mount hangers that are a great cost effective solution. JBA hangers provide higher loads for 2x10, 2x12 and 2x14 members in 18 gauge steel. The new nail locations on the JBA enable effective use with nailers. The unique two level embossment provides added stiffness to the top flange. The Strong-Tie JB210A top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153

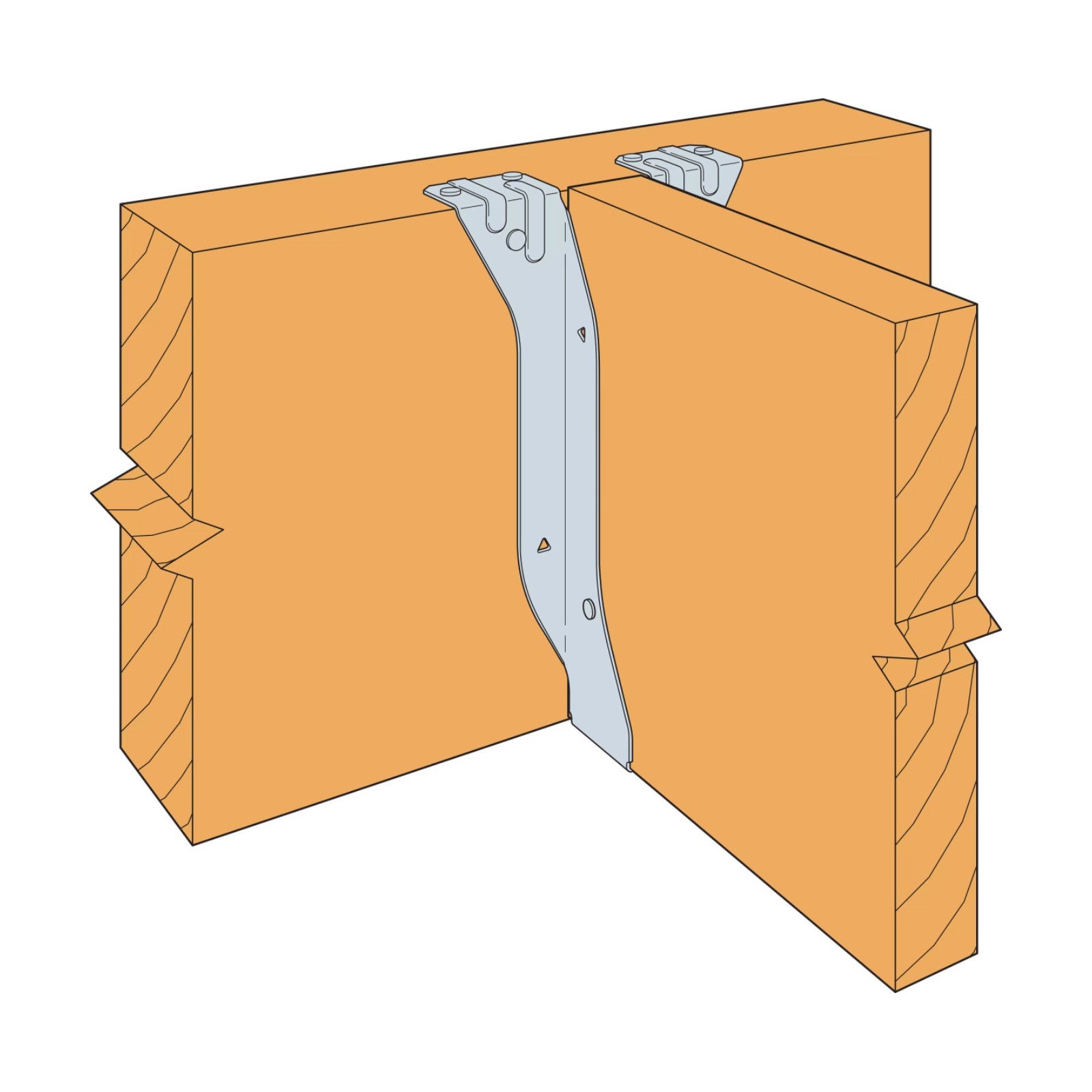

Installation:
  • Use all specified fasteners.
  • LBAZ, BA, B and HHB may also be welded to steel headers with weld size to match material thickness (approximate thickness shown). The minimum required weld to the top flanges is 1/8" x 2" (1/8" x 1 7/16" for LBAZ) fillet weld to each side of each top flange tab for 14 and 12 gauge and 3/16" x 2" fillet weld to each side of each top flange tab for 7 gauge. Distribute the weld equally on both top flanges. Welding cancels the top and face nailing requirements. Consult the code for special considerations when welding galvanized steel. The area should be well-ventilated. Weld on applications produce the maximum allowable down load listed.
  • Ledgers must be evaluated for each application separately. Check TF dimension, nail length and nail location on ledger.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Height: 9-3/16"
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
Width: 1-9/16"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: 2X10
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners.
-LBAZ, BA, B and HHB may also be welded to steel headers with weld size to match material thickness (approximate thickness shown). The minimum required weld to the top flanges is 1/8" x 2" (1/8" x 1 7/16" for LBAZ) fillet weld to each side of each top flange tab for 14 and 12 gauge and 3/16" x 2" fillet weld to each side of each top flange tab for 7 gauge. Distribute the weld equally on both top flanges. Welding cancels the top and face nailing requirements. Consult the code for special considerations when welding galvanized steel. The area should be well-ventilated. Weld on applications produce the maximum allowable down load listed.
-Ledgers must be evaluated for each application separately. Check TF dimension, nail length and nail location on ledger.
