Simpson TJC57 16 Gauge Jack Truss Connector - G90 Galvanized

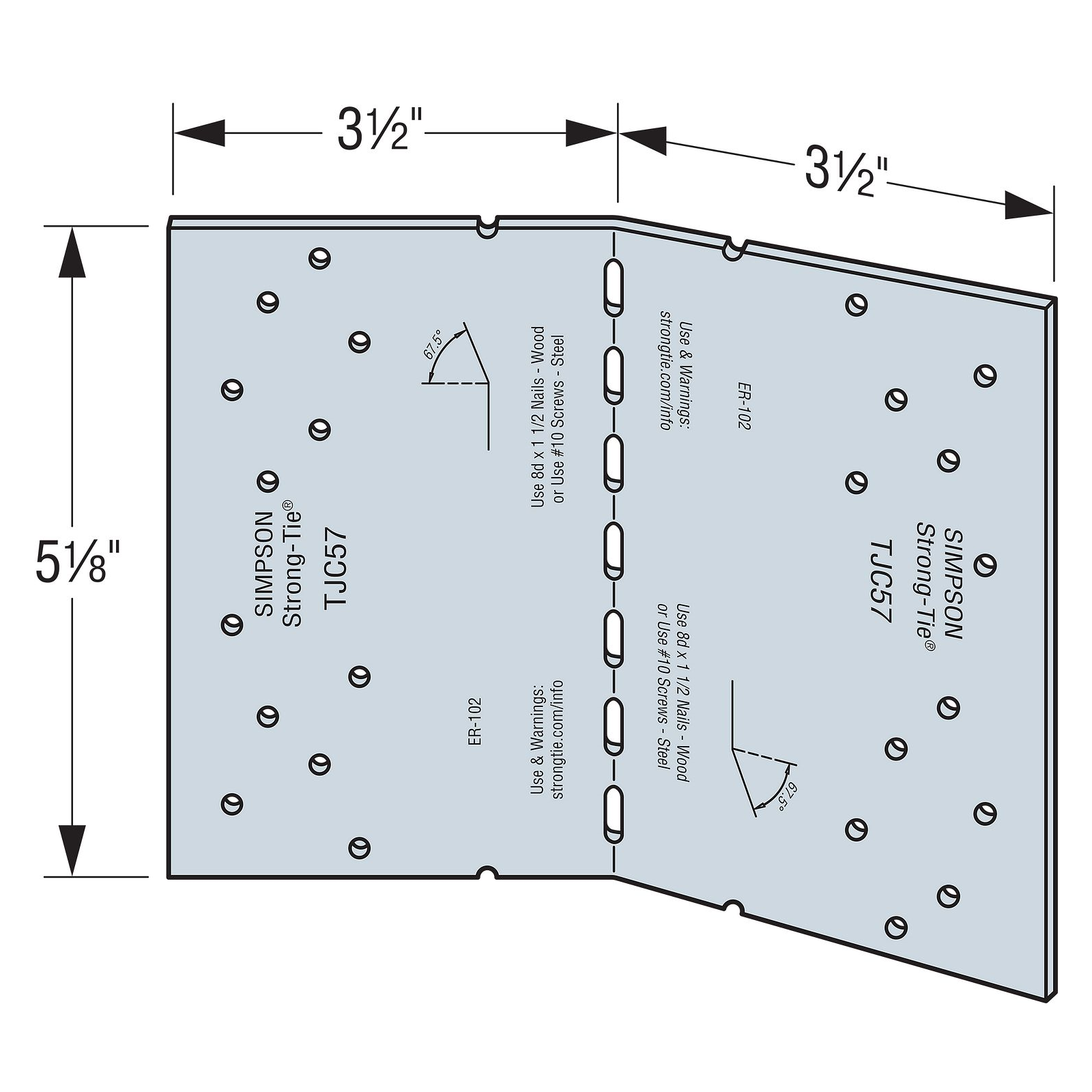

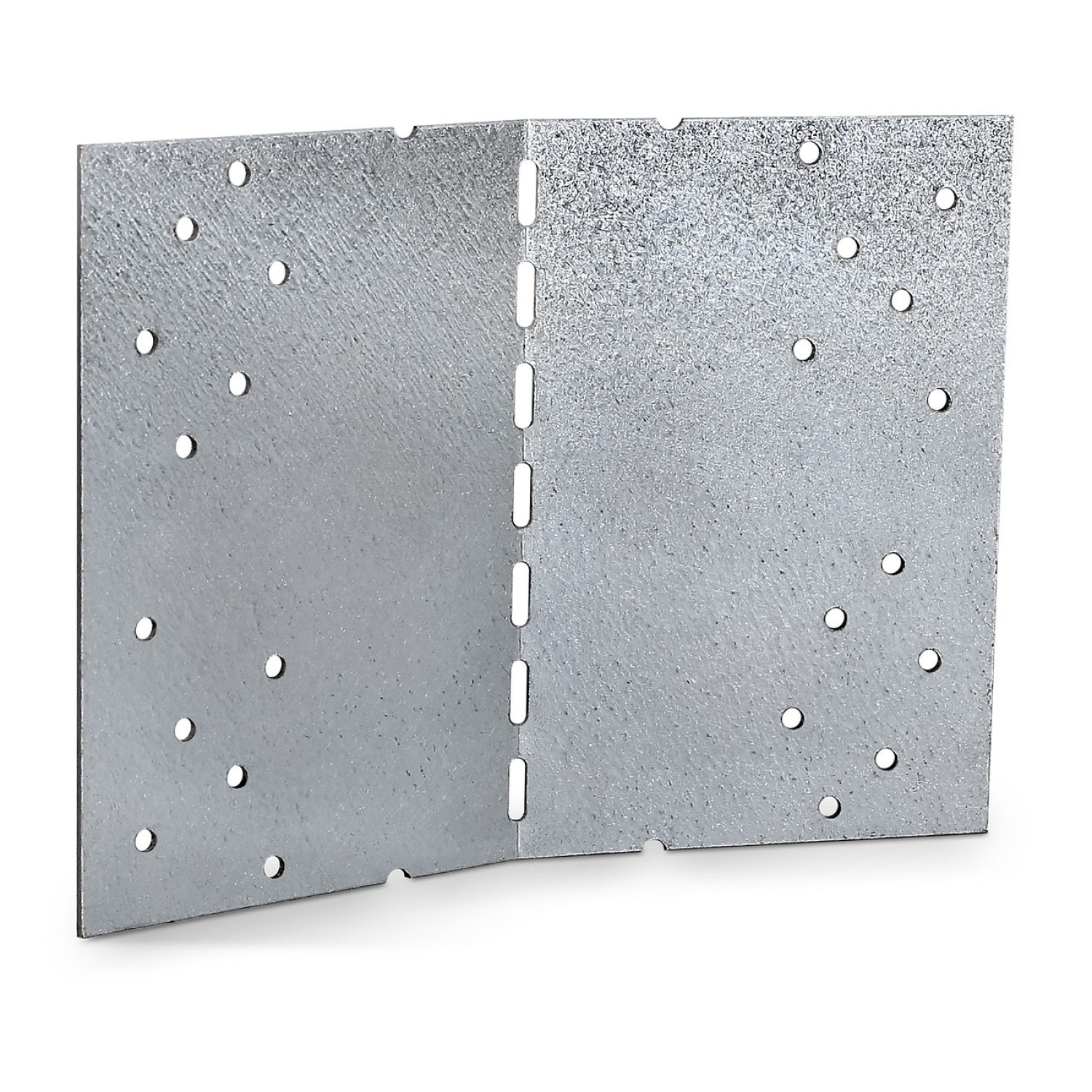

The Simpson TJC57 is a versatile connector for jack trusses that's adjustable from 0° to 85° (shipped with 67.5° bend). Minimum nailing choice offers lower installed cost and faster installation while nail hole locations allow for easy set up.

 Installation:

• Use all Specified Fasteners

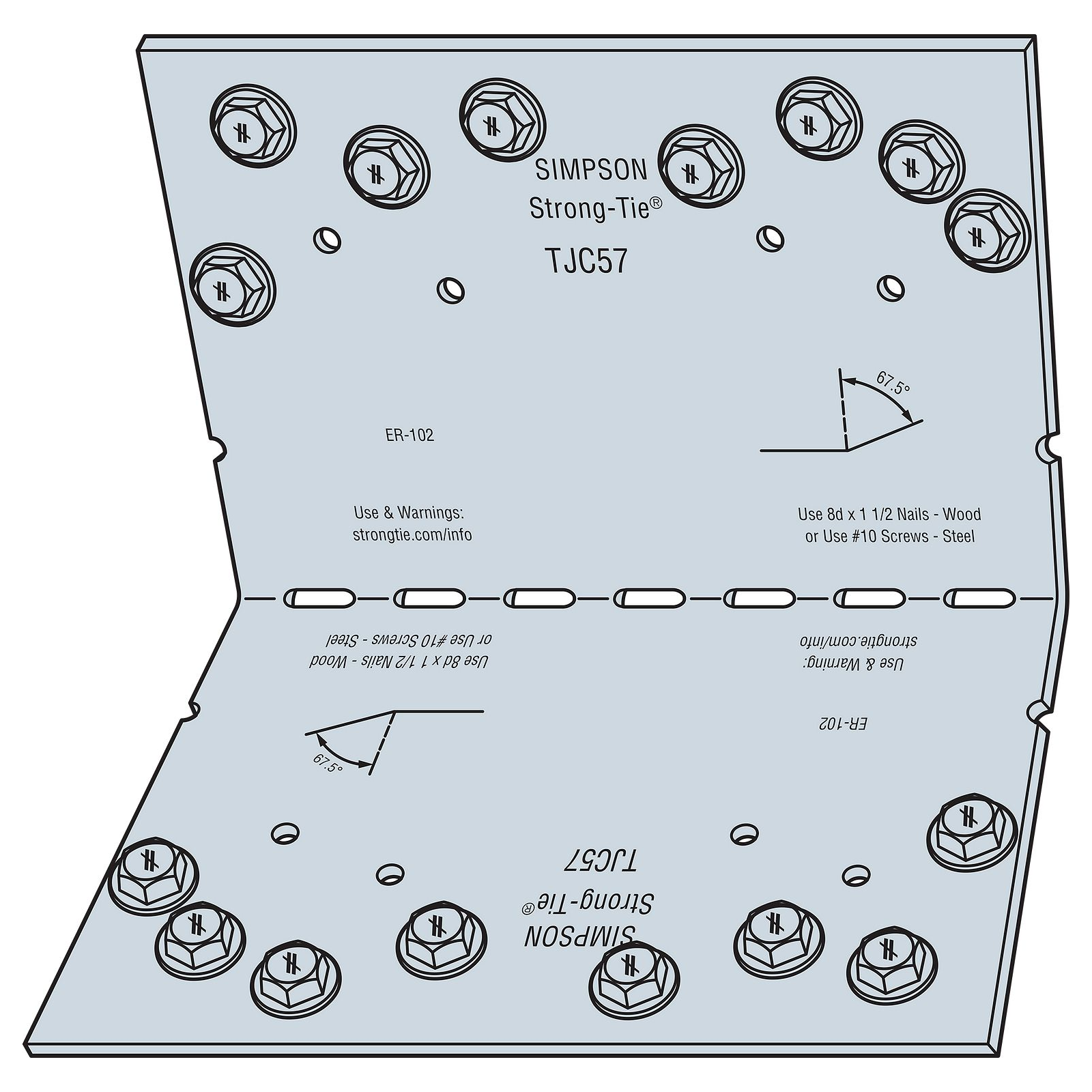

• TJC37 can be installed filling round holes only, or filling round and triangle holes for maximum values.
• To reduce the potential for splitting, install the TJC with a minimum 3/16" edge distance on the chord members.
• Position the jack truss on the inside of the bend line with the end of the jack truss flush with the bend line.
• Bend the TJC to the desired position (one bend cycle only).
• No bevel cut required.

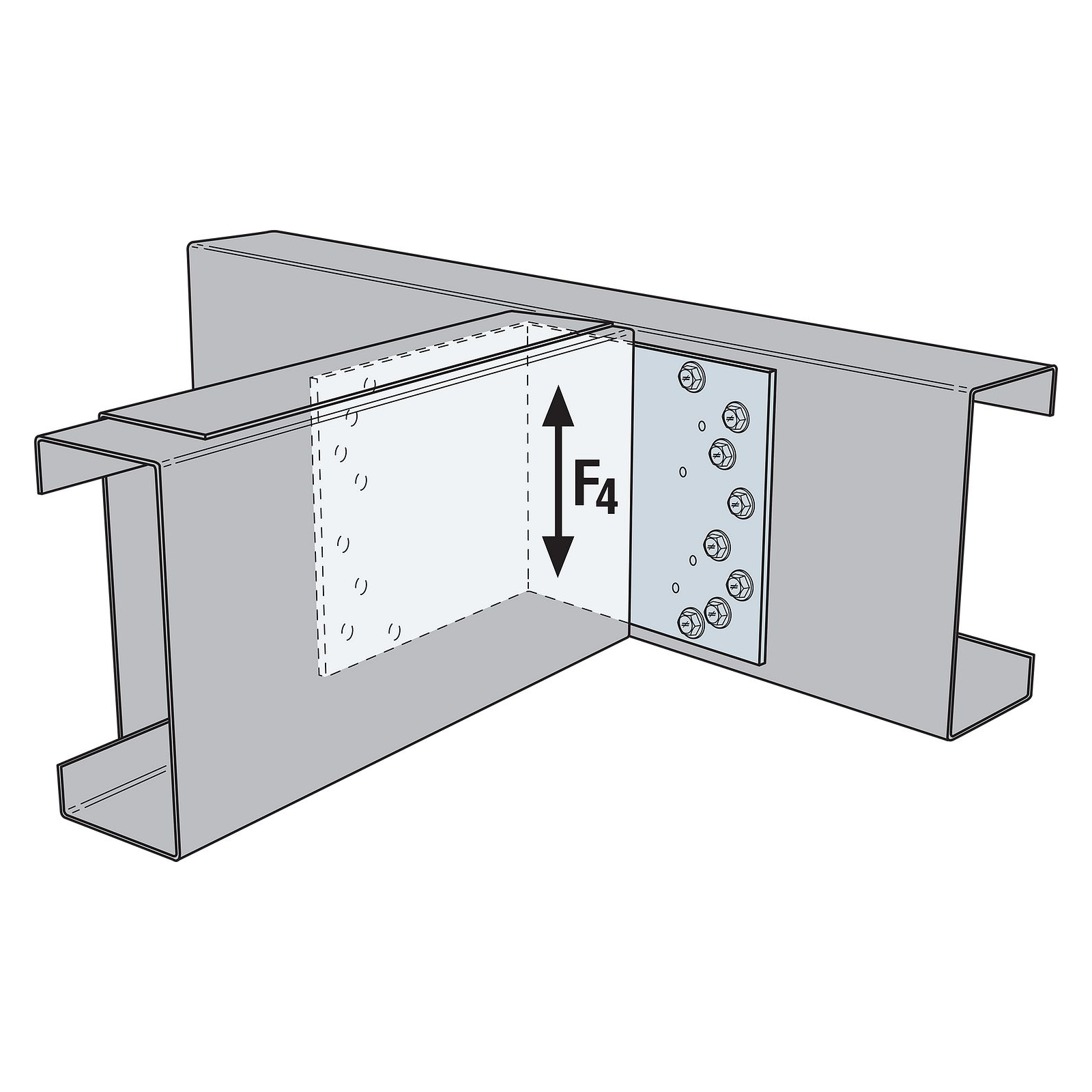

• Attachment of TJC to the top chord requires the designer to check connection geometry for placement on both carried and carrying chord members. See Top Chord Member Sizes table for suggested chord sizes.
• Supported jack member is a single 2x.

 NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

-Use all Specified Fasteners
-TJC37 can be installed filling round holes only, or filling round and triangle holes for maximum values.
-To reduce the potential for splitting, install the TJC with a minimum 3/16" edge distance on the chord members.
-Position the jack truss on the inside of the bend line with the end of the jack truss flush with the bend line.
-Bend the TJC to the desired position (one bend cycle only).
-No bevel cut required.
-Attachment of TJC to the top chord requires the designer to check connection geometry for placement on both carried and carrying chord members. See Top Chord Member Sizes table for suggested chord sizes.
-Supported jack member is a single 2x.
