2" x 2" Simpson BP 1/2 Bearing Plate for 1/2" Bolt - Plain
2" x 2" Simpson BP 1/2 Bearing Plate for 1/2" Bolt - Plain!
2" x 2" Simpson BP 1/2 Bearing Plate for 1/2" Bolt - Plain
Specifications

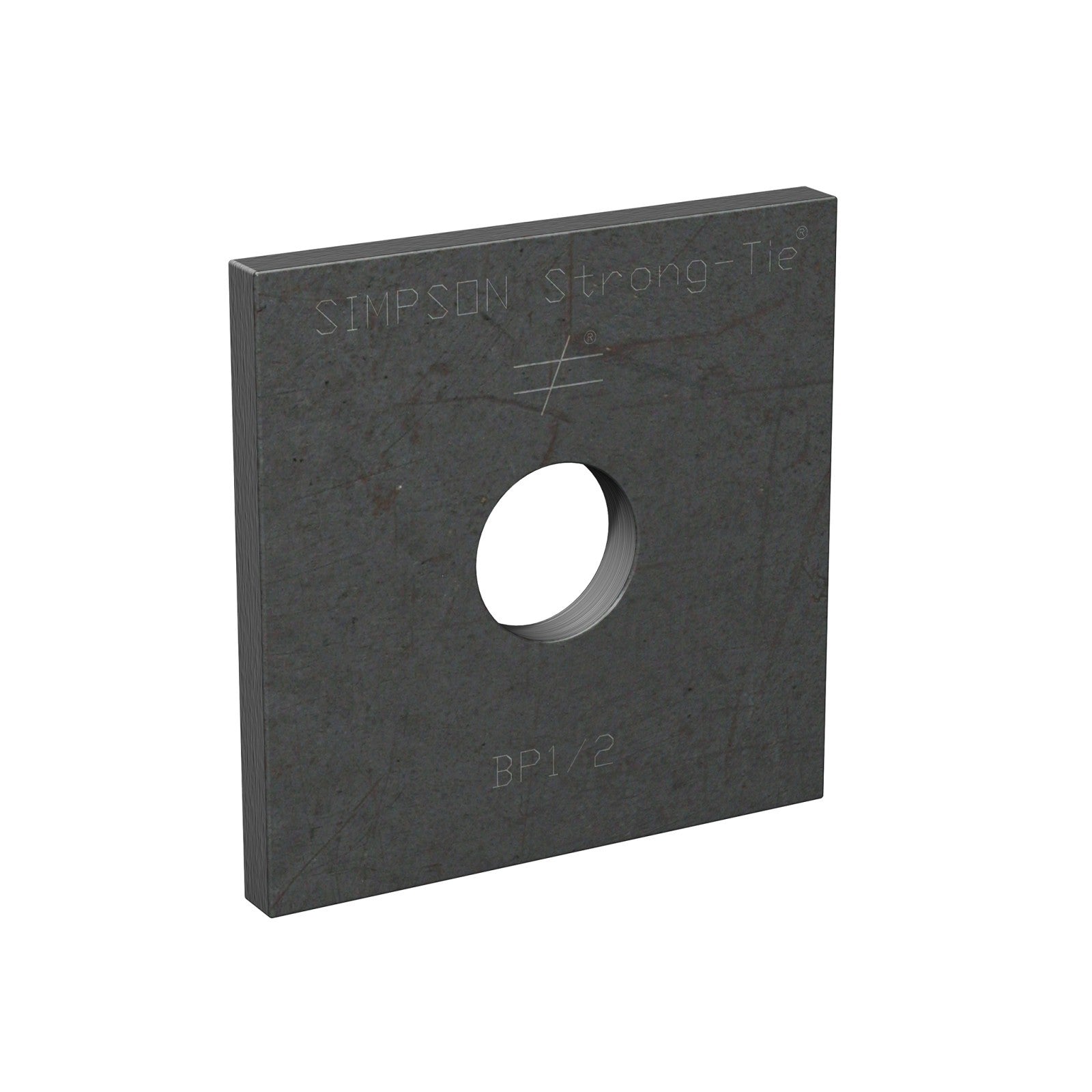

The Simpson BP Bearing Plate is engineered to provide a wider and more secure load distribution than traditional cut washers, making it a critical upgrade in structural anchoring systems. Used beneath anchor bolt nuts, this plate improves the performance of shear wall and base connections, especially in high-load or code-sensitive applications.
Key Features
- Delivers a larger bearing surface than standard washers for enhanced connection strength. Q
- Available in multiple bolt diameters (½? to 1?) and plate sizes ranging from 2??×?2? to 3½??×?3½?.
- Offered in plain steel and hot-dip galvanized finishes to suit different environmental conditions.
Applications

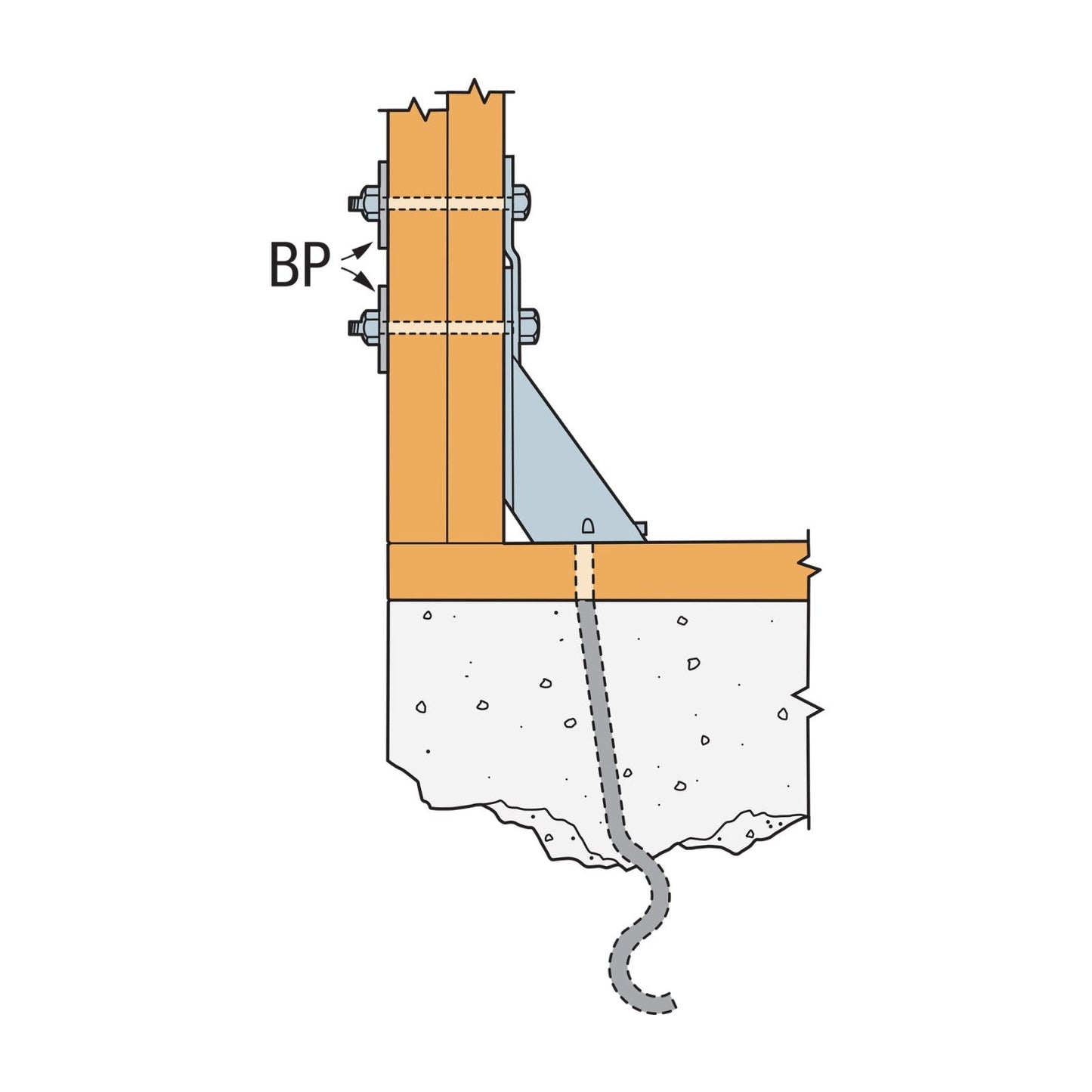

- Strengthens anchor bolt assemblies in foundation plates and shear walls.
- Meets code requirements when placed within ½? of the bottom track edge in shear wall applications.
- Suitable for residential, commercial, and industrial builds needing durable base connections.
Installation
- Select the proper plate based on anchor bolt size and structural design.

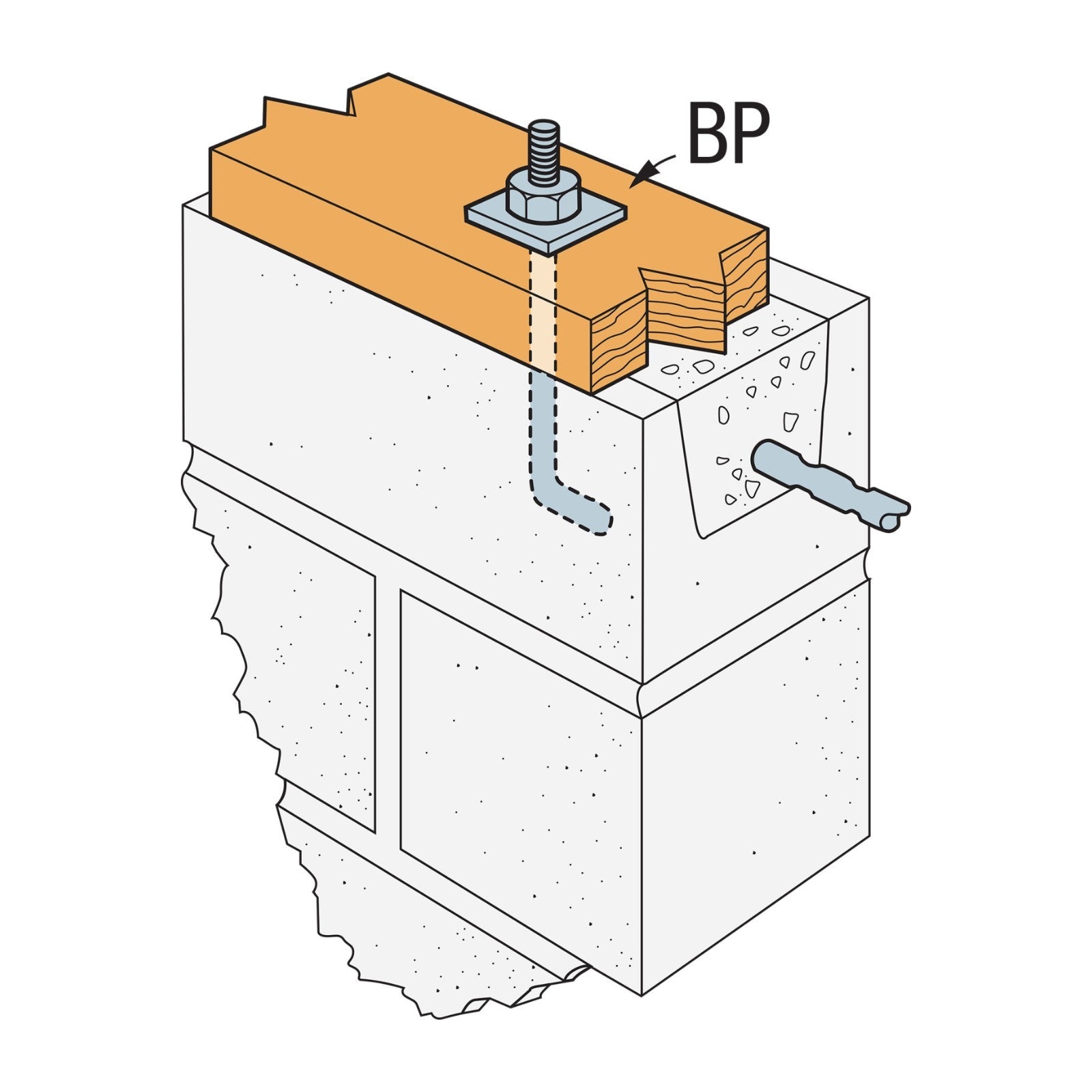

- Position the plate under the nut, flush to the surface, replacing standard washers.
- For code compliance in shear wall setups, align plate edge within ½? of the sheathed bottom track.
- Tighten the nut per engineering or manufacturer specs to ensure proper load transfer.
