4" Ratchet Straps

4-Inch Heavy-Duty Ratchet Straps

4-inch ratchet straps provide the strength and durability needed to secure large, heavy cargo during transport. These heavy-duty tie-down straps are commonly used by trucking fleets, equipment haulers, and transportation professionals moving machinery, lumber, steel, building materials, and other demanding loads.

Choose from multiple lengths, colors, and end fittings, including flat hooks, wire hooks, chain extensions, and D-rings. The appropriate configuration depends on the available anchor points, cargo dimensions, trailer design, and required working load limit.

4-Inch Ratchet Strap Construction

These heavy-duty trailer straps combine durable polyester webbing, rugged hardware, and a high-tension ratchet to withstand frequent use in commercial cargo securement applications.

Heavy-Duty Polyester Webbing

The 20K polyester webbing is woven with thick yarn and a high number of picks per inch to improve resistance to abrasion, tearing, and cutting. Heat-sealed ends help prevent the webbing from unraveling during regular use.

Polyester stretches very little and absorbs minimal water. It also resists shrinking and degradation caused by UV exposure, making it well suited for demanding transportation environments.

Controlled Ratcheting Operation

The ratchet mechanism allows the user to apply controlled tension to the webbing and secure the load more effectively than rope or elastic tarp straps. Lifting the ratchet handle releases the webbing when unloading.

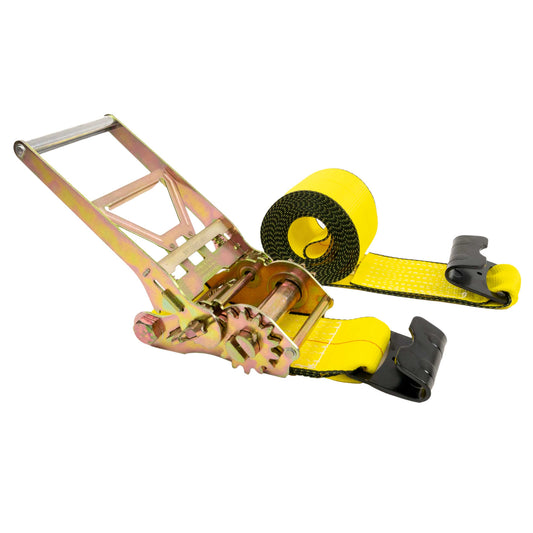

Reverse-action ratchet straps are also available. This ergonomic design applies tension by pulling the handle downward instead of pushing it upward.

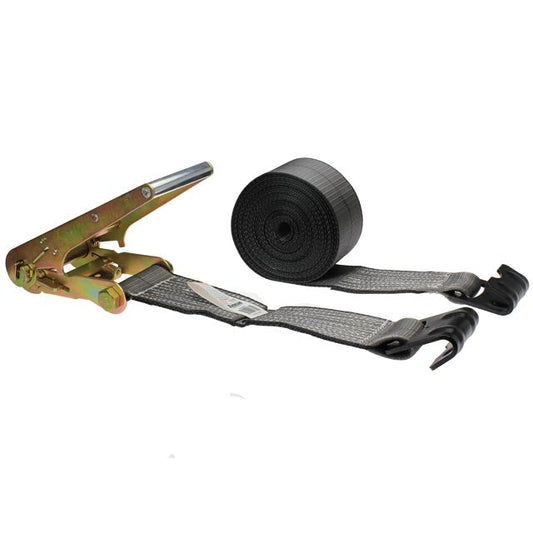

Blackline Ratchet Straps

Blackline ratchet straps use 24,000-pound break-strength webbing with reinforced edging for additional abrasion resistance. This number refers to the webbing break strength and should not be confused with the completed strap's working load limit.

A long, wide-handled ratchet helps improve leverage and handling. Depending on the configuration, the end hardware is zinc plated or powder coated for added surface protection.

Choosing the Right End Hardware

The best end fitting depends on the trailer, anchor point, and type of cargo being secured.

Flat Hooks

Flat hooks attach easily to compatible trailer side rails and can also be used with certain E-track fittings. Their wide profile distributes force across a larger contact area. An integrated defender helps protect the webbing from abrasion near the hook.

Wire Hooks

Wire hooks have a narrower profile that fits into compatible anchor points where wider hardware may not work. Always confirm that the hook is fully seated and that the anchor point is properly rated before applying tension.

Chain Extensions

Chain extensions combine Grade 70 transport chain with flexible polyester webbing. The chain can connect to compatible rub rails and stake pockets while helping keep the webbing away from abrasive metal attachment points.

D-Rings

D-rings provide a versatile connection point for compatible hooks and other cargo securement hardware. They are useful when the trailer or vehicle already has a properly rated hook-style attachment.

Industry Standards and Strap Ratings

These heavy-duty ratchet straps are manufactured to meet applicable DOT regulations, CVSA and WSTDA guidelines, and North American Cargo Securement standards. Each strap is tagged with its working load limit and capacity information for easier inspection and proper selection.

The working load limit of the complete tie-down assembly is determined by its lowest-rated component. Never select or use a strap based only on the webbing break strength.

How to Choose a 4-Inch Ratchet Strap

Begin by determining the cargo weight and the number of tie-downs required under applicable cargo securement regulations. The combined working load limits of the straps must be sufficient for the load and securement method.

Also consider the required strap length, available anchor points, end-fitting compatibility, and potential contact with corners or abrasive surfaces. Corner protectors and wear sleeves may be needed to protect the webbing and cargo.

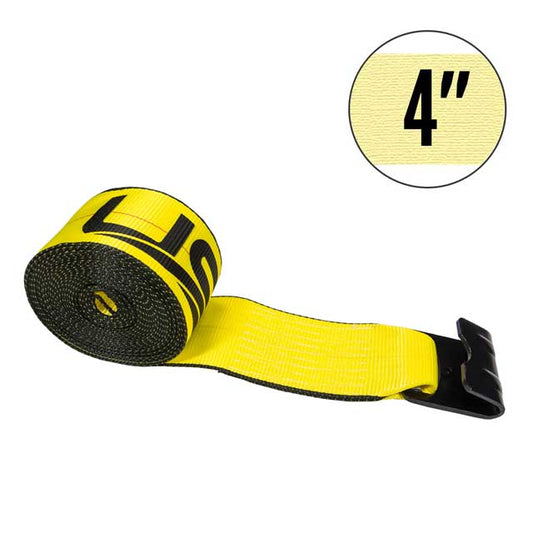

4-Inch Ratchet Straps vs. Winch Straps

A ratchet strap includes its own tensioning mechanism, allowing it to be used with compatible anchor points on many trailers and transport vehicles. A winch strap is tensioned with a trailer-mounted winch and is commonly used on flatbed trailers. The appropriate option depends on the trailer's securement system and the load being transported.

Inspection and Maintenance

Inspect every heavy-duty tie-down before use. Remove the strap from service if its condition could affect strength or securement performance.

• Check the webbing for cuts, holes, burns, knots, fraying, chemical damage, or severe abrasion.
• Inspect stitching for broken, pulled, or excessively worn threads.
• Look for bent, cracked, corroded, or damaged hooks, D-rings, chain, and ratchet components.
• Confirm that the ratchet opens, closes, and locks correctly.
• Make sure the working load limit tag is present and readable.
• Store straps in a clean, dry area away from direct sunlight and harsh chemicals.
• Keep webbing clear of sharp edges or use appropriate edge protection.

4-Inch Ratchet Strap Accessories

Protective accessories help reduce webbing wear, protect cargo surfaces, and extend the usable life of heavy-duty truck straps.

Corner and Edge Protectors

Corner protectors create a barrier between the tie-down strap and the cargo. They help reduce abrasion, distribute strap pressure across a wider area, and protect materials such as drywall, plywood, brick, lumber, and steel sheeting.

CORDURA Wear Sleeves

CORDURA wear sleeves add a movable protective layer around 4-inch webbing. Slide the sleeve onto the strap and position it over the area that contacts the load, trailer, or another abrasive surface.

More Cargo Securement Options

Additional load securement products include 1-inch, 2-inch, and 3-inch ratchet straps, cam buckle straps, transport chain and binders, winch straps, and replacement tie-down straps.
